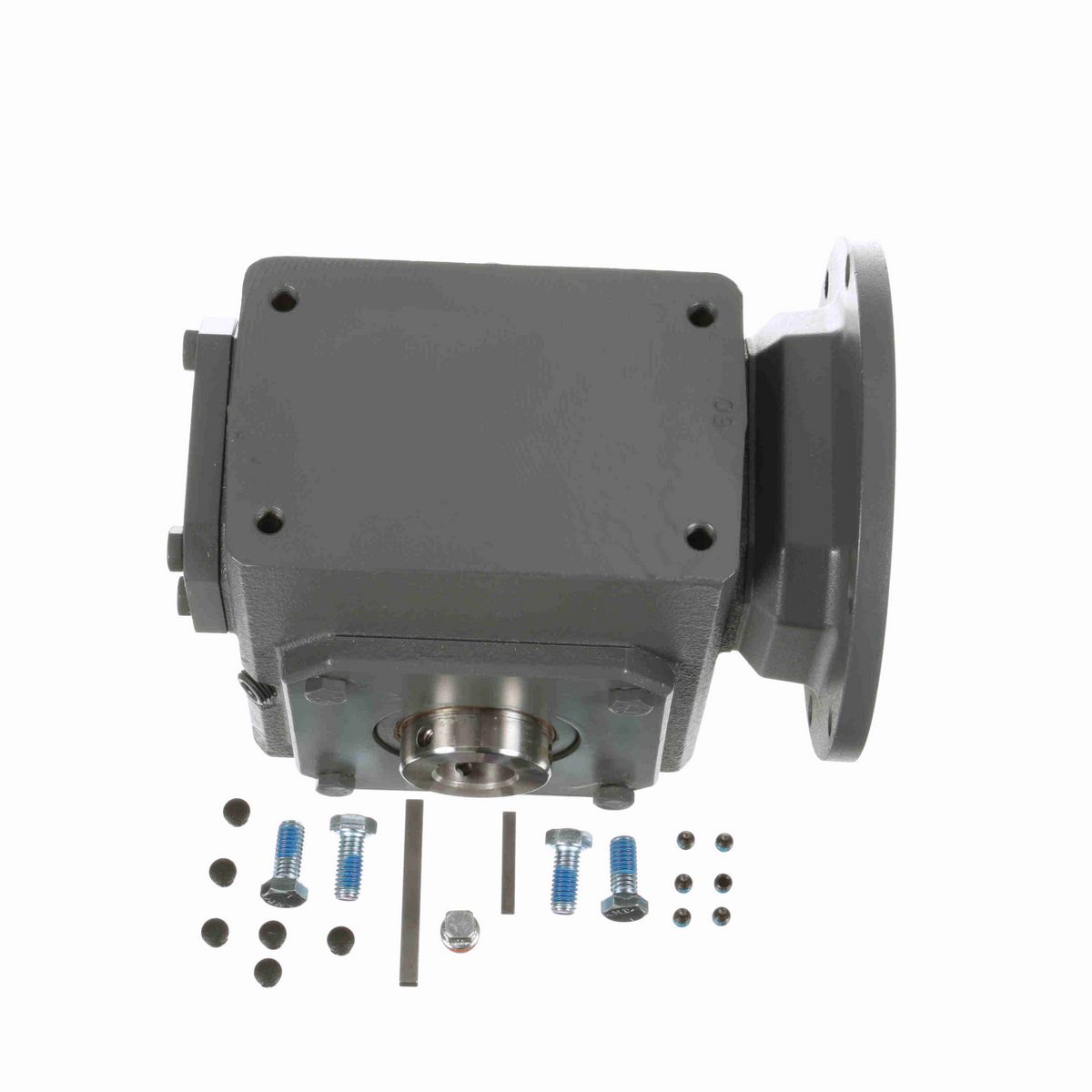

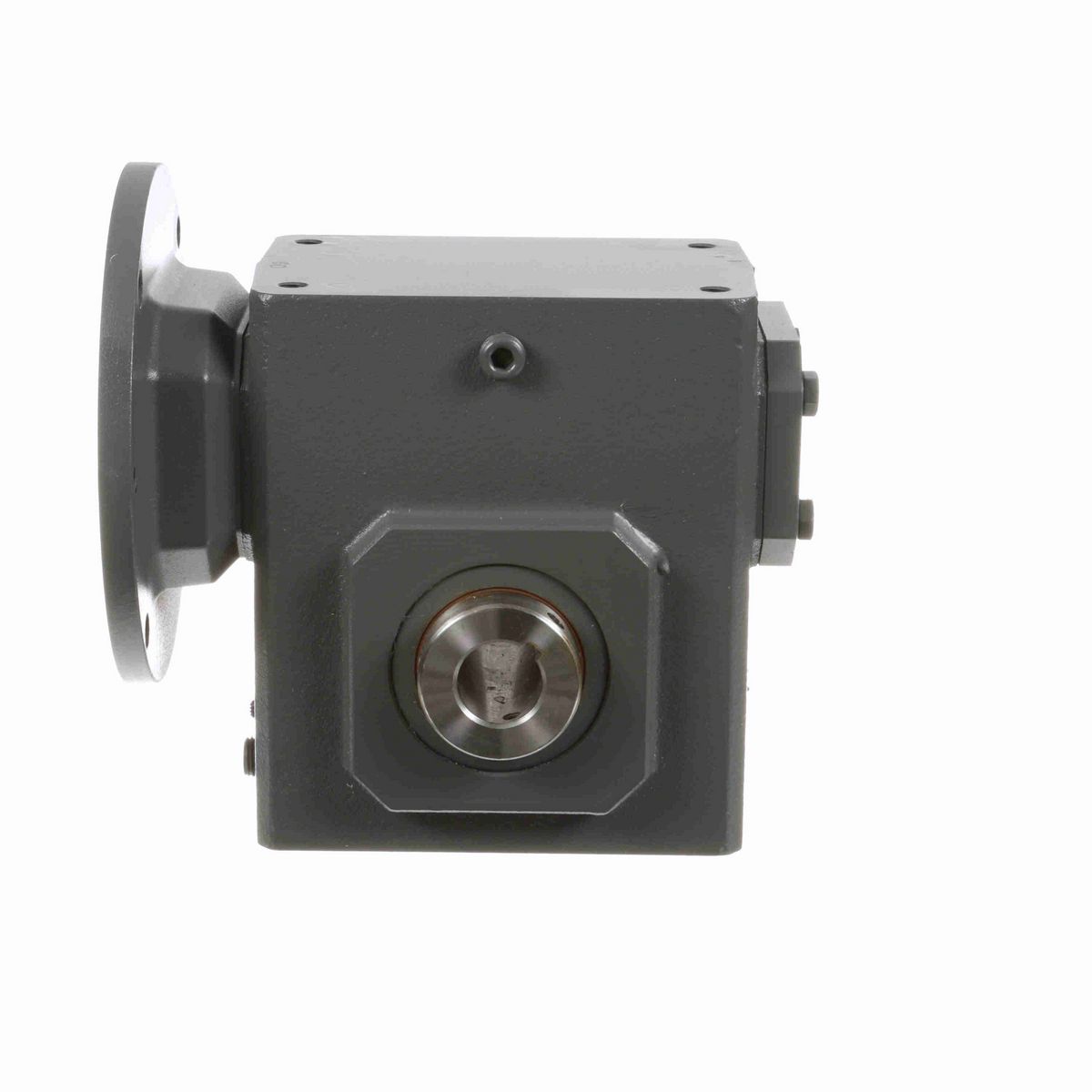

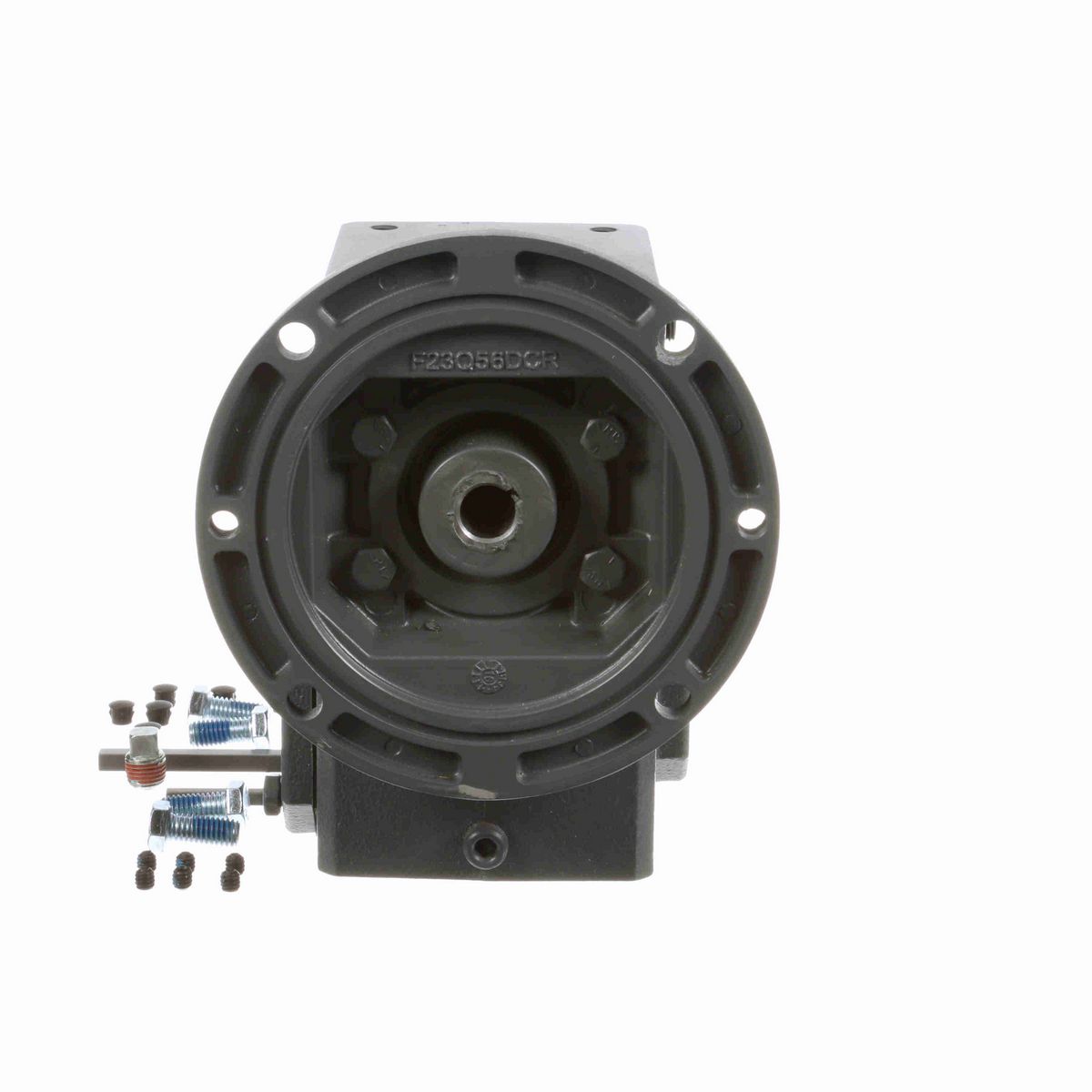

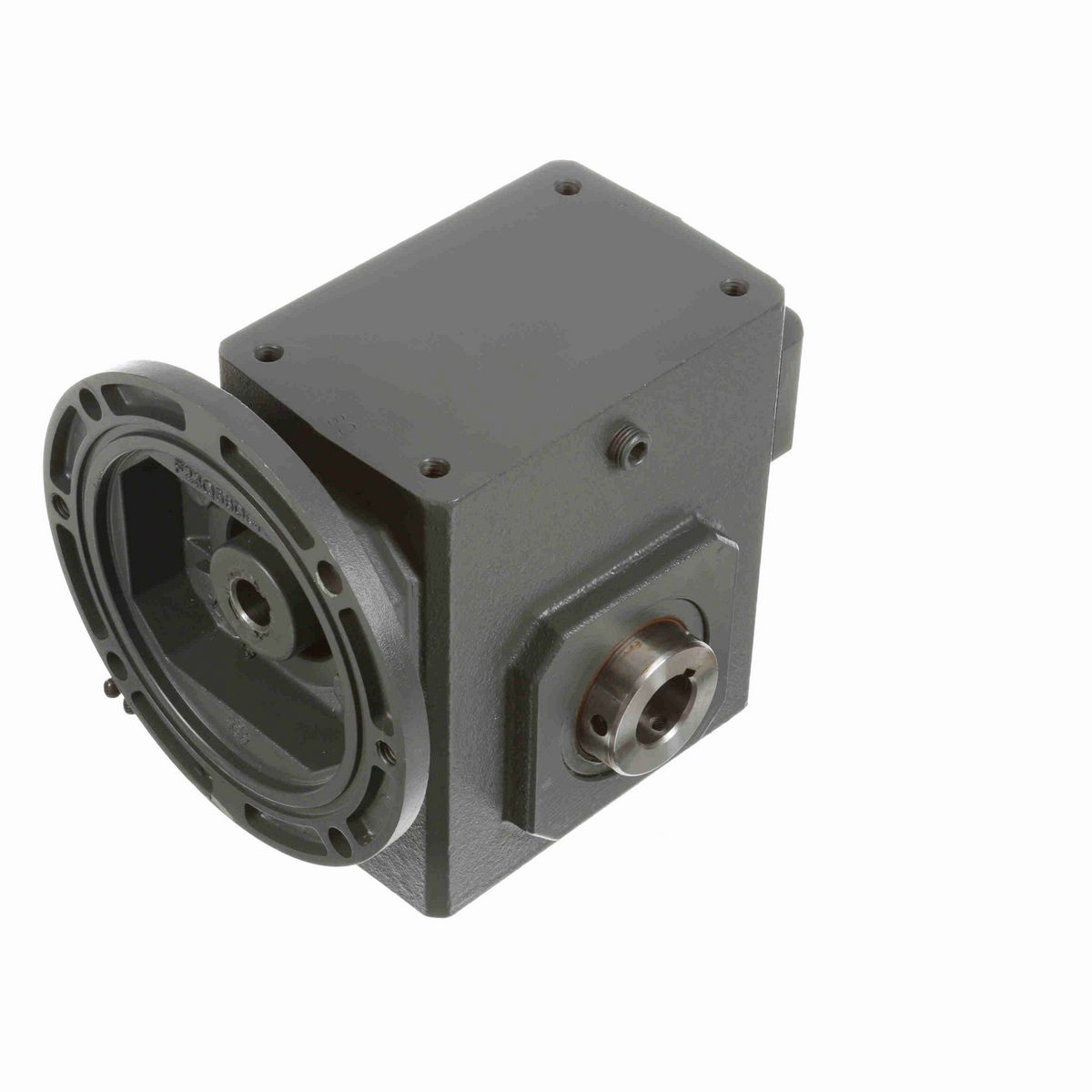

• Rugged Cast-Iron Housing: Provides maximum strength and dependability.
• High lead angle worm is case hardened, ground and polished.
• Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
• Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Dimensions

C	5 in
D	2.88
J	4.63 in
F	1.44
K	6.94 in
H	2.5 in
P	4.88 in
L	3.77 in
B	4.06
M	6
R	3.25 in
N	3
A	6.12
E	2.5

Technical Specifications

Input Keyway (C Face)	3/16 x 3/32
Motor Frame Size	56C
Ratio	60:1
Thrust Rating - output shaft	2091
Input Bore (C Face)	0.625
Efficiency	80
Reducer Style	Standard
Input Speed	1750
No. of Gear Reductions	Single
Gear Type	Worm
Product Type	Worm Speed Reducer
Output Diameter (in)	1.000 in
Input HP @ 1750 RPM	0.97
Frame Size	56C
Ratio Range	60:1
Input Style	C-Face Quill
Center Distance (in)	2.38
Output Torque Rating (in-lb)	1418 in-lbs @1750 input RPM in/lbs
Housing Material	Cast Iron
Output Shaft	Hollow Bore
Overhung Load Rating (Output Shaft(lb))	1,770 lb

General Specifications

UPC	662288998563
Weight	32.58 LB
Packaged Length	11.30 IN
Packaged Width	10.60 IN
Packaged Height	11.30 IN
