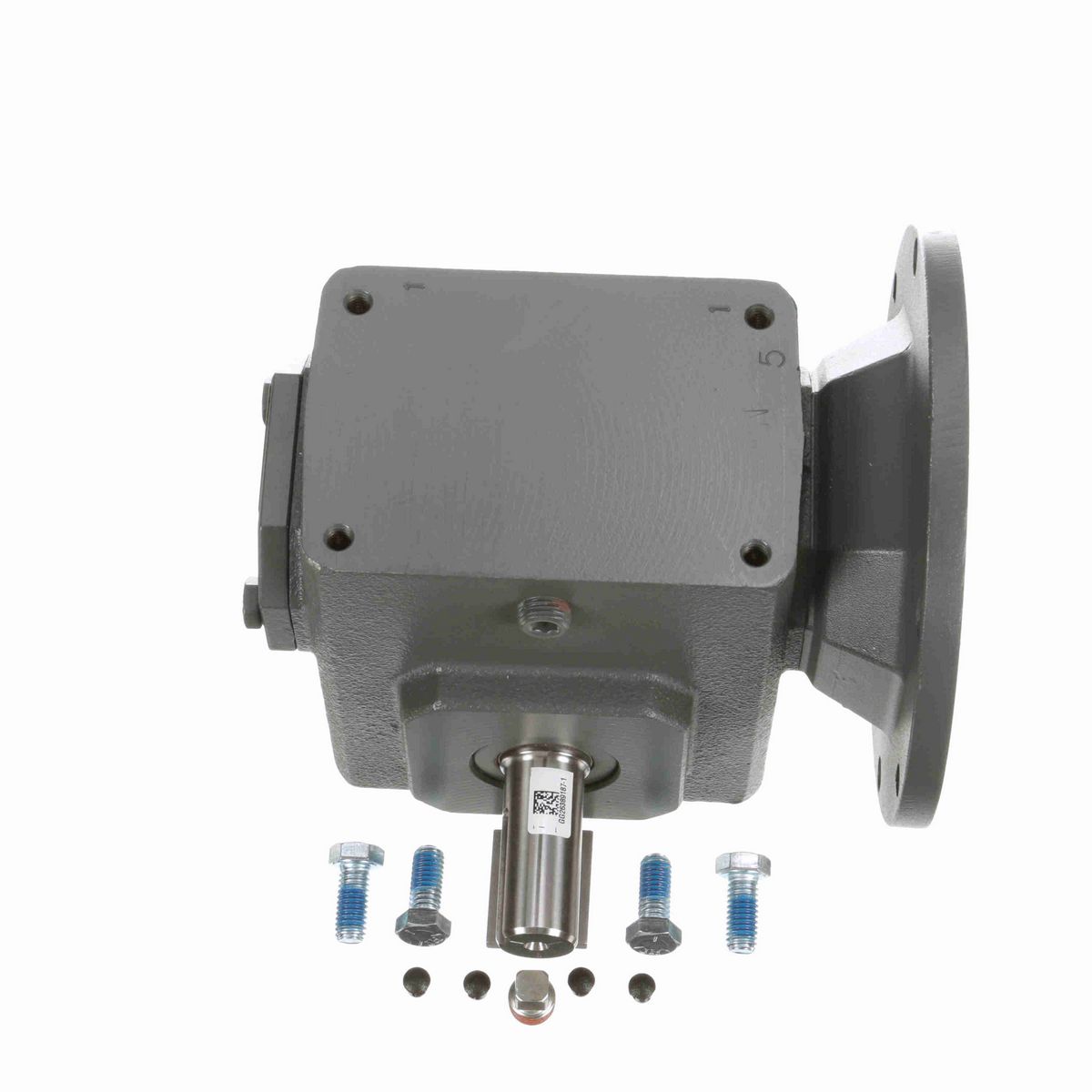

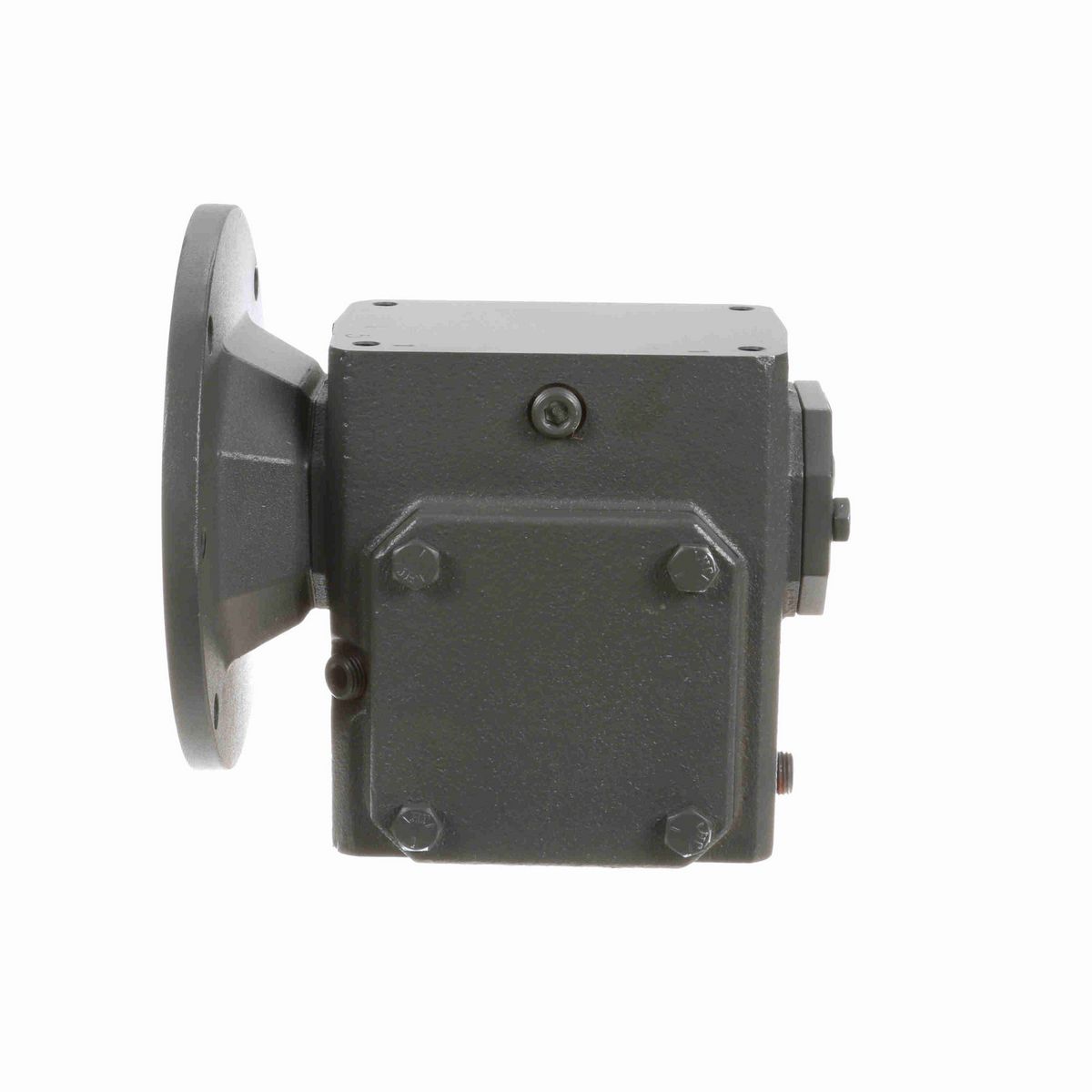

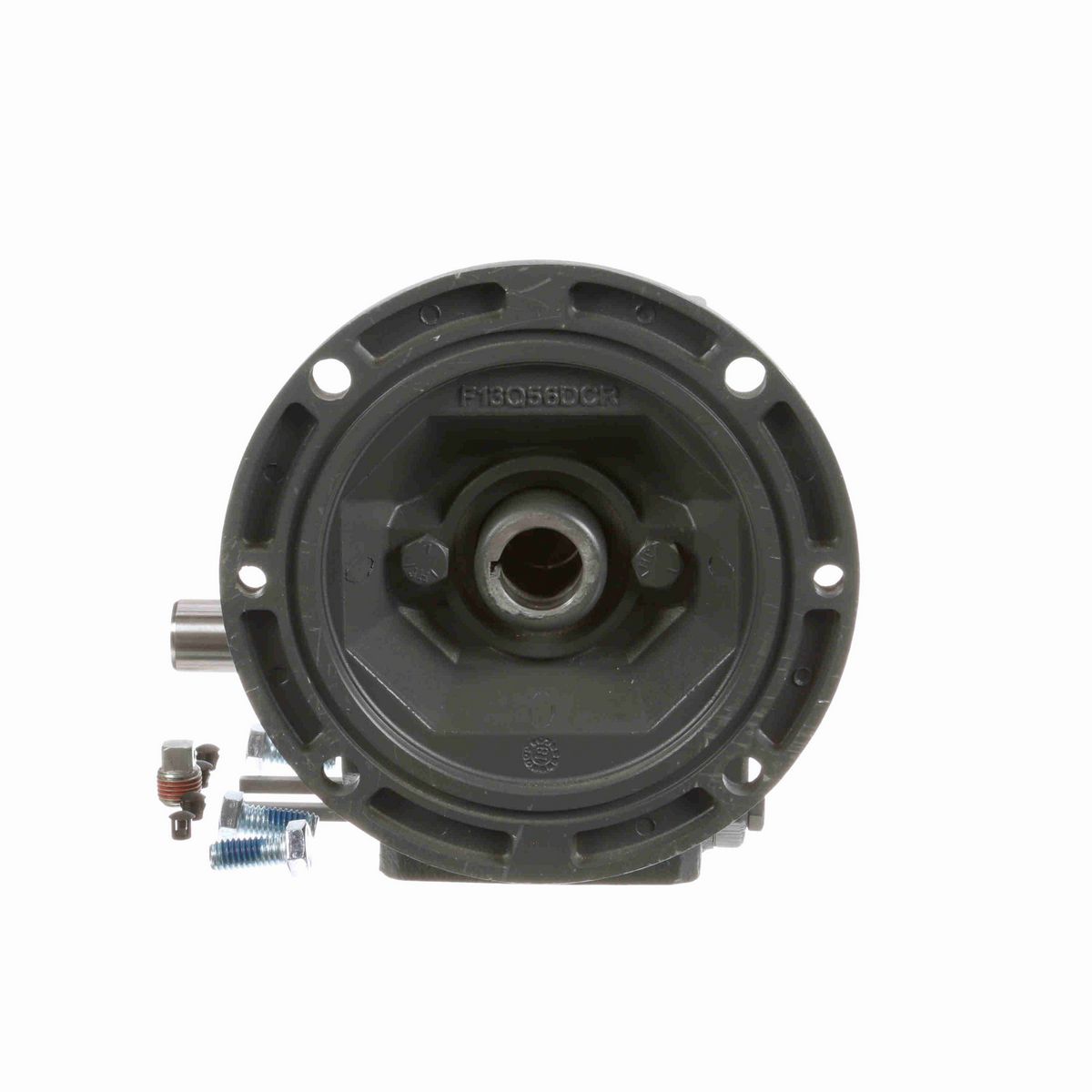

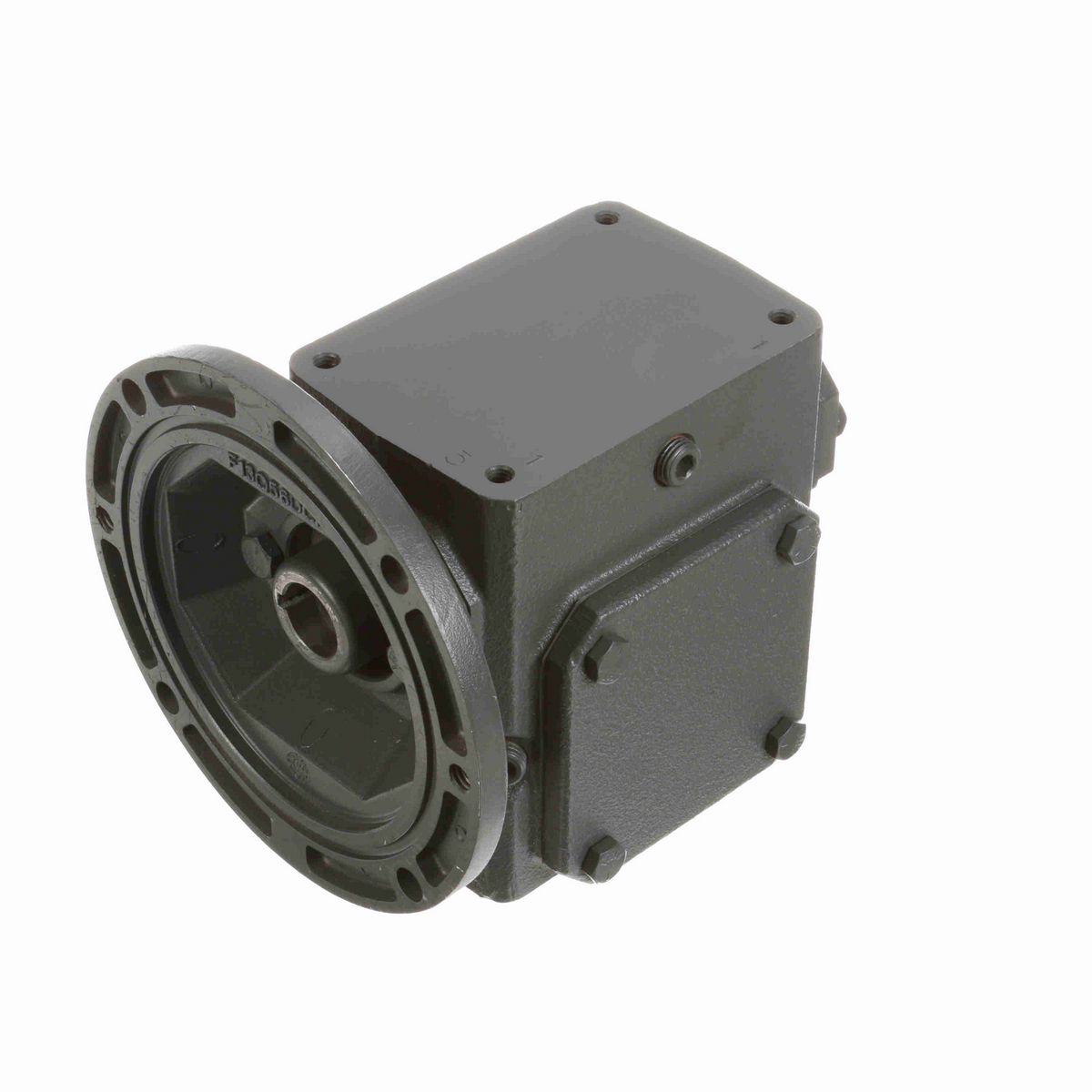

• Rugged Cast-Iron Housing: Provides maximum strength and dependability.
• High lead angle worm is case hardened, ground and polished.
• Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
• Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Dimensions

P	3.81 in
C	5.75 in
R	3.25 in
F	2.75
N	4.31
K	2.09 in
B	4.81
D	2.06
M	6.78
J	4.19 in
H	2.06 in
O	1.88 in
V	2.05 in
L	3.24 in
G	1.38
AK	4.5
LQ	4.38 in
Center Distance (in)	1.75 in
TAP Depth	0.61 in
E	2.09
T	0.875
BF	0.41
AJ	5.88
I	2.75 in
A	3.38
H-Tap size	5/16 - 18 in
BE	0.38 in
BD	6.5

Technical Specifications

Ratio	5:1
Motor Frame Size	140TC
Input Speed	1750
Efficiency	80
Thrust Rating - output shaft	868
Shaft Seal Material	Nitrile
Reducer Style	Standard
Input Bore (C Face)	0.875
Input Keyway (C Face)	3/16 X 3/32
Input RPM	1,750
Output Shaft Assembly Code	L
Service Factor	1
Gear Type	Worm
Series Code	Raider
No. of Gear Reductions	Single
Model Code	175Q
Reducer	Worm - Right Angle
Center Distance (in)	1.75
Input Diameter (in)	0.875 in
Output Diameter (in)	0.875 in
Output RPM	350
Ratio Range	5:1
Mounting Style	No Base
Input HP @ 1750 RPM	2.45
Assembly	Q-L
Input Style	C-Face Quill
Output Key	3/16 X 1.38
Frame Size	140TC
Product Type	Worm Speed Reducer
Output Shaft Direction	Left
Output Shaft	Solid Shaft
Output Torque Rating (in-lb)	436 in-lbs @1750 input RPM in/lbs
Housing Material	Cast Iron
Overhung Load Rating (Output Shaft(lb))	663 lb

General Specifications

UPC	662288343455
Weight	24.00 LB
