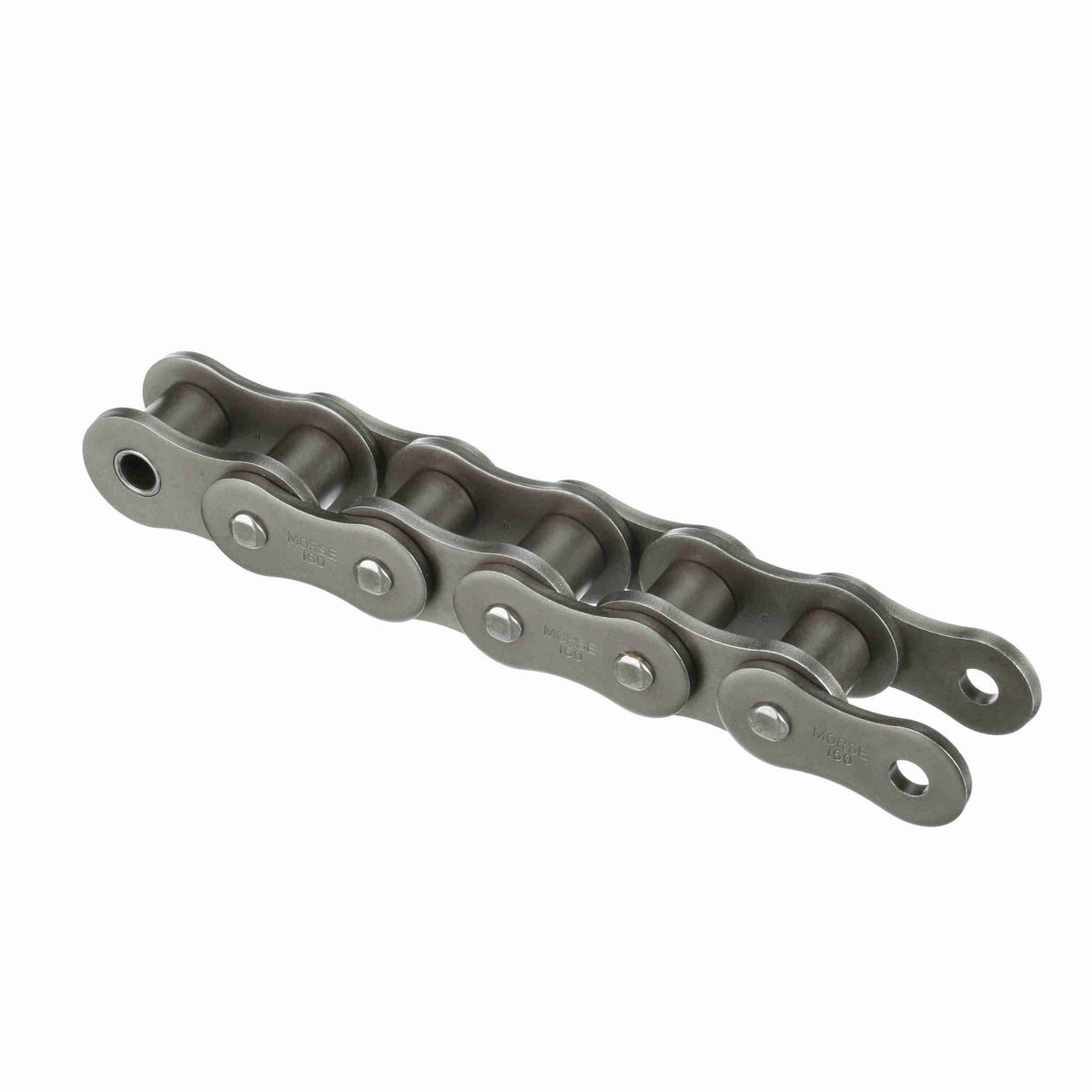

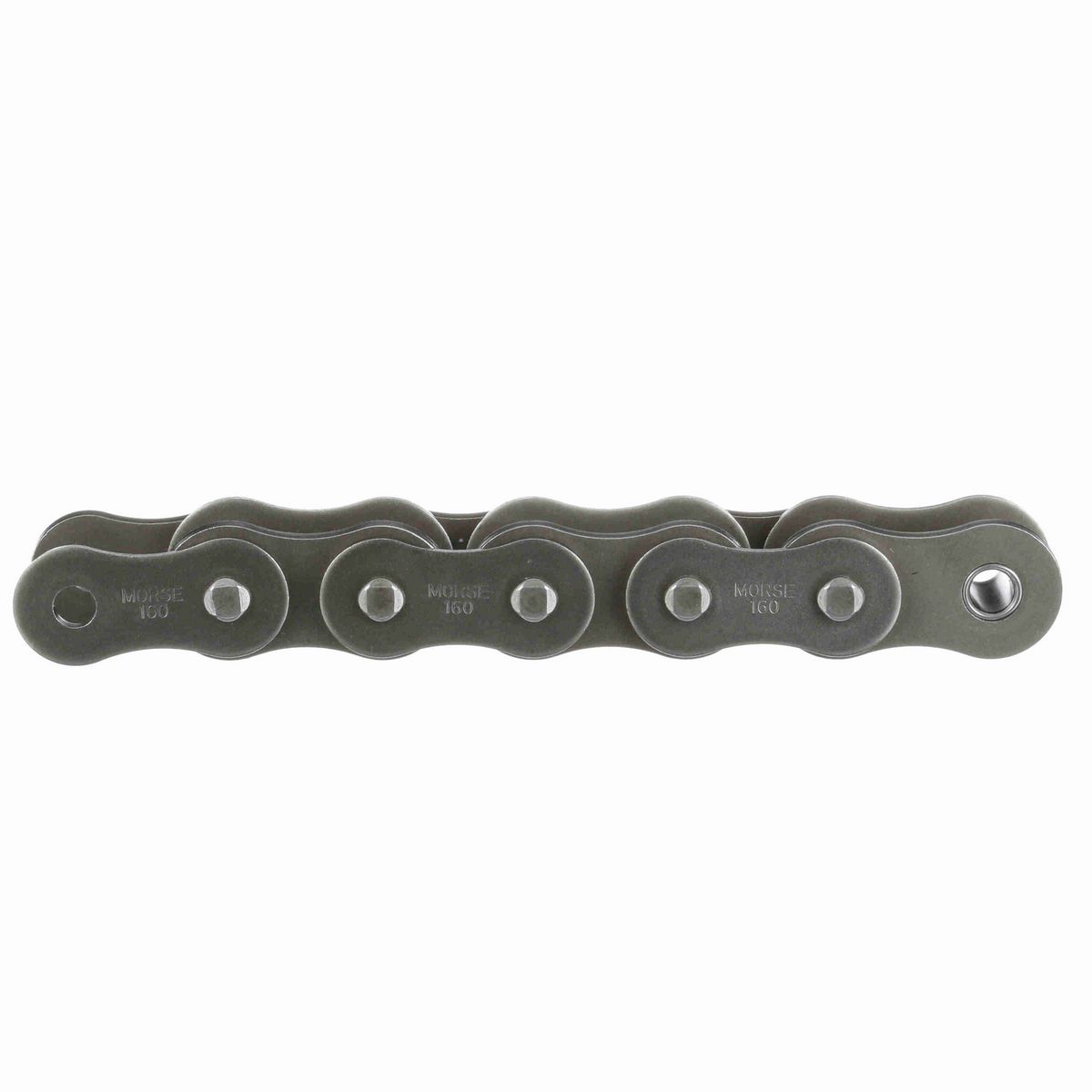

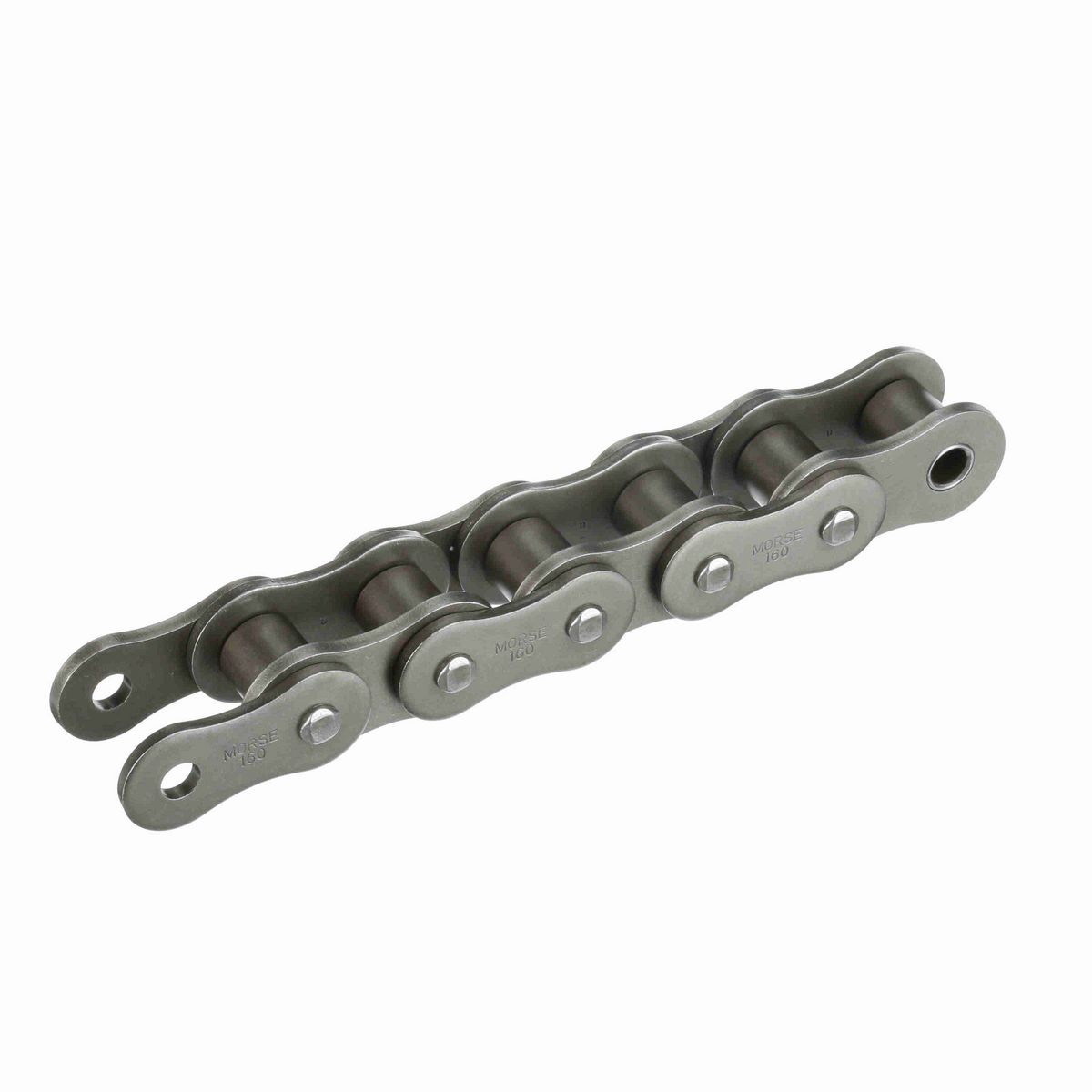

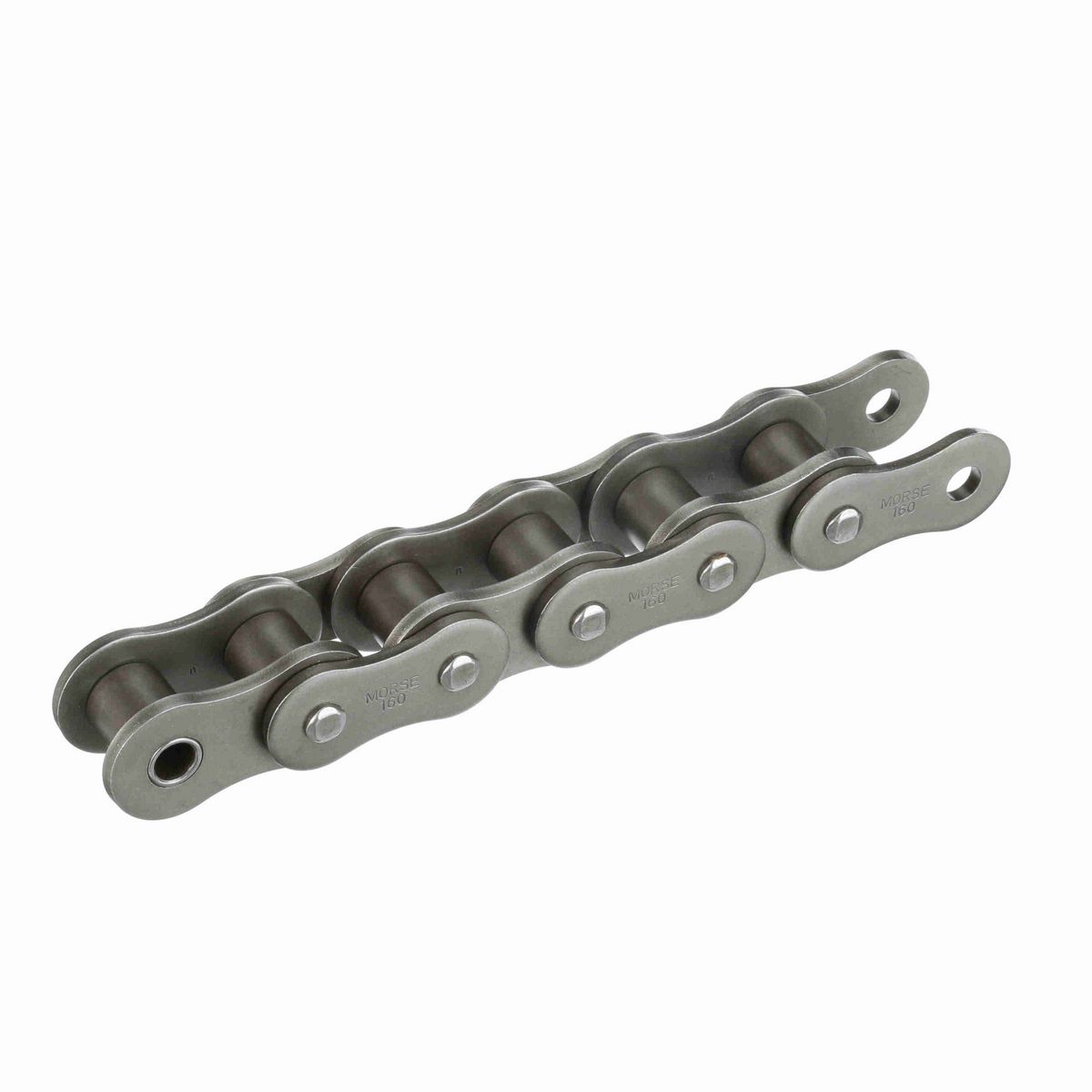

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Chain Family	160
Roller Diameter (in)	1.125 in
Pin Diameter (in)	0.562 in
Chain Construction	Riveted
Number of Connecting Links Included	1
Material	Steel
Number of Strands/Width	1
Roller Width (in)	1.25 in
Chain Pitch (in)	2 in
Product Type	Roller Chain
Chain Type	Standard
Coating	Uncoated
Standard Met	ANSI B29.1
Measurement System	Imperial
Pin Length (in)	2.522 in
Inside Plate Height (in)	1.866 in
Base Catalog No	160
Plate Thickness (in)	0.25 in
Side Plate Configuration	Hourglass
Width Over Pins/Total Width (in)	2.522 in
Minimum Tensile Strength (lbs)	50,000 lb
Total Length (ft)	10 ft

General Specifications

UPC	662288395348
Weight	6.64 LB
Packaged Length	17.00 IN
Packaged Width	17.20 IN
Packaged Height	3.40 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
