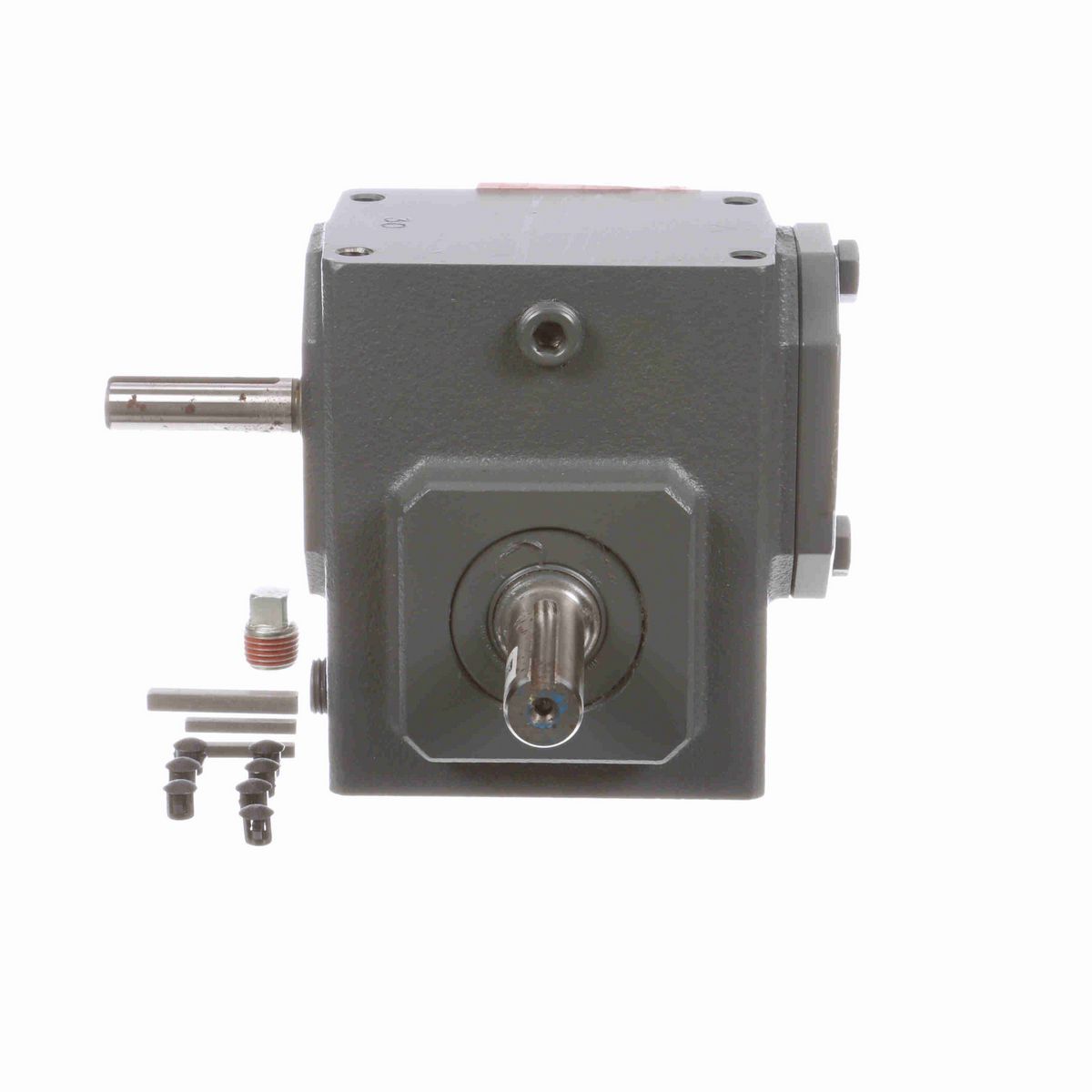

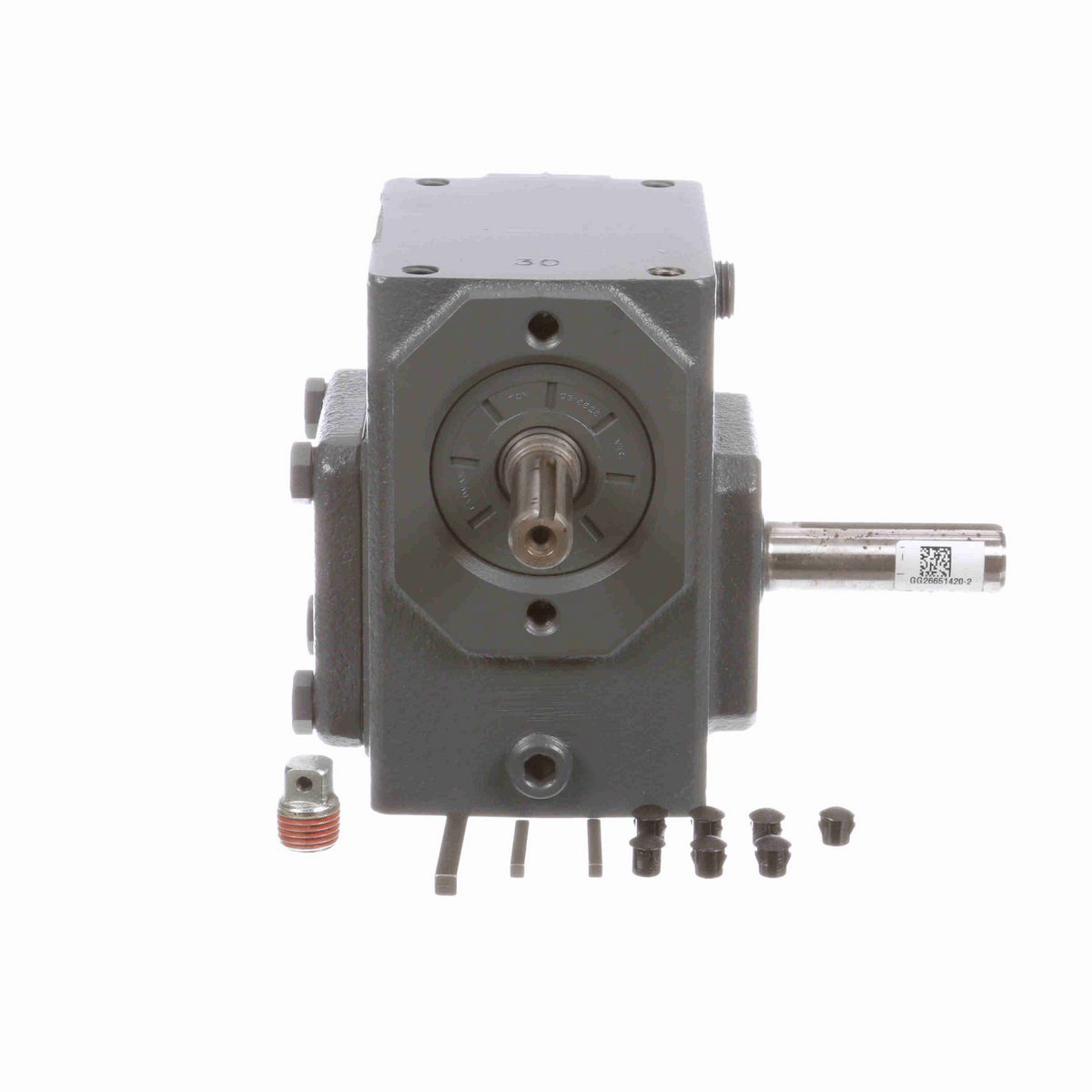

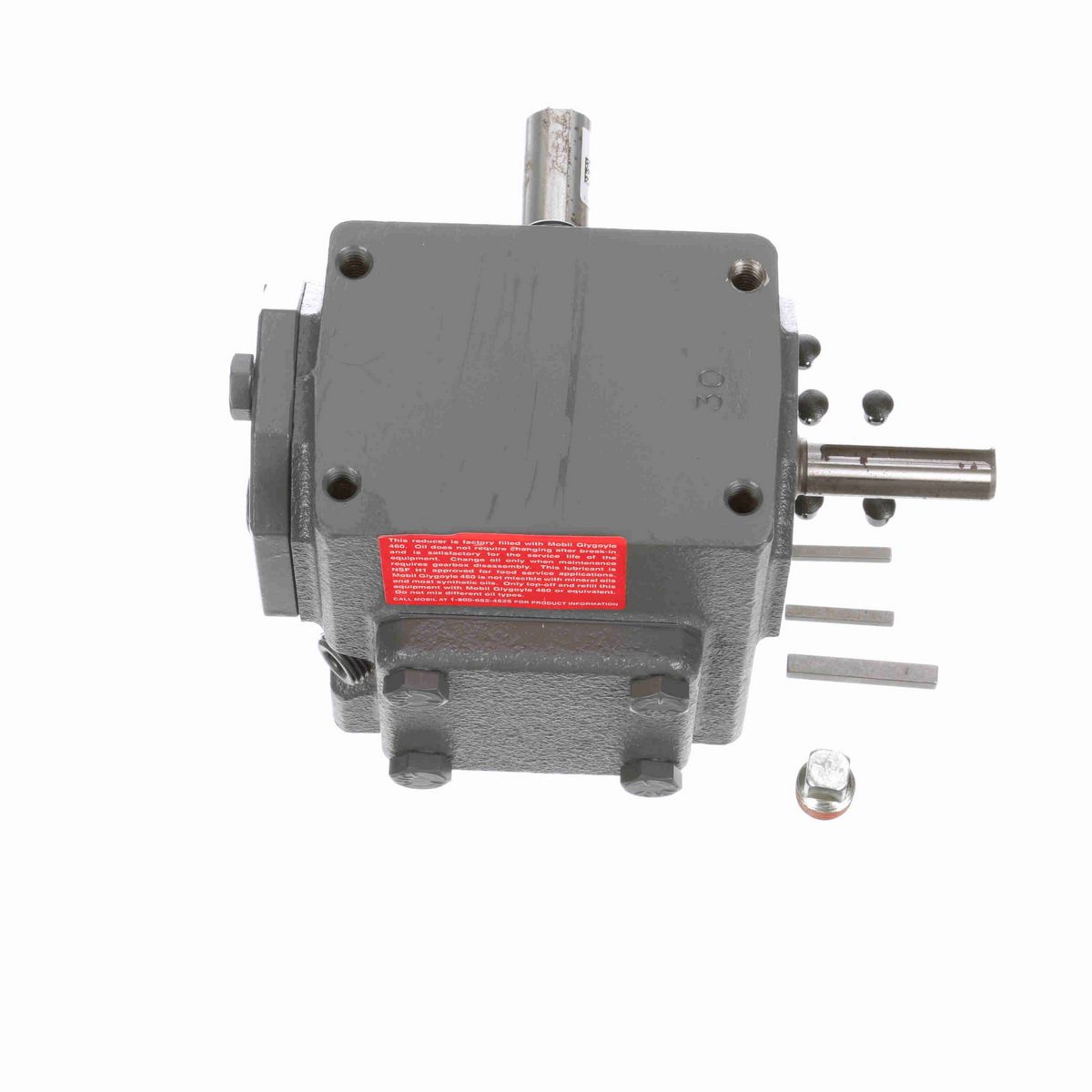

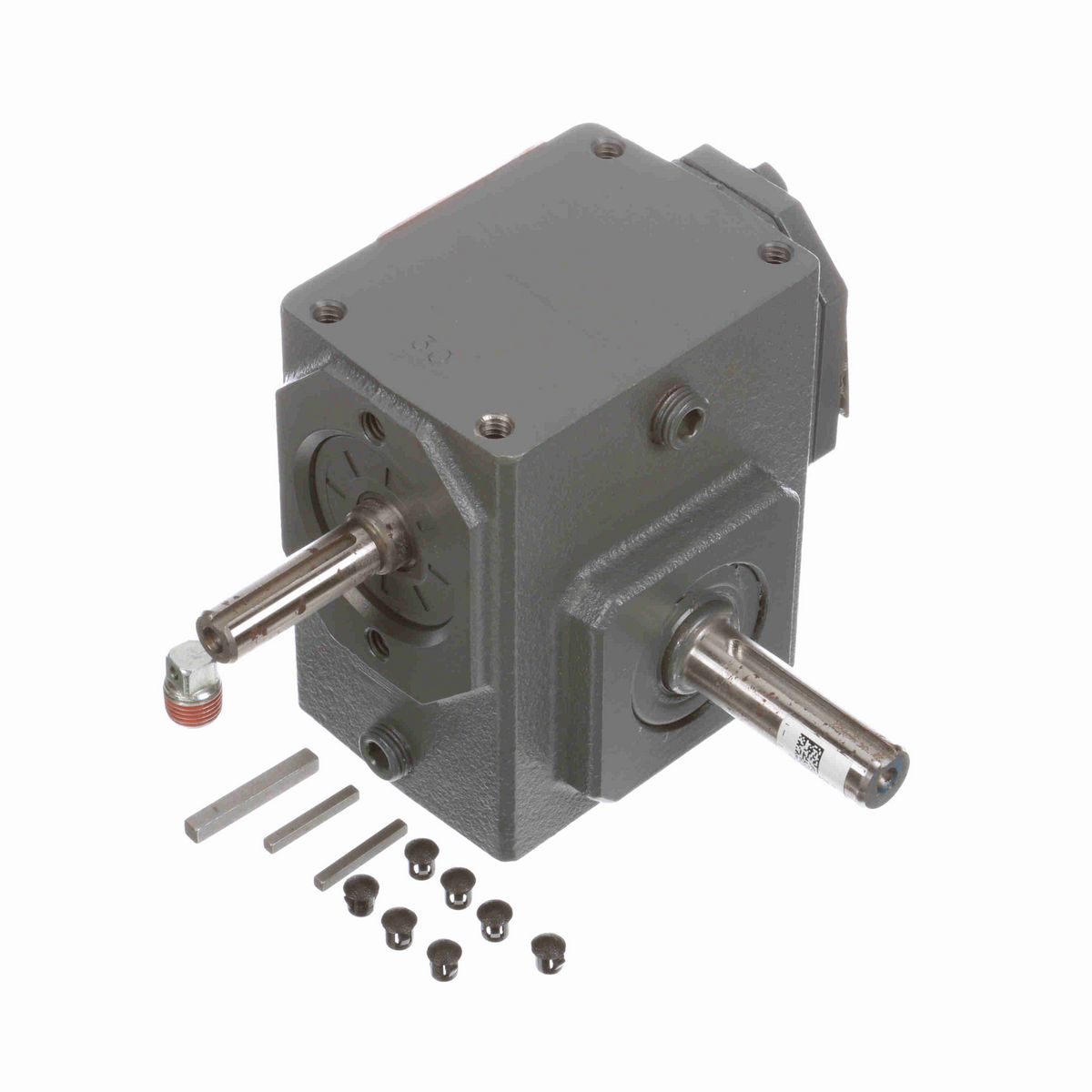

• Rugged Cast-Iron Housing: Provides maximum strength and dependability.
• High lead angle worm is case hardened, ground and polished.
• Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
• Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Dimensions

J	3.25 in
K	1.63 in
B	4
H	1.72 in
D	1.72
X	0.5 in
F	2
N	4
M	1.81
Y	1.76 in
O	2 in
C	4.66 in
L	4.03 in
V	1.94 in
H-Tap size	5/16 - 18 in
G	1
TAP Depth	0.5 in
Center Distance (in)	1.33 in
I	2.12 in
T	0.625
U	0.5 in
E	1.63
A	2.88

Technical Specifications

Key Length	1
Reducer Style	Standard
Ratio	30:1
Thrust Rating - output shaft	1399
Efficiency	80
Shaft Seal Material	Nitrile
Key Sq.	0.125
Input Speed	1750
Input HP @ 1750 RPM	0.32
Input Diameter (in)	0.5 in
Service Factor	1
Output Key	3/16 X 1.31
Assembly	U-R
Reducer	Worm - Right Angle
No. of Gear Reductions	Single
Output RPM	58.3
Ratio Range	30:1
Input Keyway	1/8 X 1.38 in
Center Distance (in)	1.33
Output Shaft Assembly Code	R
Gear Type	Worm
Input RPM	1,750
Mounting Style	No Base
Series Code	Raider
Output Diameter (in)	0.625 in
Model Code	133U
Input Style	Solid Shaft
Product Type	Worm Speed Reducer
Output Shaft Direction	Right
Housing Material	Cast Iron
Output Torque Rating (in-lb)	314 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb))	458 lb
Output Shaft	Solid Shaft

General Specifications

UPC	662288337294
Weight	17.00 LB
