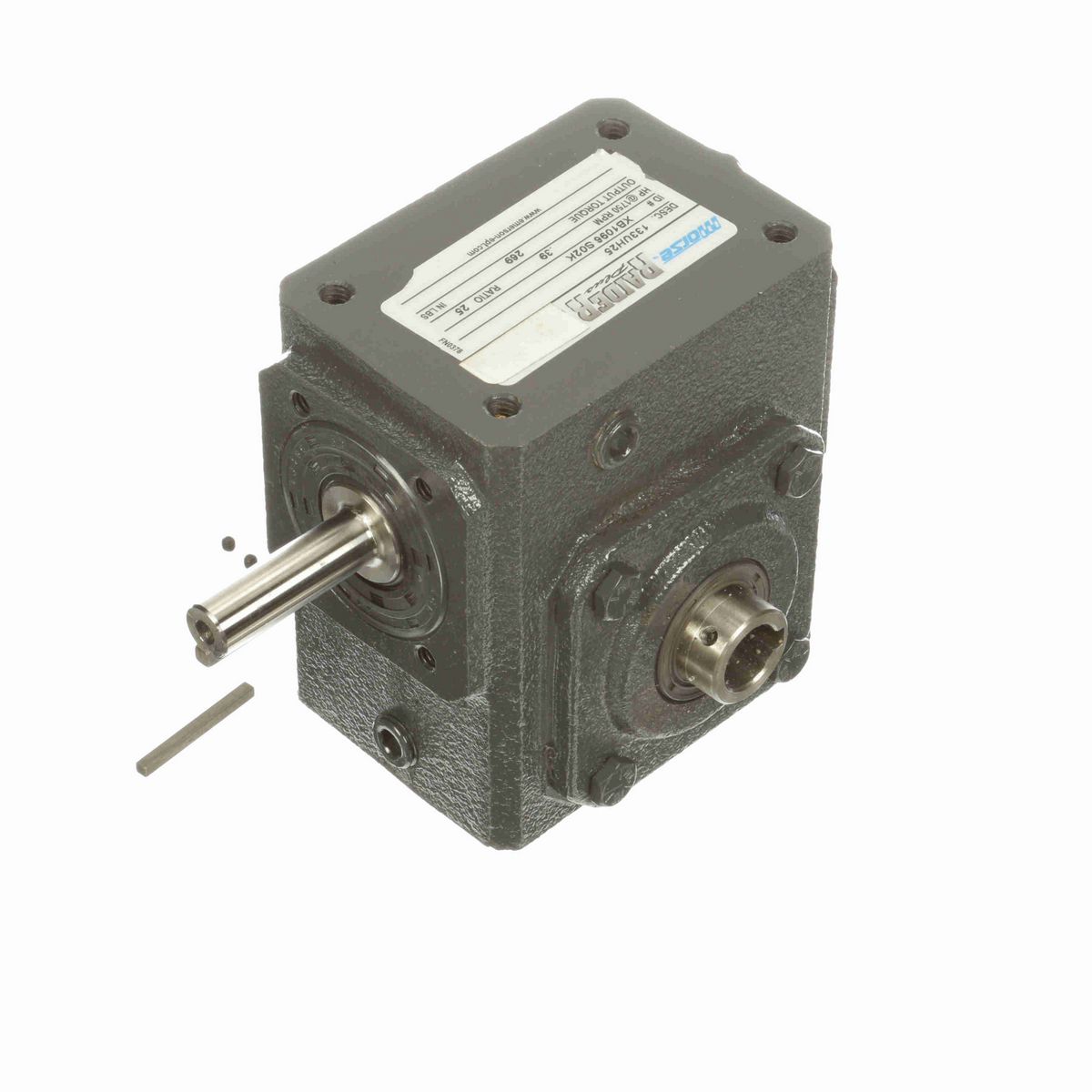

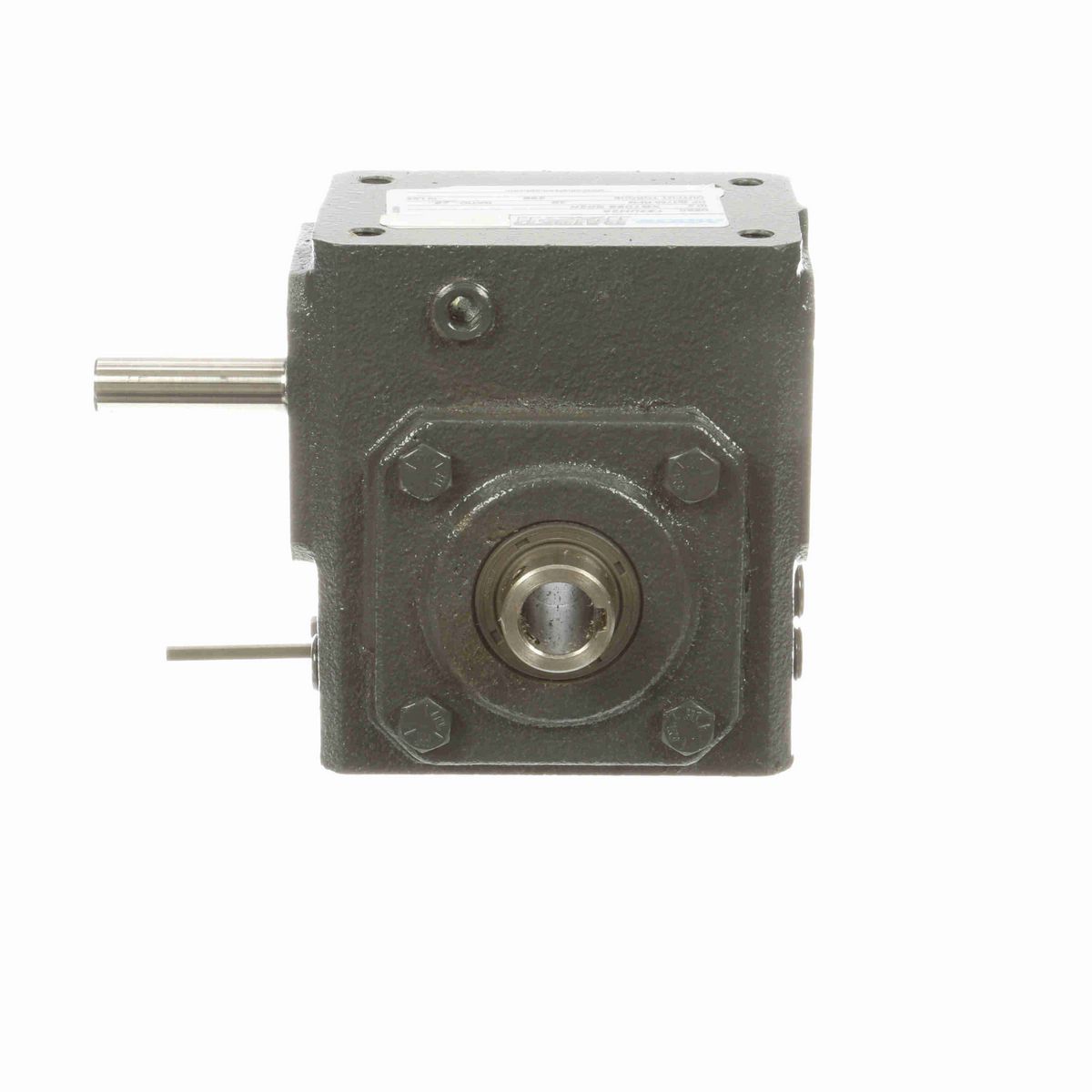

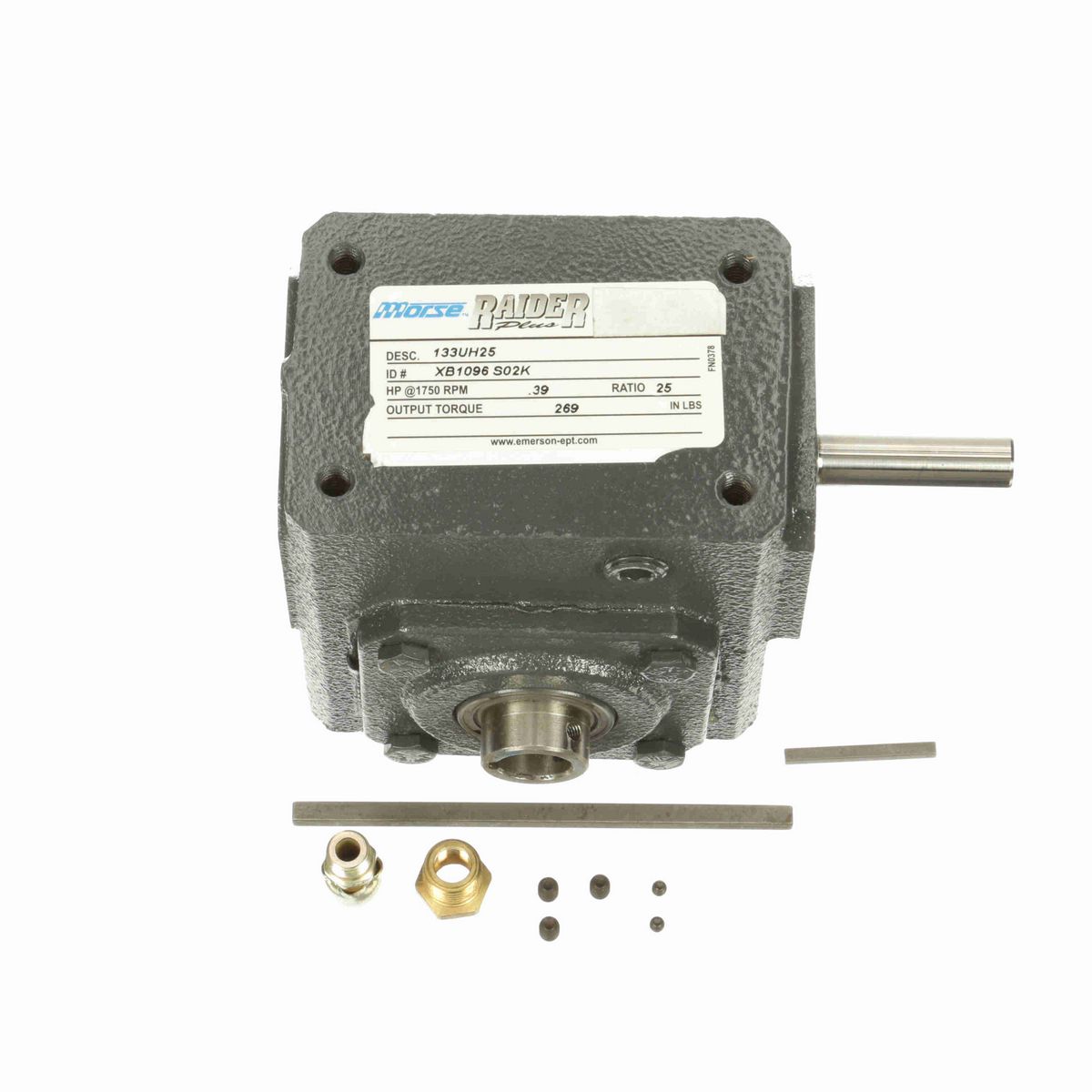

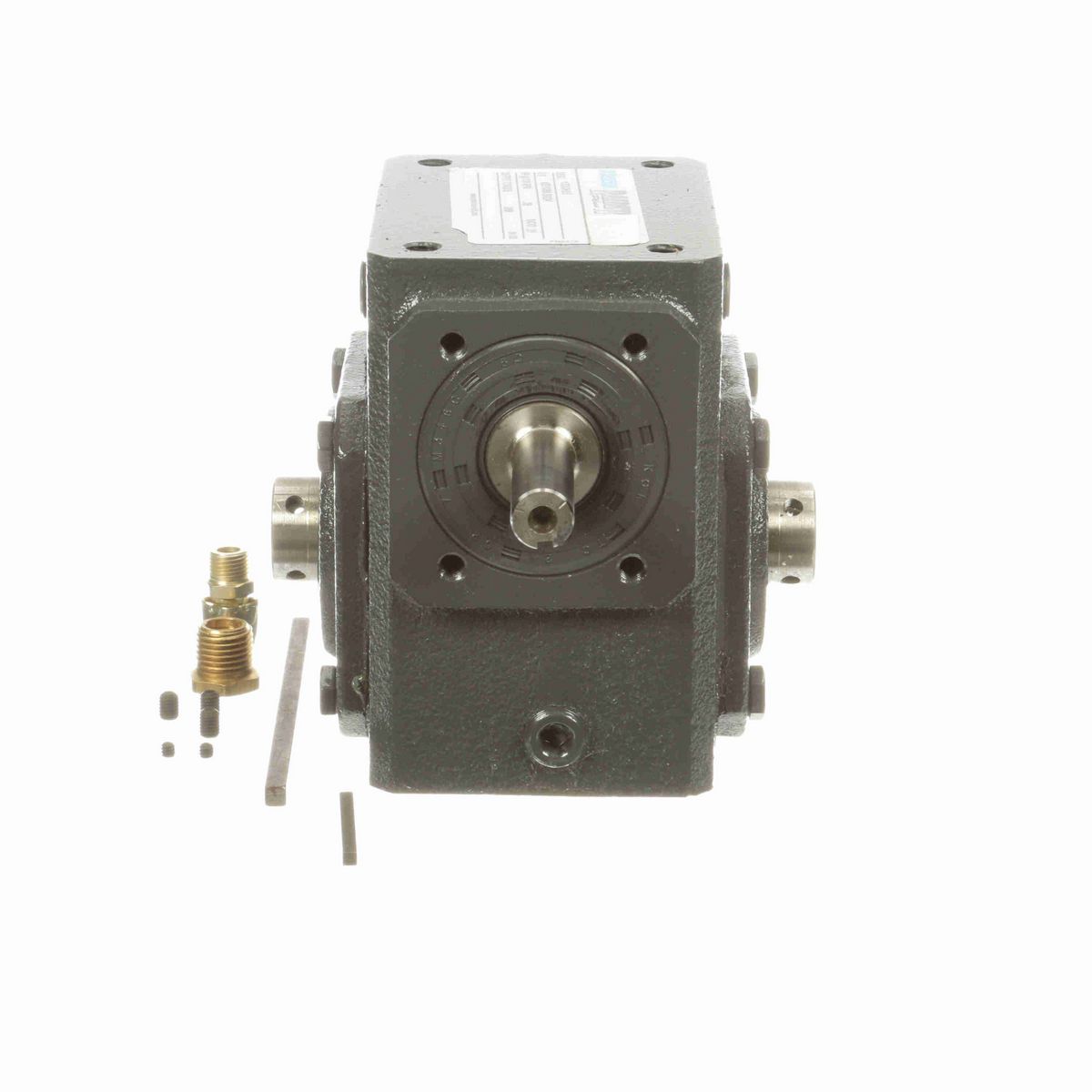

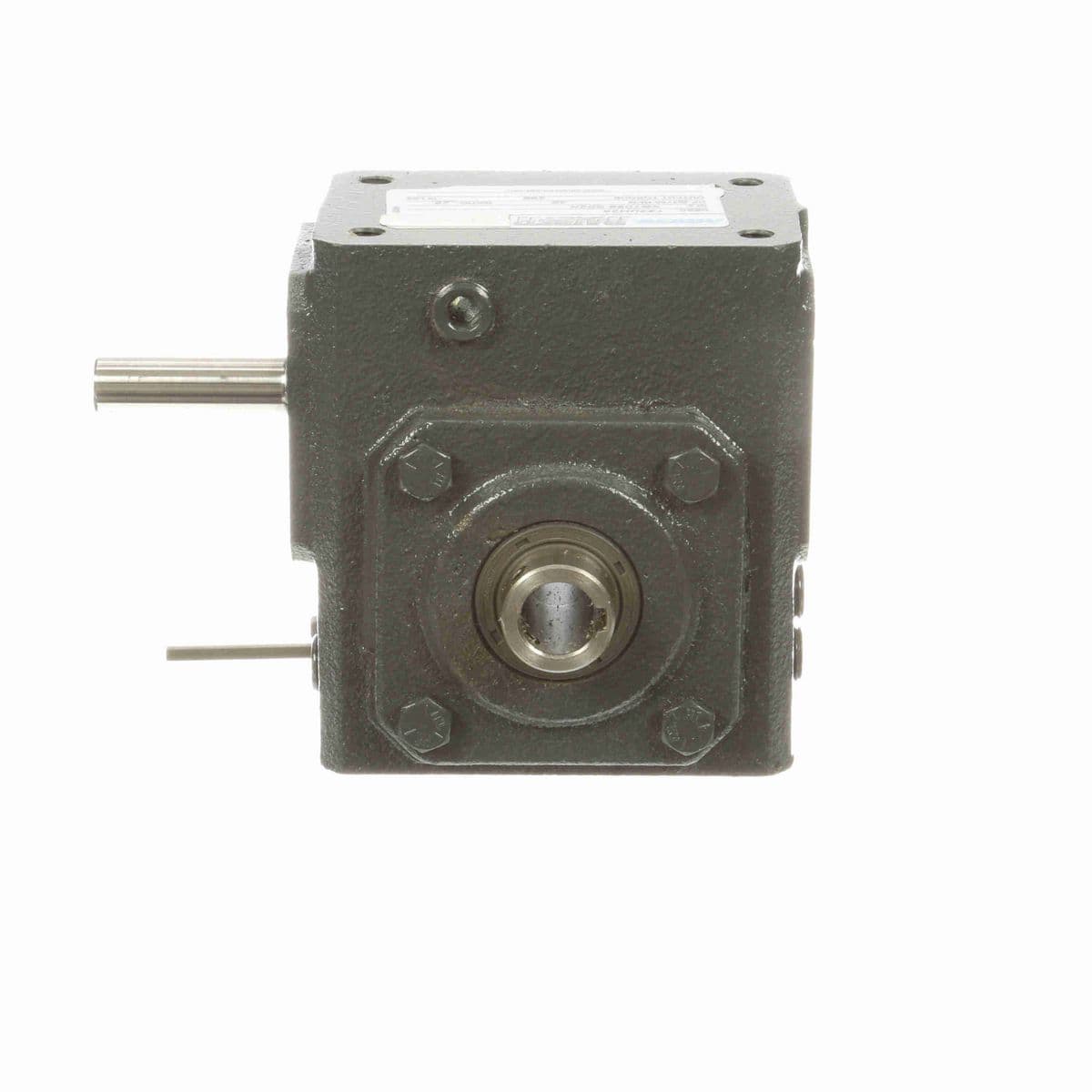

• Rugged Cast-Iron Housing: Provides maximum strength and dependability.
• High lead angle worm is case hardened, ground and polished.
• Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
• Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Dimensions

J	3.82 in
K	4.66 in
X	0.5 in
B	3.8
D	2
C	3.25 in
F	1
L	2.61 in
O	5.72 in
Y	1.76 in
M	4.75
N	2.375
H	1.72 in
A	3.82
E	1.9

Technical Specifications

Input Speed	1750
Ratio	25:1
Key Length	1
Thrust Rating - output shaft	1144
Reducer Style	Standard
Efficiency	80
Key Sq.	0.125
Maximum Input HP	0.445 hp @ 1750 rpm
Manufacturer Reducer Size	133
Product Type	Worm Speed Reducer
Center Distance (in)	1.33
Input Diameter (in)	0.5 in
Service Factor	1
Series Code	Raider
Input Style	Shaft
Mounting Style	Shaft Mt
Output Diameter (in)	0.625 in
Ratio Range	25:1
Input HP @ 1750 RPM	0.445
No. of Gear Reductions	Single
Gear Type	Worm
Output Shaft Direction	L or R
Housing Material	Cast Iron
Output Torque Rating (in-lb)	309 in-lbs @1750 input RPM in/lbs
Output Shaft	Hollow Bore
Overhung Load Rating (Output Shaft(lb))	700 lb

General Specifications

UPC	662288685623
Weight	18.00 LB
