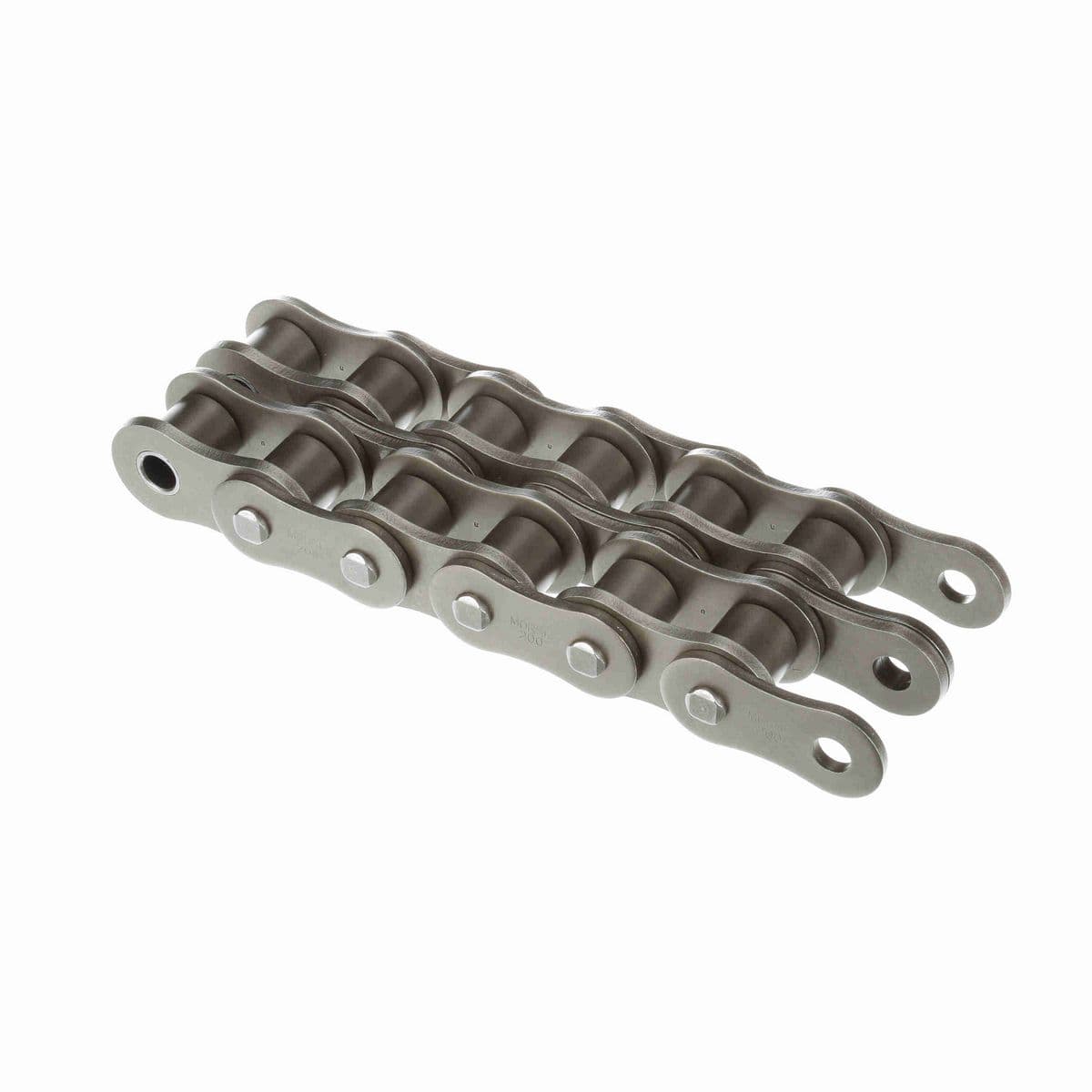

• Unmatched Quality and Performance in Morse Brand Chain
• High Quality British Standard Metric chain
• British standard chain is manufactured to International Standards

Technical Specifications

Material	Steel
Chain Family	06
Chain Construction	Riveted
Number of Strands/Width	1
Roller Diameter (mm)	6.35 mm
Roller Width (mm)	5.72 mm
Pin Diameter (mm)	3.28 mm
Chain Pitch (in)	0.375 in
Product Type	Roller Chain
Chain Type	British Standard
Coating	Uncoated
Roller Diameter (in)	0.25 in
Roller Width (in)	0.2252 in
Pin Diameter (in)	0.1291 in
Standard Met	ANSI B29.1
Measurement System	Metric
Inside Plate Height (in)	0.326771653543307 in
Width Over Pins/Total Width (in)	0.661417322834646 in
Connecting Link	Spring Clip
Base Catalog No	06B-1
Total Length (ft)	25 ft
Plate Thickness (in)	0.336 in
Pin Length (in)	0.6614 in

General Specifications

UPC	662460388076
Weight	0.29 LB
Packaged Length	11.10 IN
Packaged Width	11.00 IN
Packaged Height	1.00 IN
HTC	7315.11.0060
Country of Origin	China
