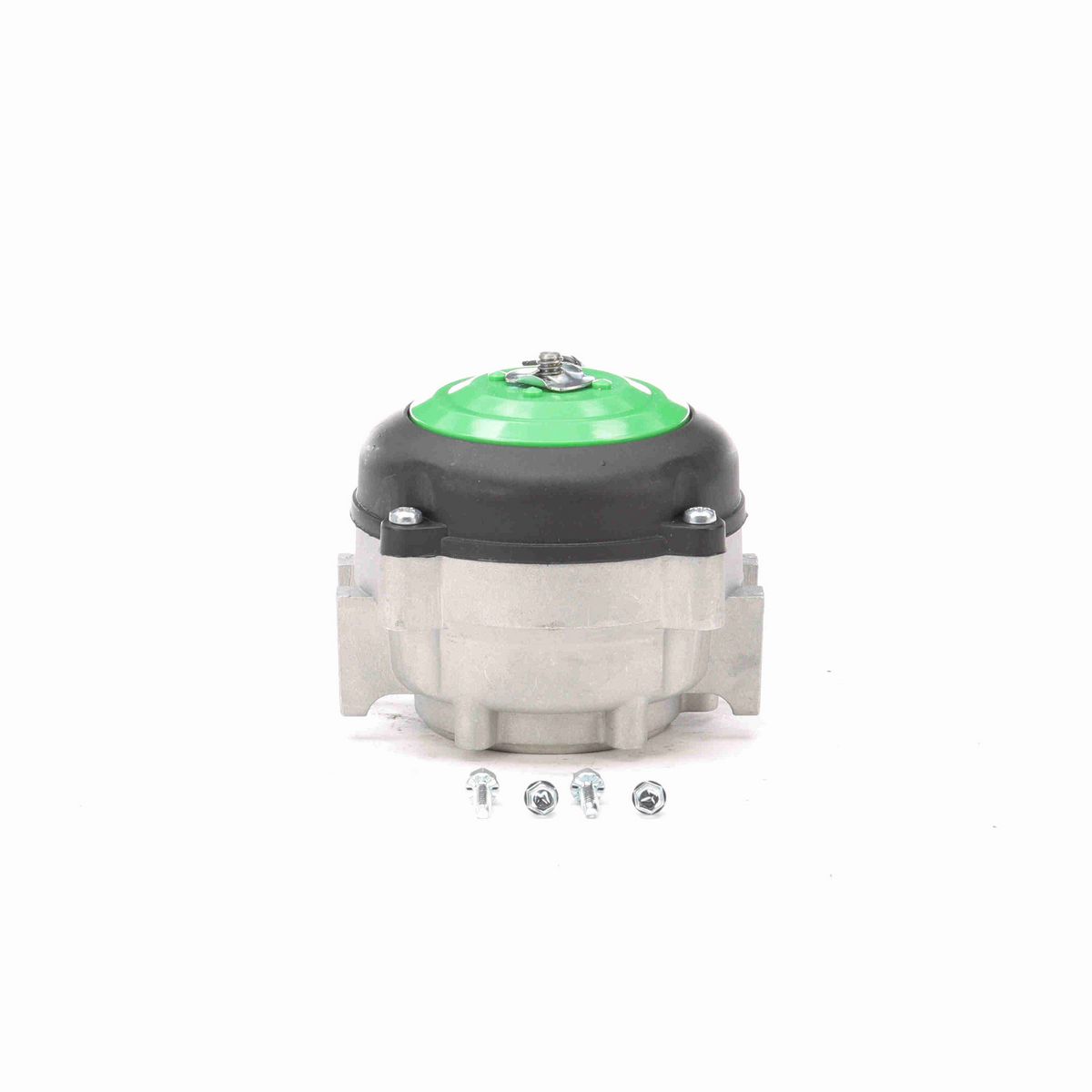

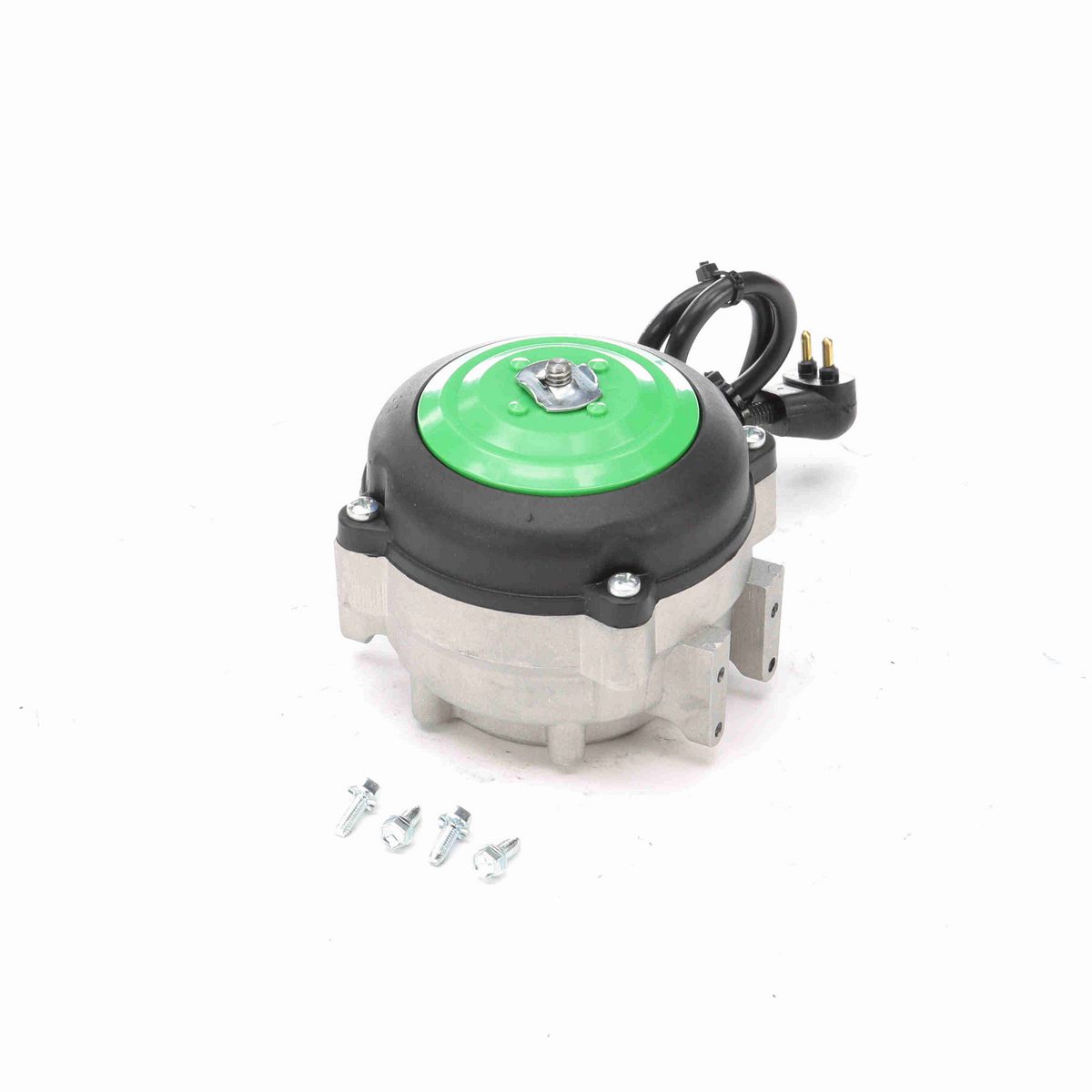

• KRYO SSC - Refrigeration Motor
• Unit Bearing
• Electronically Commutated (ECM)
• Electronically Protected
• Totally Enclosed Air Over, IP65
• Class B Insulation
• Ball Bearing
• 1/4 x 20 Threaded Shaft
• 15" Leads with Molded Plug
• Tapped Double Boss, 5 Cored Holes Opposite Shaft End

Nameplate Specifications

Phase	1
Output Watts	12 W
Voltage	115 V
Speed	1550 rpm
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	55 °C
Frequency	60 Hz
Current	0.3 A
Duty	Continuous Air Over
Insulation Class	B
UL	Yes
CSA	Y
CE	N

Technical Specifications

Electrical Type	Electronically Commutated Motor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Opposite Shaft End
Mounting	2 BOSS/OSE 5 HOLES
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Aluminum
Shaft Type	1/4-20 THREAD
Overall Length	3.54 in
Frame Length	3.22 in
Shaft Diameter	0.250 in
Shaft Extension	0.33 in

General Specifications

UPC	815585025269
Weight	2.63 LB
Packaged Length	5.75 IN
Packaged Width	6.50 IN
Packaged Height	4.00 IN
Country of Origin	Mexico
