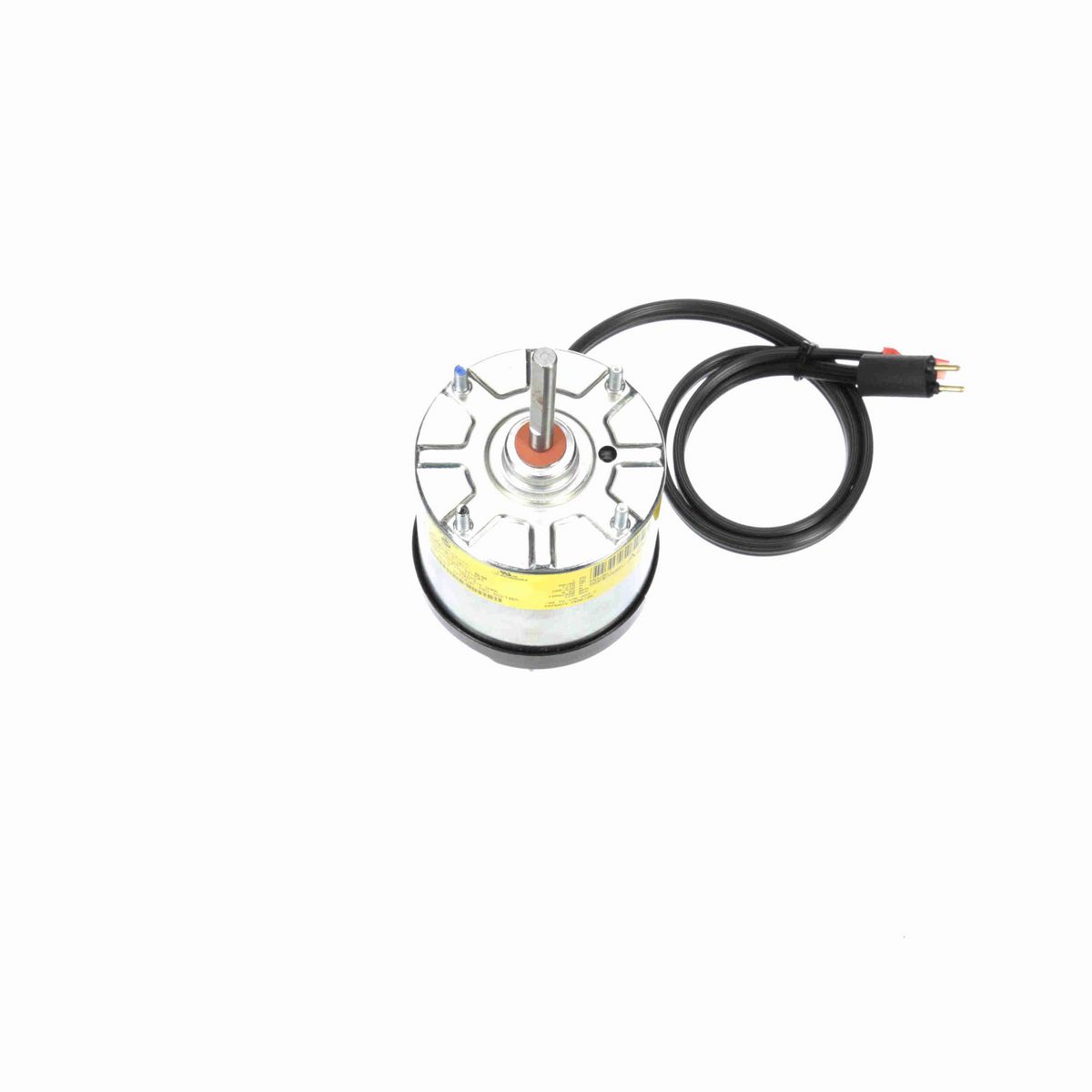

• ARKTIC 59 - Refrigeration Motor
• 3.3" Diameter
• Electronically Commutated (ECM)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation
• Ball Bearing
• 5/16" Diameter Shaft with Flat
• 24" Leads with Molded Plug
• Extended Studs Shaft End and Lead End

Nameplate Specifications

Phase	1
Output HP	1/15 Hp
Output KW	0.052 kW
Voltage	208-230 V
Speed	1550/800 rpm
Frame	3.3
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	25 °C
Frequency	60/50 Hz
Current	0.63 A
Duty	Continuous Air Over
Insulation Class	B
UL	Yes
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Electronically Commutated Motor
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Opposite Shaft End
Mounting	Extended Studs
Motor Orientation	Horizontal or VSD
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	6.42 in
Frame Length	3.36 in
Shaft Diameter	0.312 in
Shaft Extension	2.61 in

General Specifications

UPC	815585024705
Weight	3.00 LB
Packaged Length	8.00 IN
Packaged Width	6.50 IN
Packaged Height	10.12 IN
Country of Origin	Mexico
