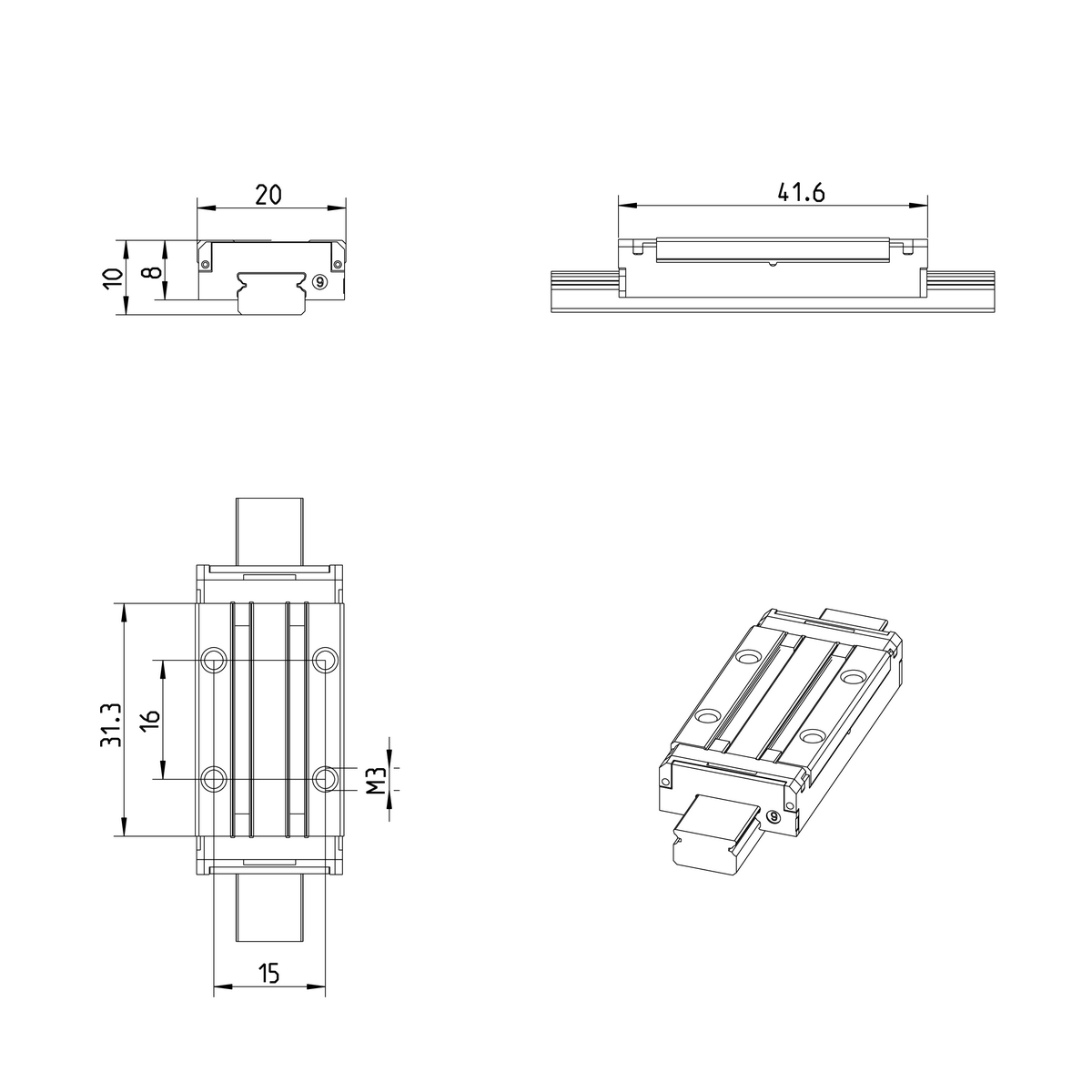

Миниатюрная шариковая каретка из нержавеющей стали Resist NRII Bosch Rexroth MWA-009-SLS-C0-N-0 [R044489441]

Version

Ball rail system

Nominal size [mm]

9/M3

Format

SLS - slimline, long, standard height

Material (profiled rail systems)

Corrosion-resistant, martensitic steel

Preload class

C0 - Without preload (clearance)

Accuracy class

N - Normal

Seal

LS - Low-friction seal (mini)

Ball chain

Without ball chain (standard)

Width of runner block [mm]

20

Length of runner block [mm]

41.4

Height of runner block [mm]

8

Height runner block with guide rail [mm]

10

Lubrication

Without initial lubrication and without preservation

Maximum acceleration rate amax [m/s²]

250

Note: Max. acceleration amax

Only with preloaded systems. For non-preloaded systems: amax = 50 m/s2

Maximum permissible linear speed vmax [m/s]

3

Note: maximum permissible speed vmax

Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts.

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time.

Weight [kg]

0.03

Dynamic load capacity C50 [N]

1980

Note: dynamic load capacity C50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic load capacity C100 [N]

1570

Note: dynamic load capacity C100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static load capacity C0 [N]

3150

Note: static load capacity C0

Calculated values acc. to DIN 636, part 2

Dynamic torsional moment load capacity Mt50 [Nm]

9.1

Note: Dynamic torsional moment load capacity Mt50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic torsional moment load capacity Mt100 [Nm]

7.2

Note: Dynamic torsional moment load capacity Mt100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]

14.5

Dynamic longitudinal moment load capacity ML50 [Nm]

8.8

Note: Dynamic longitudinal moment load capacity ML50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic longitudinal moment load capacity ML100 [Nm]

7

Note: Dynamic longitudinal moment load capacity ML100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]

14

Pitch T guide rail [mm]

20

Dimension A (profiled rail systems) [mm]

20

Dimension A2 (profiled rail systems) [mm]

9

Dimension A3 (profiled rail systems) [mm]

5.5

Dimension B (profiled rail systems) [mm]

41.4

Dimension B1 [mm]

31.3

Dimension E1 [mm]

15

Dimension E2 (profiled rail systems) [mm]

16

Dimension H [mm]

10

Dimension H1 (profiled rail systems) [mm]

8

Dimension H1 with longitudinal seal (profiled rail systems) [mm]

8.65

Dimension N3 (profiled rail systems) [mm]

3

Dimension S2 (profiled rail systems)

M3

Dimension T1 min [mm]

6

Dimension V1 [mm]

2.8
