Датчик усилия Bosch Rexroth EMC100XC [R15617A007]

Electrical accessories for electromechanical cylinders

Force sensors

Connection type 1

Female connector, M12, 4-pin

Connection type 2

Flying leads

Nominal size [mm]

100XC

Connection

Connector M12x1

Power supply voltage [V DC]

24

Operating load (of the measuring range) [%]

150

Operating temperature (min. … max.)

-20 °C ... +60 °C

Output signal [V]

0

Output signal (measuring range) with tolerance

-10 ... +10 V ±0,2

Output signal (measuring range) tolerance [V]

±0.2

Output signal with tolerance

0 V ±0,03

Output signal tolerance [V]

±0.03

Cable cross-section

4 x 0.34 mm²

Permissible ambient temperature (min. ... max.)

-25 °C ... +80 °C

Bandwidth [kHz]

2.5

Bandwidth with tolerance

2,5 kHz ±0,2

Bandwidth tolerance [kHz]

±0.2

Rated voltage [V]

250

Rated current [A]

4

Shield

yes

Dynamic bending radius

> 5xD

Static bending radius

> 10xD

Bending cycles

> 2 million

Breaking load (of the measuring range) [%]

300

Weight [kg]

1.43

Hardness [HRC]

38 HRC

Hysteresis (of the measuring range) [%]

±0.2

Cable diameter D [mm]

5.9

Cable diameter D tolerance [mm]

±0.2

Cable color

Black

Cable material

PUR

Compensated temperature

+10 °C ... +40 °C

Maximum operating temperature [°C]

+60

Measurement range [kN]

56

Measurement inaccuracy

±0.28

Minimum operating temperature [°C]

-20

Non-linearity (of the measuring range) [%]

±0.5

Zero setting function (tare)

7.2 V ... 24 V

Product information

with connection cable

Suitable for drag chains

yes

Protection class

IP65

Connector outlet

angled

Current consumption [mA]

25

Temperature drift zero point (of the measuring range per Kelvin) [%]

±0.05

Temperature drift above measuring range (of the measuring range per Kelvin) [%]

±0.05

Ambient temperature, in motion

-40 °C ... +80 °C

Material of electromechanical cylinders

stainless steel

Repeatability (of the measuring range) [%]

±0.25

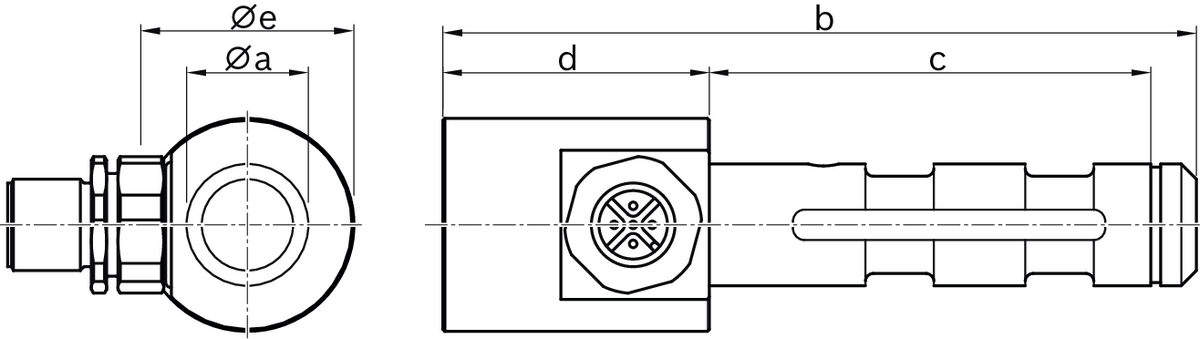

Dimension a f8 [mm]

35

Dimension b [mm]

170

Dimension C [mm]

124.5

Dimension d [mm]

35

Dimension e [mm]

35

Dimension L

5
