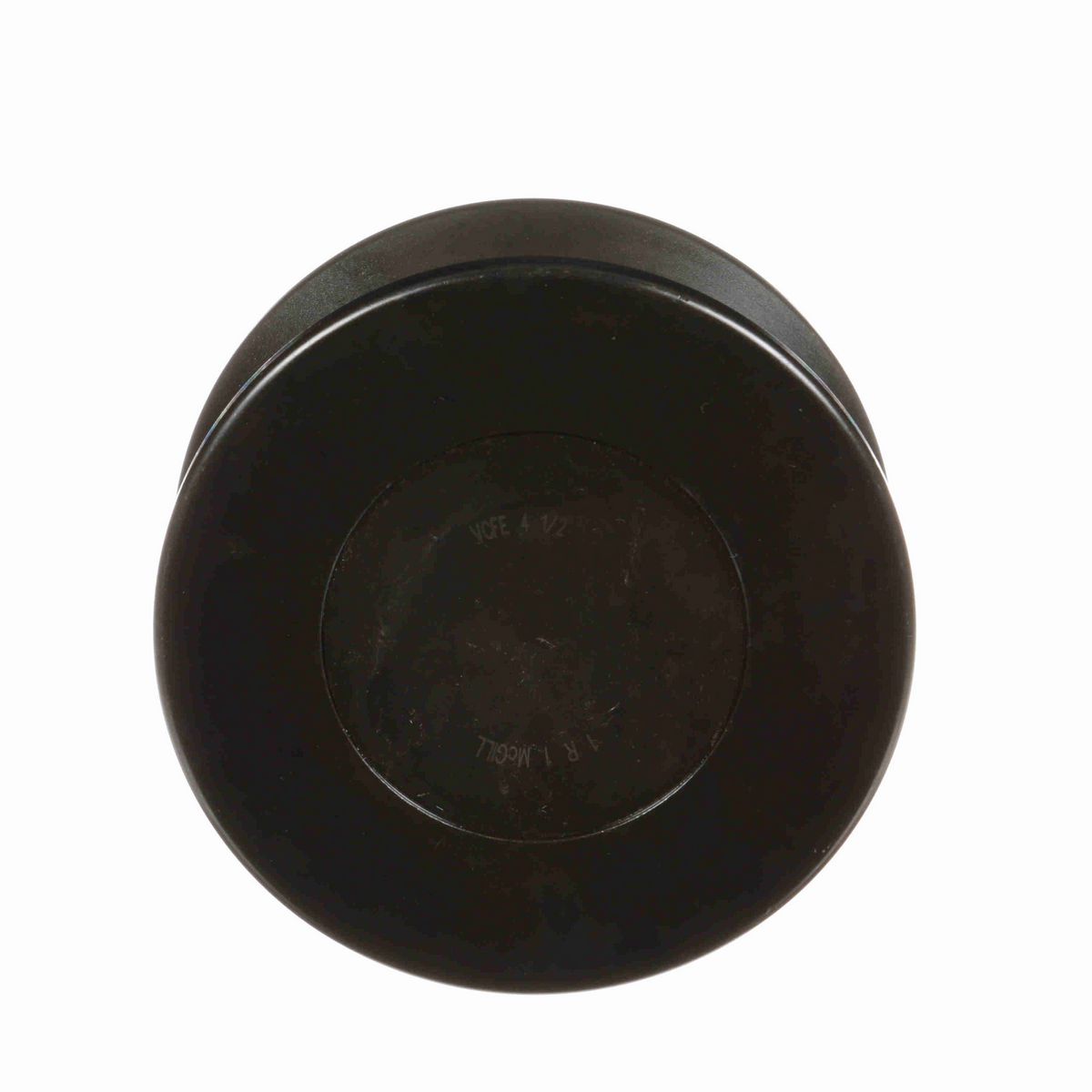

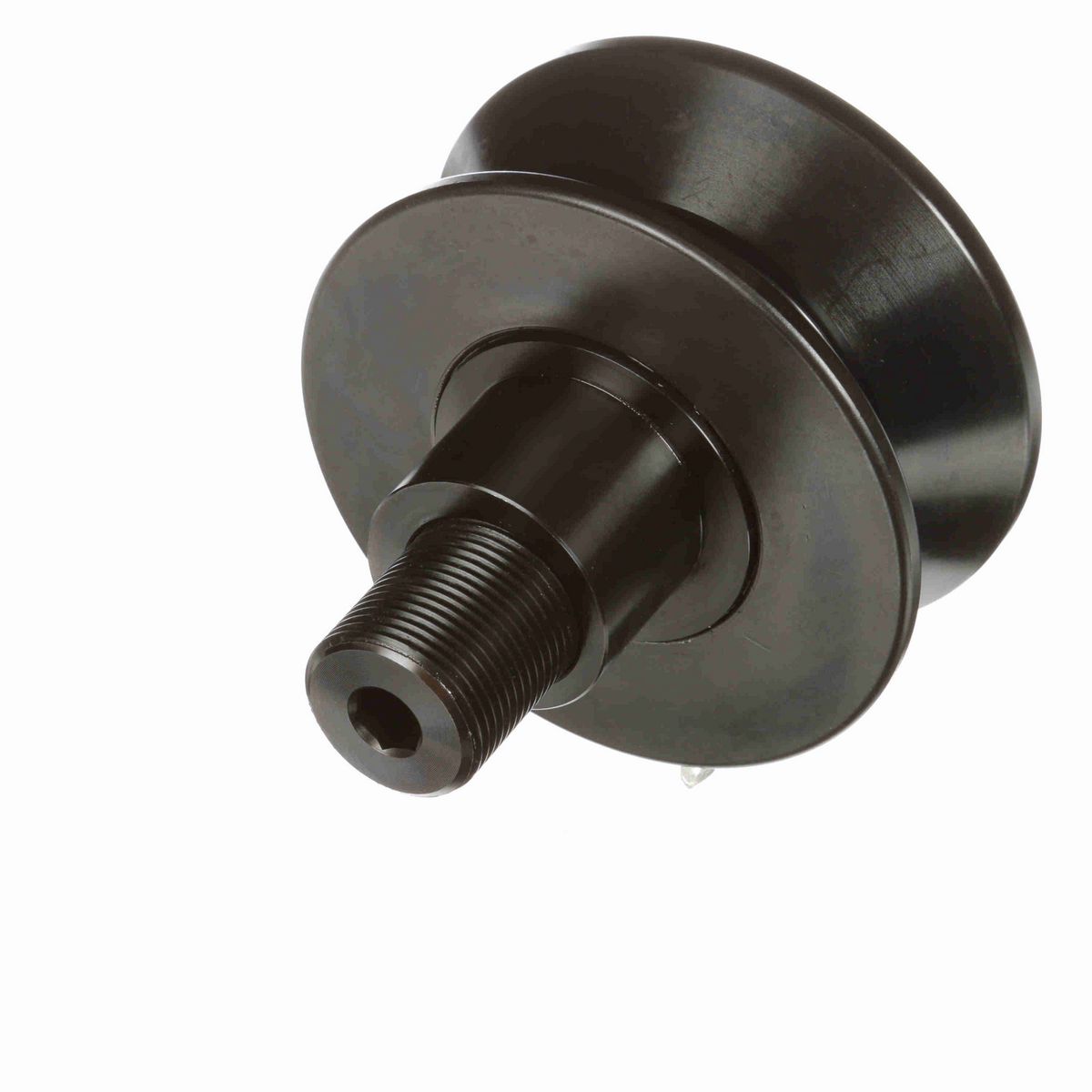

• Stud type cam follower
• V-grooved outside diameter
• Tapered bearing insert
• Hex hole on thread face
• Eccentric configuration

Dimensions

Threads	1 1/4-12
Point Diameter (in)	3 in
Roller Diameter (in)	4.5 in
Eccentricity (in)	0.06 in
Roller Width (in)	2 in
Bushing Diameter (in)	1.75 in
Hex Socket (in)	0.4375 in
Stud Diameter (in)	1.25 in
Stud Length (in)	2.5 in
Weight (kg)	3.39 kg

Technical Specifications

Limiting Speed	950
Dynamic Radial Rating	14,300
Sealing	Sealed
Adjustment	Eccentric Bushing
Hex/Slot	Hex Hole
Rolling Element	Tapered Roller (TRAKROL)
O.D. Configuration	V Groove
Series	TRAKROL®
Material	Bearing Steel, Black Oxide Finish
Roller Shape	V Groove
Dynamic Load Rating - single bearing	7,430
Stud Type	Standard Stud with Eccentric Bushing
Platform	TRAKROL®
Dynamic Load Rating - both bearings	14,300
Static Load Rating	16,000
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	14,300 lb
Clamping Torque (in-lbf)	1,720 lbs
Ability to Relubricate	No

General Specifications

UPC	726166111625
Weight	7.47 LB
Packaged Length	5.70 IN
Packaged Width	5.60 IN
Packaged Height	5.00 IN
HTC	8482.20.0040
Country of Origin	Mexico
