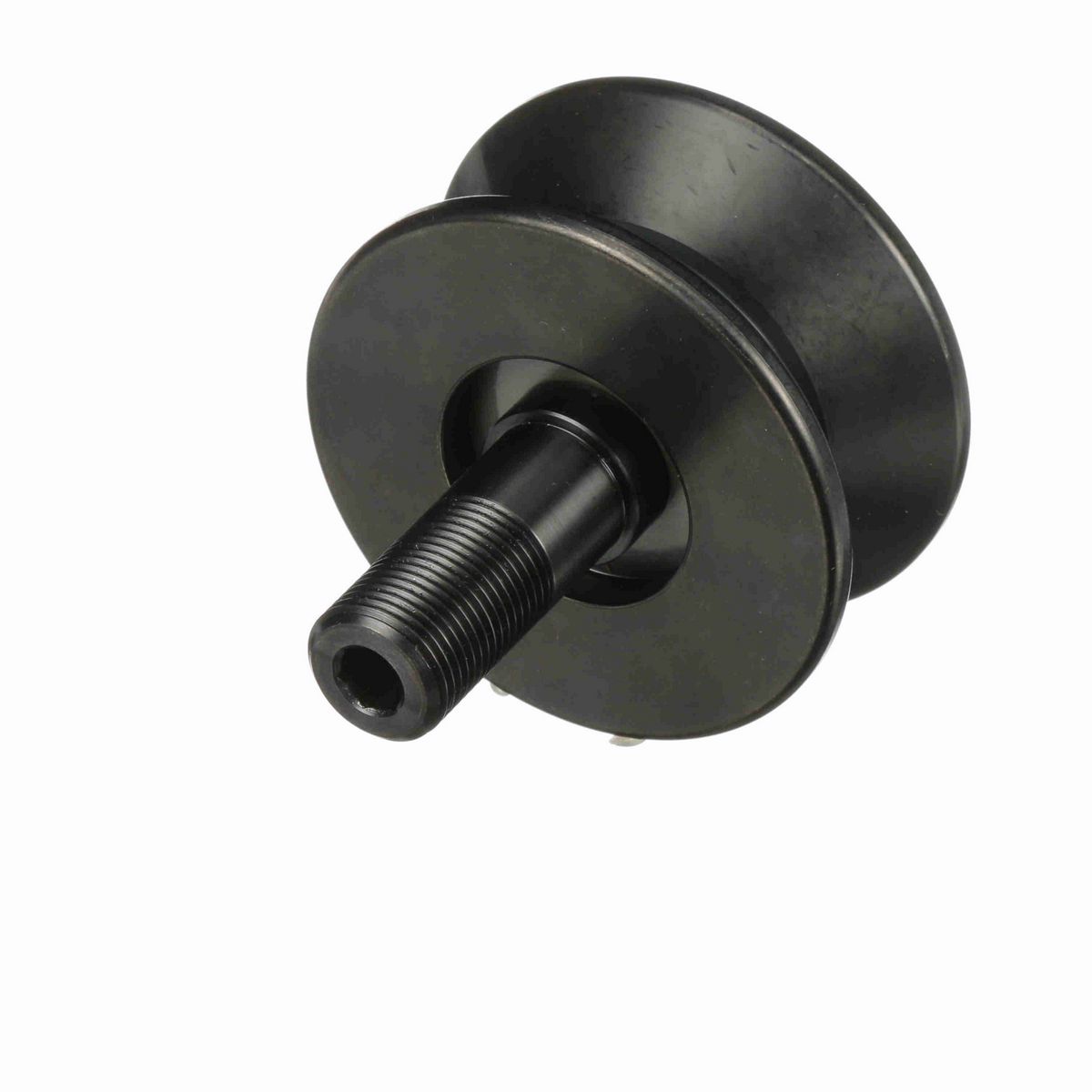

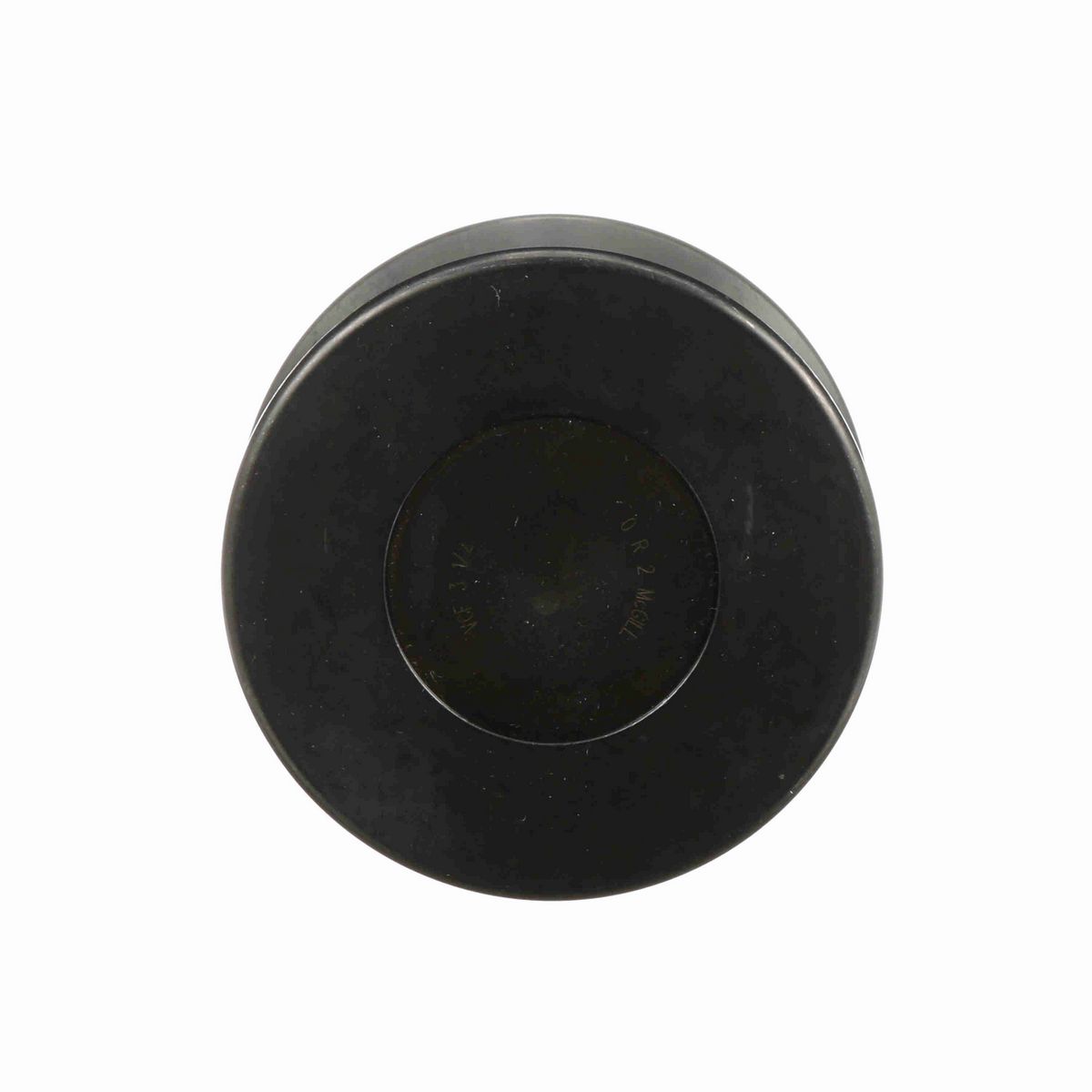

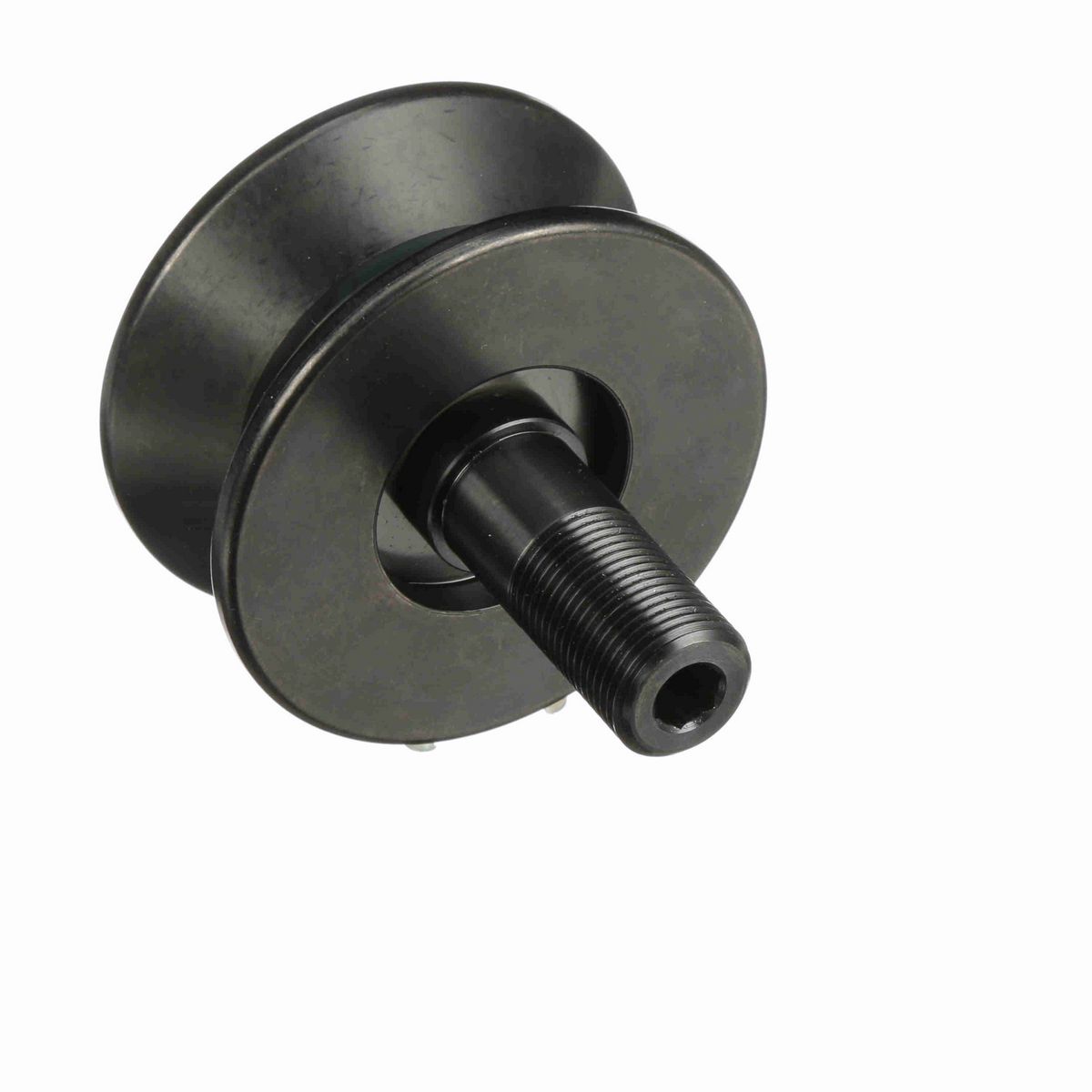

• Stud type cam follower
• V-grooved outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	7/8-14
Roller Diameter (in)	3.5 in
Point Diameter (in)	2.25 in
Hex Socket (in)	0.375 in
Roller Width (in)	1.6875 in
Stud Diameter (in)	0.875 in
Stud Length (in)	2 in
Weight (kg)	1.52 kg

Technical Specifications

O.D. Configuration	V Groove
Hex/Slot	Hex Hole
Sealing	Sealed
Series	TRAKROL®
Limiting Speed	1,300
Dynamic Radial Rating	3,490
Adjustment	None
Rolling Element	Ball (TRAKROL)
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Roller Shape	V Groove
Tolerance Class	P0 Equivalent
Dynamic Load Rating - single bearing	2,130
Dynamic Load Rating - both bearings	3,490
Dynamic Load Rating (lb)	3,490 lb
Static Load Rating	2,000
Platform	TRAKROL®
Clamping Torque (in-lbf)	750 lbs
Ability to Relubricate	No

General Specifications

UPC	726166040116
Weight	3.36 LB
Packaged Length	3.80 IN
Packaged Width	3.70 IN
Packaged Height	5.30 IN
HTC	8482.10.5064
Country of Origin	Mexico
