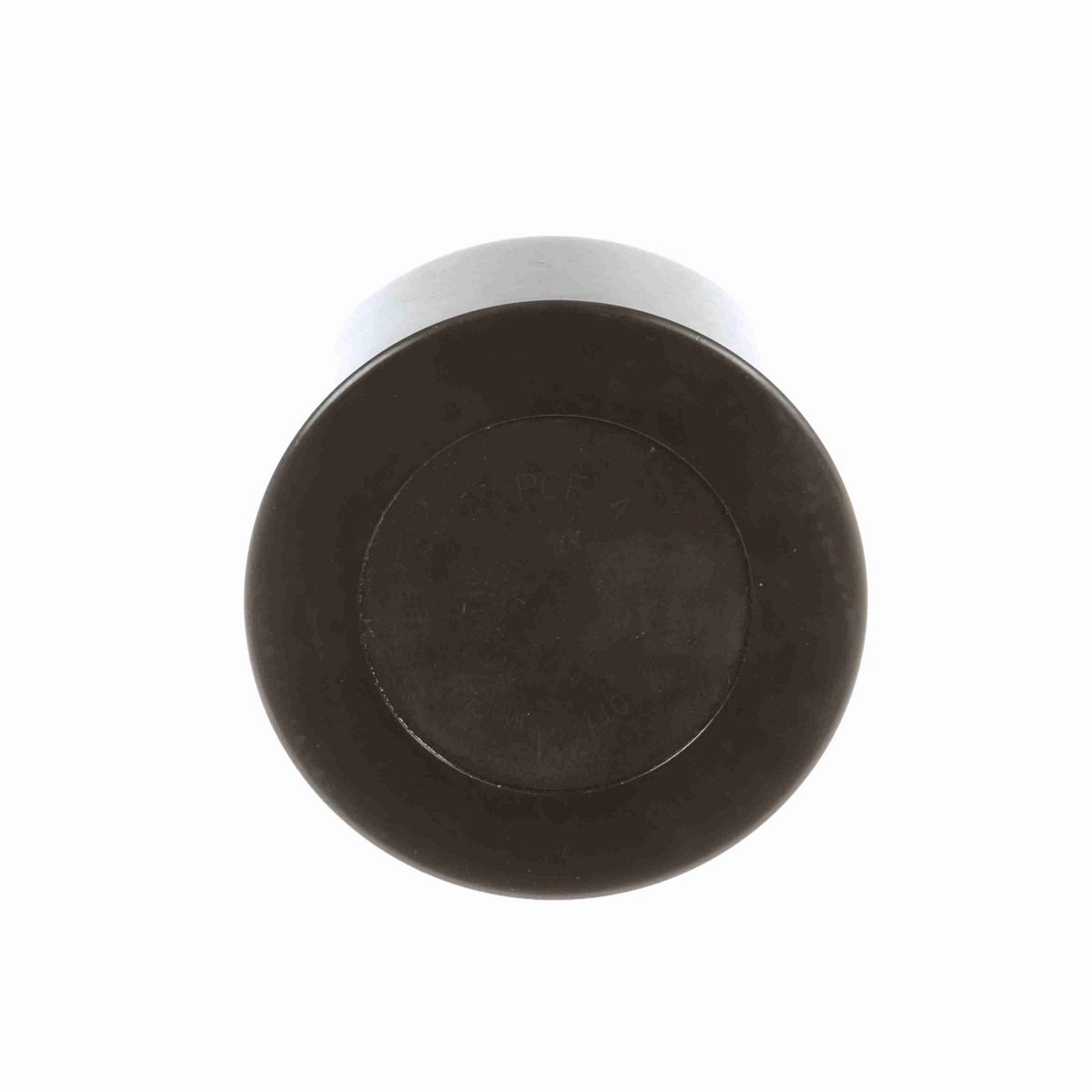

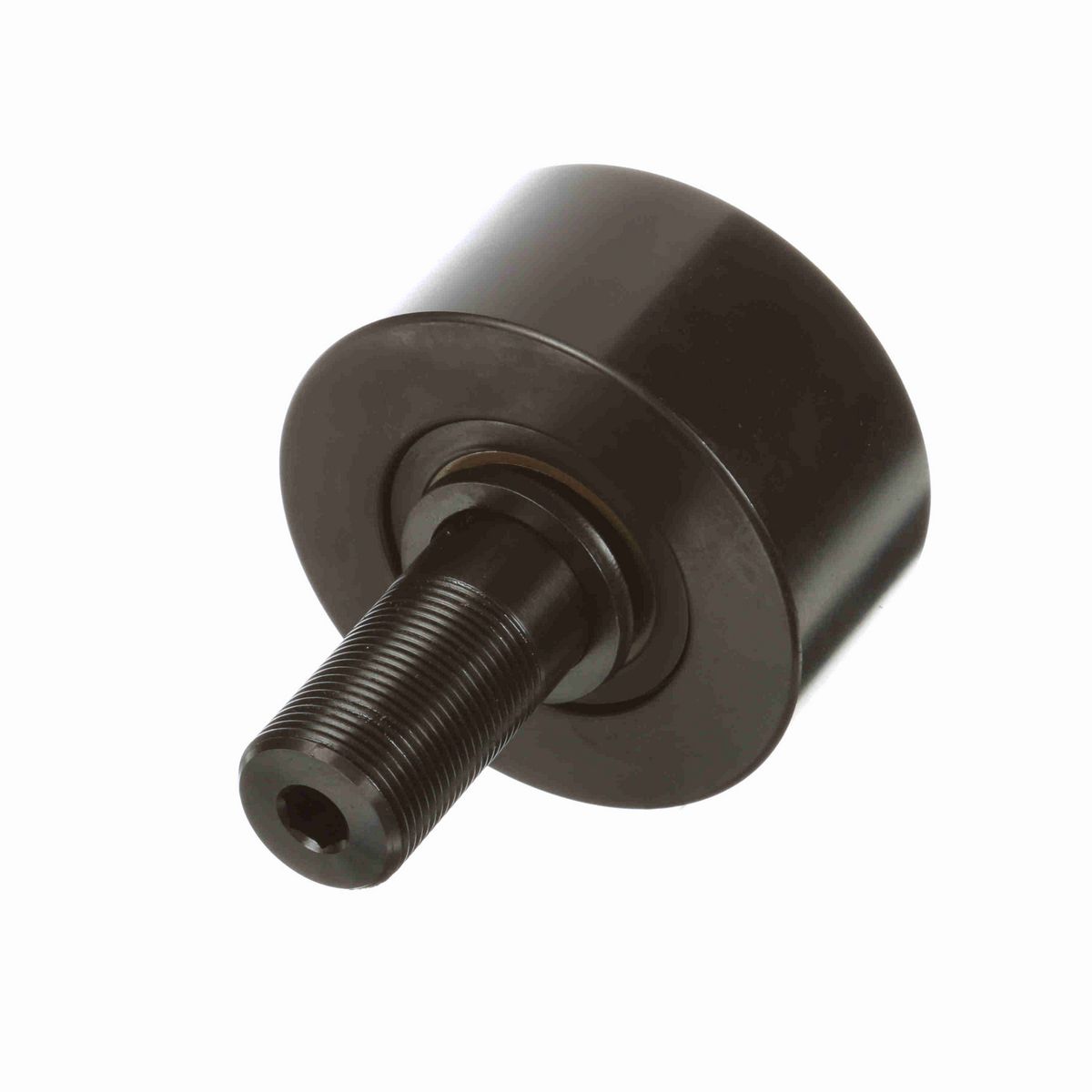

• Stud type cam follower
• Cylindrical outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	4 in
Stud Diameter (in)	1.25 in
Roller Width (in)	2 in
Stud Length (in)	2.75 in
Hex Socket (in)	0.4375 in
Weight (kg)	3.18 kg

Technical Specifications

Series	TRAKROL®
Dynamic Radial Rating	14,300
Hex/Slot	Hex Hole
Limiting Speed	700
Sealing	Sealed
O.D. Configuration	Cylindrical
Rolling Element	Tapered Roller (TRAKROL)
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating - both bearings	14,300
Dynamic Load Rating (lb)	14,300 lb
Dynamic Load Rating - single bearing	7,430
Stud Type	Standard Stud
Roller Shape	Cylindrical
Static Load Rating	16,000
Platform	TRAKROL®
Tolerance Class	P0 Equivalent
Lubrication Hole Location	None
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,720 lbs

General Specifications

UPC	726166040499
Weight	7.00 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.20.0040
Country of Origin	Mexico
