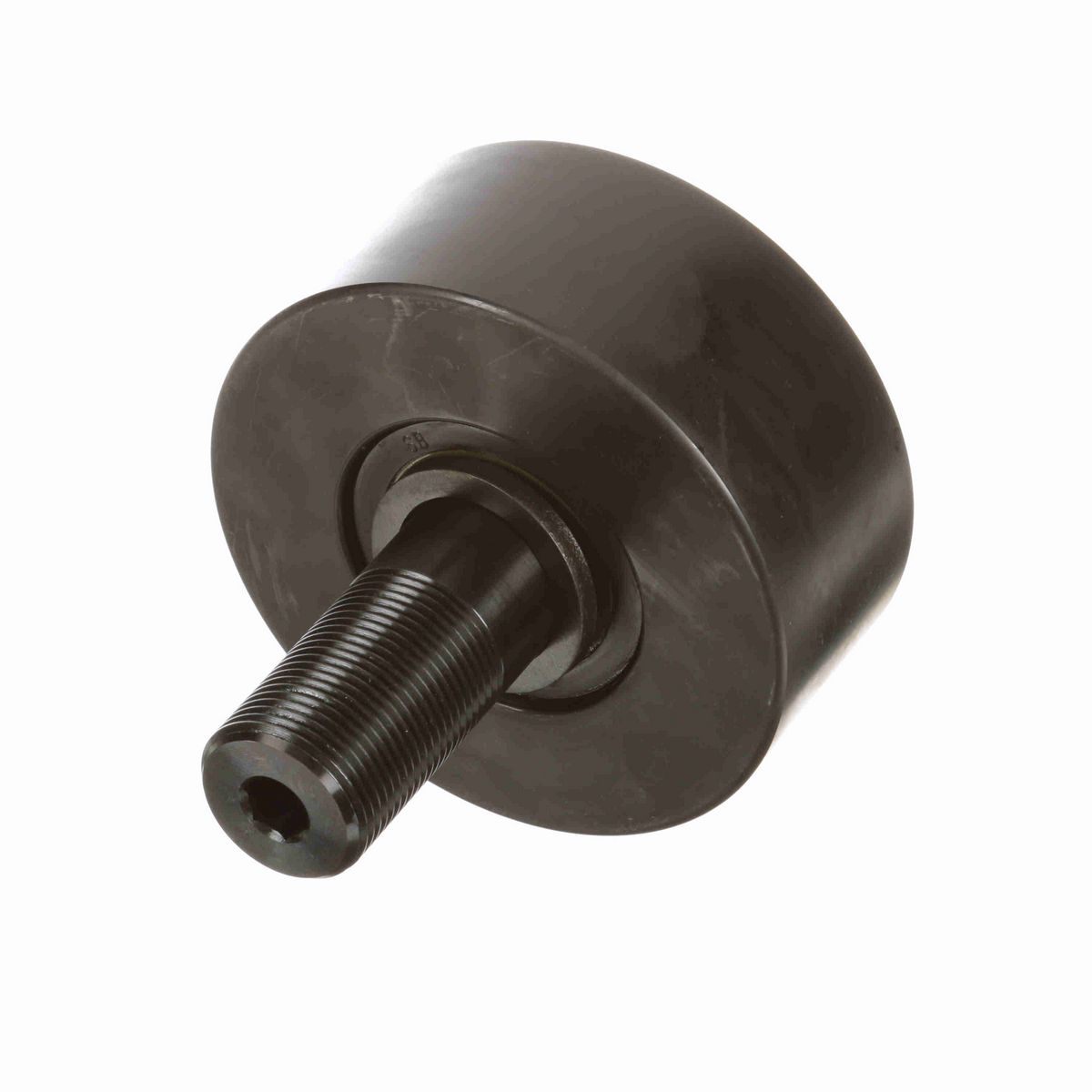

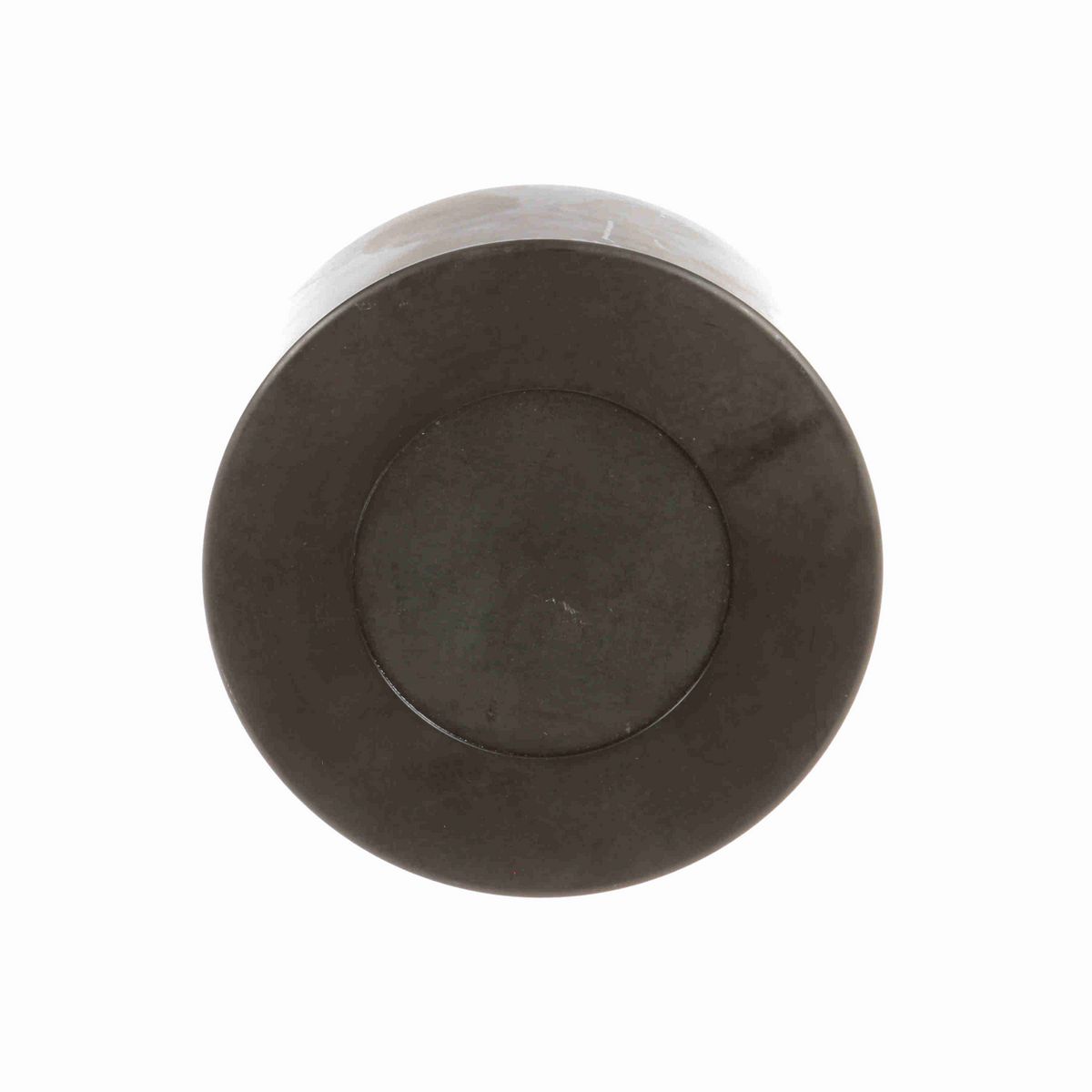

• Stud type cam follower
• Cylindrical outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	4.5 in
Roller Width (in)	2 in
Stud Length (in)	2.75 in
Hex Socket (in)	0.4375 in
Stud Diameter (in)	1.25 in
Weight (kg)	4.01 kg

Technical Specifications

Limiting Speed	625
Hex/Slot	Hex Hole
Rolling Element	Tapered Roller (TRAKROL)
Adjustment	None
Dynamic Radial Rating	14,300
Sealing	Sealed
O.D. Configuration	Cylindrical
Series	TRAKROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Dynamic Load Rating - single bearing	7,430
Roller Shape	Cylindrical
Dynamic Load Rating - both bearings	14,300
Dynamic Load Rating (lb)	14,300 lb
Static Load Rating	16,000
Platform	TRAKROL®
Stud Type	Standard Stud
Lubrication Hole Location	None
Clamping Torque (in-lbf)	1,720 lbs
Ability to Relubricate	No

General Specifications

UPC	726166041328
Weight	8.83 LB
Packaged Length	5.50 IN
Packaged Width	5.50 IN
Packaged Height	4.75 IN
HTC	8482.20.0040
Country of Origin	Mexico
