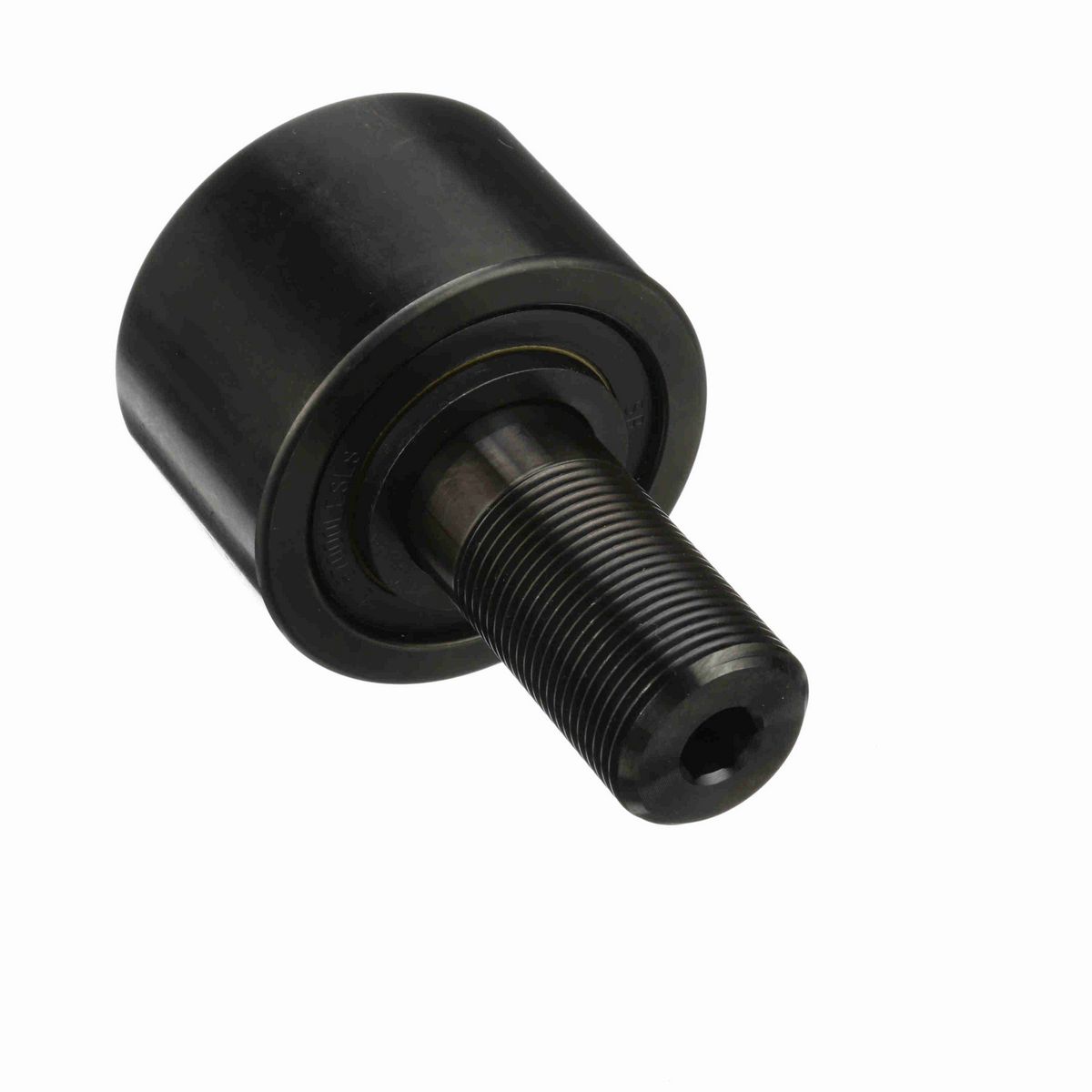

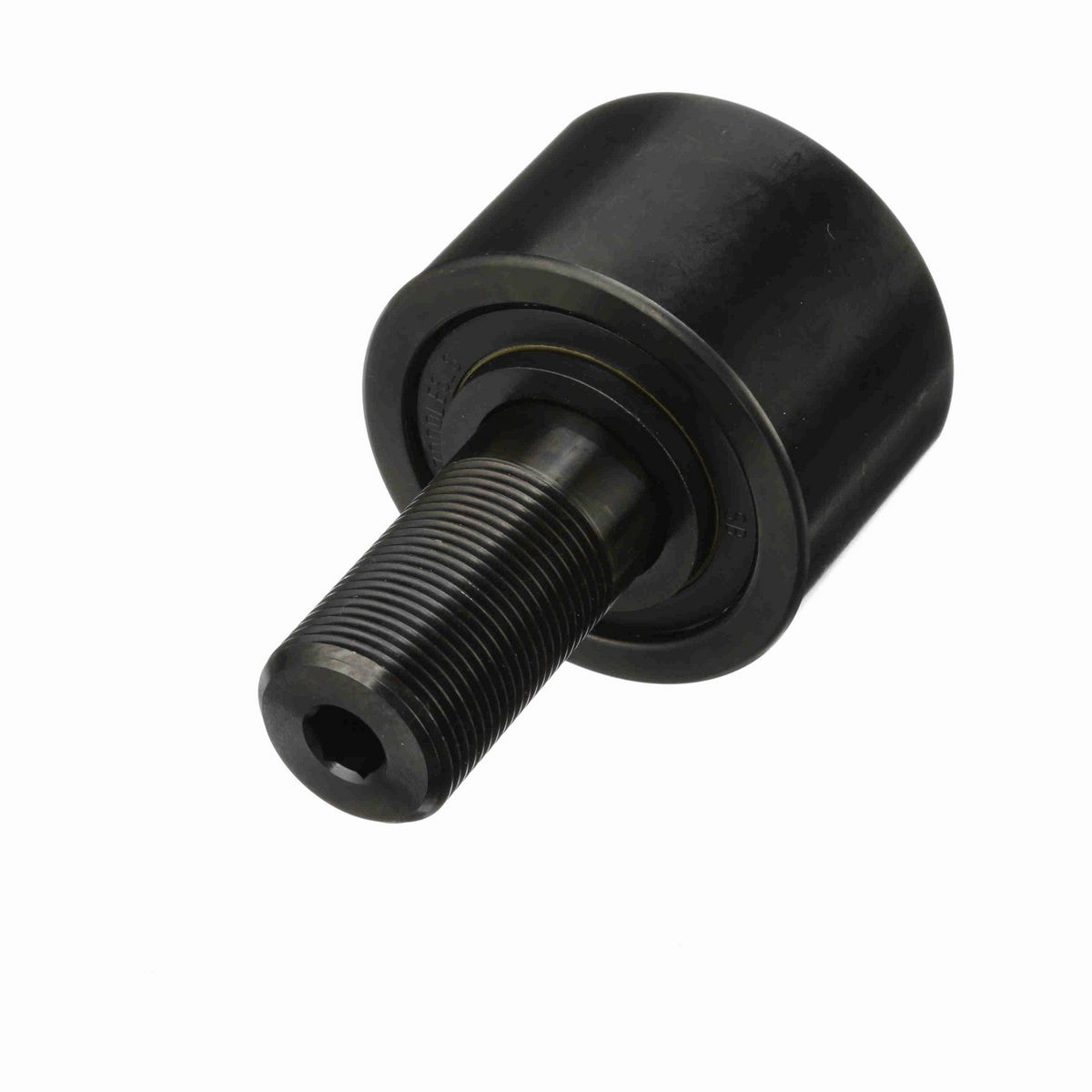

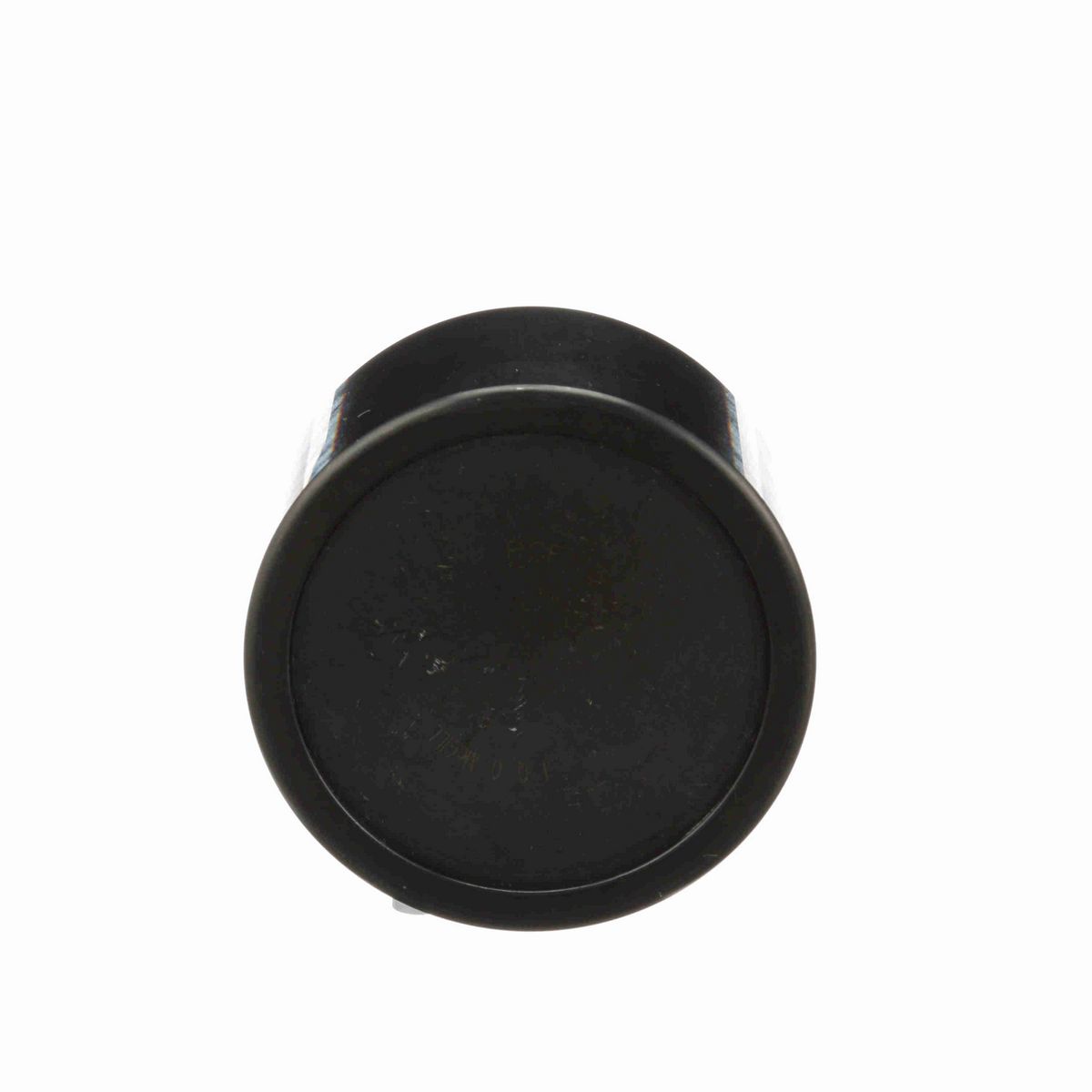

• Stud type cam follower
• Cylindrical outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3 in
Stud Diameter (in)	1.25 in
Roller Width (in)	2 in
Stud Length (in)	2.5 in
Hex Socket (in)	0.4375 in
Weight (kg)	1.83 kg

Technical Specifications

Limiting Speed	950
Dynamic Radial Rating	14,300
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Sealing	Sealed
Series	TRAKROL®
Rolling Element	Tapered Roller (TRAKROL)
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating - single bearing	7,430
Tolerance Class	P0 Equivalent
Static Load Rating	16,000
Roller Shape	Cylindrical
Dynamic Load Rating - both bearings	14,300
Platform	TRAKROL®
Dynamic Load Rating (lb)	14,300 lb
Stud Type	Standard Stud
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,720 lbs

General Specifications

UPC	726166039455
Weight	4.03 LB
Packaged Length	3.30 IN
Packaged Width	3.30 IN
Packaged Height	4.70 IN
HTC	8482.20.0040
Country of Origin	Mexico
