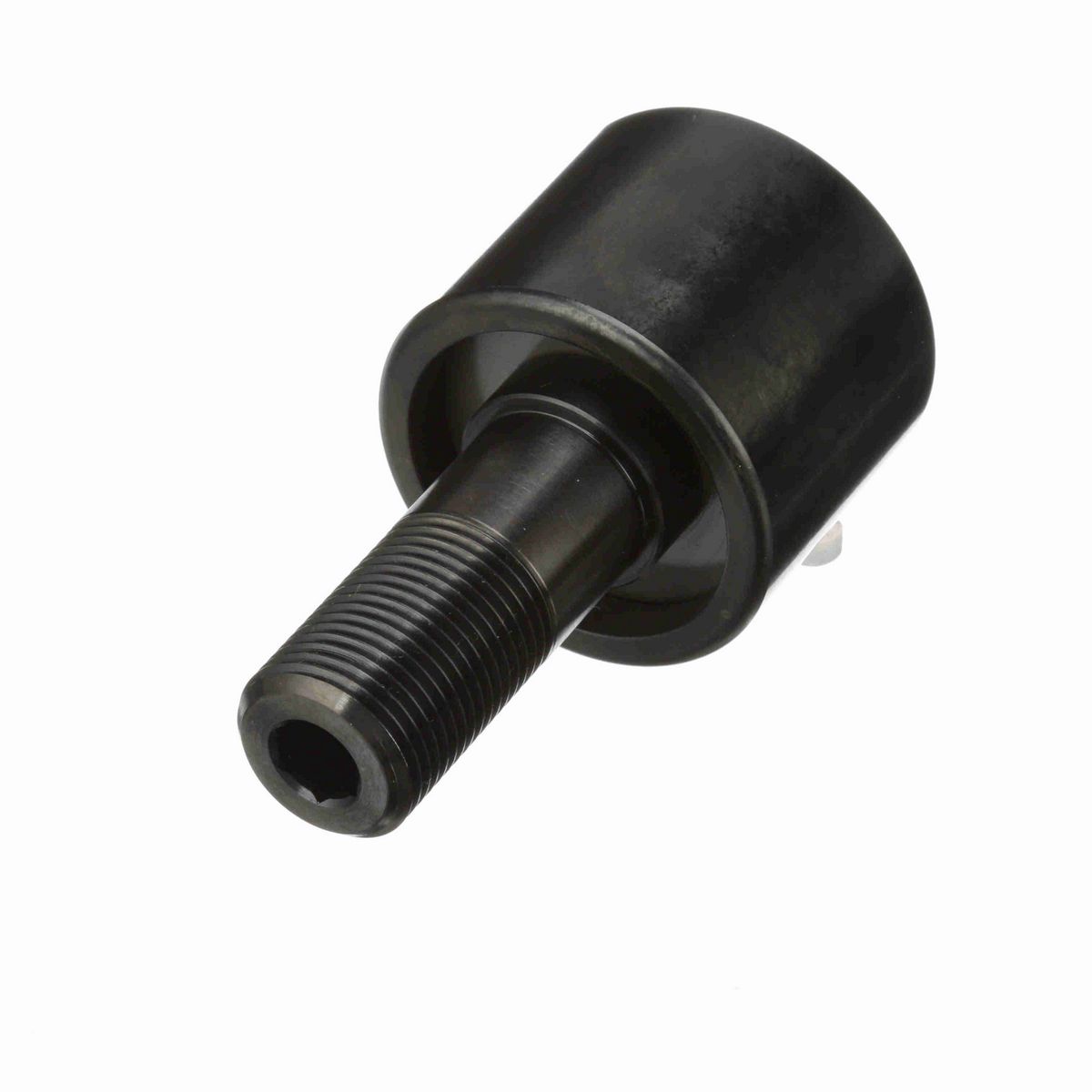

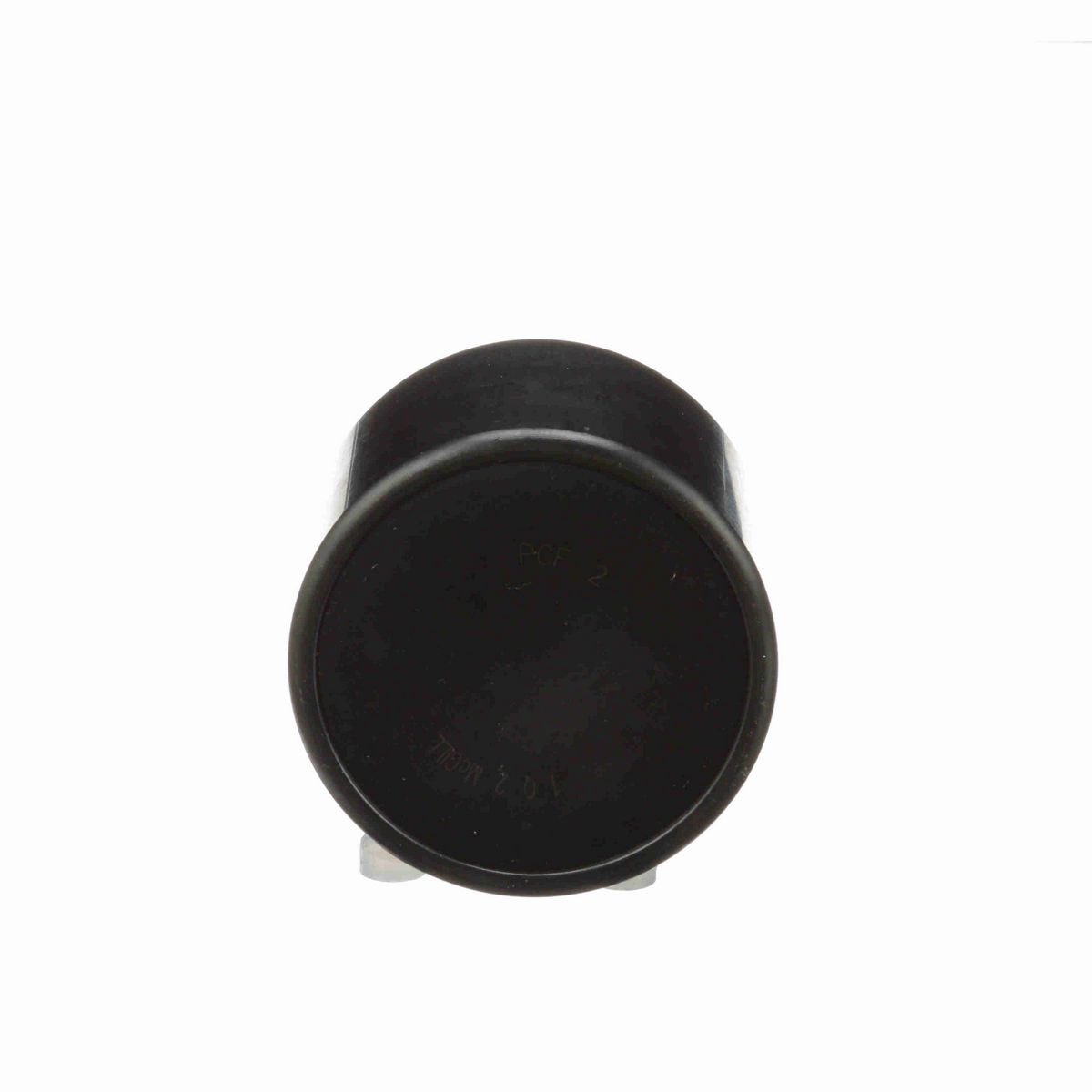

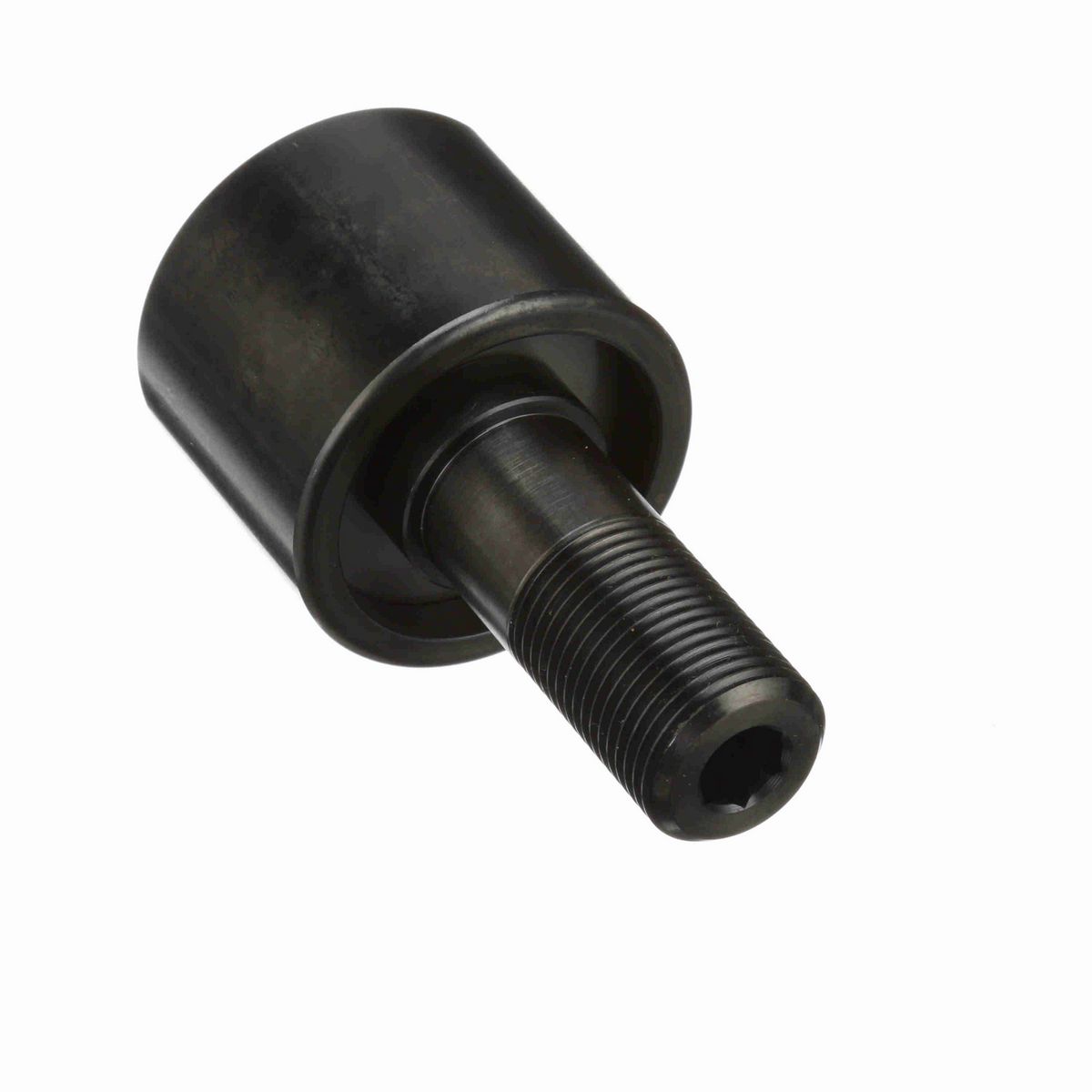

• Stud type cam follower
• Cylindrical outside diameter
• Ball bearing insert
• Hex hole on thread face

Dimensions

Threads	7/8-14
Roller Diameter (in)	2 in
Stud Length (in)	2 in
Hex Socket (in)	0.375 in
Roller Width (in)	1.6875 in
Stud Diameter (in)	0.875 in
Weight (kg)	0.64 kg

Technical Specifications

Limiting Speed	1,400
O.D. Configuration	Cylindrical
Adjustment	None
Sealing	Sealed
Dynamic Radial Rating	3,490
Rolling Element	Ball (TRAKROL)
Series	TRAKROL®
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	3,490 lb
Roller Shape	Cylindrical
Dynamic Load Rating - single bearing	2,130
Dynamic Load Rating - both bearings	3,490
Tolerance Class	P0 Equivalent
Platform	TRAKROL®
Static Load Rating	2,000
Stud Type	Standard Stud
Lubrication Hole Location	None
Ability to Relubricate	No
Clamping Torque (in-lbf)	750 lbs

General Specifications

UPC	726166037765
Weight	1.41 LB
Packaged Length	2.81 IN
Packaged Width	2.81 IN
Packaged Height	3.93 IN
HTC	8482.10.5064
Country of Origin	Mexico
