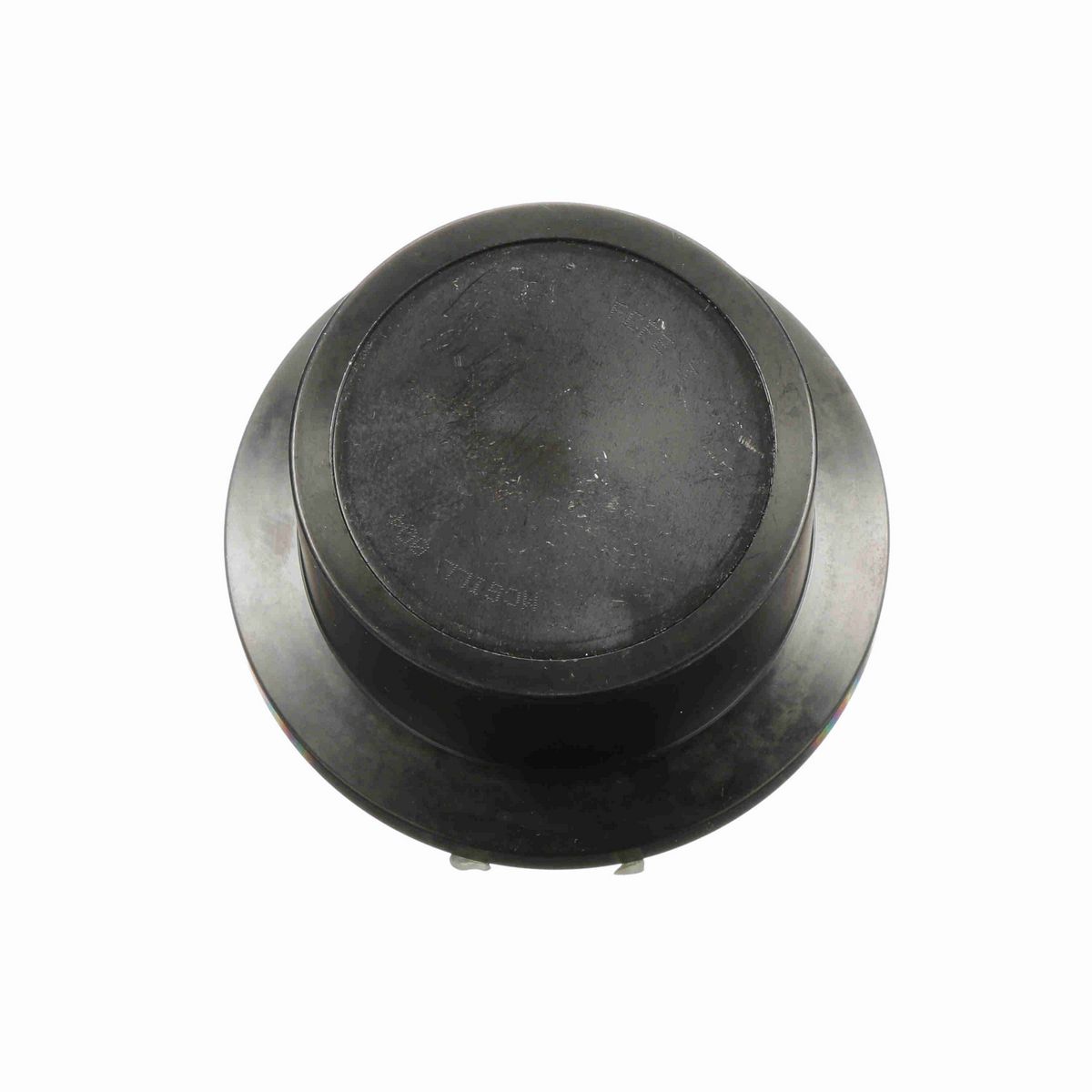

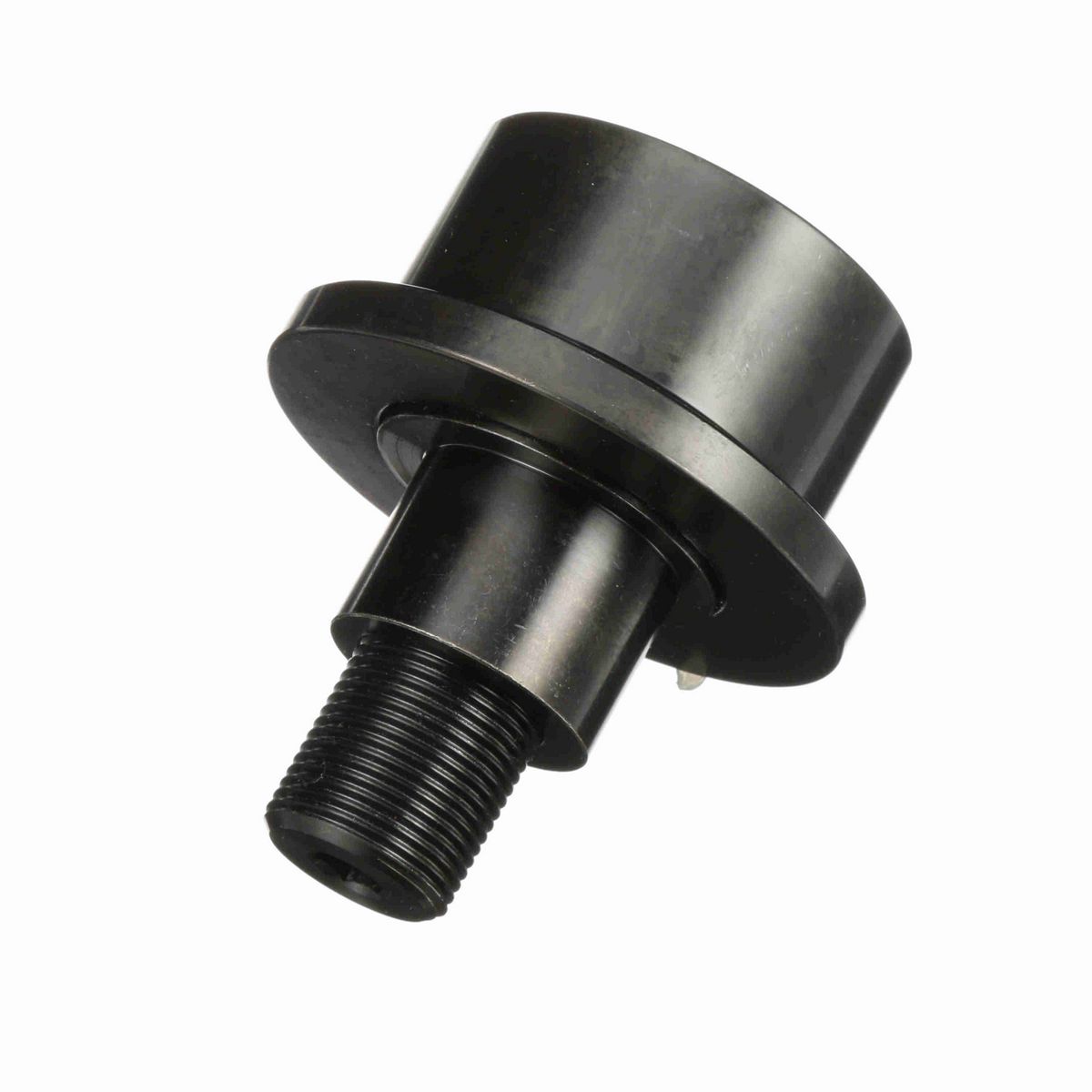

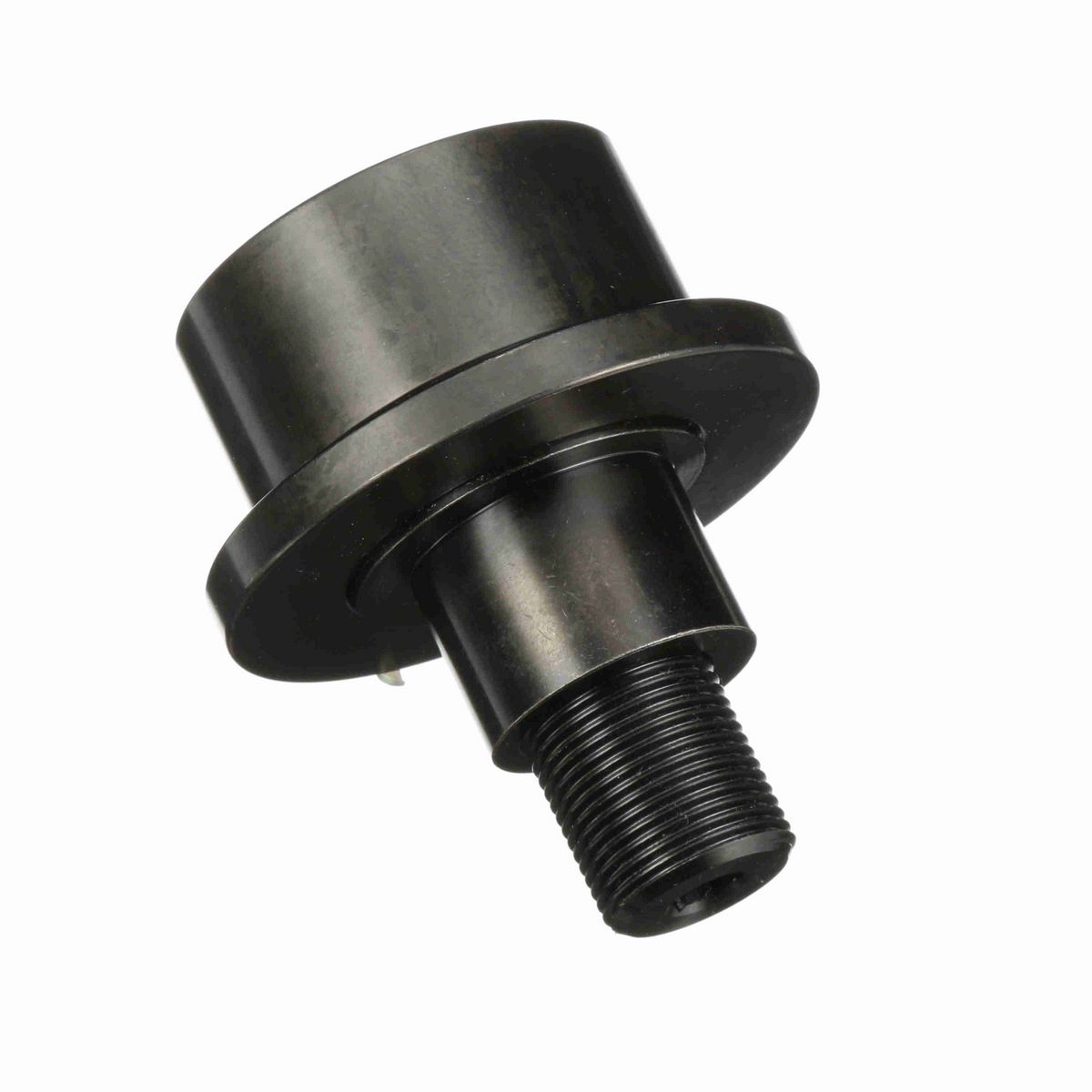

• Stud type cam follower
• Flanged outside diameter
• Tapered bearing insert
• Hex hole on thread face
• Eccentric configuration

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3 in
Hex Socket (in)	0.4375 in
Roller Width (in)	2 in
Bushing Diameter (in)	1.75 in
Stud Length (in)	2.5 in
Stud Diameter (in)	1.25 in
Weight (kg)	2.44 kg

Technical Specifications

Adjustment	Eccentric Bushing
Dynamic Radial Rating	14,300
Series	TRAKROL®
Sealing	Sealed
Rolling Element	Tapered Roller (TRAKROL)
Limiting Speed	950
O.D. Configuration	Flanged
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	14,300 lb
Static Load Rating	16,000
Roller Shape	Flanged
Platform	TRAKROL®
Stud Type	Standard Stud with Eccentric Bushing
Dynamic Load Rating - single bearing	7,430
Dynamic Load Rating - both bearings	14,300
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,720 lbs

General Specifications

UPC	726166111564
Weight	5.37 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.20.0040
Country of Origin	Mexico
