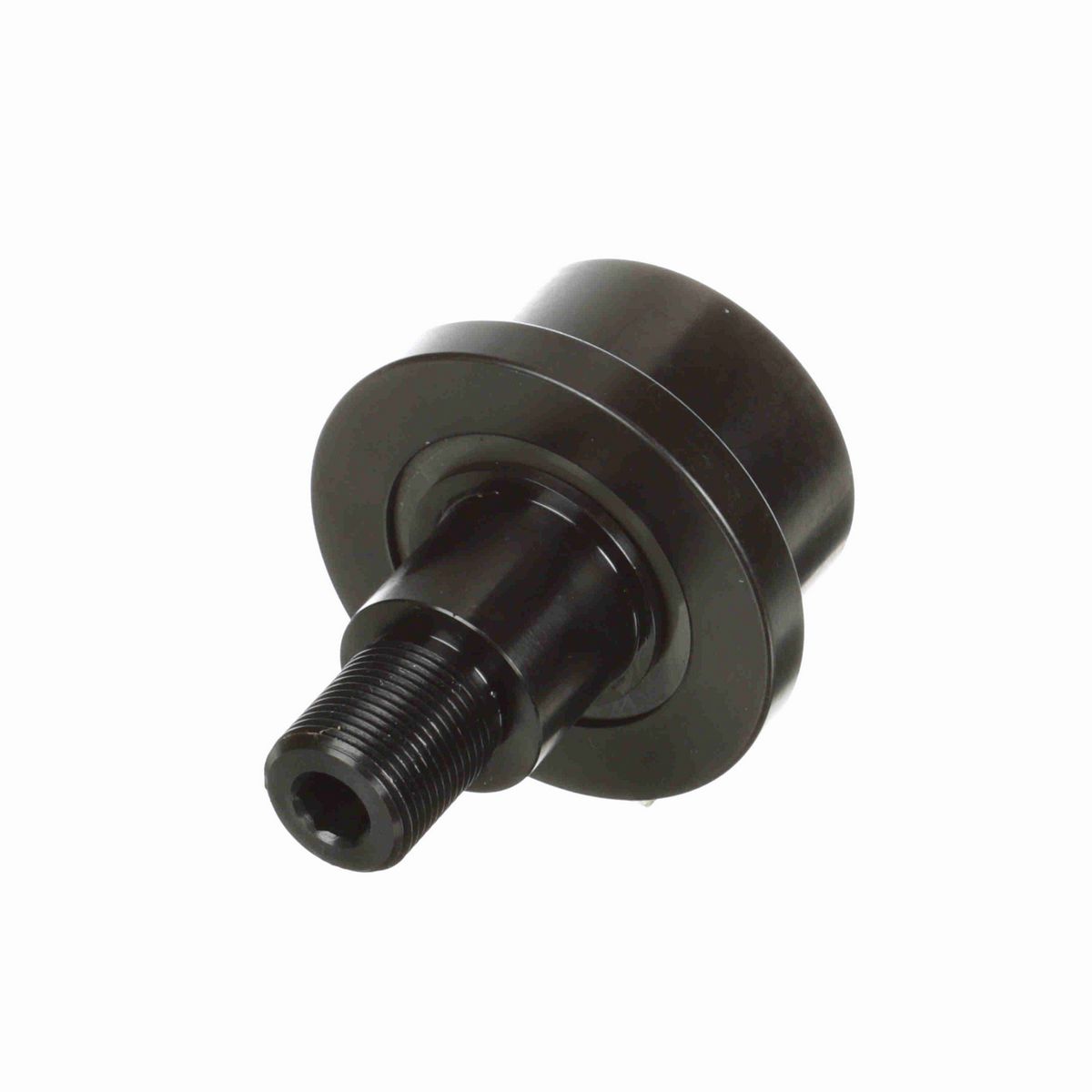

• Stud type cam follower
• Flanged outside diameter
• Ball bearing insert
• Hex hole on thread face
• Eccentric configuration

Dimensions

Threads	1-14
Roller Diameter (in)	2.5 in
Roller Width (in)	1.6875 in
Stud Diameter (in)	1 in
Stud Length (in)	2.25 in
Bushing Diameter (in)	1.375 in
Hex Socket (in)	0.4375 in
Weight (kg)	1.27 kg

Technical Specifications

Sealing	Sealed
Limiting Speed	1,100
Dynamic Radial Rating	5,120
Series	TRAKROL®
Adjustment	Eccentric Bushing
O.D. Configuration	Flanged
Hex/Slot	Hex Hole
Rolling Element	Ball (TRAKROL)
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	5,120 lb
Dynamic Load Rating - both bearings	5,120
Platform	TRAKROL®
Roller Shape	Flanged
Static Load Rating	3,120
Stud Type	Standard Stud with Eccentric Bushing
Dynamic Load Rating - single bearing	3,120
Tolerance Class	P0 Equivalent
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,120 lbs

General Specifications

UPC	726166111472
Weight	2.79 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.10.5064
Country of Origin	Mexico
