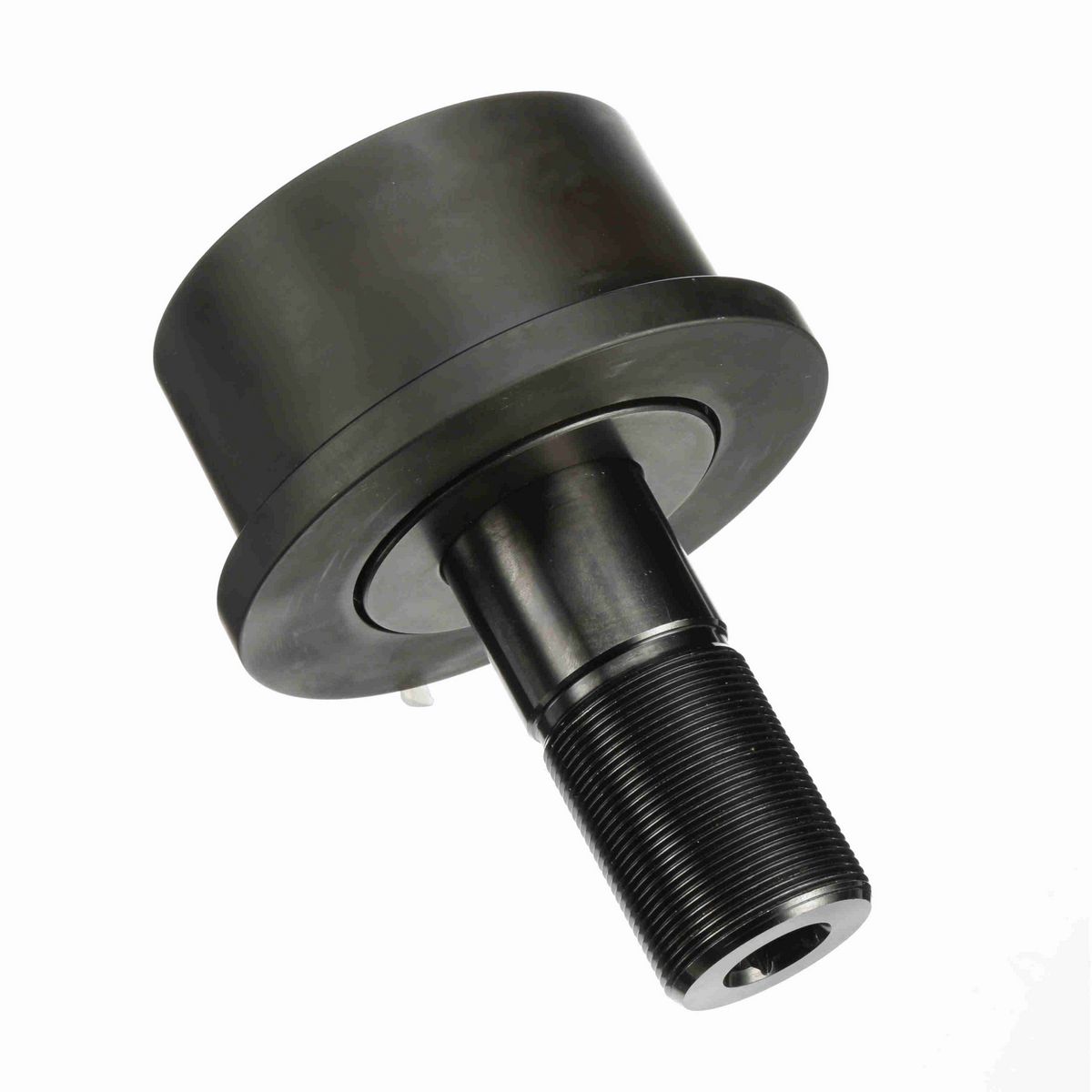

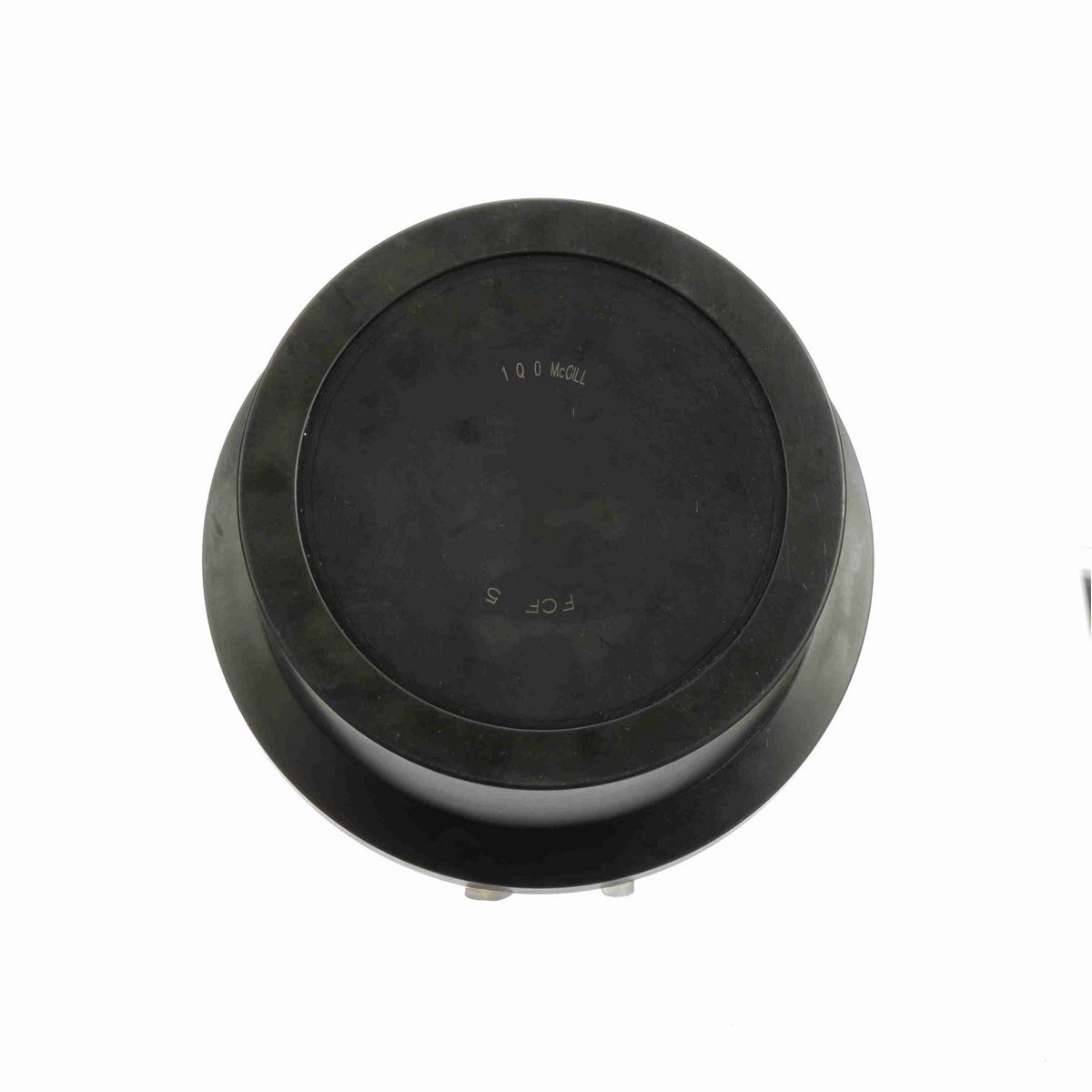

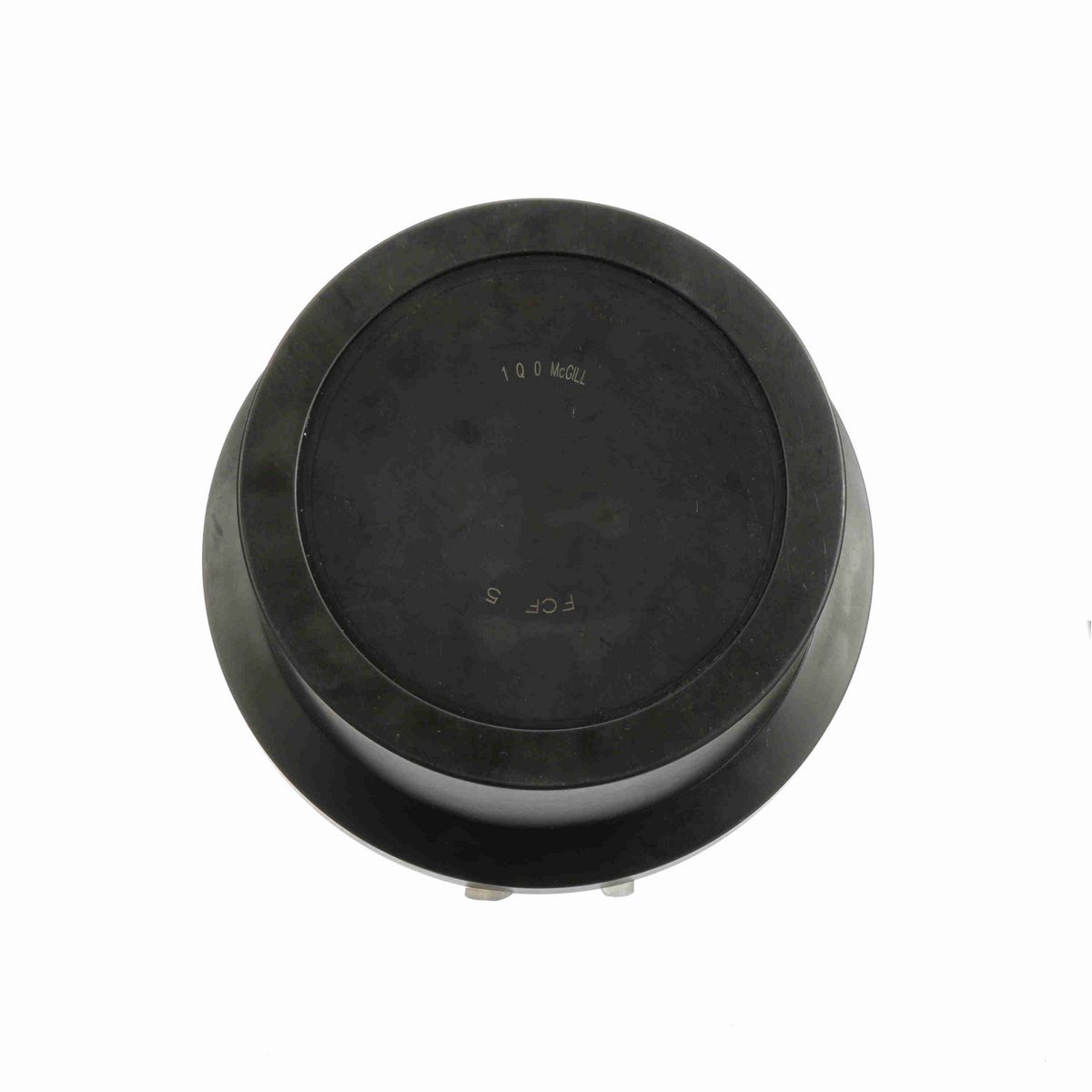

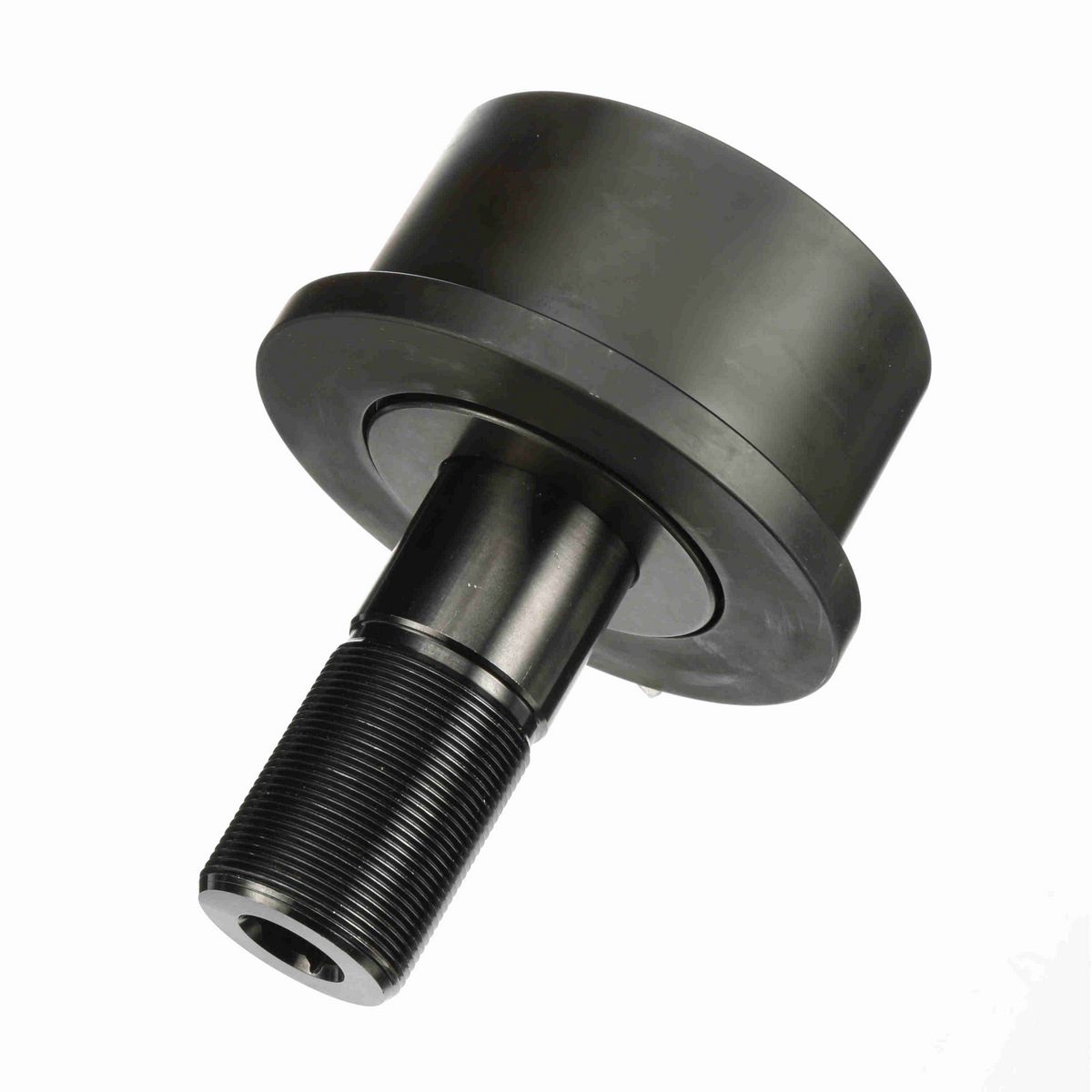

• Stud type cam follower
• Flanged outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	2-12
Roller Diameter (in)	5 in
Hex Socket (in)	0.875 in
Stud Length (in)	4.5 in
Roller Width (in)	3 in
Stud Diameter (in)	2 in
Weight (kg)	9.13 kg

Technical Specifications

O.D. Configuration	Flanged
Sealing	Sealed
Rolling Element	Tapered Roller (TRAKROL)
Series	TRAKROL®
Adjustment	None
Hex/Slot	Hex Hole
Dynamic Radial Rating	35,800
Limiting Speed	575
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	40,000
Stud Type	Standard Stud
Dynamic Load Rating - single bearing	18,610
Dynamic Load Rating - both bearings	35,800
Roller Shape	Flanged
Dynamic Load Rating (lb)	35,800 lb
Tolerance Class	P0 Equivalent
Platform	TRAKROL®
Clamping Torque (in-lbf)	2,500 lbs
Ability to Relubricate	No

General Specifications

UPC	726166042134
Weight	20.13 LB
Packaged Length	10.00 IN
Packaged Width	6.00 IN
Packaged Height	6.00 IN
HTC	8482.20.0040
Country of Origin	Mexico
