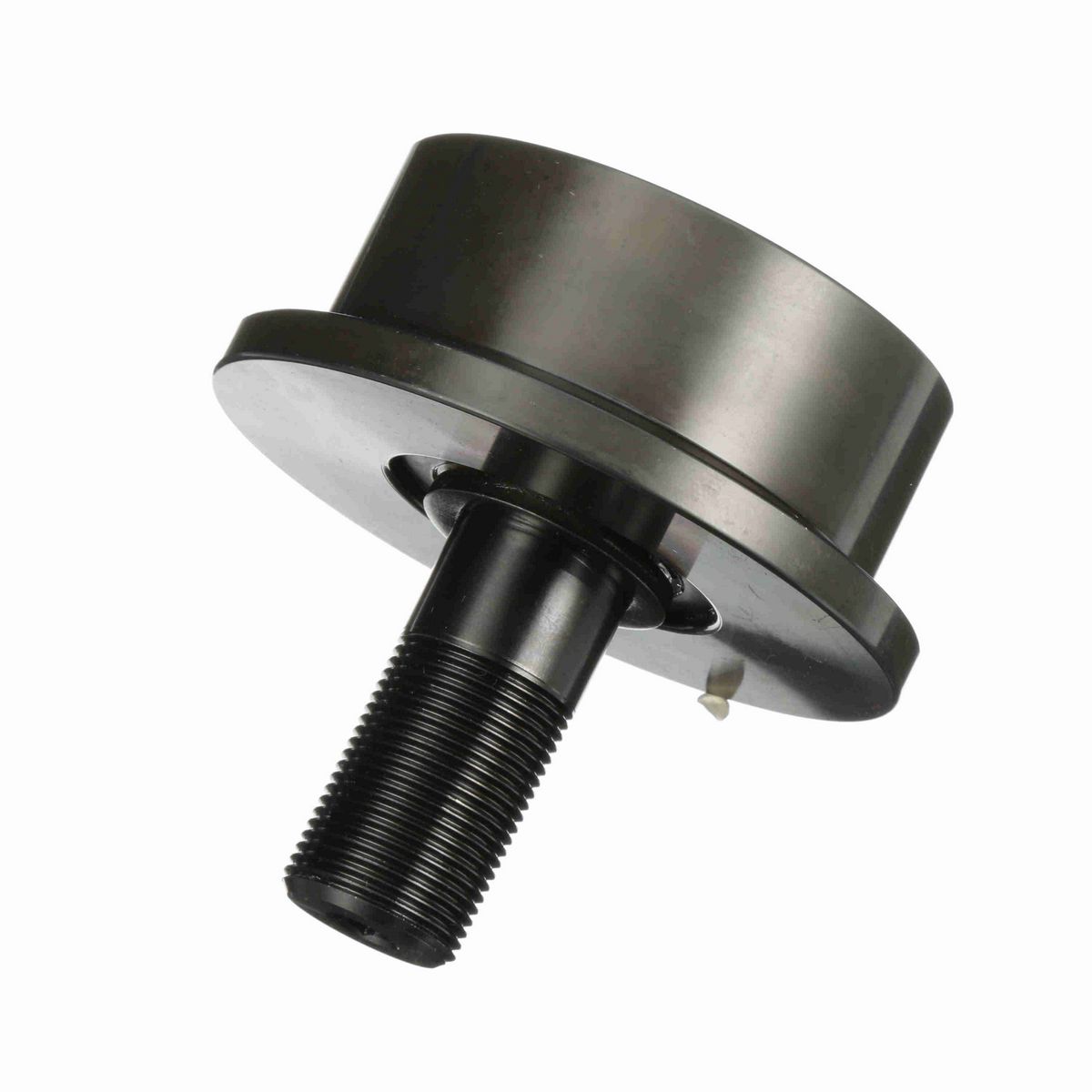

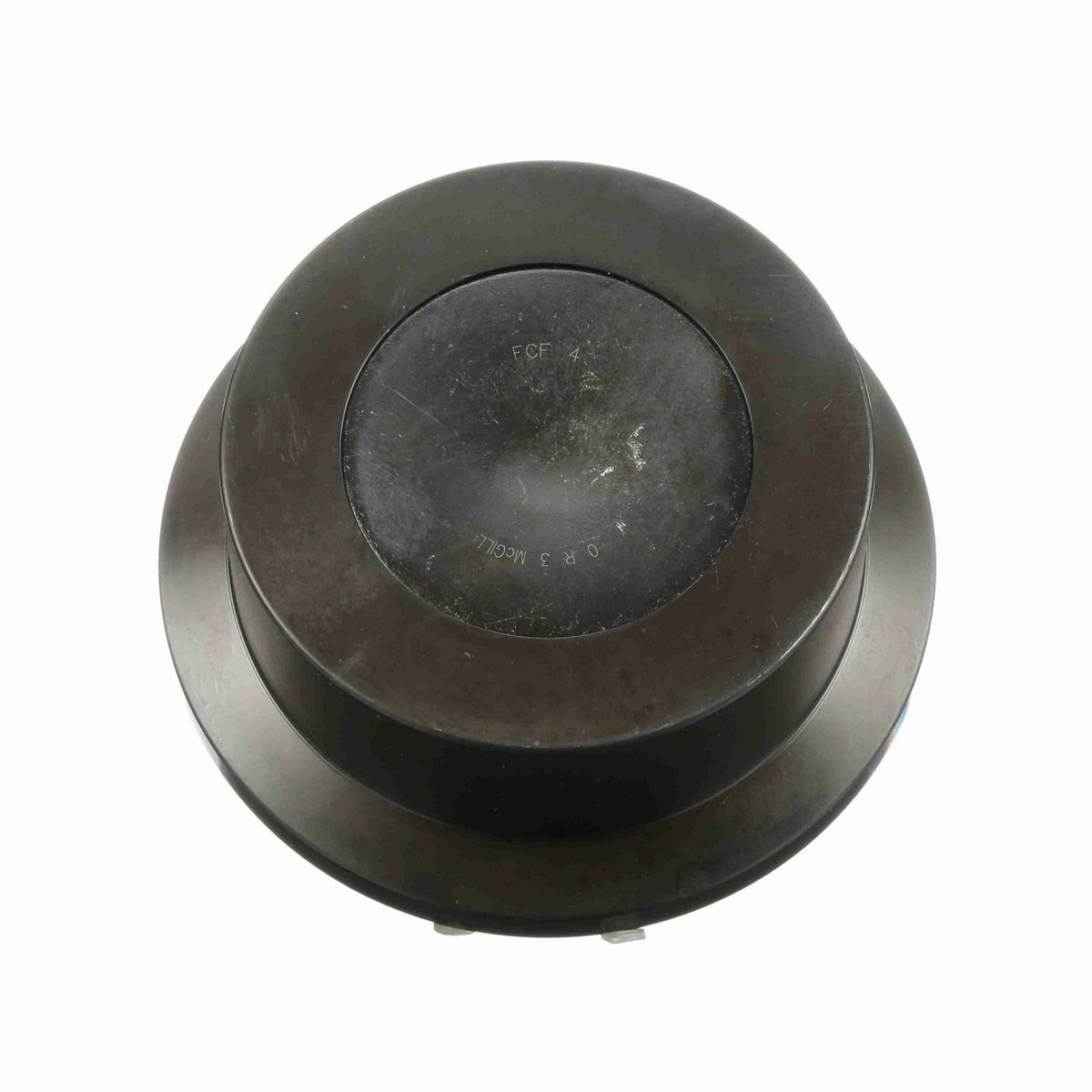

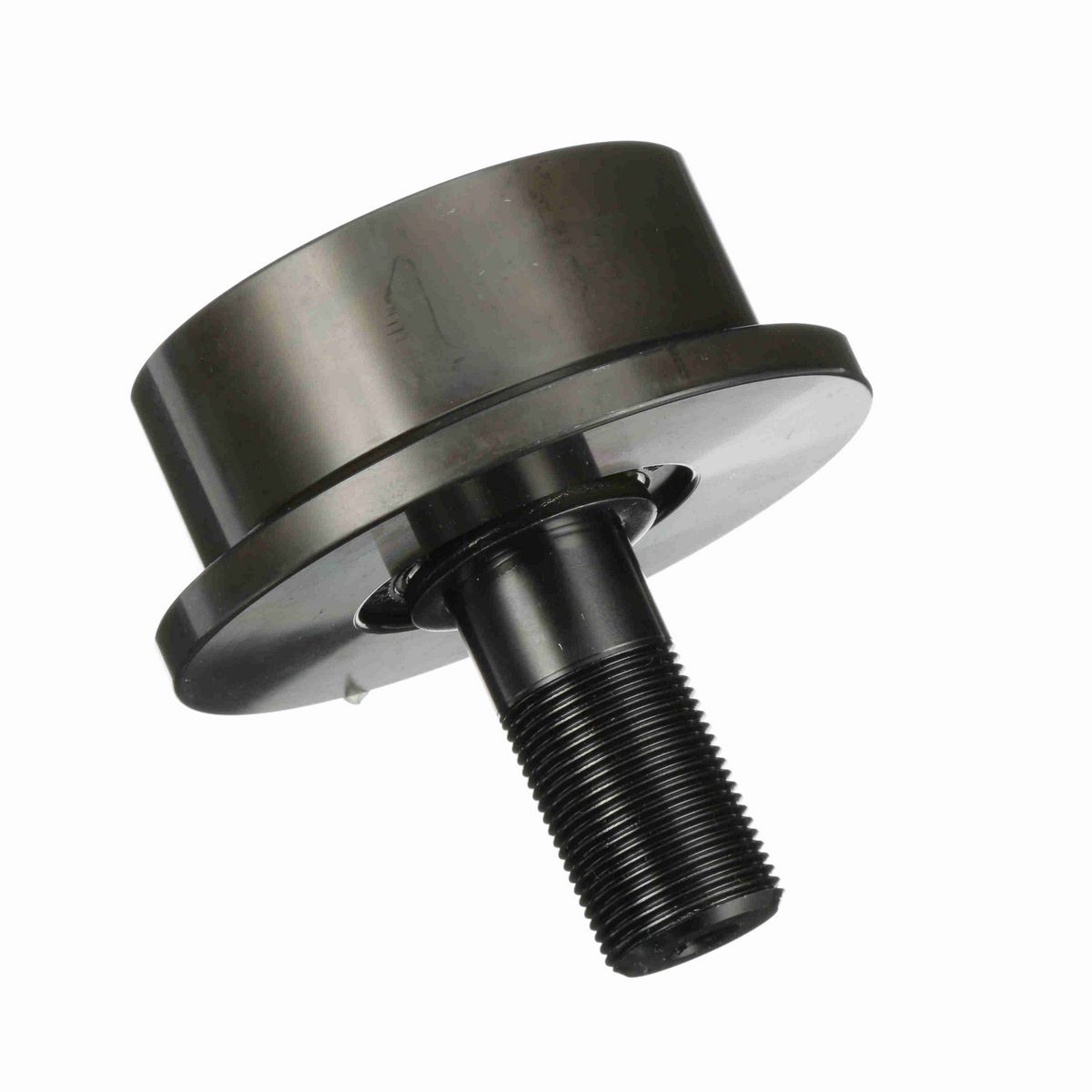

• Stud type cam follower
• Flanged outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	4 in
Stud Length (in)	2.75 in
Stud Diameter (in)	1.25 in
Hex Socket (in)	0.4375 in
Roller Width (in)	2 in
Weight (kg)	3.56 kg

Technical Specifications

O.D. Configuration	Flanged
Limiting Speed	700
Rolling Element	Tapered Roller (TRAKROL)
Sealing	Sealed
Adjustment	None
Series	TRAKROL®
Hex/Slot	Hex Hole
Dynamic Radial Rating	14,300
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Flanged
Static Load Rating	16,000
Stud Type	Standard Stud
Dynamic Load Rating - both bearings	14,300
Dynamic Load Rating - single bearing	7,430
Tolerance Class	P0 Equivalent
Platform	TRAKROL®
Dynamic Load Rating (lb)	14,300 lb
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,720 lbs

General Specifications

UPC	726166040468
Weight	7.85 LB
Packaged Length	5.50 IN
Packaged Width	5.50 IN
Packaged Height	4.75 IN
HTC	8482.20.0040
Country of Origin	Mexico
