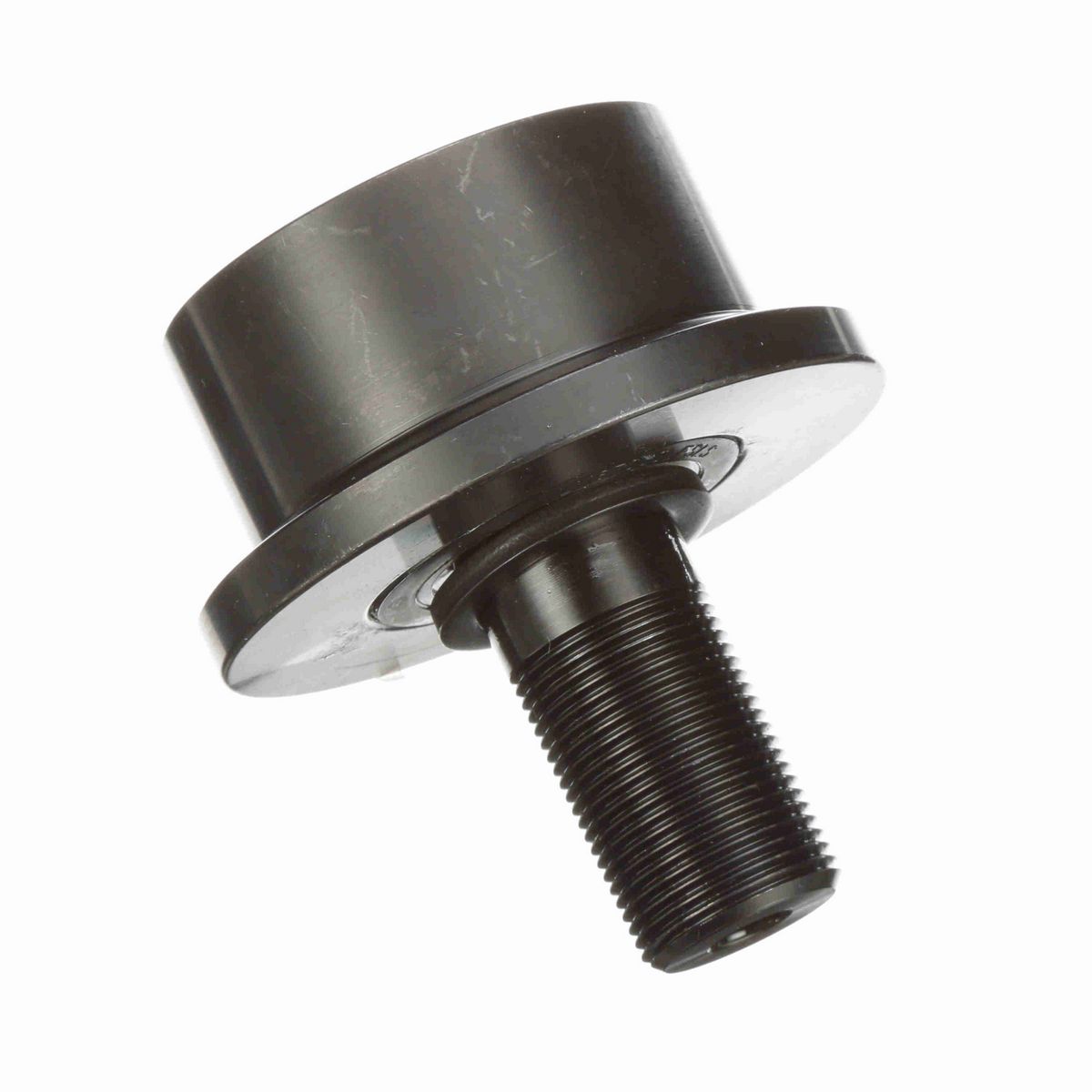

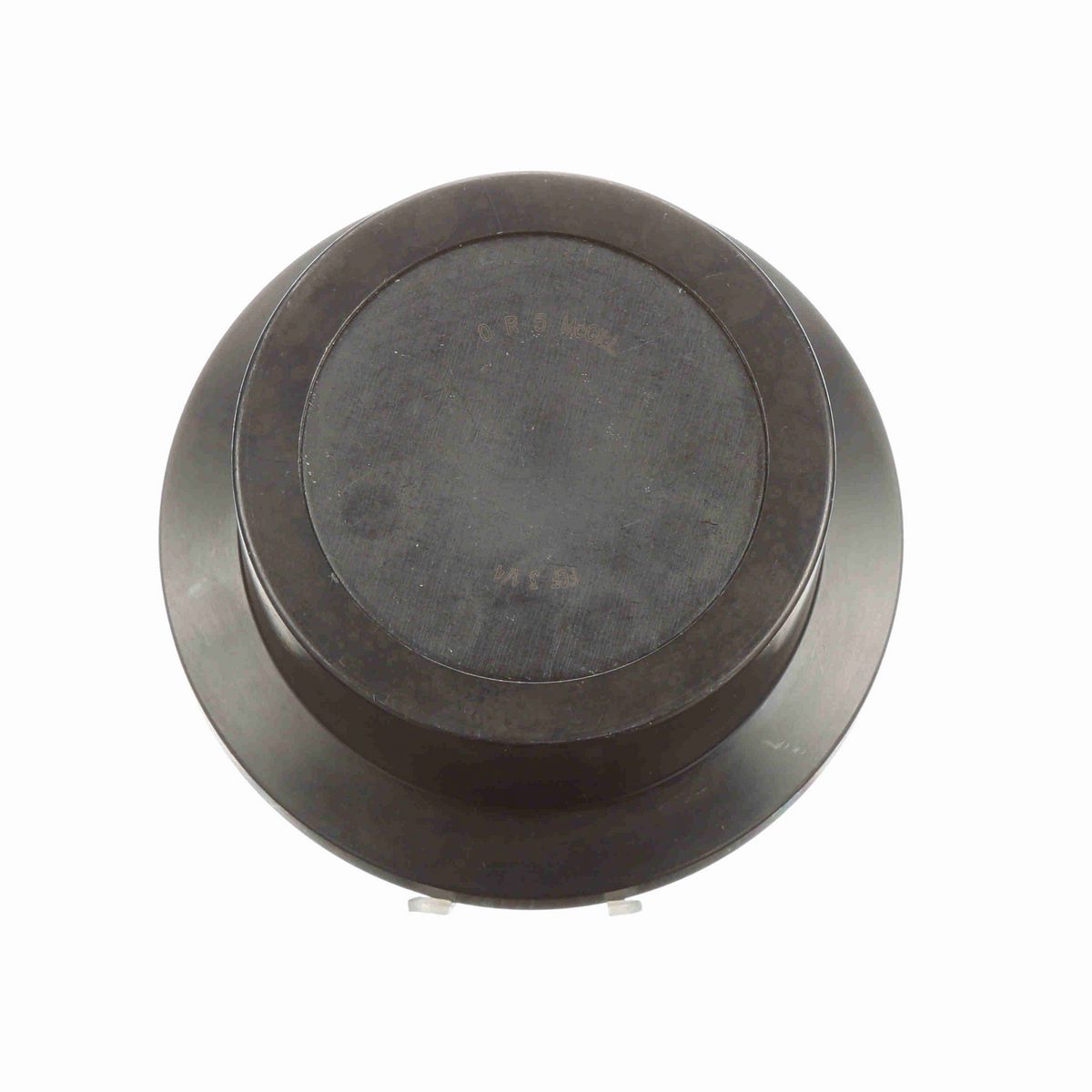

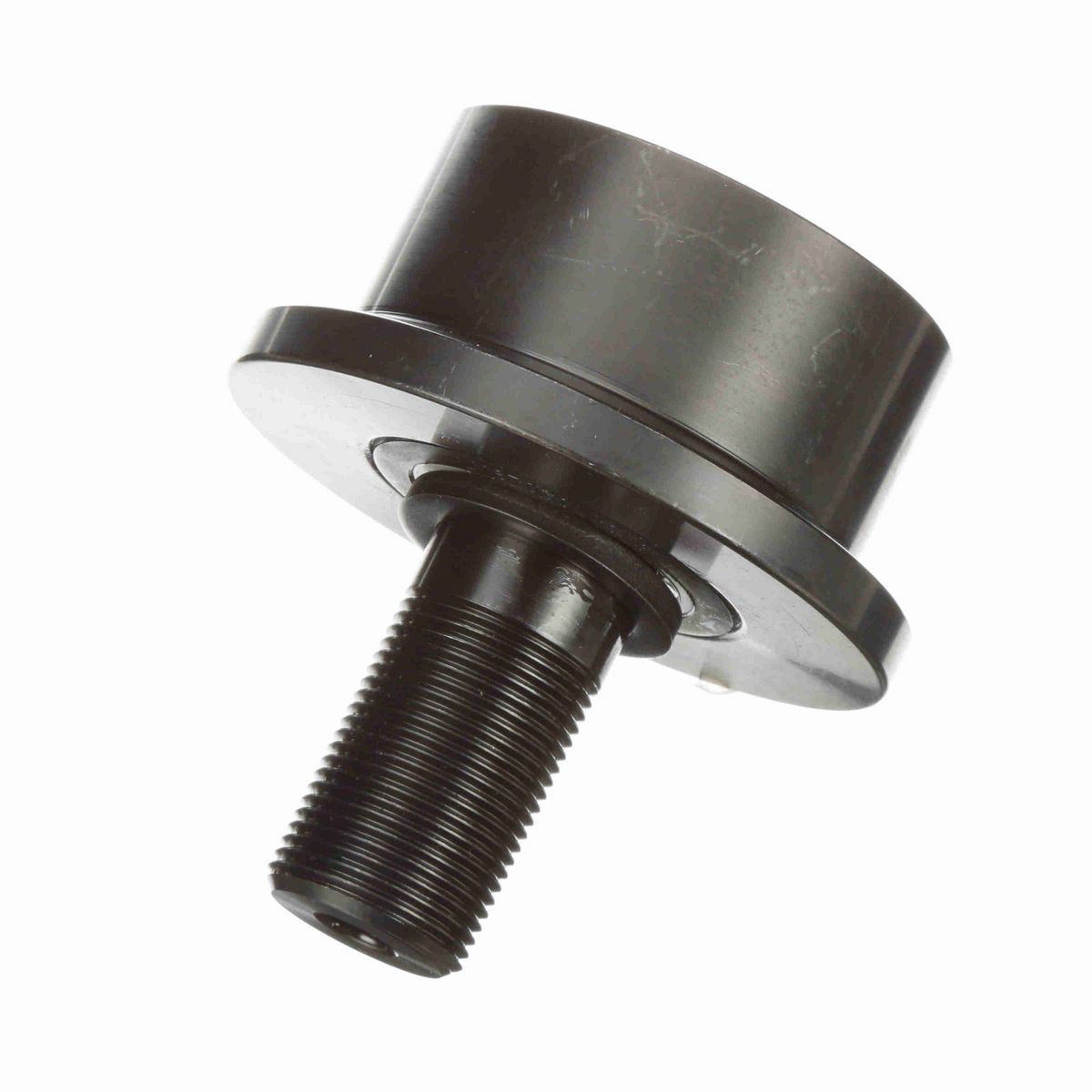

• Stud type cam follower
• Flanged outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3.25 in
Stud Diameter (in)	1.25 in
Roller Width (in)	2 in
Hex Socket (in)	0.4375 in
Stud Length (in)	2.5 in
Weight (kg)	2.4 kg

Technical Specifications

Series	TRAKROL®
Limiting Speed	880
Adjustment	None
Sealing	Sealed
Rolling Element	Tapered Roller (TRAKROL)
O.D. Configuration	Flanged
Hex/Slot	Hex Hole
Dynamic Radial Rating	14,300
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	16,000
Platform	TRAKROL®
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	14,300 lb
Roller Shape	Flanged
Dynamic Load Rating - both bearings	14,300
Dynamic Load Rating - single bearing	7,430
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,720 lbs

General Specifications

UPC	726166039752
Weight	5.30 LB
Packaged Length	5.50 IN
Packaged Width	5.50 IN
Packaged Height	4.75 IN
HTC	8482.20.0040
Country of Origin	Mexico
