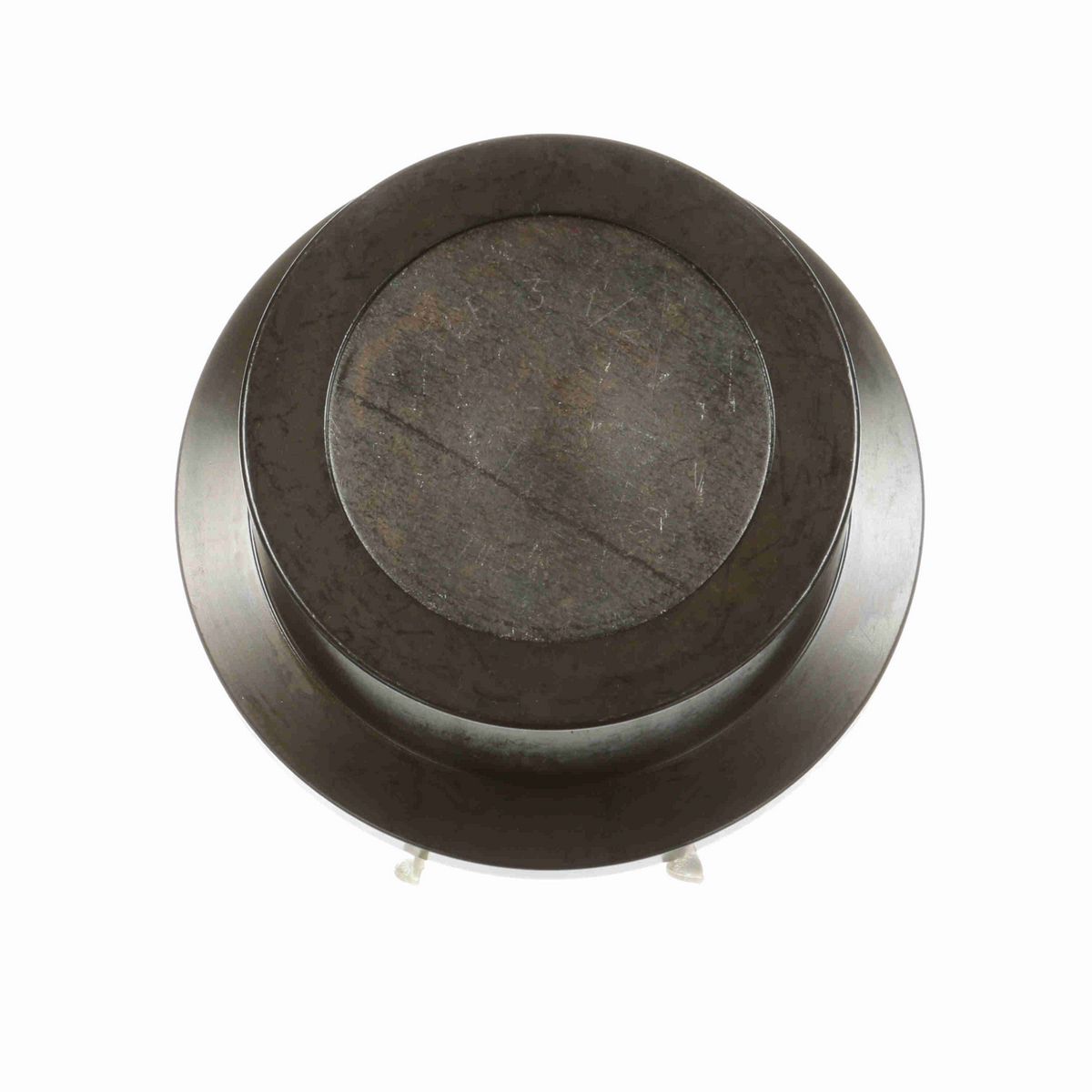

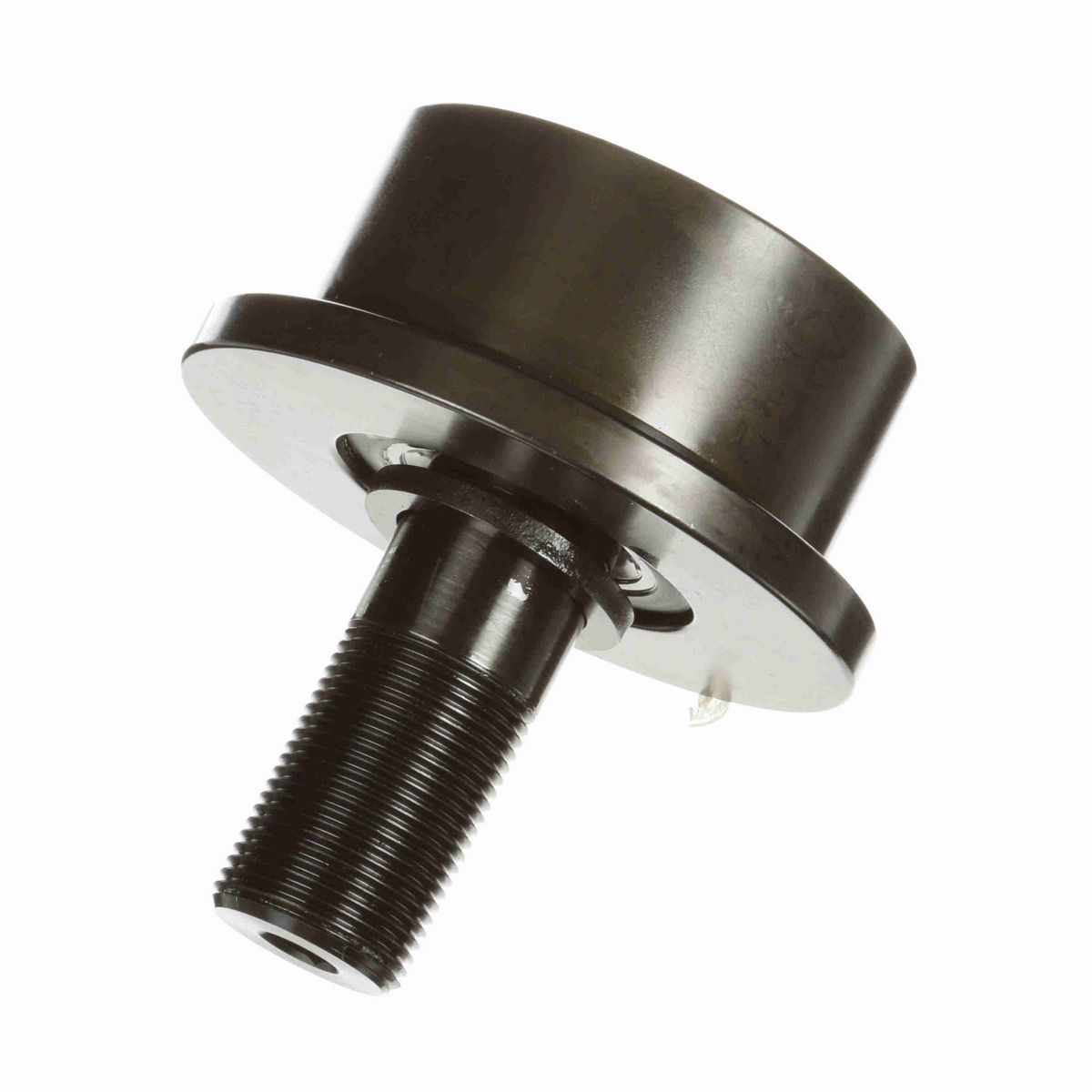

• Stud type cam follower
• Flanged outside diameter
• Tapered bearing insert
• Hex hole on thread face

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3.5 in
Hex Socket (in)	0.4375 in
Stud Length (in)	2.75 in
Stud Diameter (in)	1.25 in
Roller Width (in)	2 in
Weight (kg)	2.79 kg

Technical Specifications

Dynamic Radial Rating	14,300
Sealing	Sealed
Hex/Slot	Hex Hole
Adjustment	None
Limiting Speed	820
Rolling Element	Tapered Roller (TRAKROL)
O.D. Configuration	Flanged
Series	TRAKROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Dynamic Load Rating - single bearing	7,430
Platform	TRAKROL®
Dynamic Load Rating - both bearings	14,300
Static Load Rating	16,000
Dynamic Load Rating (lb)	14,300 lb
Roller Shape	Flanged
Clamping Torque (in-lbf)	1,720 lbs
Ability to Relubricate	No

General Specifications

UPC	726166040093
Weight	6.14 LB
Packaged Length	5.50 IN
Packaged Width	5.50 IN
Packaged Height	4.75 IN
HTC	8482.20.0040
Country of Origin	Mexico
