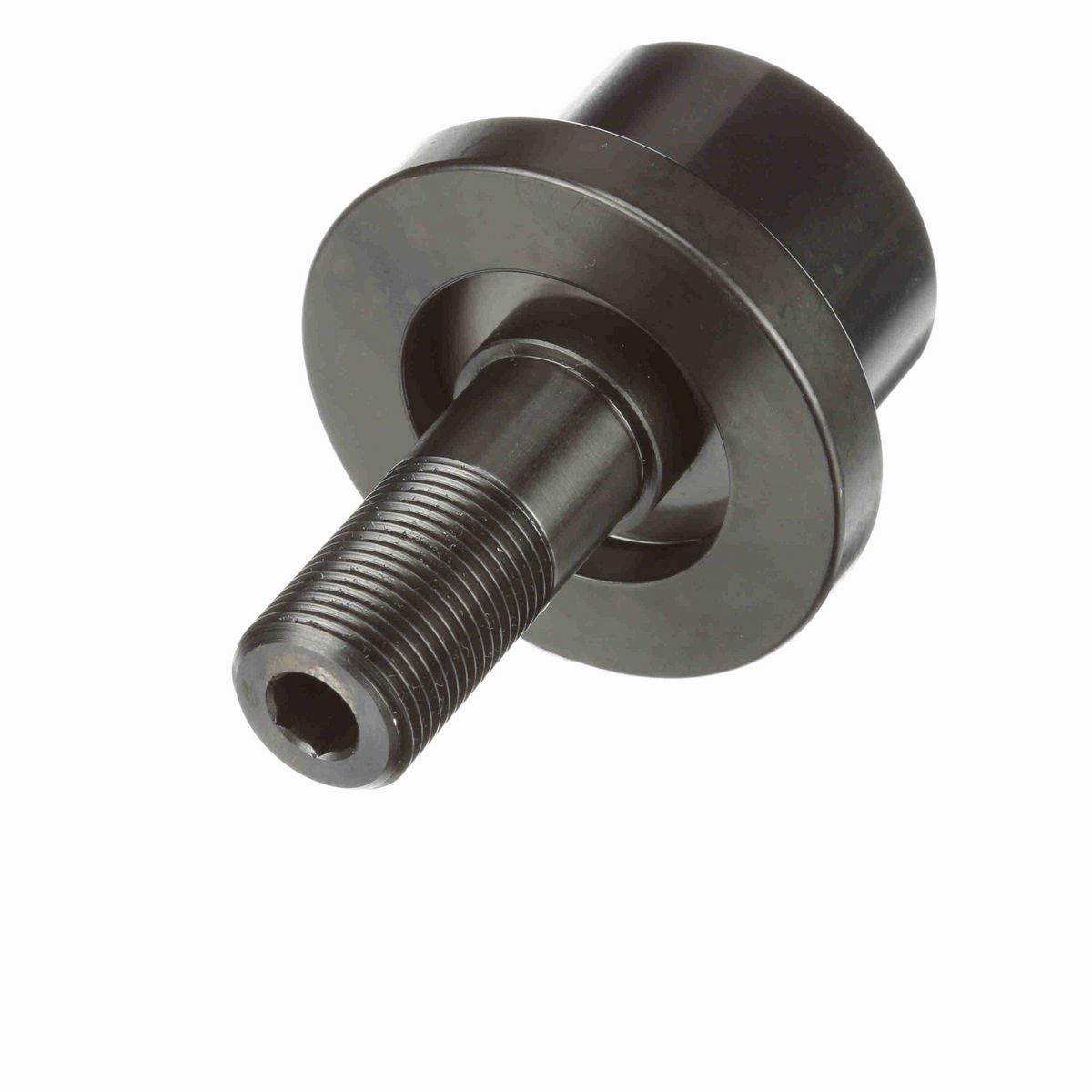

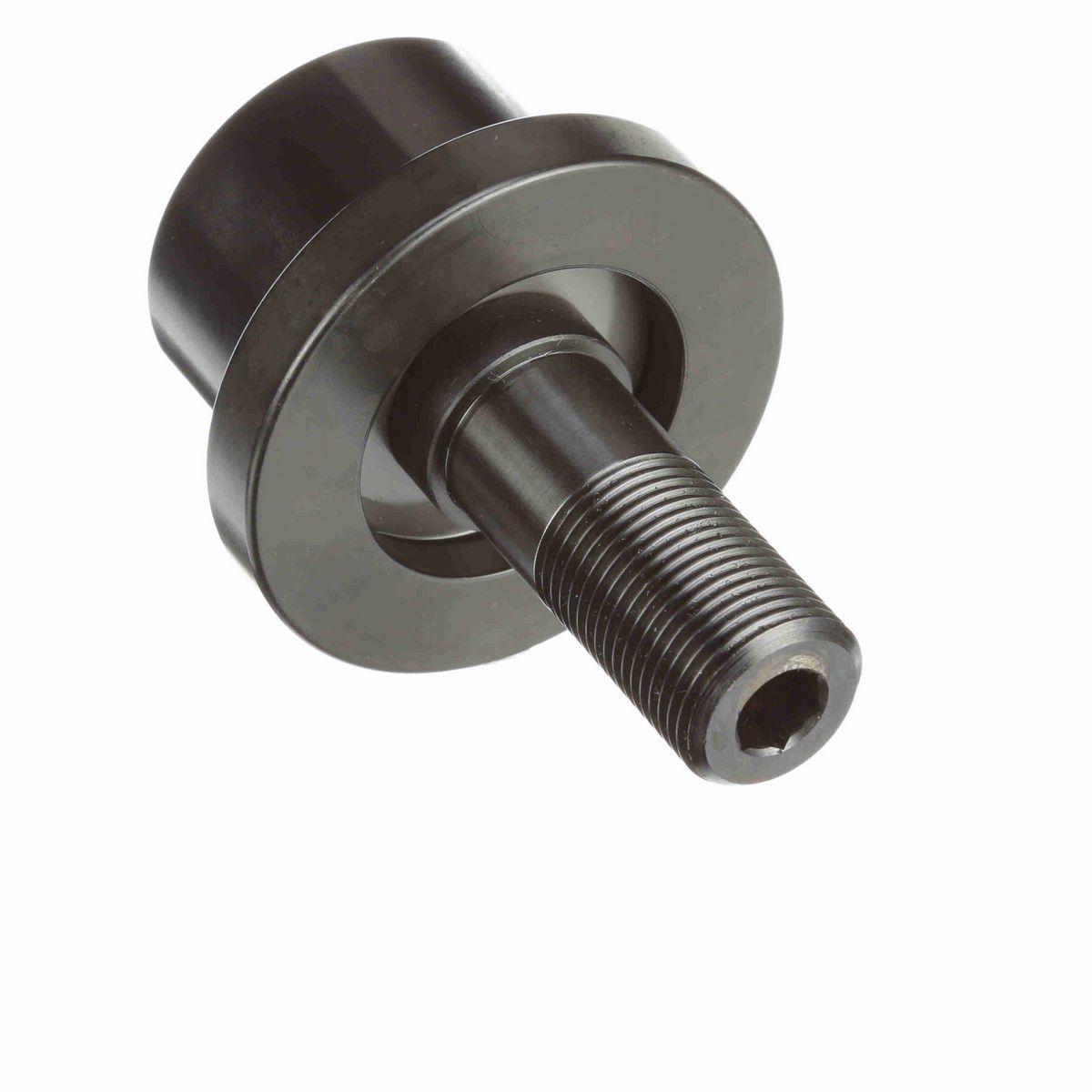

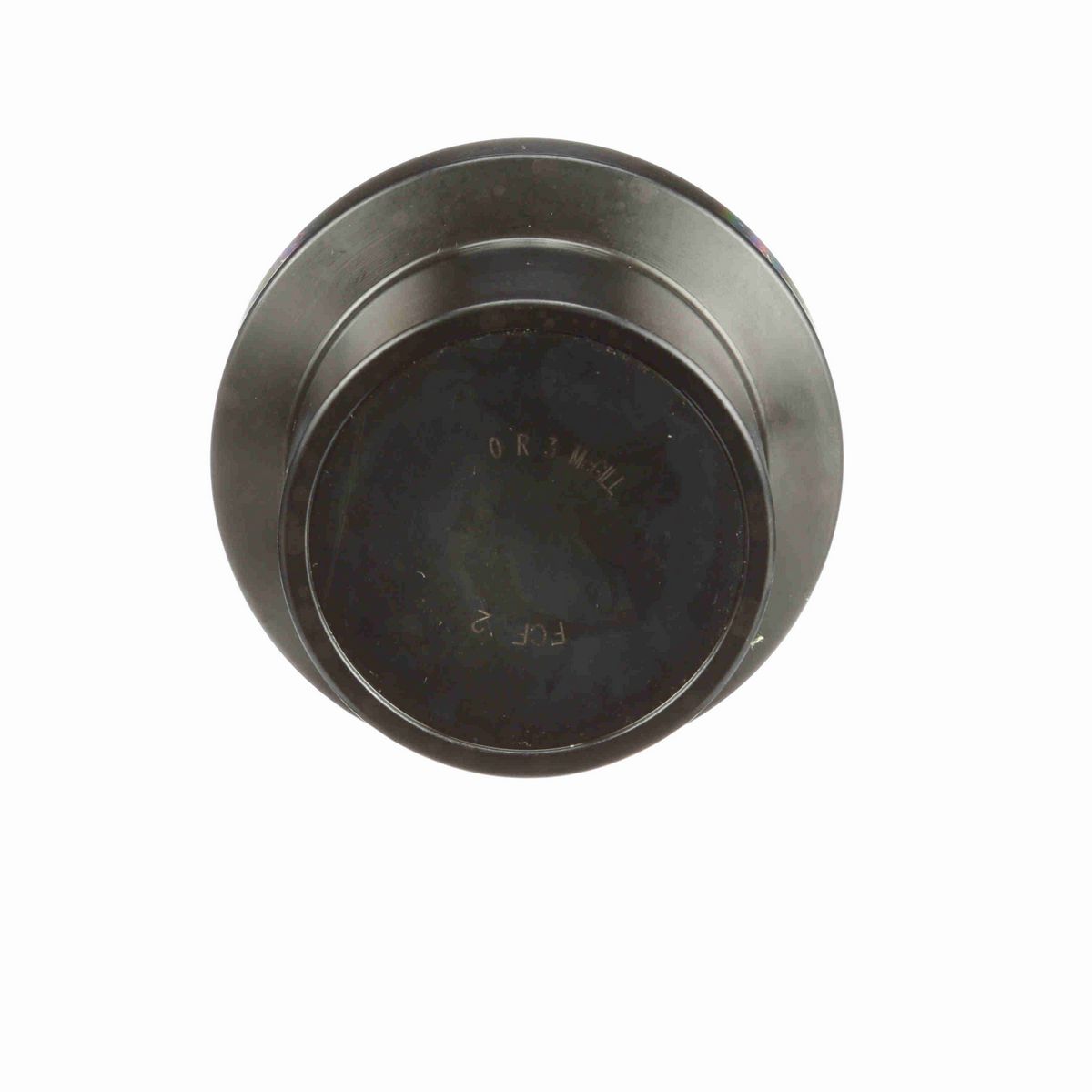

• Stud type cam follower
• Flanged outside diameter
• Ball bearing insert
• Hex hole on thread face

Dimensions

Threads	7/8-14 UNF-2A
Roller Diameter (in)	2 in
Roller Width (in)	1.6875 in
Stud Diameter (in)	0.875 in
Hex Socket (in)	0.375 in
Stud Length (in)	2 in
Weight (kg)	0.79 kg

Technical Specifications

Rolling Element	Ball (TRAKROL)
Dynamic Radial Rating	3,490
Hex/Slot	Hex Hole
Limiting Speed	1,400
Series	TRAKROL®
Sealing	Sealed
O.D. Configuration	Flanged
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating - single bearing	2,130
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Flanged
Dynamic Load Rating (lb)	3,490 lb
Platform	TRAKROL®
Static Load Rating	2,000
Dynamic Load Rating - both bearings	3,490
Ability to Relubricate	No
Clamping Torque (in-lbf)	750 lbs

General Specifications

UPC	726166037741
Weight	1.75 LB
Packaged Length	2.81 IN
Packaged Width	2.81 IN
Packaged Height	3.93 IN
HTC	8482.10.5064
Country of Origin	Mexico
