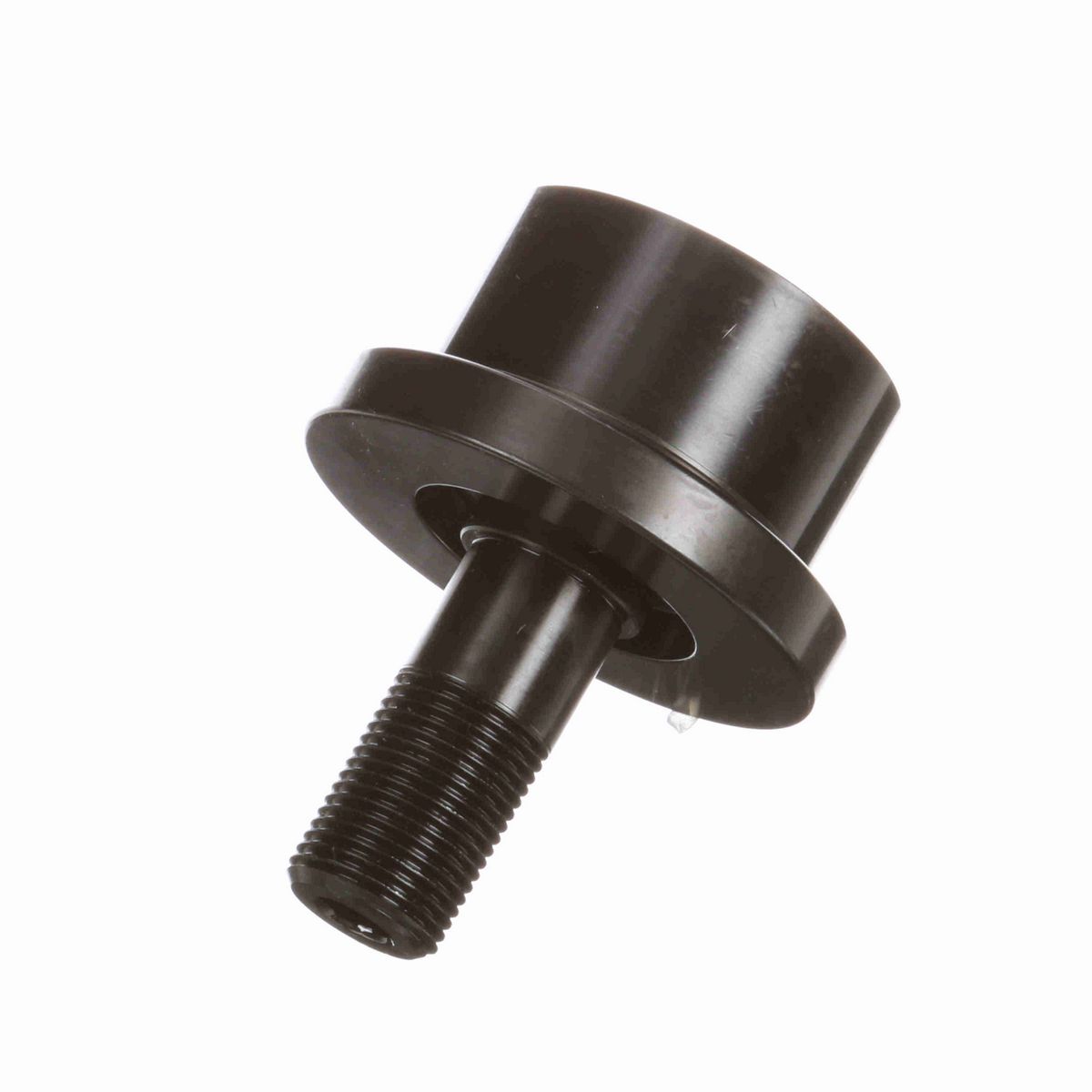

• Stud type cam follower
• Flanged outside diameter
• Ball bearing insert
• Hex hole on thread face

Dimensions

Threads	7/8-14
Roller Diameter (in)	2.25 in
Stud Length (in)	2 in
Hex Socket (in)	0.375 in
Roller Width (in)	1.6875 in
Stud Diameter (in)	0.875 in
Weight (kg)	0.96 kg

Technical Specifications

O.D. Configuration	Flanged
Adjustment	None
Series	TRAKROL®
Hex/Slot	Hex Hole
Dynamic Radial Rating	3,490
Limiting Speed	1,300
Rolling Element	Ball (TRAKROL)
Sealing	Sealed
Material	Bearing Steel, Black Oxide Finish
Platform	TRAKROL®
Roller Shape	Flanged
Tolerance Class	P0 Equivalent
Dynamic Load Rating - both bearings	3,490
Static Load Rating	2,000
Dynamic Load Rating (lb)	3,490 lb
Dynamic Load Rating - single bearing	2,130
Stud Type	Standard Stud
Clamping Torque (in-lbf)	750 lbs
Ability to Relubricate	No

General Specifications

UPC	726166038144
Weight	2.11 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.10.5064
Country of Origin	Mexico
