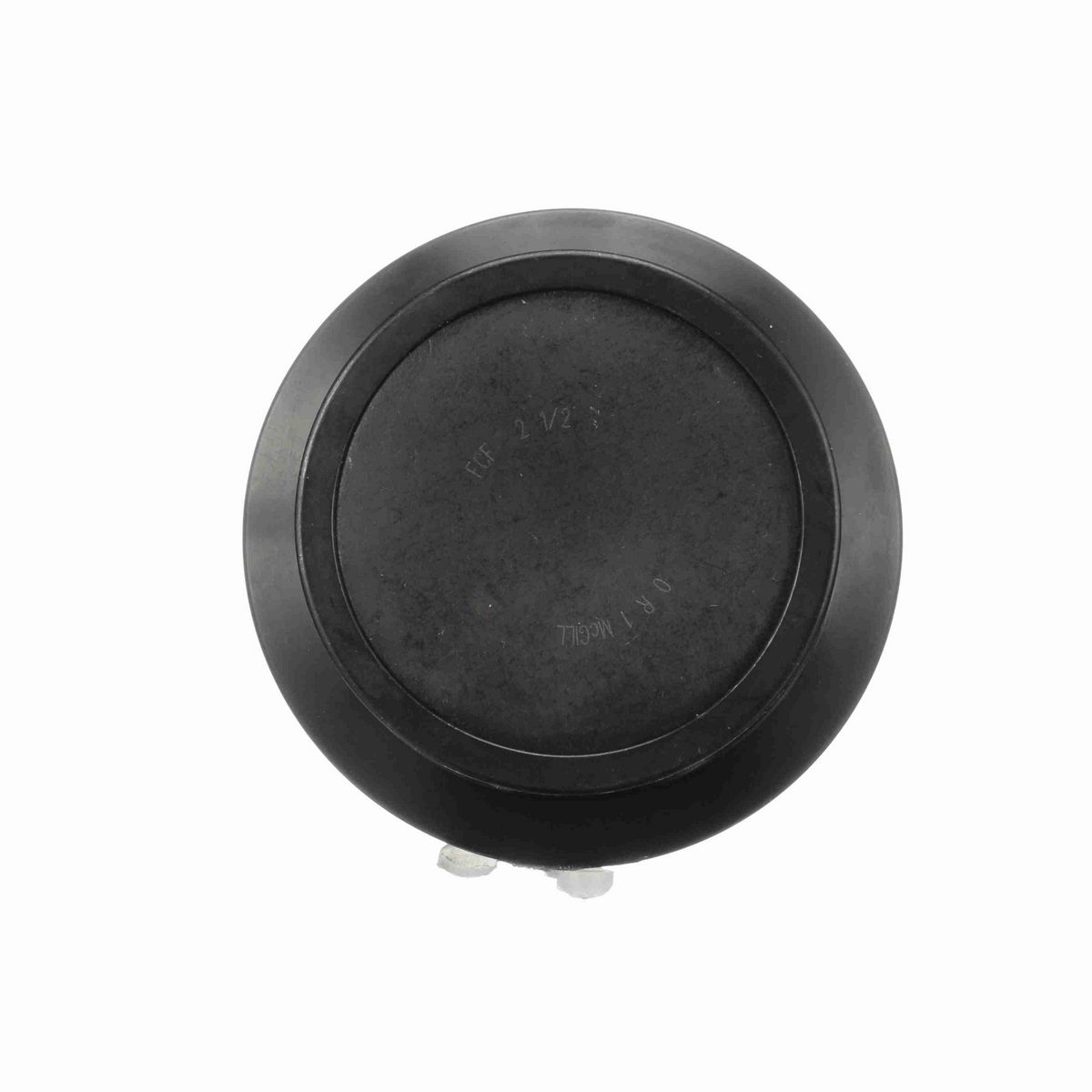

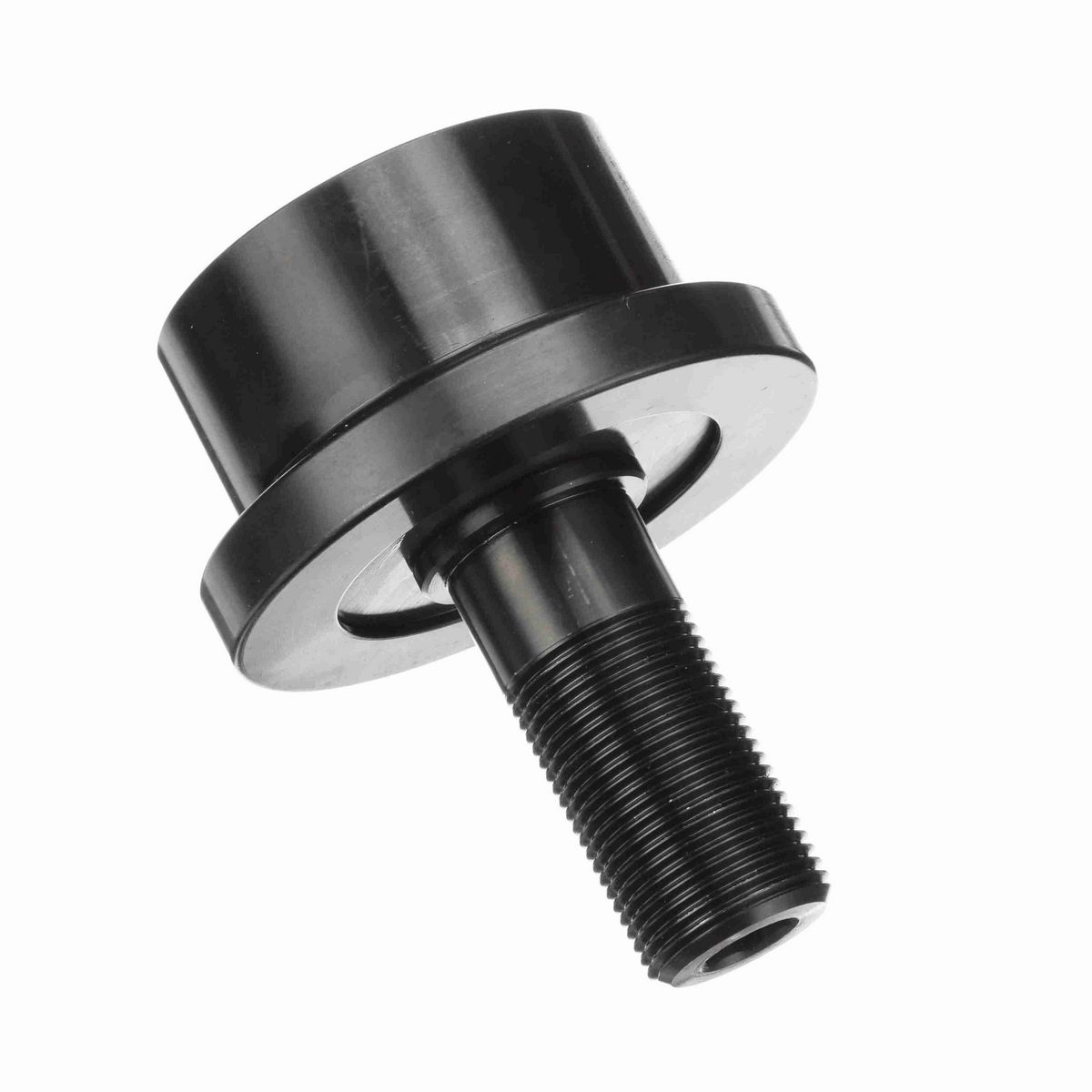

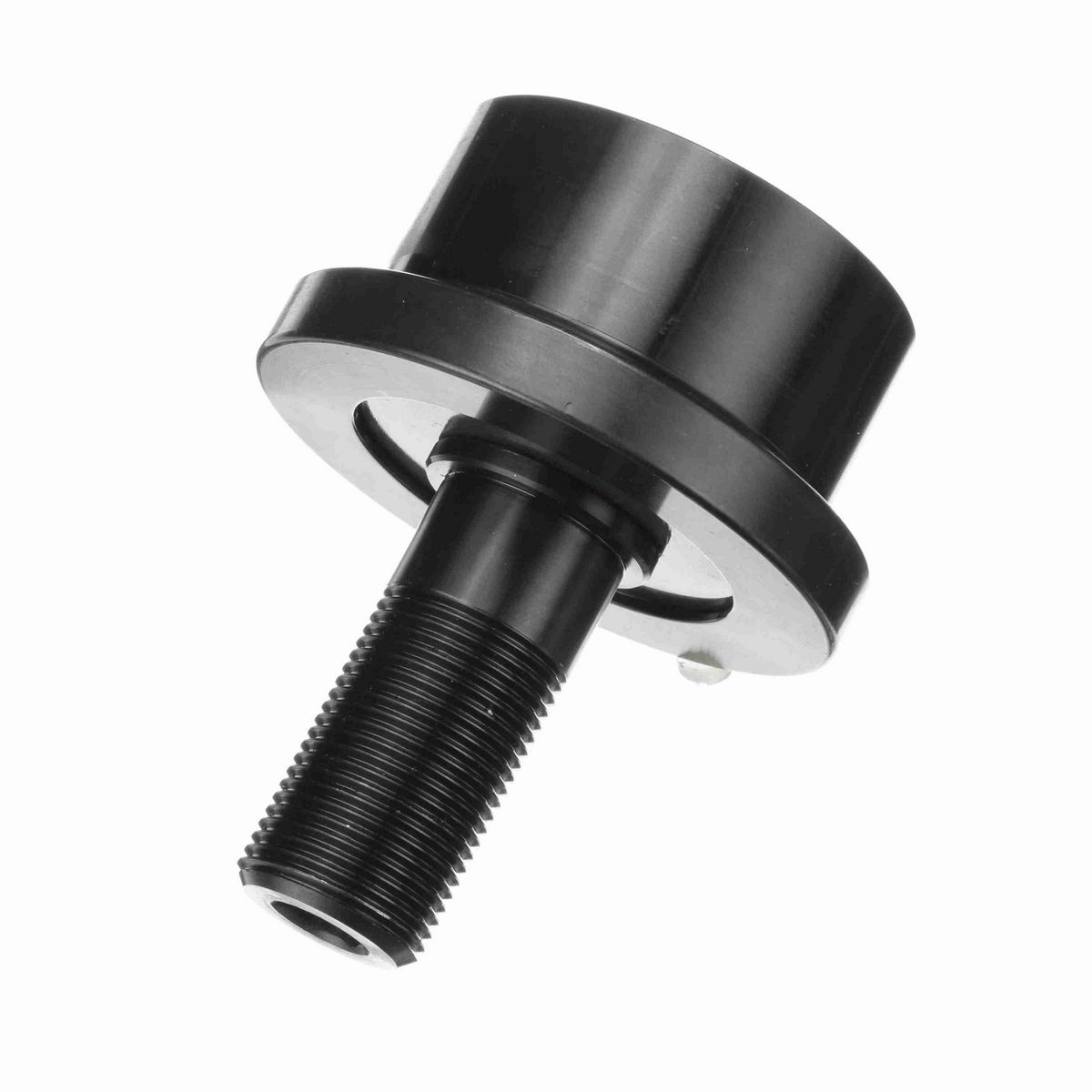

• Stud type cam follower
• Flanged outside diameter
• Ball bearing insert
• Hex hole on thread face

Dimensions

Threads	1-1/4
Roller Diameter (in)	2.5 in
Hex Socket (in)	0.4375 in
Stud Diameter (in)	1 in
Stud Length (in)	2.25 in
Roller Width (in)	1.6875 in
Weight (kg)	1.19 kg

Technical Specifications

Limiting Speed	1,100
Hex/Slot	Hex Hole
Sealing	Sealed
Adjustment	None
O.D. Configuration	Flanged
Dynamic Radial Rating	5,120
Series	TRAKROL®
Rolling Element	Ball (TRAKROL)
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Flanged
Tolerance Class	P0 Equivalent
Dynamic Load Rating - both bearings	5,120
Stud Type	Standard Stud
Dynamic Load Rating (lb)	5,120 lb
Static Load Rating	3,120
Platform	TRAKROL®
Dynamic Load Rating - single bearing	3,120
Clamping Torque (in-lbf)	1,120 lbs
Ability to Relubricate	No

General Specifications

UPC	726166038687
Weight	2.63 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.10.5064
Country of Origin	Mexico
