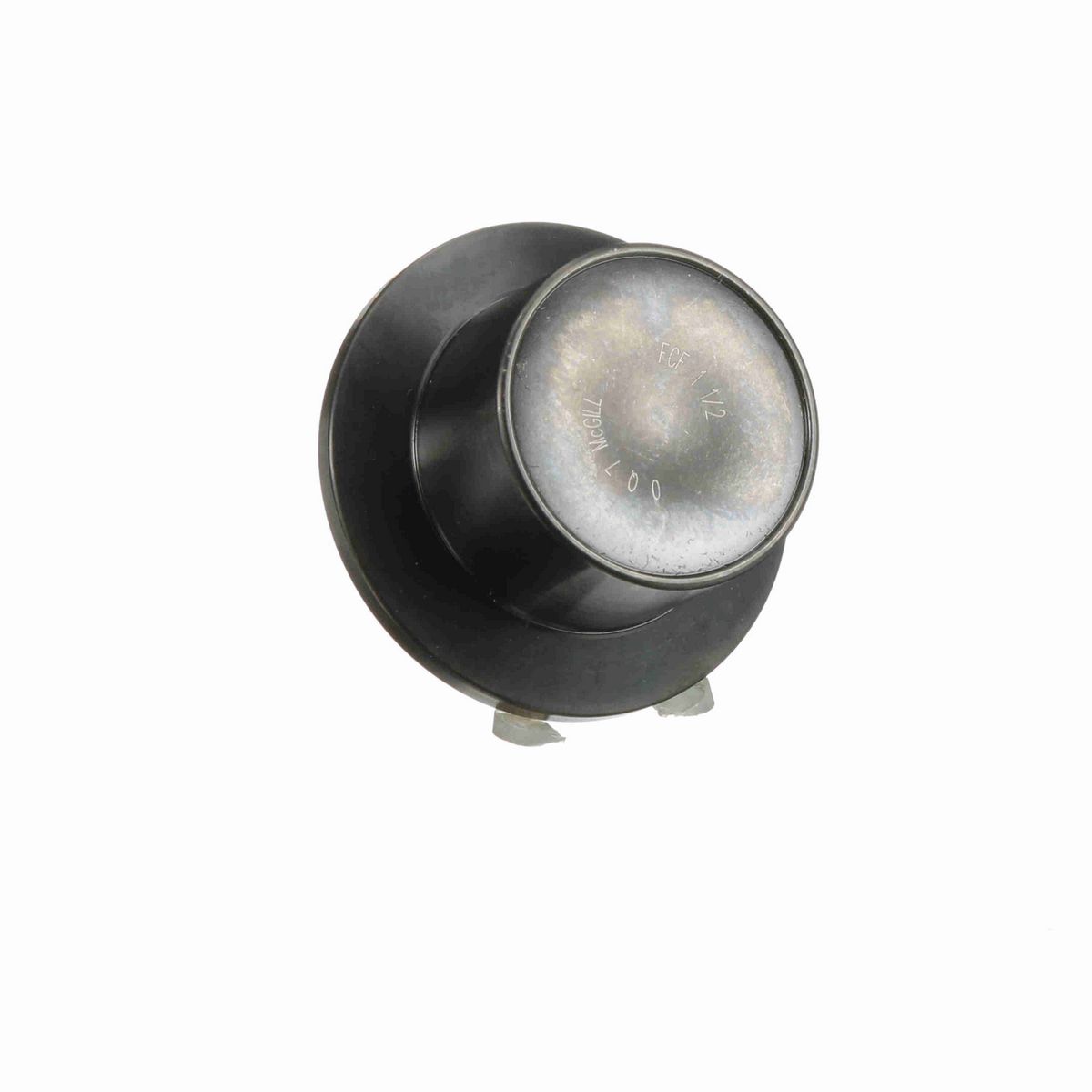

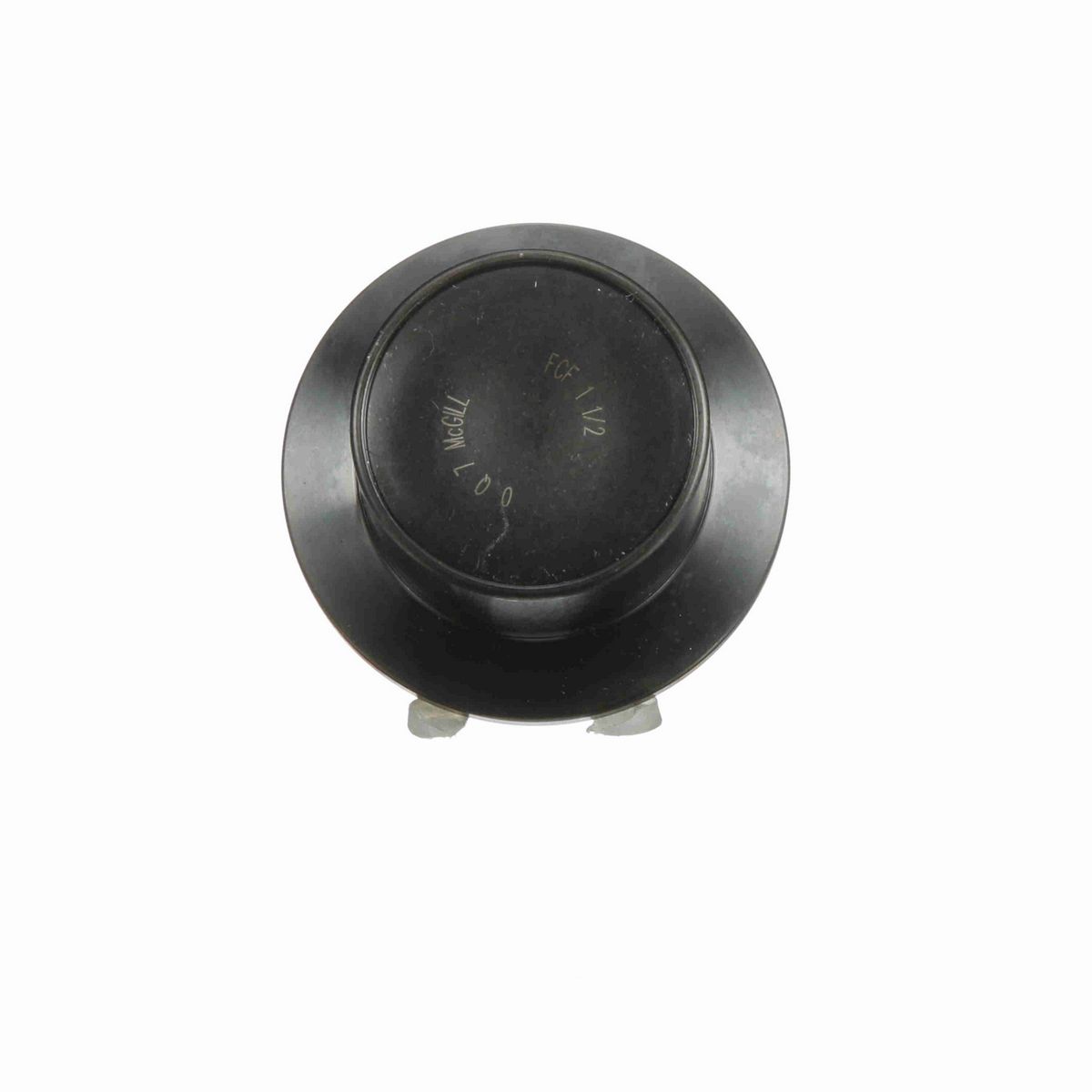

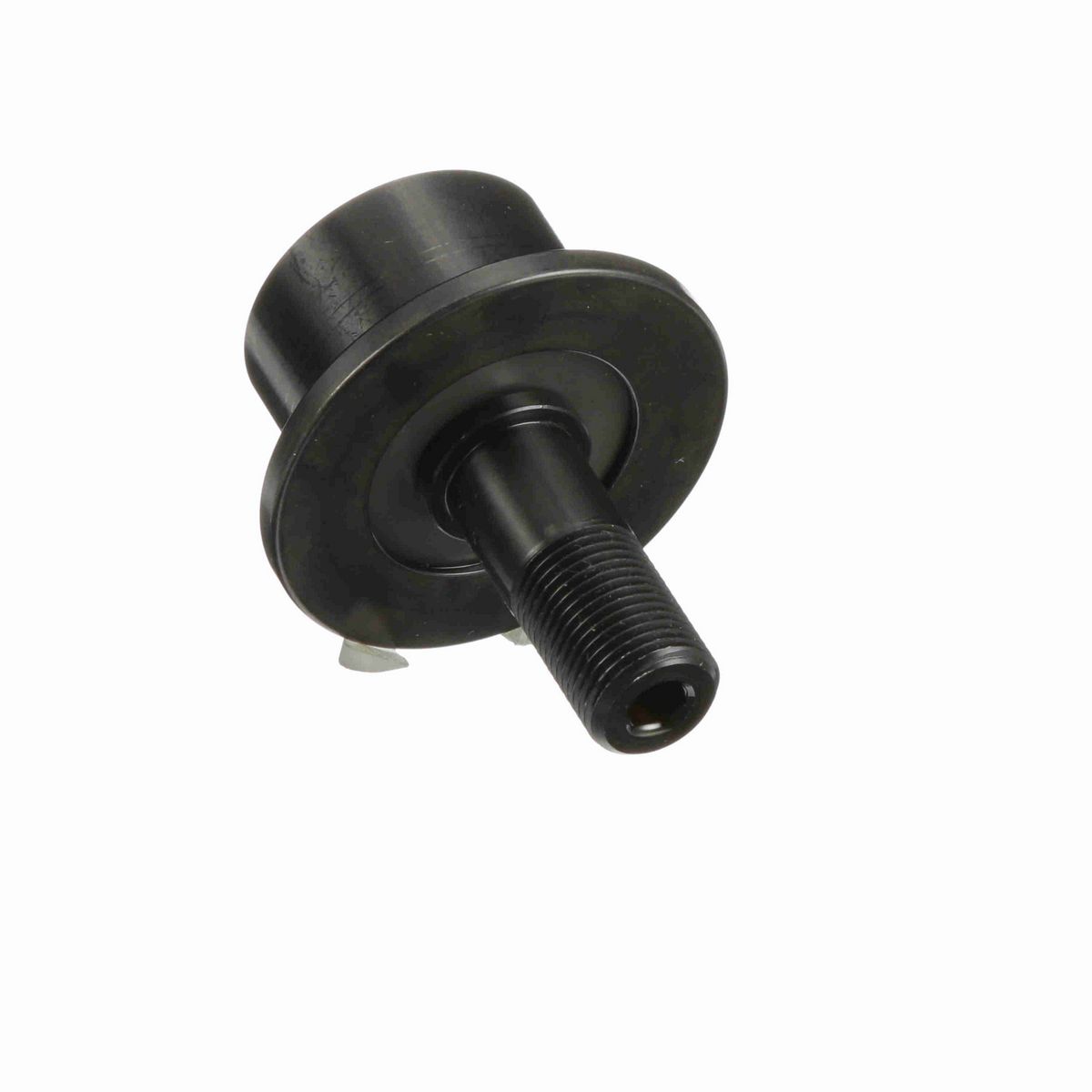

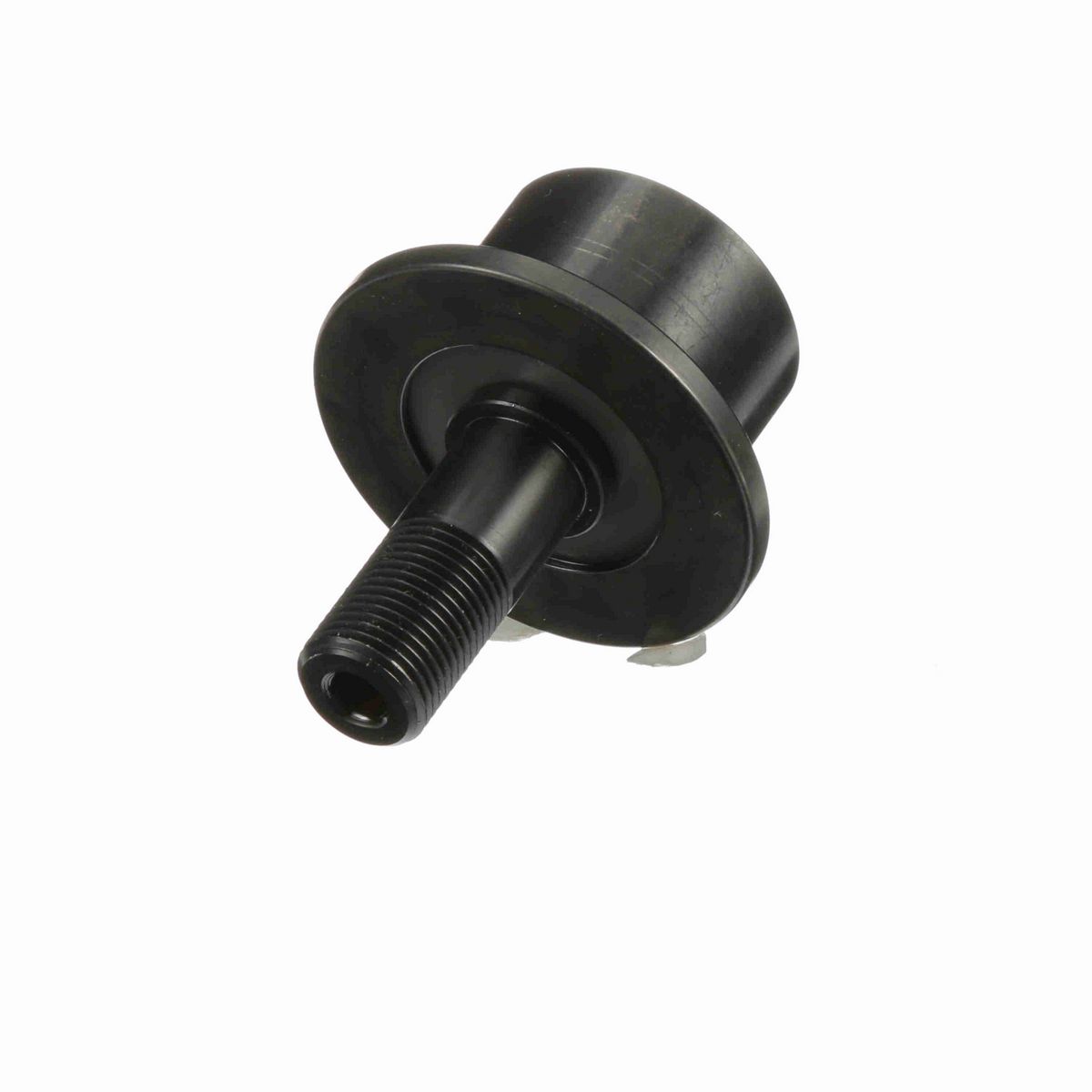

• Stud type cam follower
• Flanged outside diameter
• Ball bearing insert
• Hex hole on thread face

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.5 in
Stud Length (in)	1.5 in
Minimum Thread Length (in)	0.75 in
Roller Width (in)	1.1875 in
Stud Diameter (in)	0.625 in
Hex Socket (in)	0.25 in
Weight (kg)	0.31 kg

Technical Specifications

O.D. Configuration	Flanged
Adjustment	None
Dynamic Radial Rating	2,520
Sealing	Sealed
Limiting Speed	2,500
Rolling Element	Ball (TRAKROL)
Hex/Slot	Hex Hole
Series	TRAKROL®
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	1,370
Dynamic Load Rating - single bearing	1,530
Roller Shape	Flanged
Tolerance Class	P0 Equivalent
Platform	TRAKROL®
Dynamic Load Rating - both bearings	2,520
Dynamic Load Rating (lb)	2,520 lb
Stud Type	Standard Stud
Ability to Relubricate	No
Clamping Torque (in-lbf)	325 lbs

General Specifications

UPC	726166035969
Weight	0.68 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.10.5064
Country of Origin	Mexico
