Series MCFD with suffix -B: full complement of cylindrical rollers, shielded, crowned roller diameter and broach slot
(The features -B and -X are to combine together.)
In this modification, relubrication through the flange end of the stud ist not possible.
Clamping torque is based on dry threads. If threads are lubricated, use half of value shown.
Since load, lubrication method, temperature and other factors affect the maximum operation speed, it is impossible to determine precise limiting speed. The limiting speeds are based on lightly loaded bearings having adequate lubrication and are listed only as a design guide. More frequent relubrication is required when operating at higher speeds. Actual bearing testin in the specifig application should be conducted if the anticipated operating speed approaches the listing limitign speed.
Dynamic load hold not exeed 50% of dynamic rating as a track roller.
Static load rating is based on stud strengh or on internal rolling element load distribution.

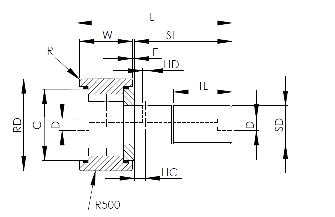

| RD (mm): | 80 |
| W (mm): | 35 |
| SD (mm): | 30 |
| SL (mm): | 63 |
| L (mm): | 100 |
| E (mm): | 1 |
| M (mm): | M 30x1,5 |
| TL (mm): | 32 |
| HC (mm): | 15 |
| HD (mm): | 4 |
| R (mm): | 1,1 |
| C (mm): | 47 |
| Clamping torque max (1) Nm: | 441 |
| Limiting speed grease (min-1): | 1800 |
| Limiting speed oil (min-1): | 2300 |
| Housing bore dia min (mm): | 30 |
| Housing bore dia max (mm): | 30,021 |
| Load rating dynamic C (N): | 67000 |
| Load rating static C0 (N): | 91000 |
| Weight (kg): | 1,54 |
| Product: | Cam follower stud type |
| Product series: | MCFD |
| Design: | Heavy duty |
| Bearing: | Full complement of cylindrical rollers |
| Mounting: | With hexagonal hole |
| Sealing: | Without seals |
| Coat design: | Crowned coat |
| Trademark: | McGill |
