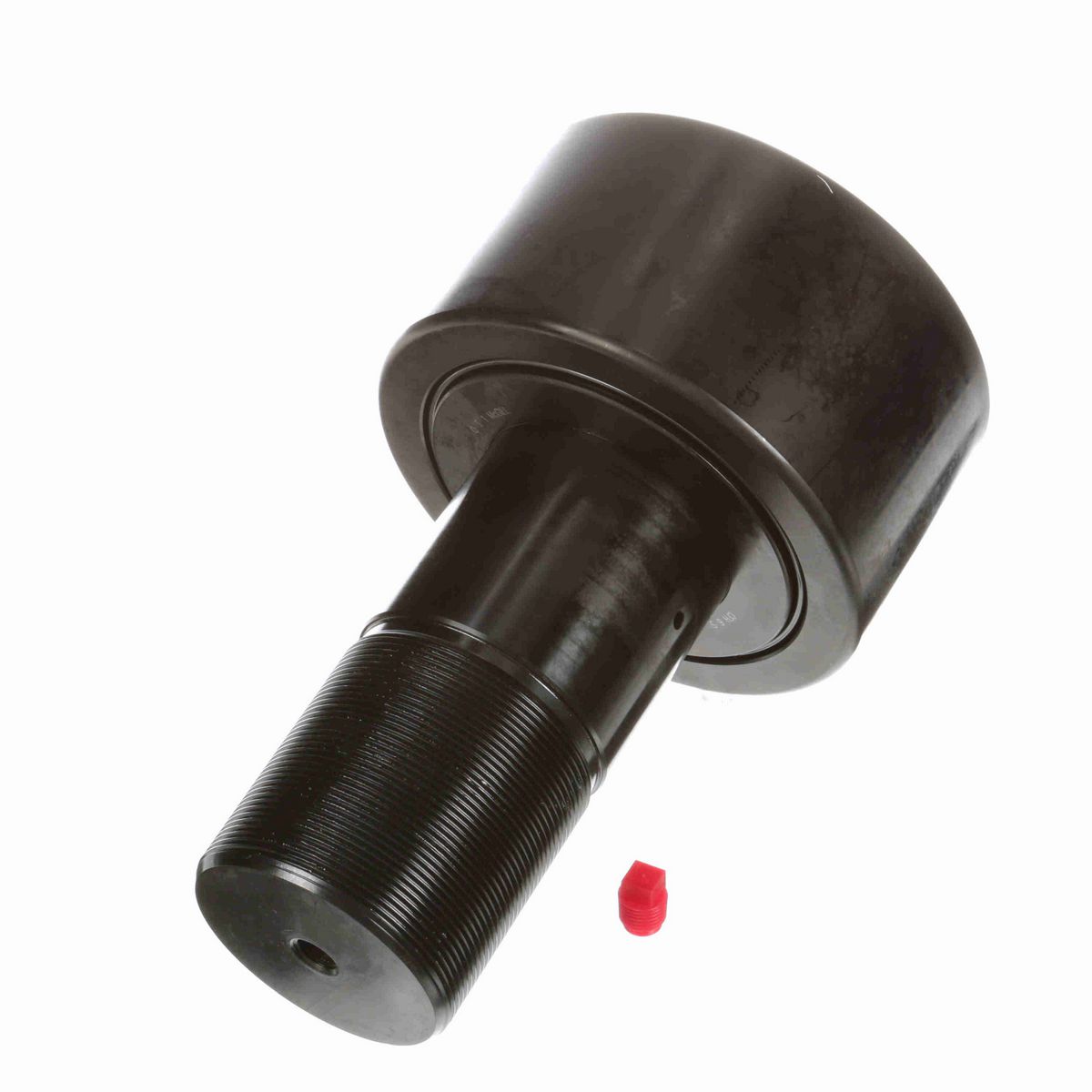

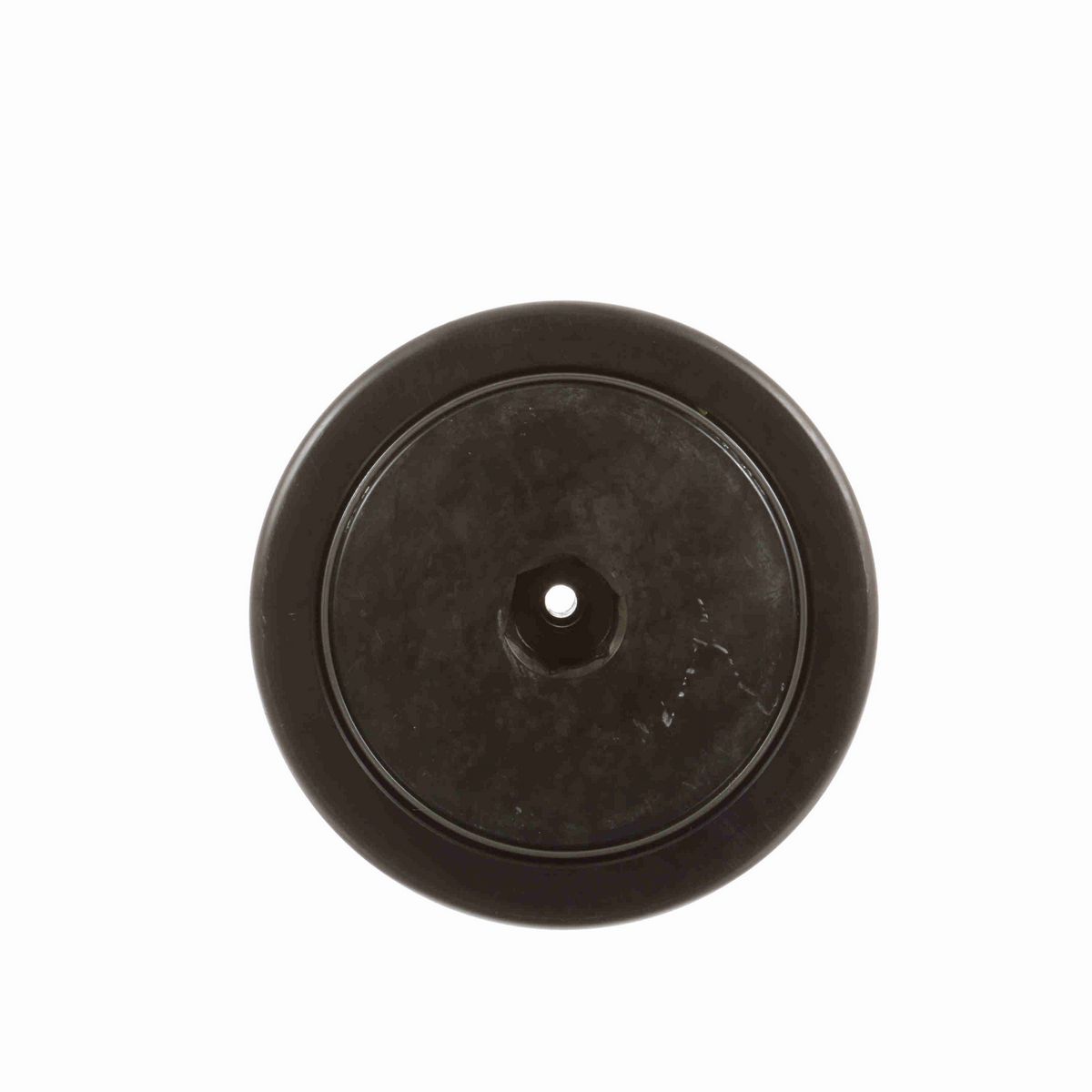

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	3-12
Roller Diameter (in)	6 in
Stud Diameter (in)	3 in
Oil Hole Diameter (in)	0.188 in
Lubrication Fitting Size (in)	1/4 N.P.T. in
Stud Length (in)	6 in
Oil Hole Center (in)	1 in
Lubrication Fitting Size (mm)	1/4 N.P.T. mm
Minimum Thread Length (in)	3 in
Roller Width (in)	3.25 in
Weight (kg)	16.19 kg

Technical Specifications

Limiting Speed	475
Sealing	Sealed
Adjustment	None
Series	Inch CAMROL®
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Stud Type	Heavy Stud
Dynamic Load Rating (lb)	60,000 lb
Static Load Rating	148,000
Platform	CAMROL®
Clamping Torque (in-lbf)	5,000 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166042325
Weight	35.70 LB
Packaged Length	6.00 IN
Packaged Width	10.00 IN
Packaged Height	6.00 IN
HTC	8482.50.0000
Country of Origin	Mexico
