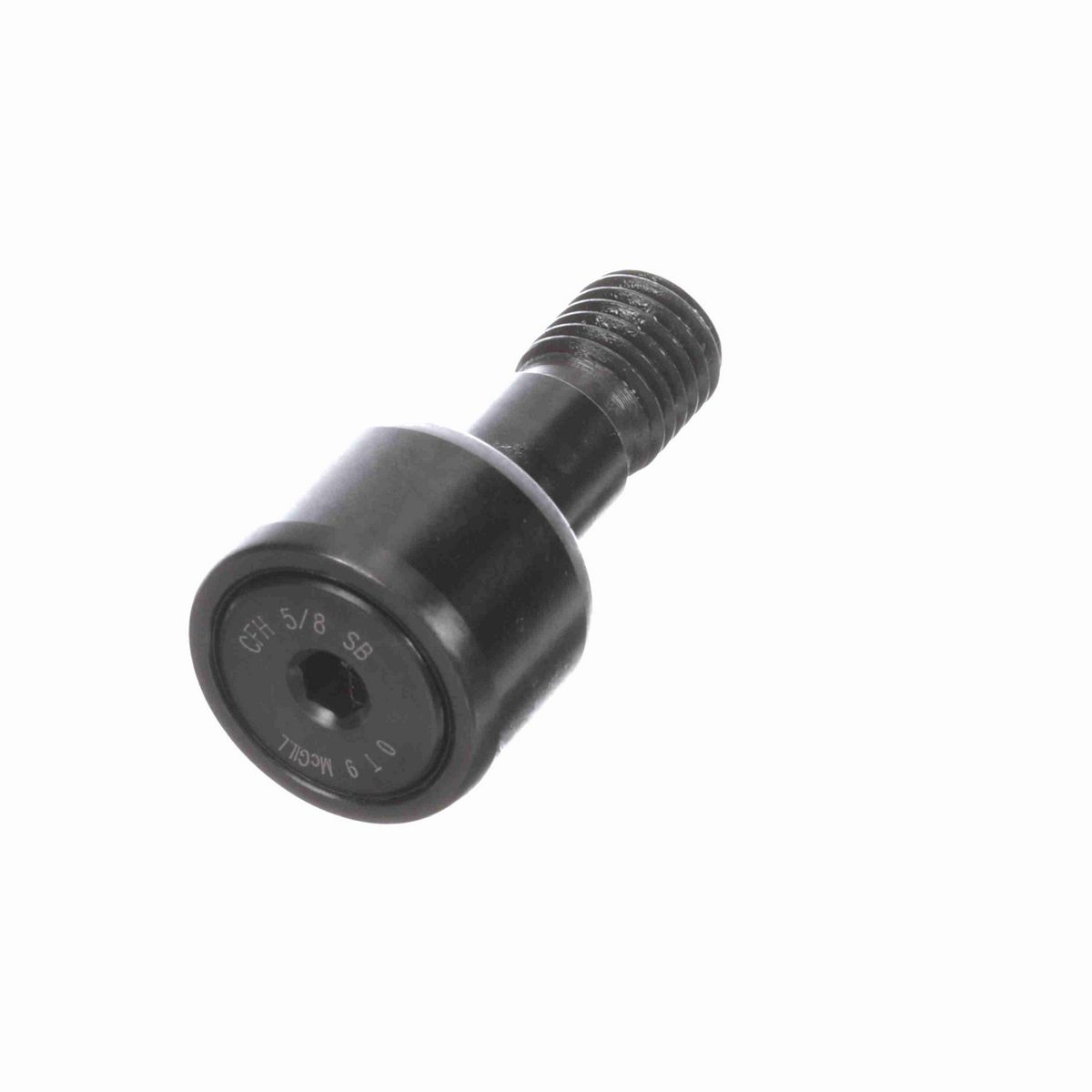

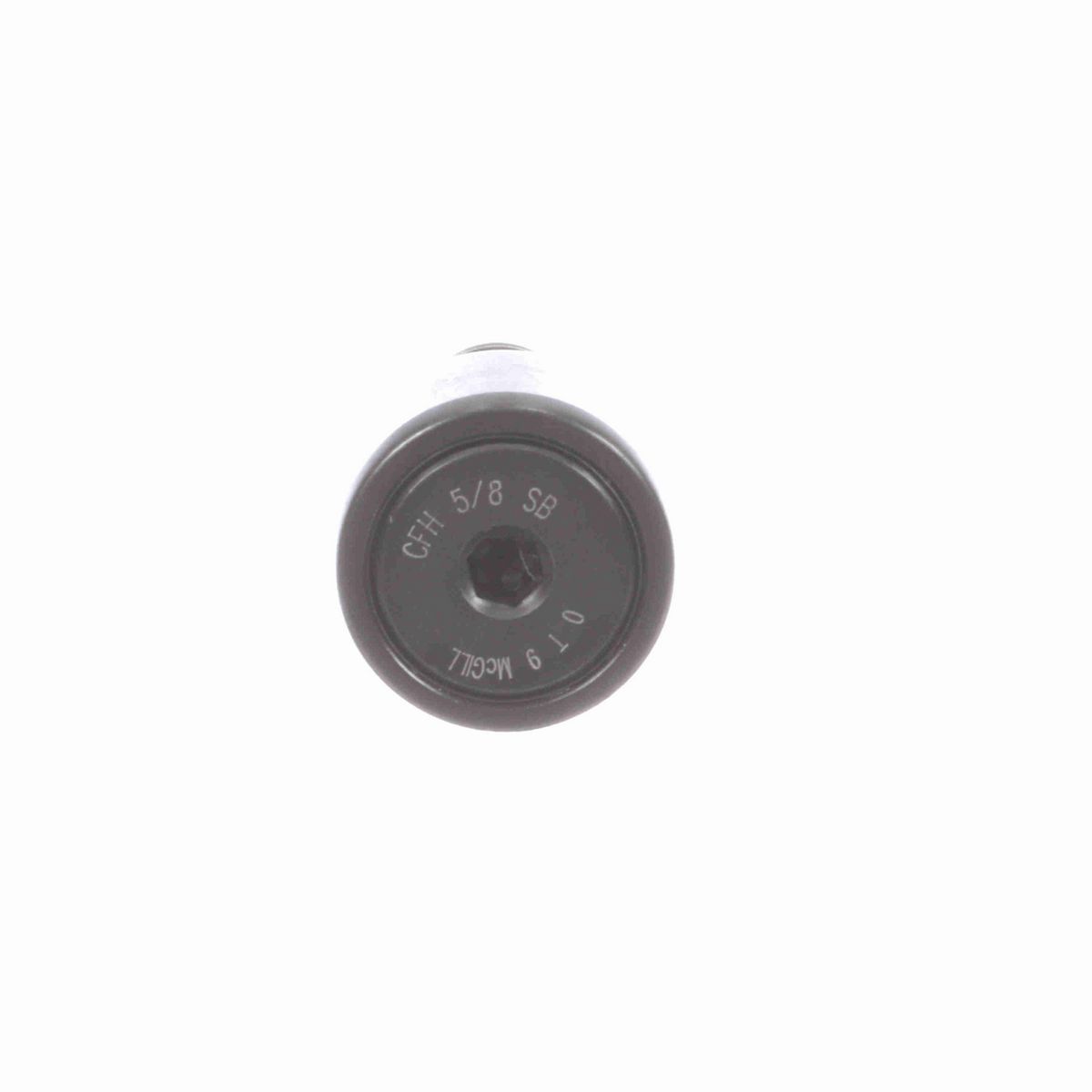

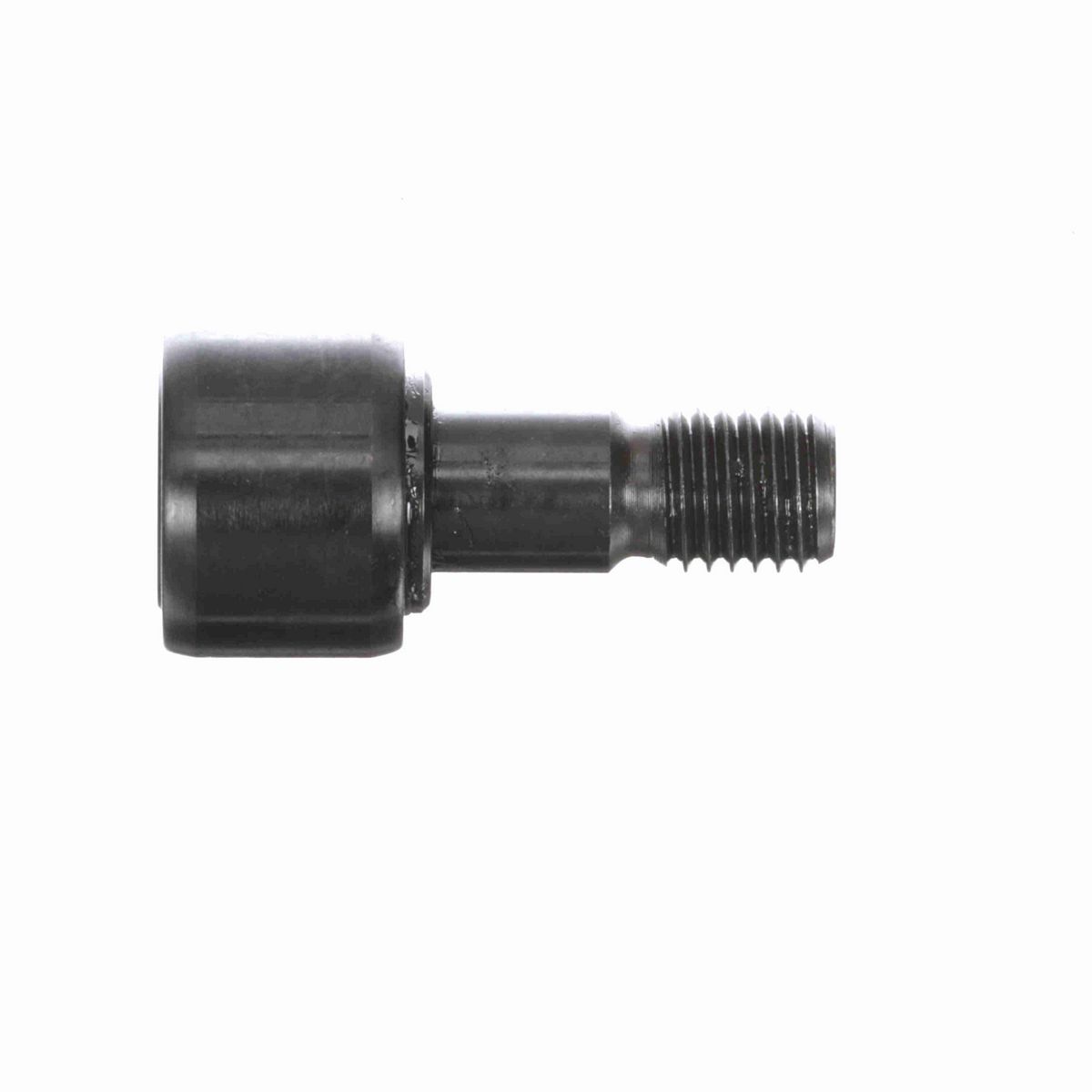

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	5/16-24
Roller Diameter (in)	0.625 in
Minimum Thread Length (in)	0.31 in
Roller Width (in)	0.4375 in
Stud Diameter (in)	0.3125 in
Stud Length (in)	0.75 in
Weight (kg)	0.03 kg

Technical Specifications

Limiting Speed	9,200
Adjustment	None
Sealing	Sealed
O.D. Configuration	Cylindrical
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Stud Type	Heavy Stud
Dynamic Load Rating (lb)	955 lb
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Roller Shape	Cylindrical
Static Load Rating	2,480
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	90 lbs
Ability to Relubricate	No

General Specifications

UPC	726166031145
Weight	0.06 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
