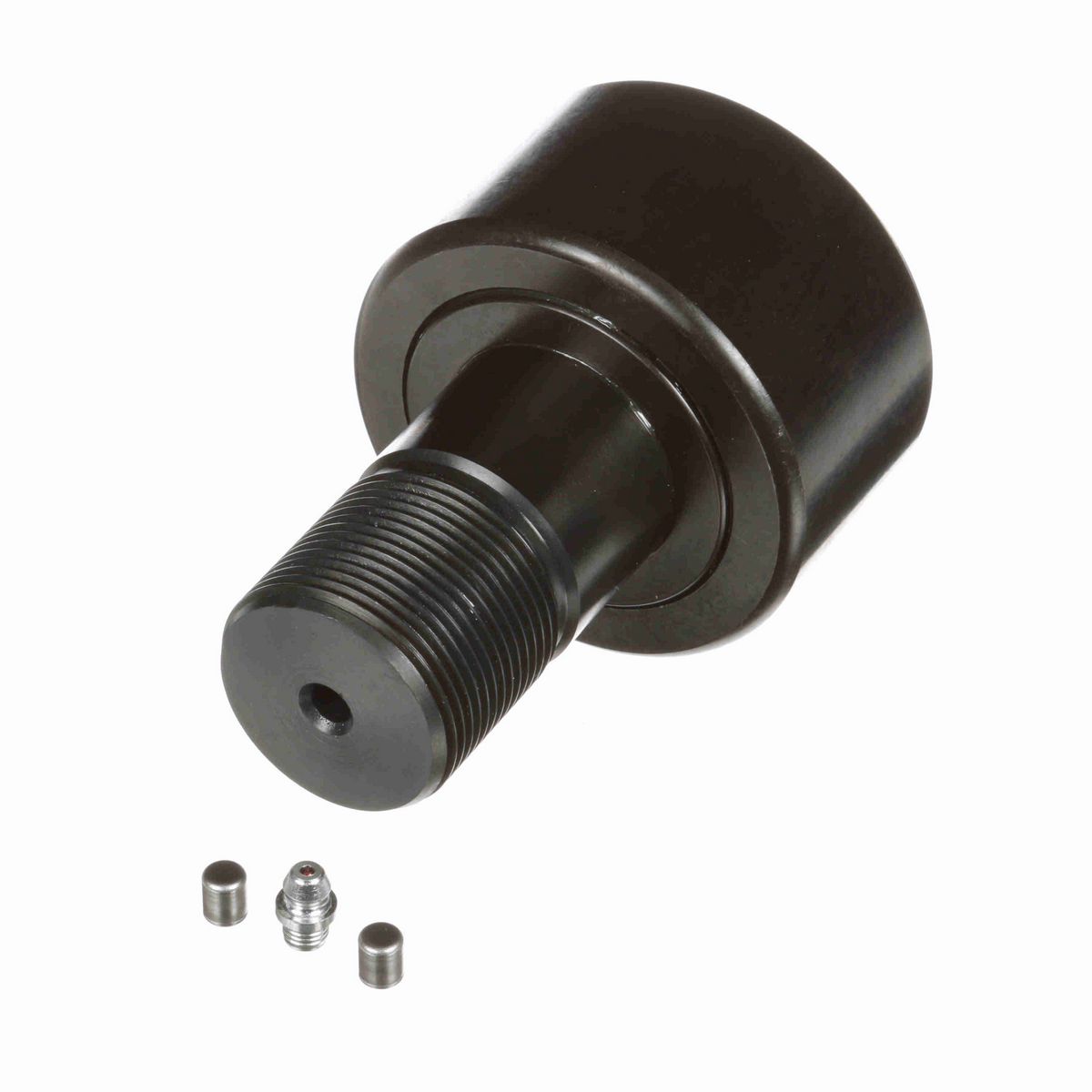

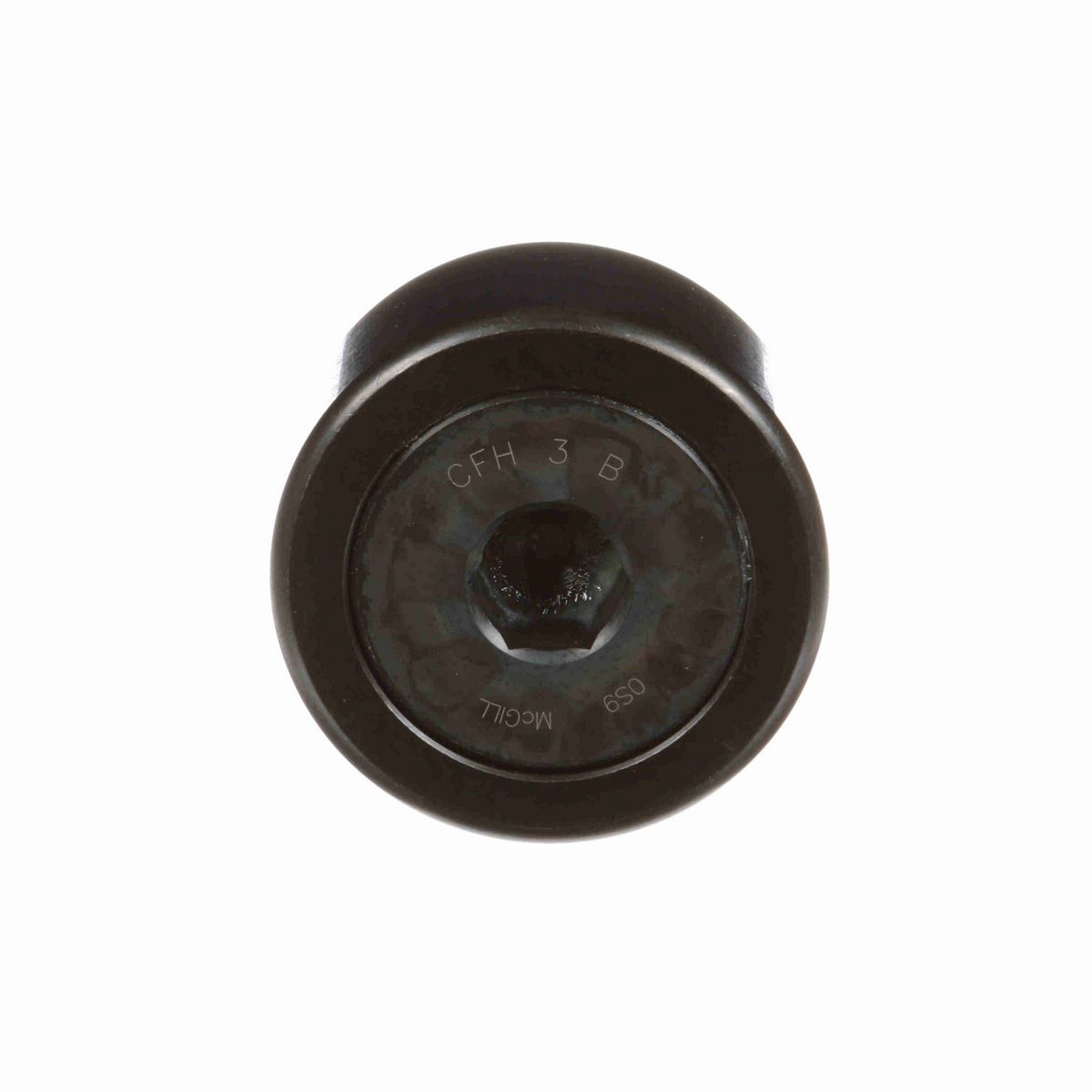

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• Heavy stud configuration

Dimensions

Threads	1 1/2-12
Roller Diameter (in)	3 in
Oil Hole Center (in)	0.625 in
Lubrication Fitting Size (mm)	1/4 mm
Stud Length (in)	2.5 in
Oil Hole Diameter (in)	0.125 in
Lubrication Fitting Size (in)	1/4 in
Roller Width (in)	1.75 in
Minimum Thread Length (in)	1.25 in
Stud Diameter (in)	1.5 in
Weight (kg)	2.01 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Limiting Speed	950
Sealing	Unsealed
Adjustment	None
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Stud Type	Heavy Stud
Roller Shape	Cylindrical
Static Load Rating	31,500
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	15,720 lb
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	5,000 lbs

General Specifications

UPC	726166039219
Weight	4.44 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.40.0000
Country of Origin	Mexico
