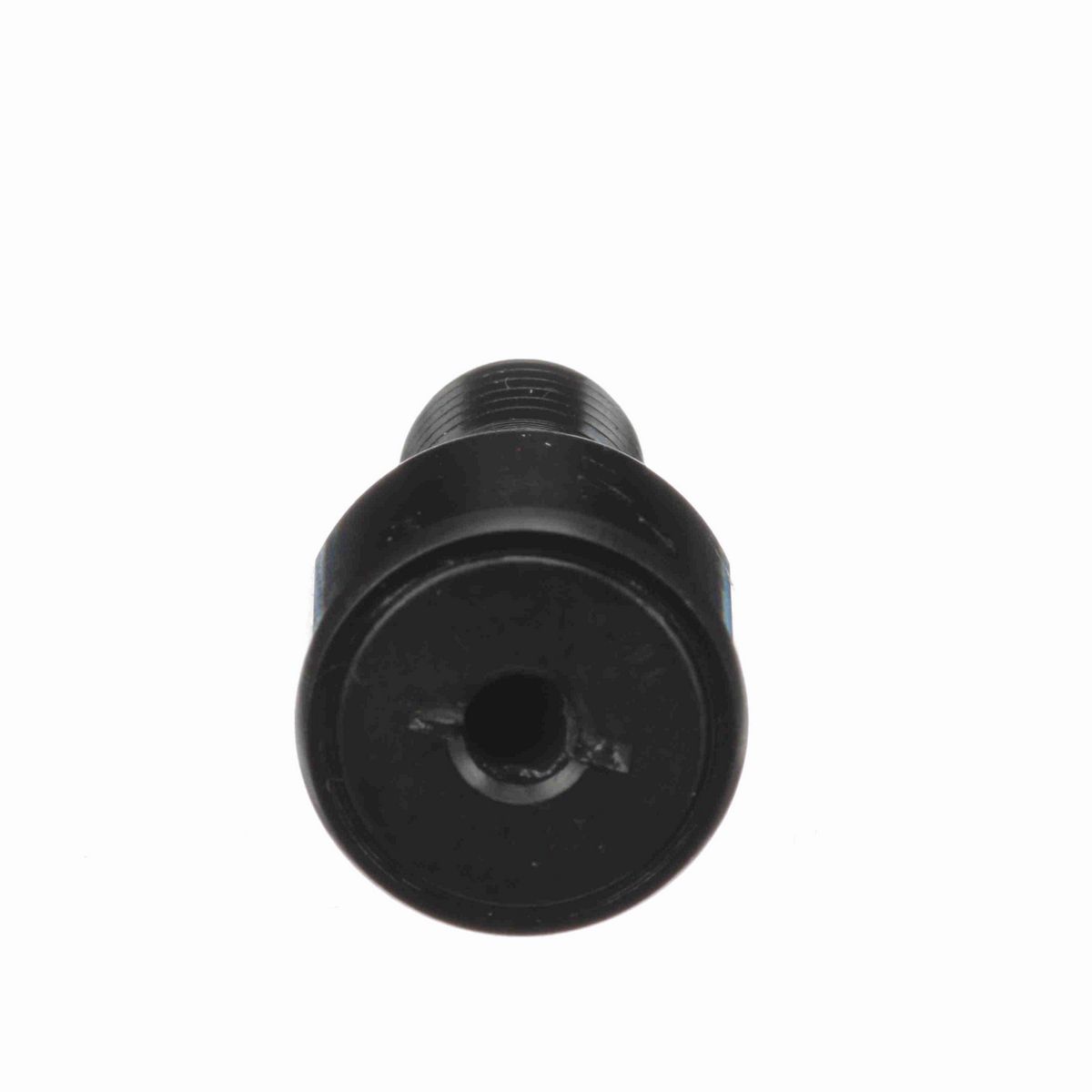

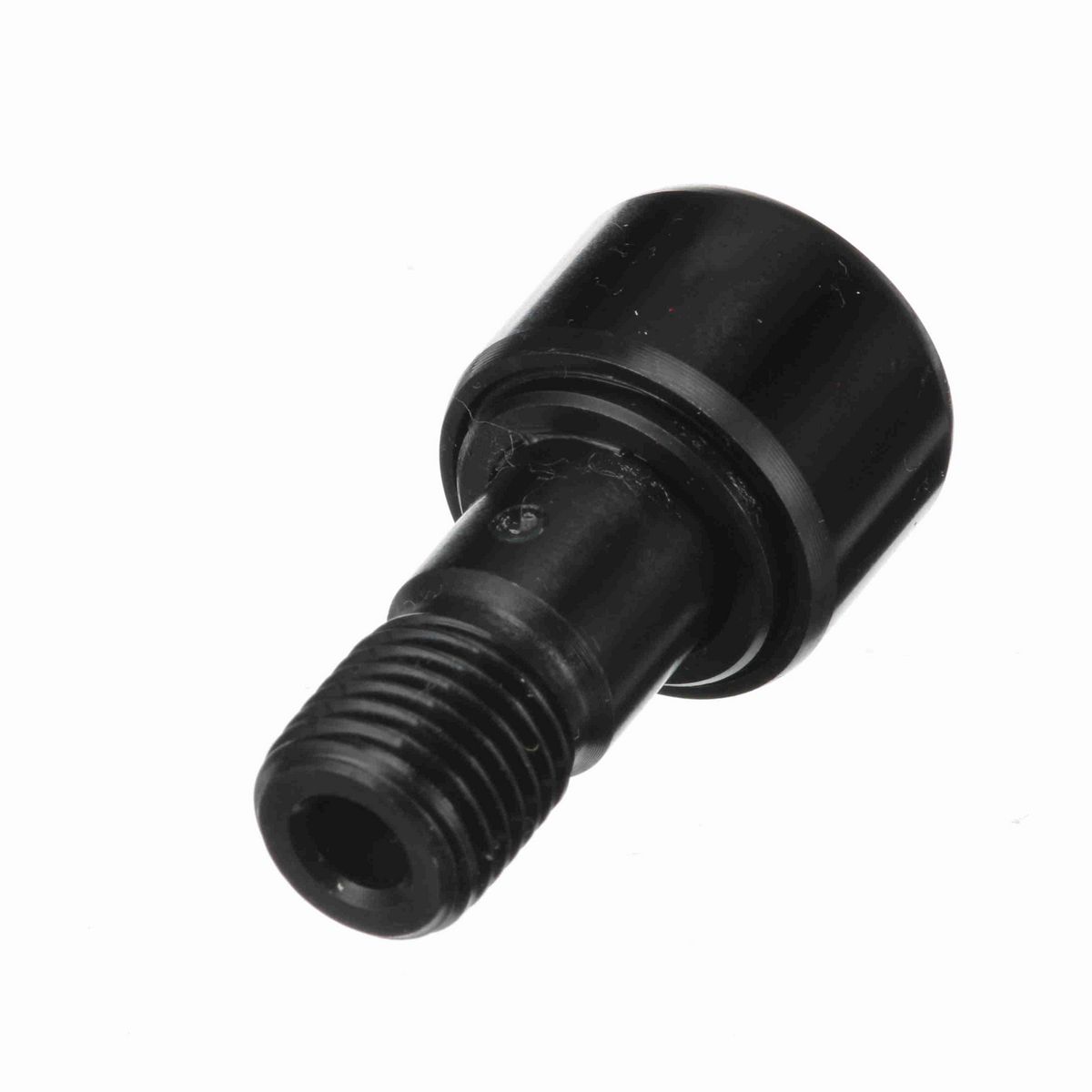

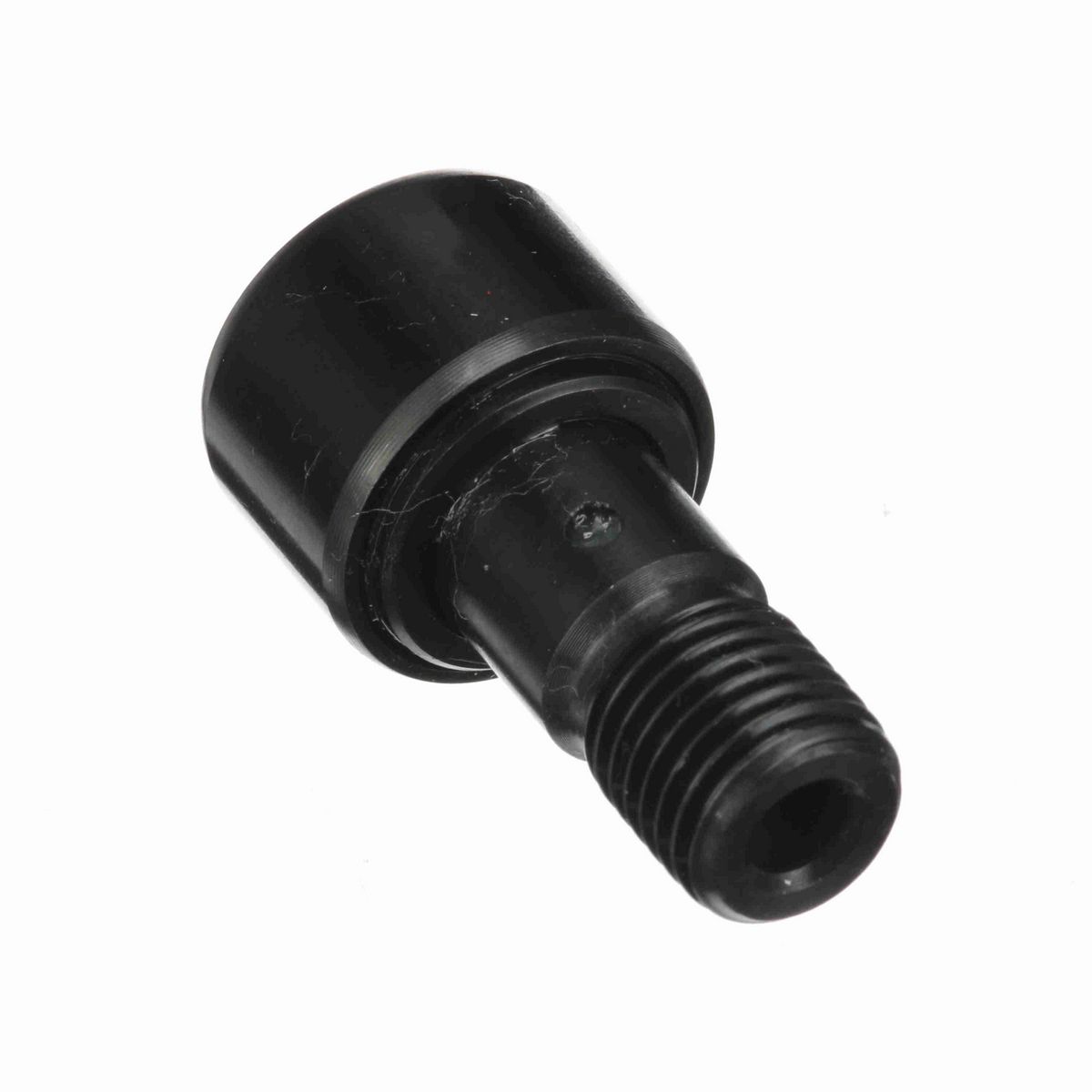

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	7/16-20
Roller Diameter (in)	0.75 in
Roller Width (in)	0.5 in
Oil Hole Center (in)	0.25 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	0.875 in
Minimum Thread Length (in)	0.38 in
Lubrication Fitting Size (in)	3/16 in
Lubrication Fitting Size (mm)	3/16 mm
Stud Diameter (in)	0.4375 in
Weight (kg)	0.04 kg

Technical Specifications

Limiting Speed	6,400
Rolling Element	Needle Roller - Full Complement
Adjustment	None
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Hex/Slot	Screwdriver Slot
Sealing	Sealed
Material	Bearing Steel, Black Oxide Finish
Stud Type	Heavy Stud
Roller Shape	Cylindrical
Static Load Rating	2,100
Dynamic Load Rating (lb)	1,660 lb
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166032166
Weight	0.08 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
