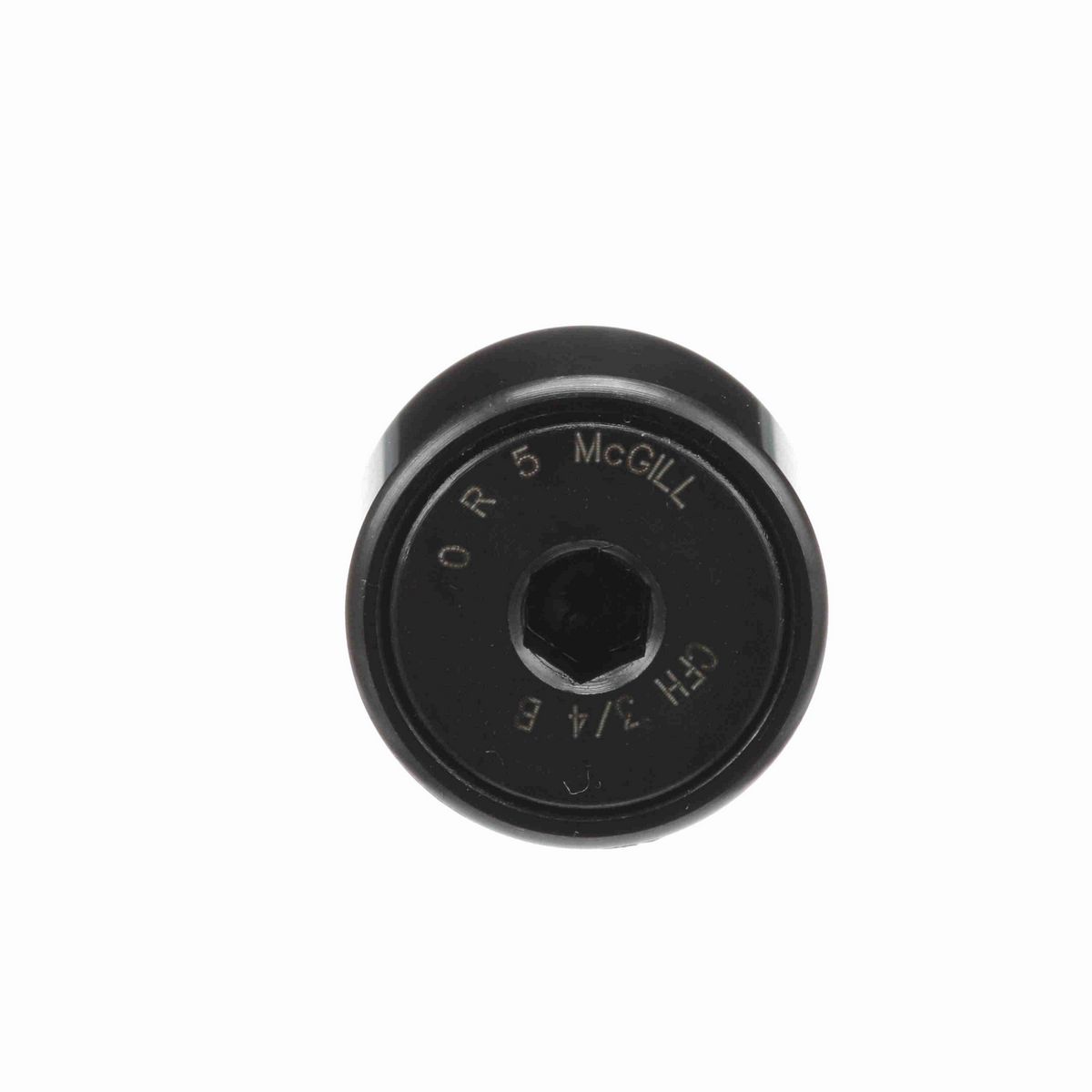

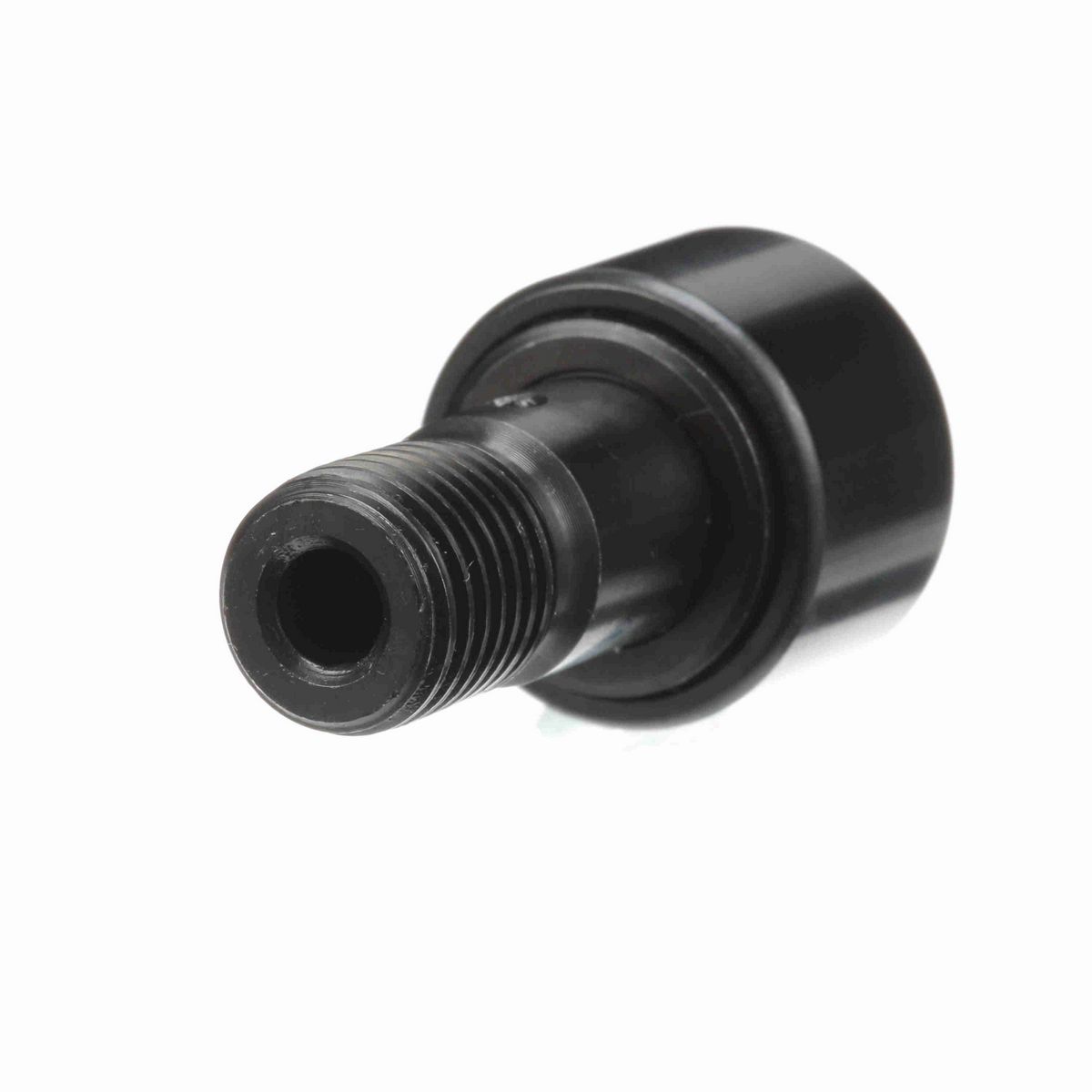

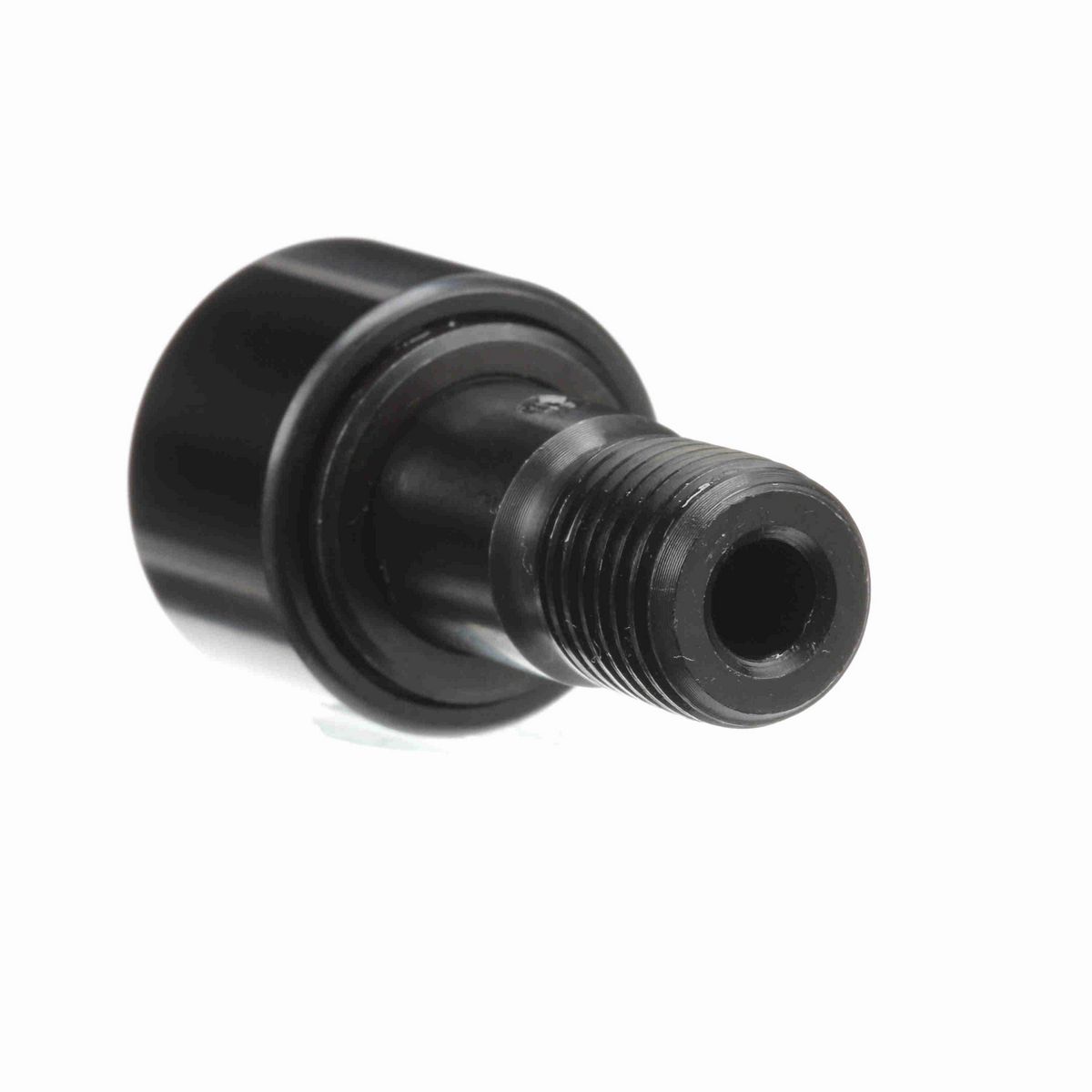

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• Heavy stud configuration

Dimensions

Threads	7/16-20
Roller Diameter (in)	0.75 in
Stud Diameter (in)	0.4375 in
Minimum Thread Length (in)	0.38 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	0.875 in
Oil Hole Center (in)	0.25 in
Roller Width (in)	0.5 in
Lubrication Fitting Size (mm)	3/16 mm
Lubrication Fitting Size (in)	3/16 in
Weight (kg)	0.04 kg

Technical Specifications

Sealing	Unsealed
O.D. Configuration	Cylindrical
Limiting Speed	6,400
Rolling Element	Needle Roller - Full Complement
Adjustment	None
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Platform	CAMROL®
Stud Type	Heavy Stud
Static Load Rating	2,100
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	1,660 lb
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166032159
Weight	0.08 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
