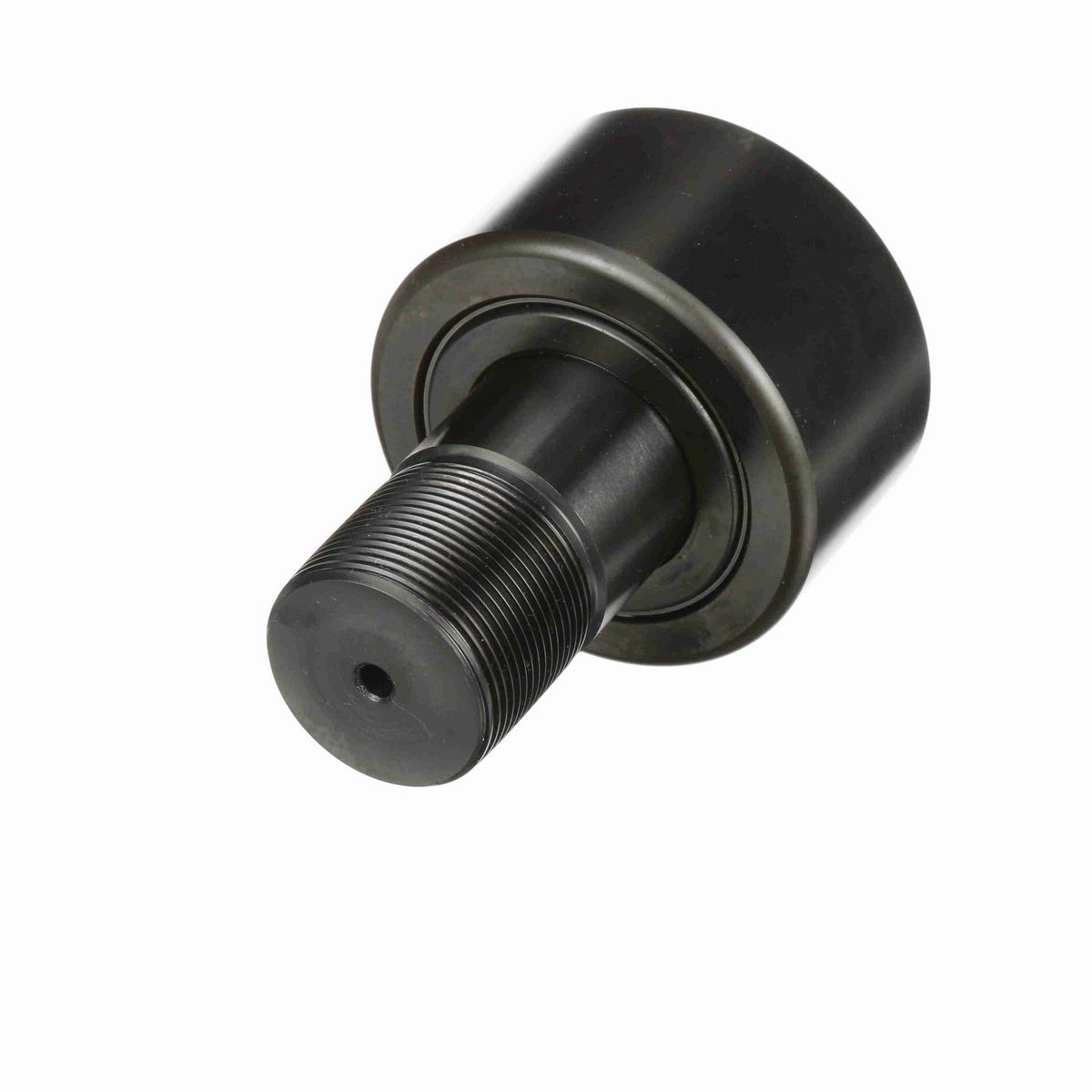

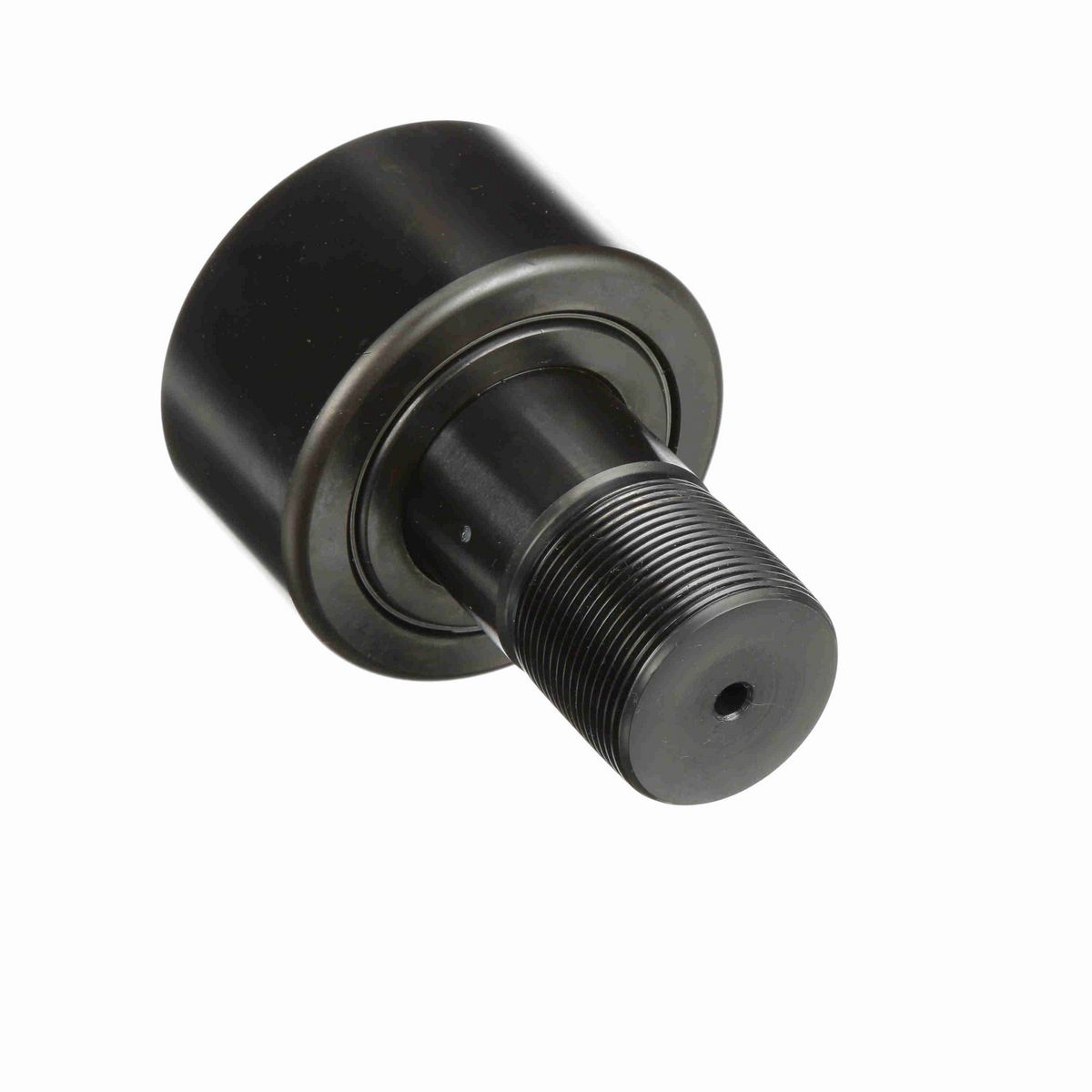

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

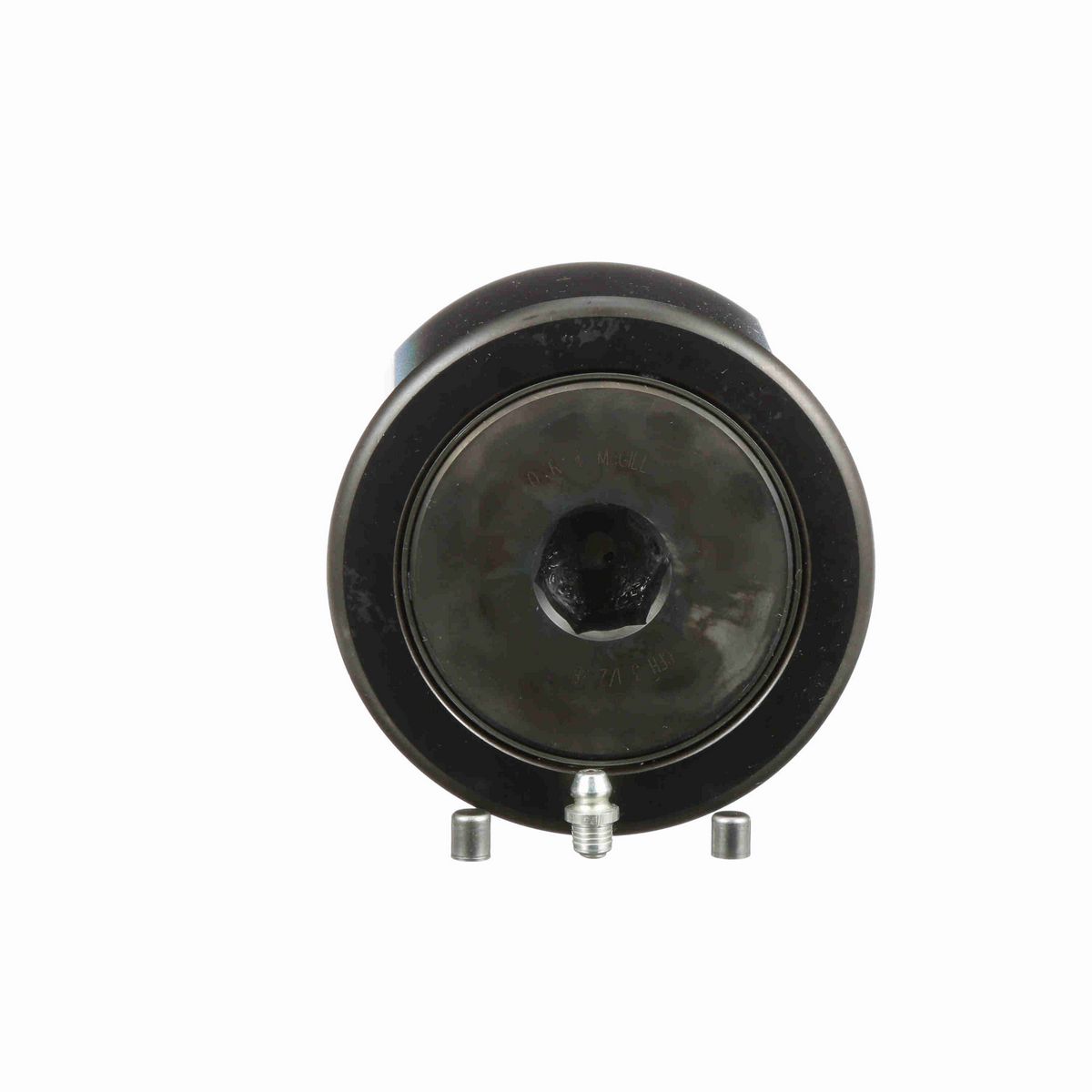

• Hex hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	1 3/4-12
Roller Diameter (in)	3.5 in
Lubrication Fitting Size (in)	1/4 in
Stud Diameter (in)	1.75 in
Lubrication Fitting Size (mm)	1/4 mm
Oil Hole Diameter (in)	0.125 in
Roller Width (in)	2 in
Oil Hole Center (in)	0.688 in
Minimum Thread Length (in)	1.38 in
Stud Length (in)	2.75 in
Weight (kg)	3.06 kg

Technical Specifications

Limiting Speed	820
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Sealing	Sealed
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	22,800 lb
Roller Shape	Cylindrical
Platform	CAMROL®
Static Load Rating	45,700
Stud Type	Heavy Stud
Tolerance Class	P0 Equivalent
Clamping Torque (in-lbf)	5,000 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039981
Weight	6.75 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
