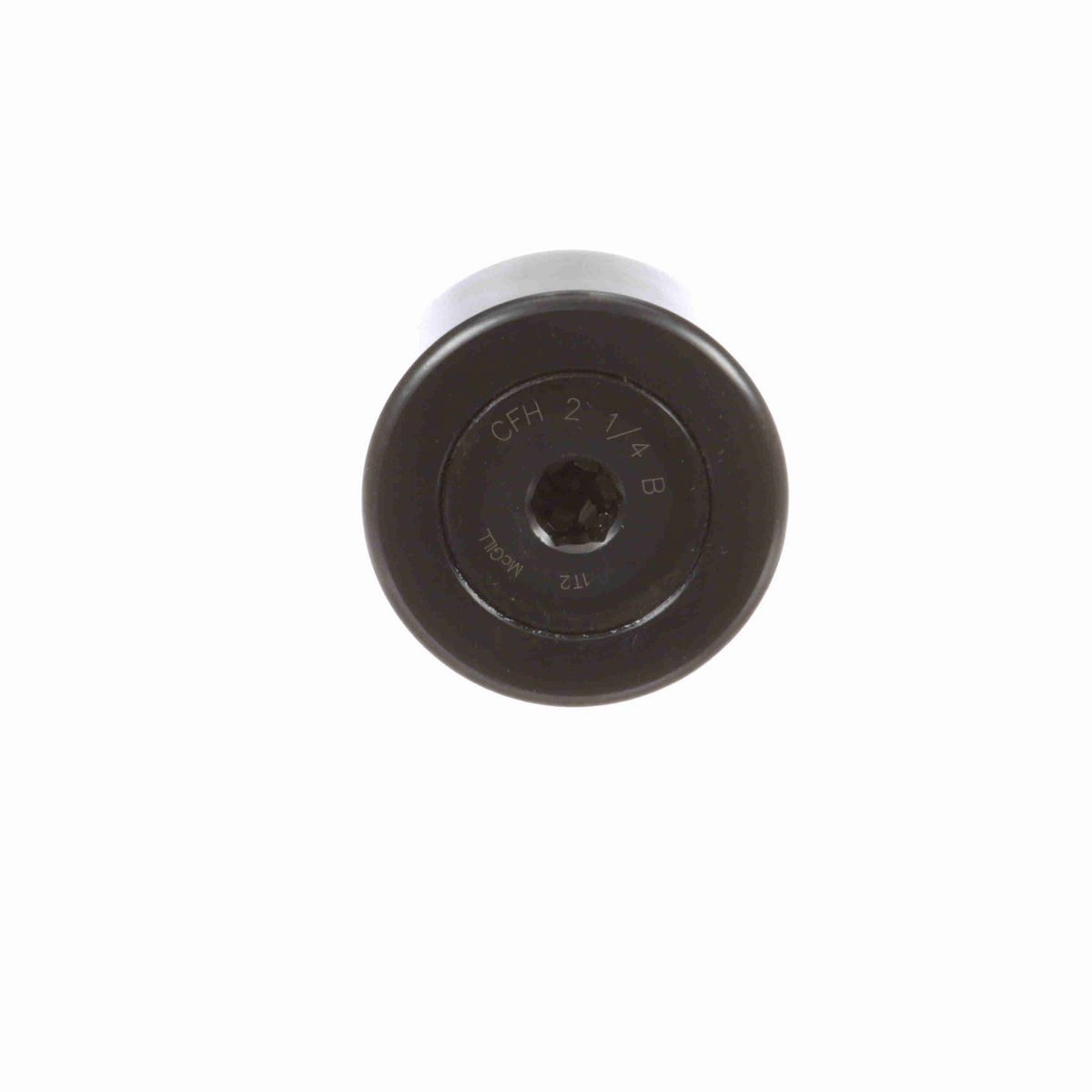

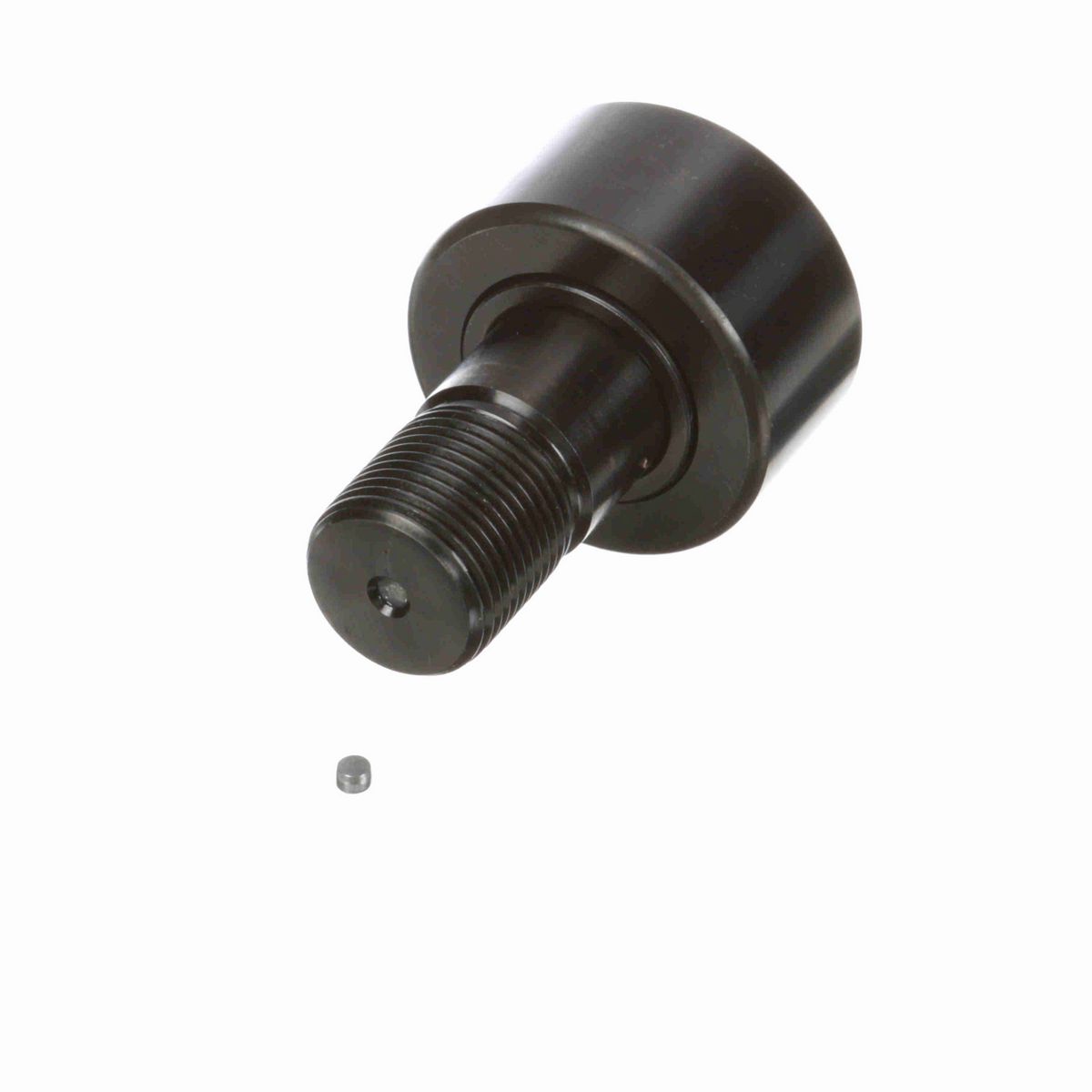

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• Heavy stud configuration

Dimensions

Threads	1 1/8-12
Roller Diameter (in)	2.25 in
Lubrication Fitting Size (mm)	3/16 mm
Oil Hole Diameter (in)	0.125 in
Oil Hole Center (in)	0.5 in
Minimum Thread Length (in)	1 in
Stud Length (in)	2 in
Stud Diameter (in)	1.125 in
Roller Width (in)	1.25 in
Lubrication Fitting Size (in)	3/16 in
Weight (kg)	0.85 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Limiting Speed	1,300
Hex/Slot	Hex Hole
Sealing	Unsealed
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Static Load Rating	17,600
Stud Type	Heavy Stud
Roller Shape	Cylindrical
Platform	CAMROL®
Dynamic Load Rating (lb)	8,090 lb
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	2,800 lbs

General Specifications

UPC	726166038007
Weight	1.88 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
