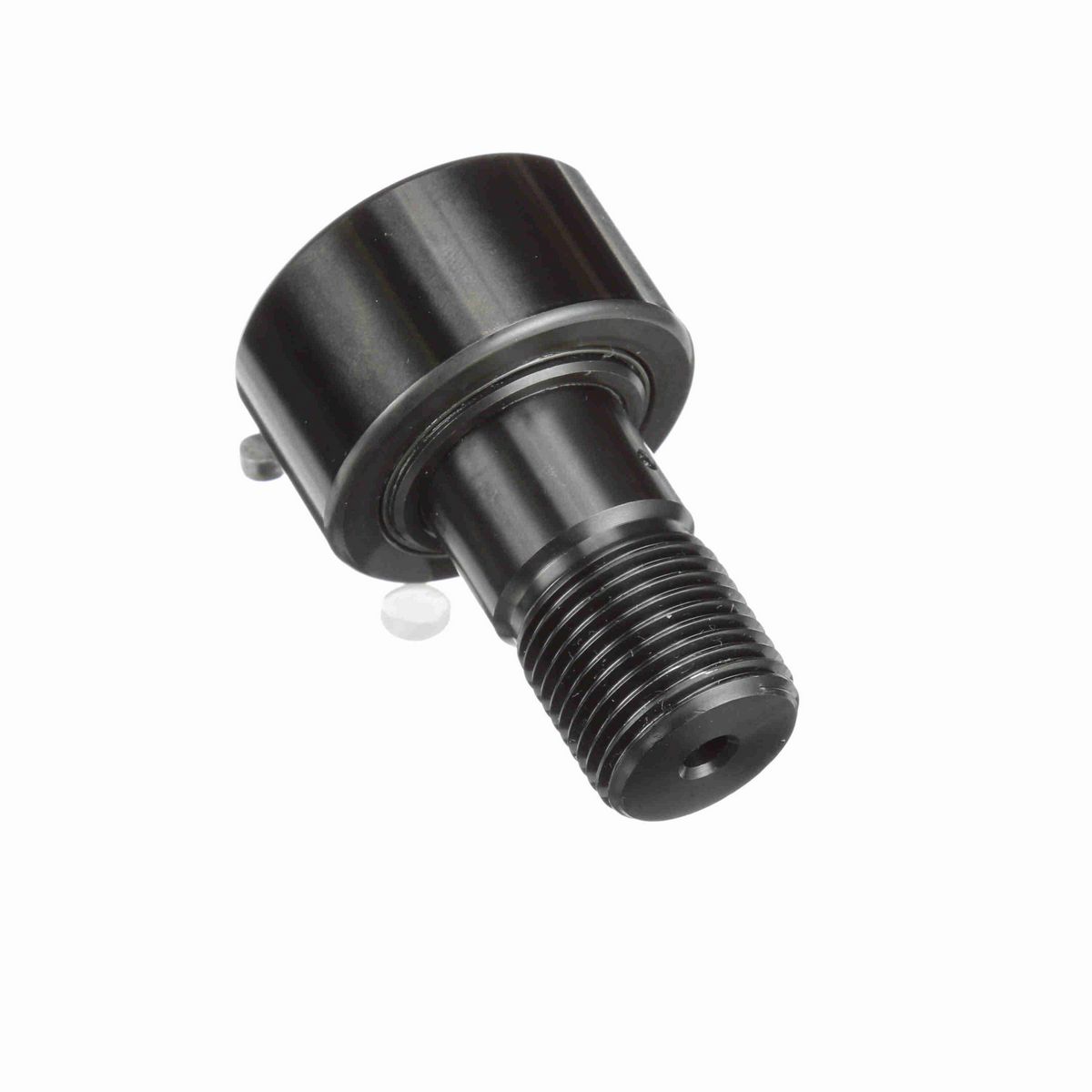

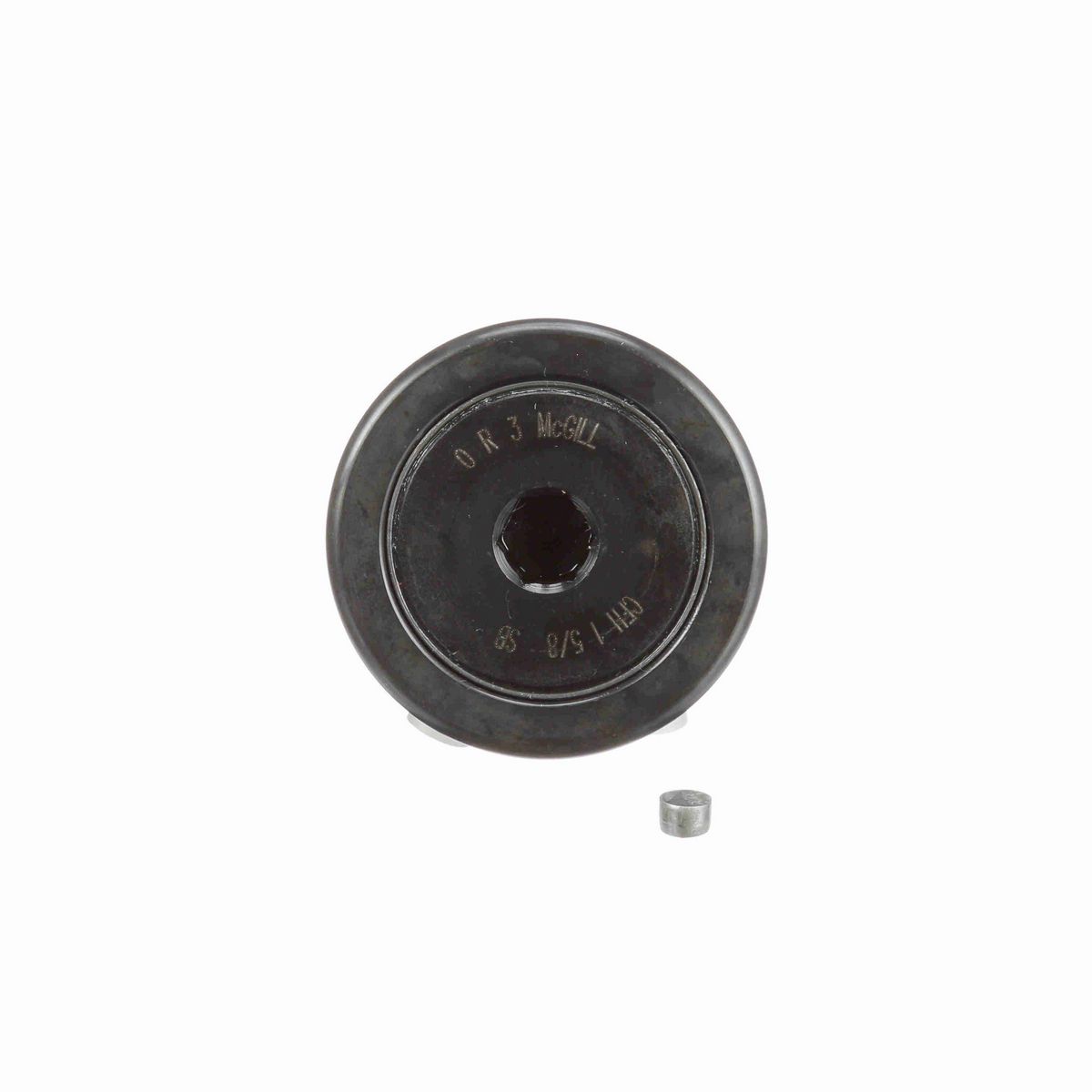

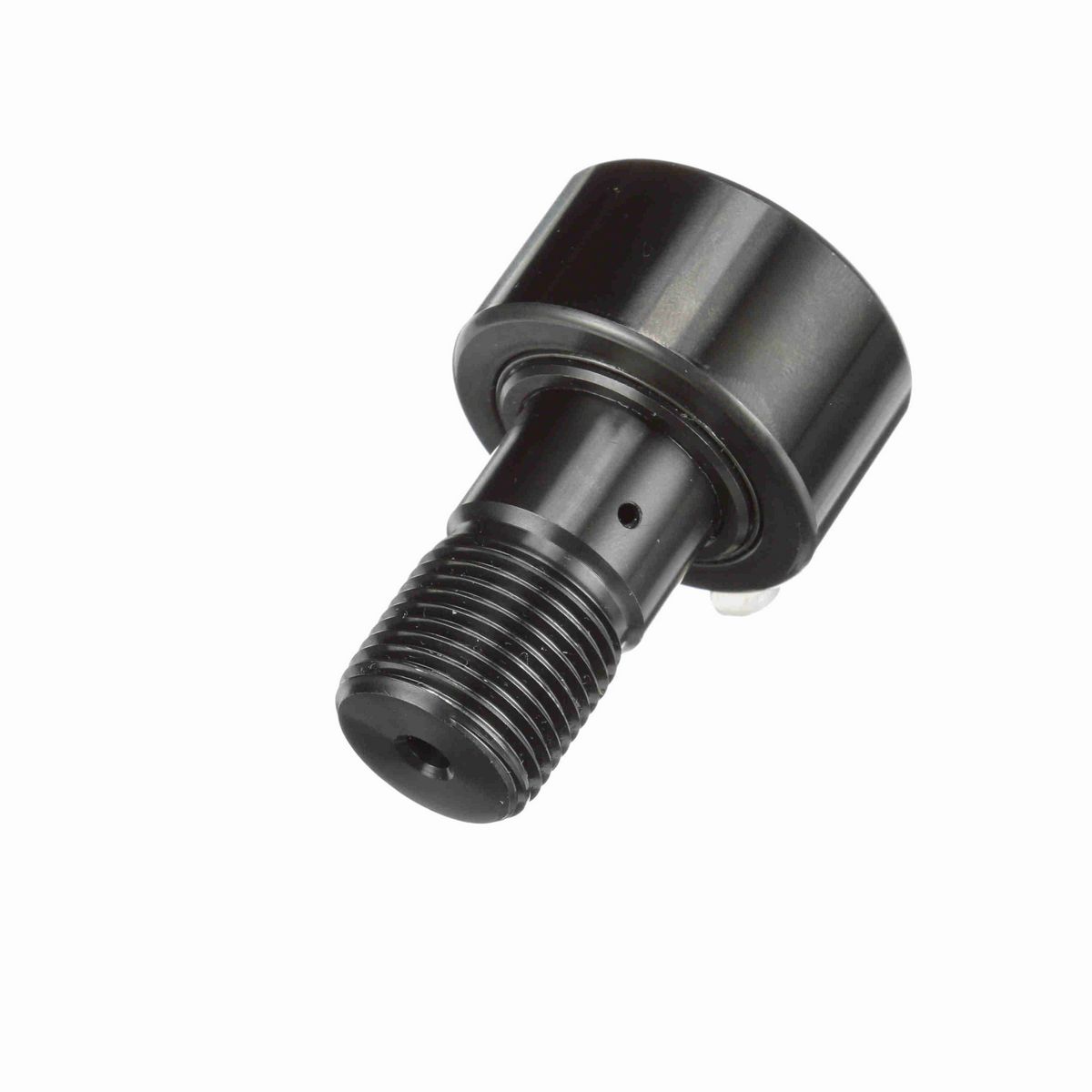

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	7/8-14
Roller Diameter (in)	1.625 in
Lubrication Fitting Size (mm)	3/16 mm
Minimum Thread Length (in)	0.75 in
Lubrication Fitting Size (in)	3/16 in
Stud Length (in)	1.5 in
Roller Width (in)	0.875 in
Oil Hole Center (in)	0.375 in
Stud Diameter (in)	0.875 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.31 kg

Technical Specifications

Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,350
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Adjustment	None
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Stud Type	Heavy Stud
Roller Shape	Cylindrical
Static Load Rating	11,280
Platform	CAMROL®
Dynamic Load Rating (lb)	4,840 lb
Tolerance Class	P0 Equivalent
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	1,500 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166036225
Weight	0.69 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
