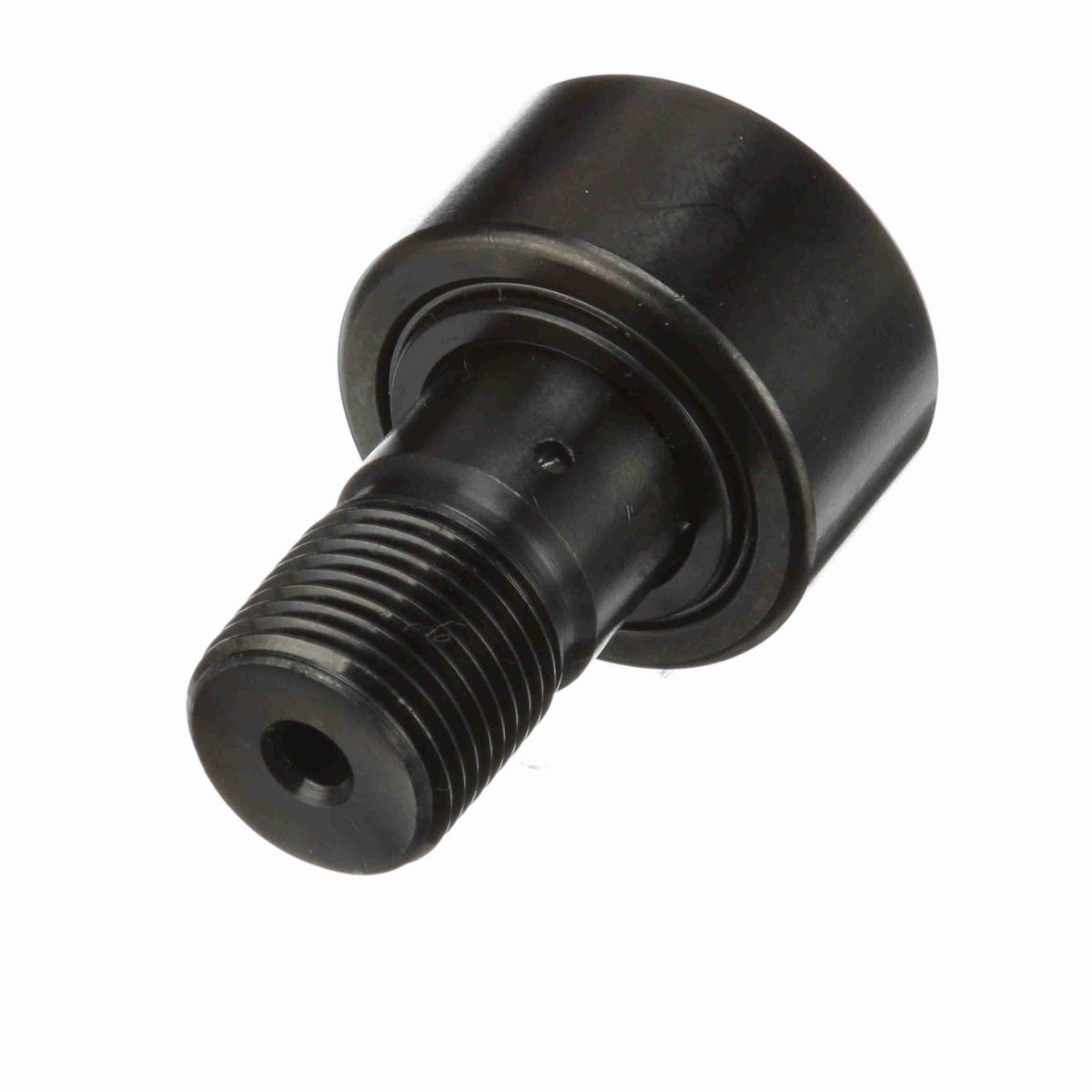

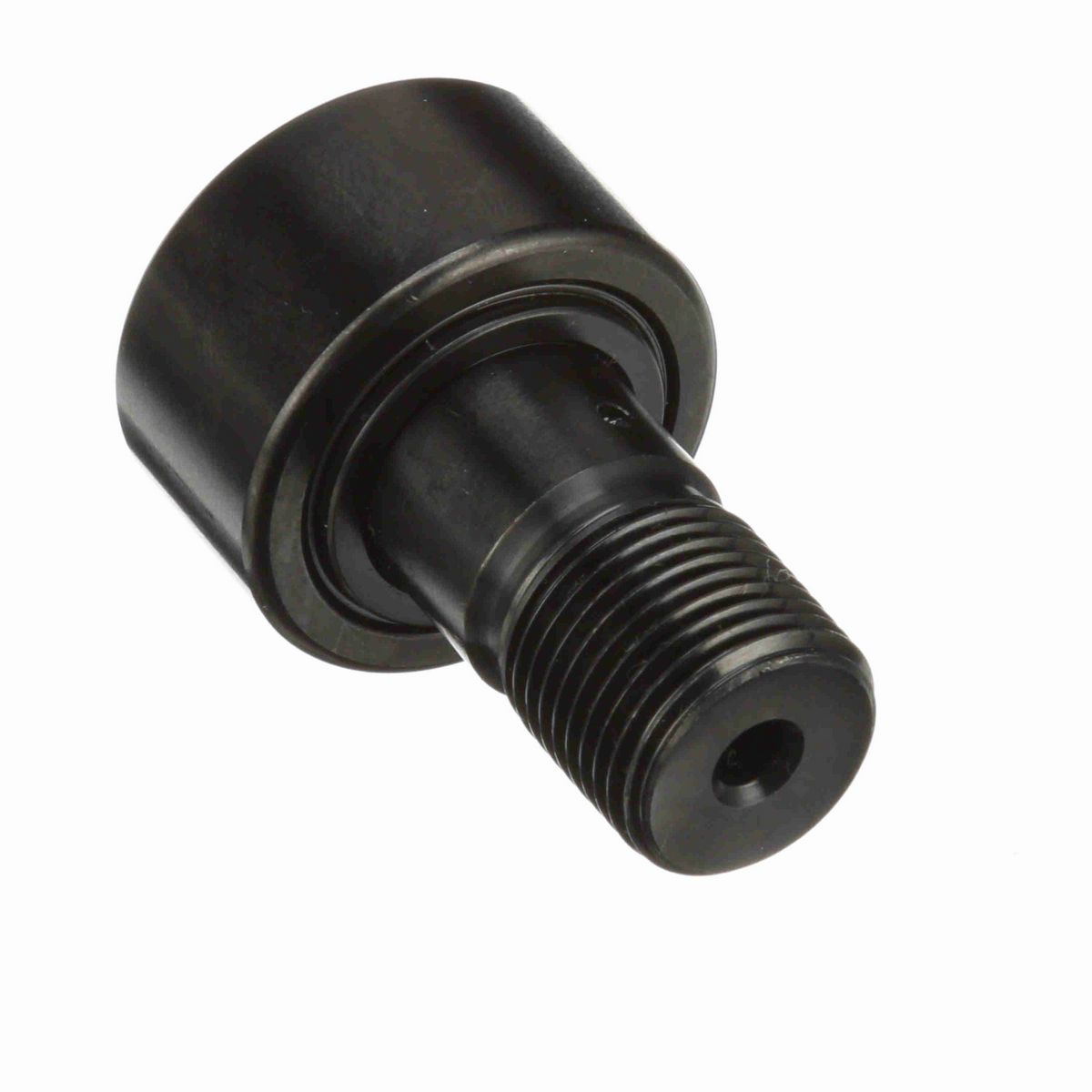

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

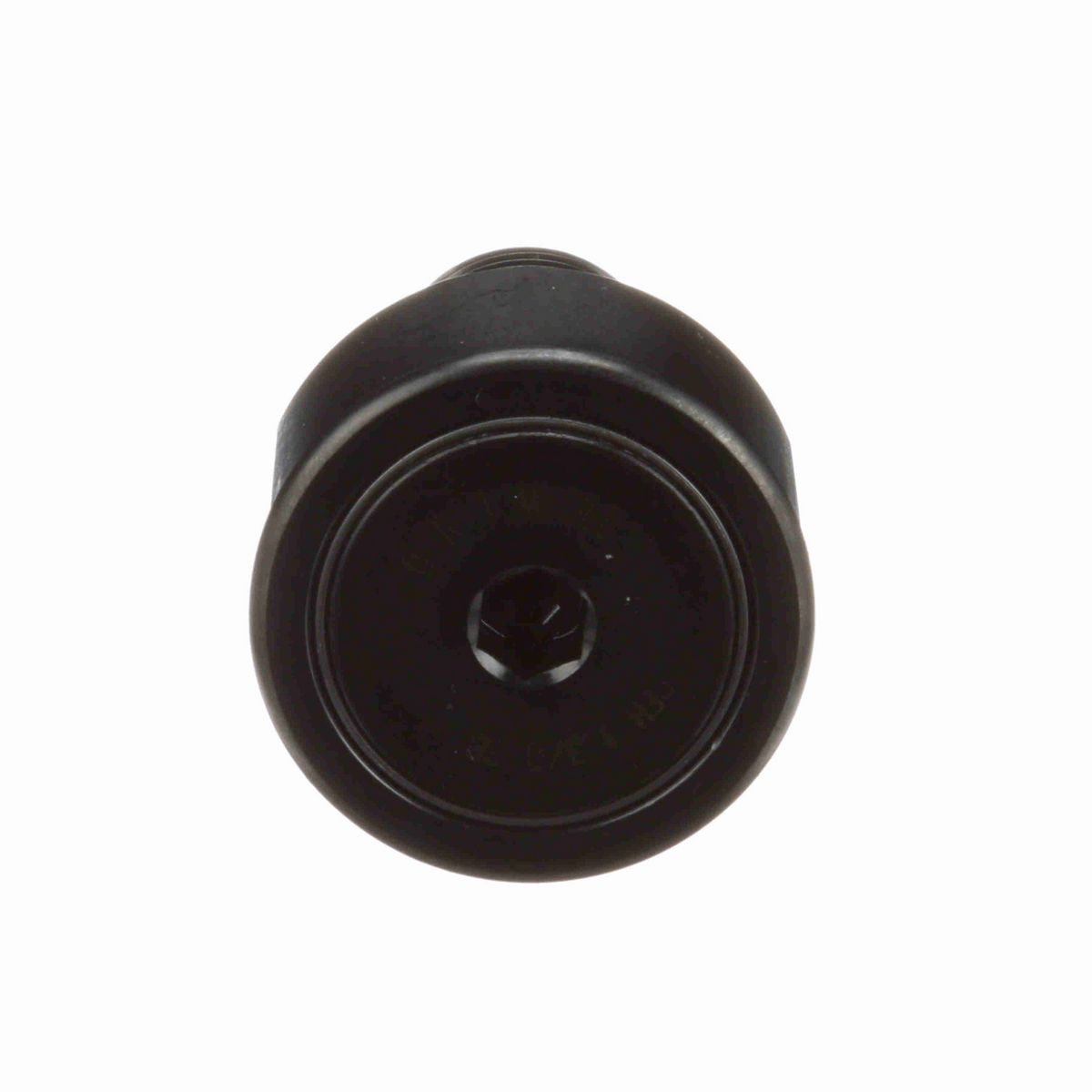

• Hex hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	3/4-16
Roller Diameter (in)	1.375 in
Oil Hole Center (in)	0.313 in
Minimum Thread Length (in)	0.63 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	1.25 in
Roller Width (in)	0.75 in
Lubrication Fitting Size (in)	3/16 in
Lubrication Fitting Size (mm)	3/16 mm
Stud Diameter (in)	0.75 in
Weight (kg)	0.2 kg

Technical Specifications

Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Limiting Speed	2,800
Adjustment	None
Sealing	Sealed
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Static Load Rating	7,700
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	3,930 lb
Stud Type	Heavy Stud
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,250 lbs

General Specifications

UPC	726166035143
Weight	0.45 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
