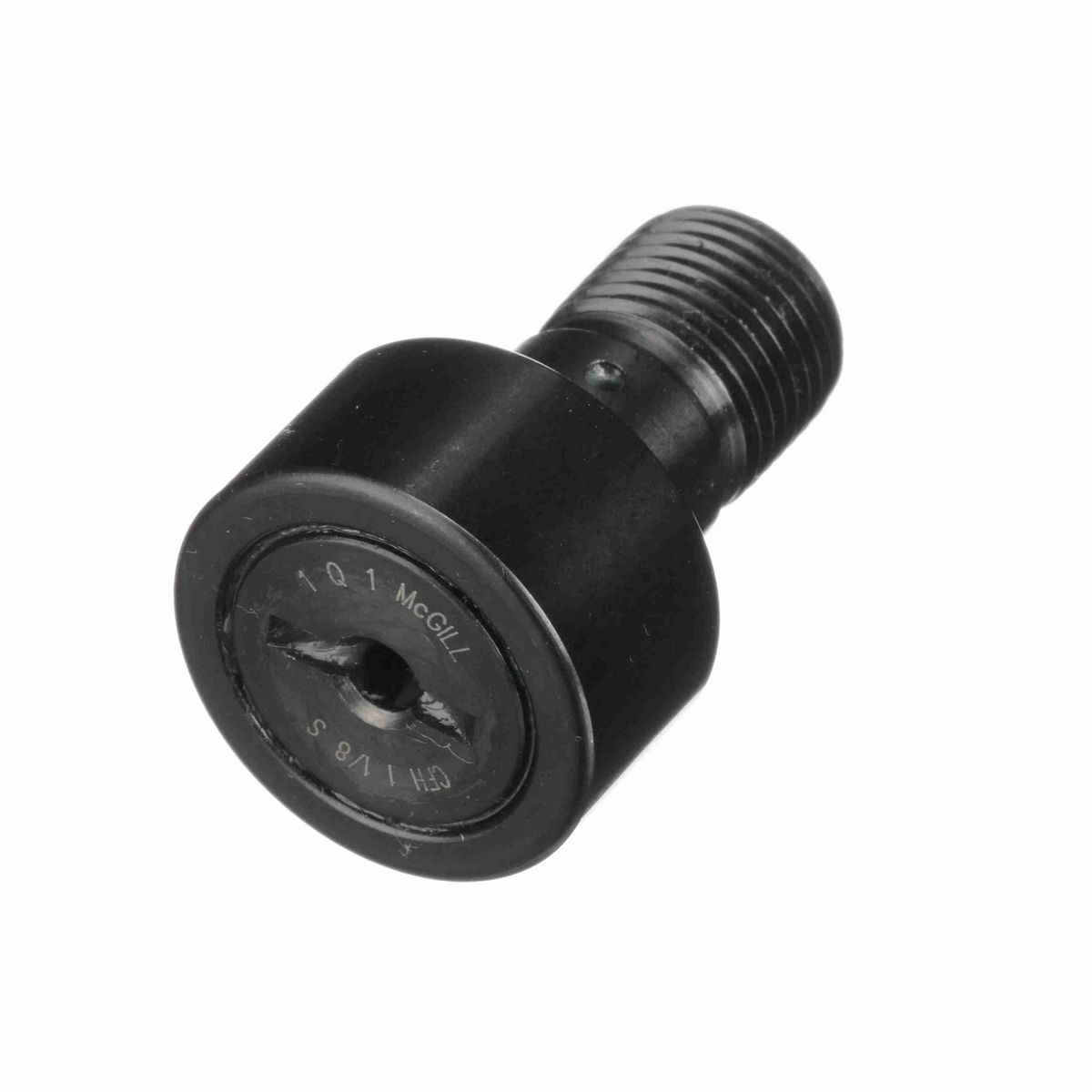

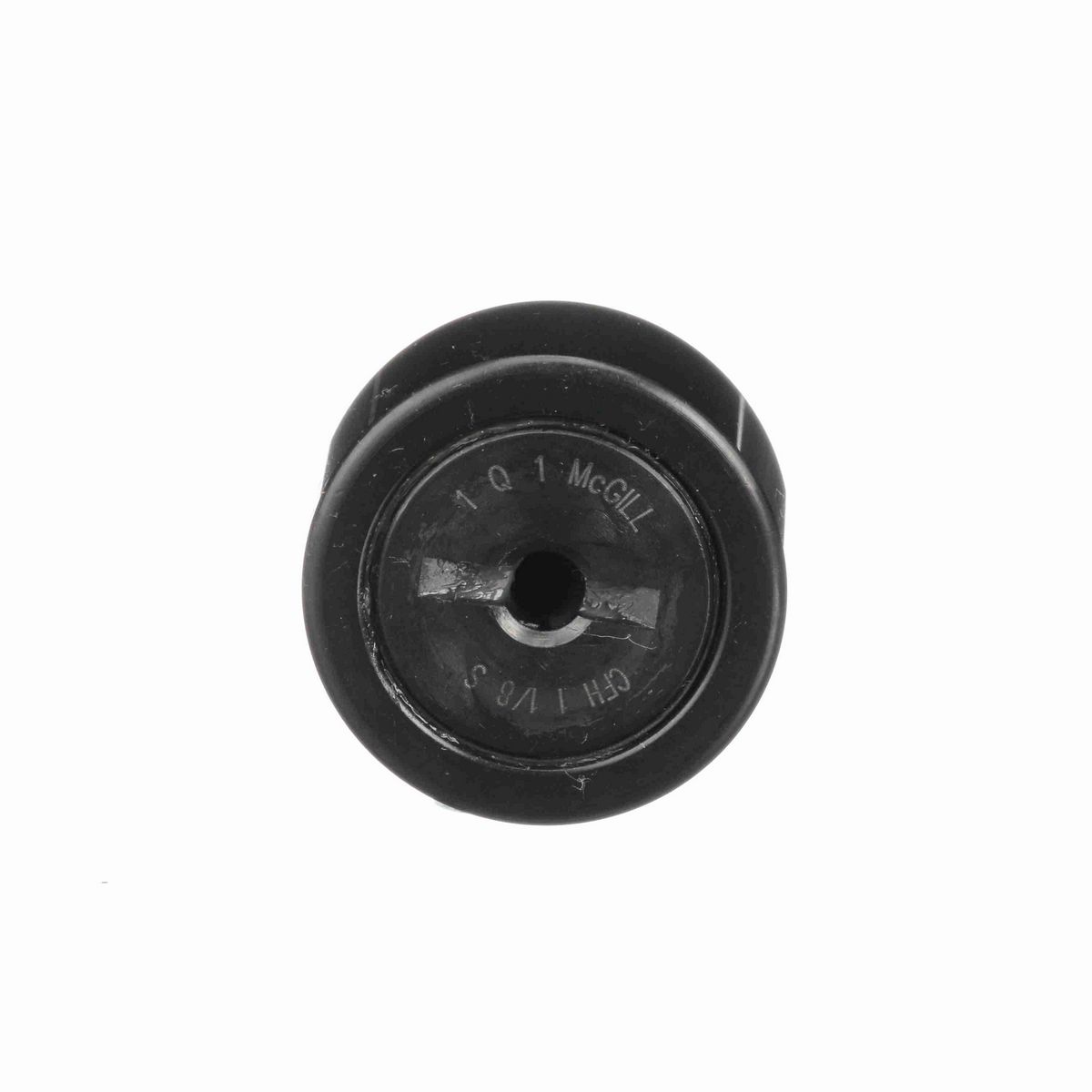

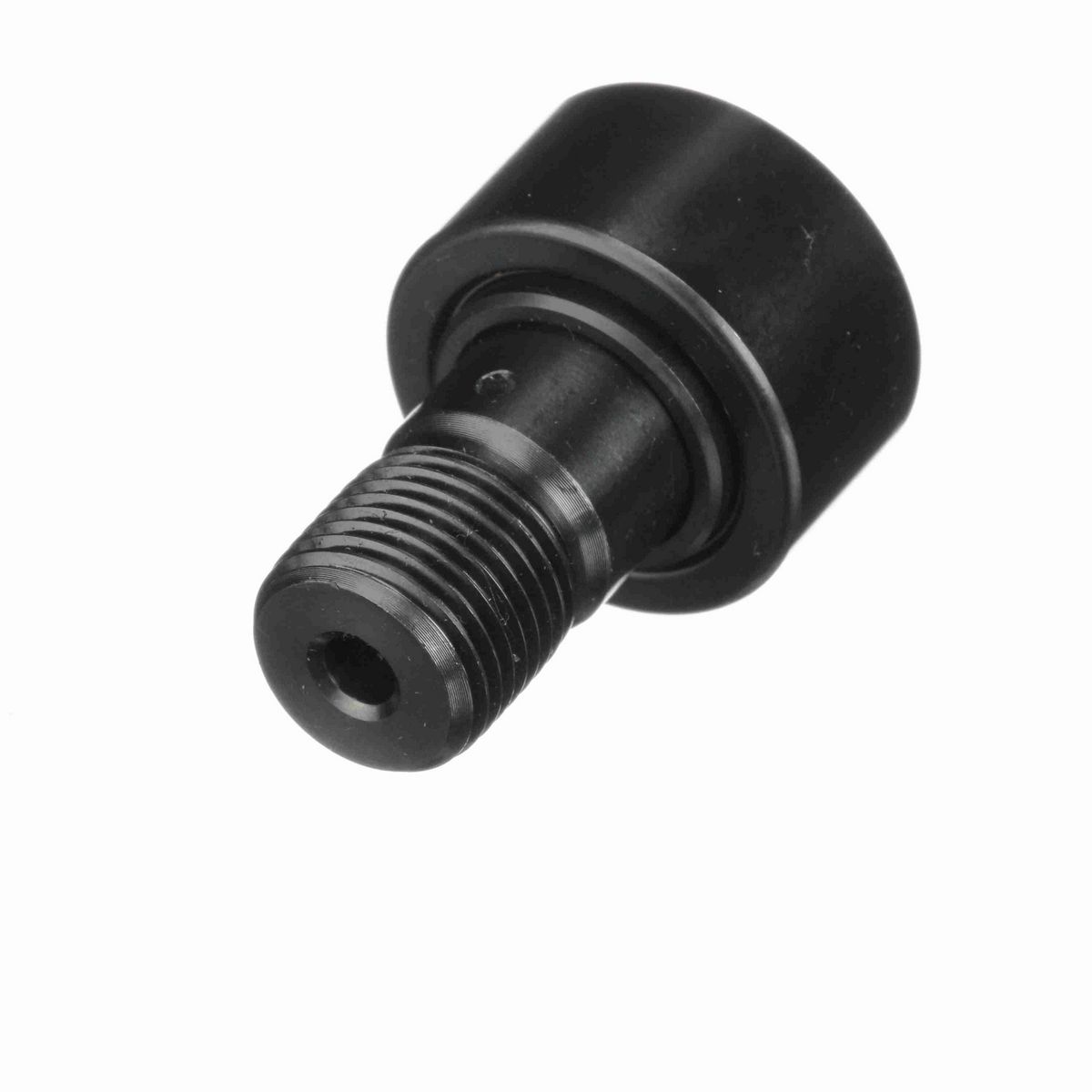

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal
• Heavy stud configuration

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.125 in
Lubrication Fitting Size (in)	3/16 in
Lubrication Fitting Size (mm)	3/16 mm
Minimum Thread Length (in)	0.5 in
Stud Length (in)	1 in
Stud Diameter (in)	0.625 in
Oil Hole Diameter (in)	0.094 in
Oil Hole Center (in)	0.25 in
Roller Width (in)	0.625 in
Weight (kg)	0.11 kg

Technical Specifications

Hex/Slot	Screwdriver Slot
O.D. Configuration	Cylindrical
Limiting Speed	3,400
Series	Inch CAMROL®
Sealing	Sealed
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Heavy Stud
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	2,225 lb
Static Load Rating	5,400
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	650 lbs

General Specifications

UPC	726166034023
Weight	0.25 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
