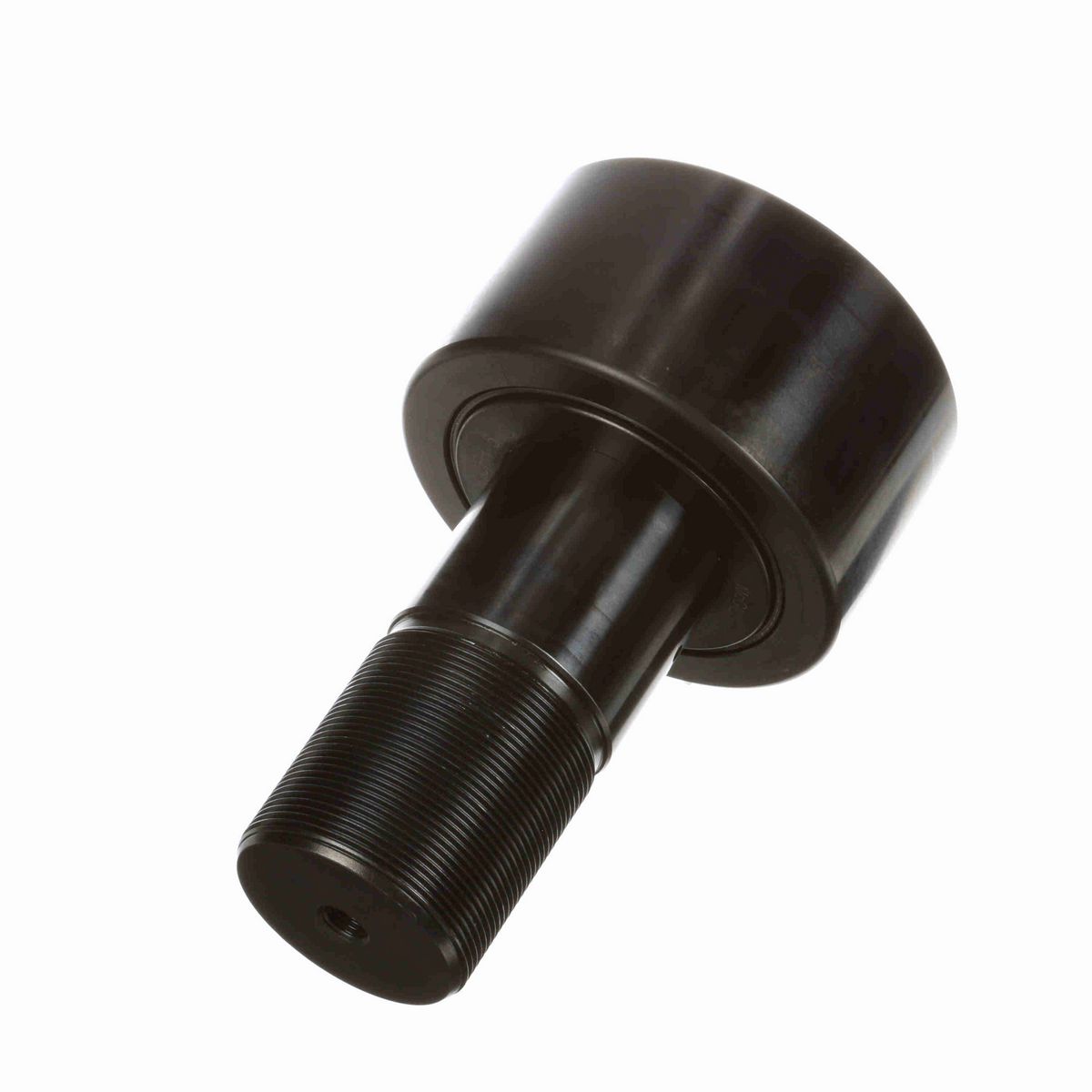

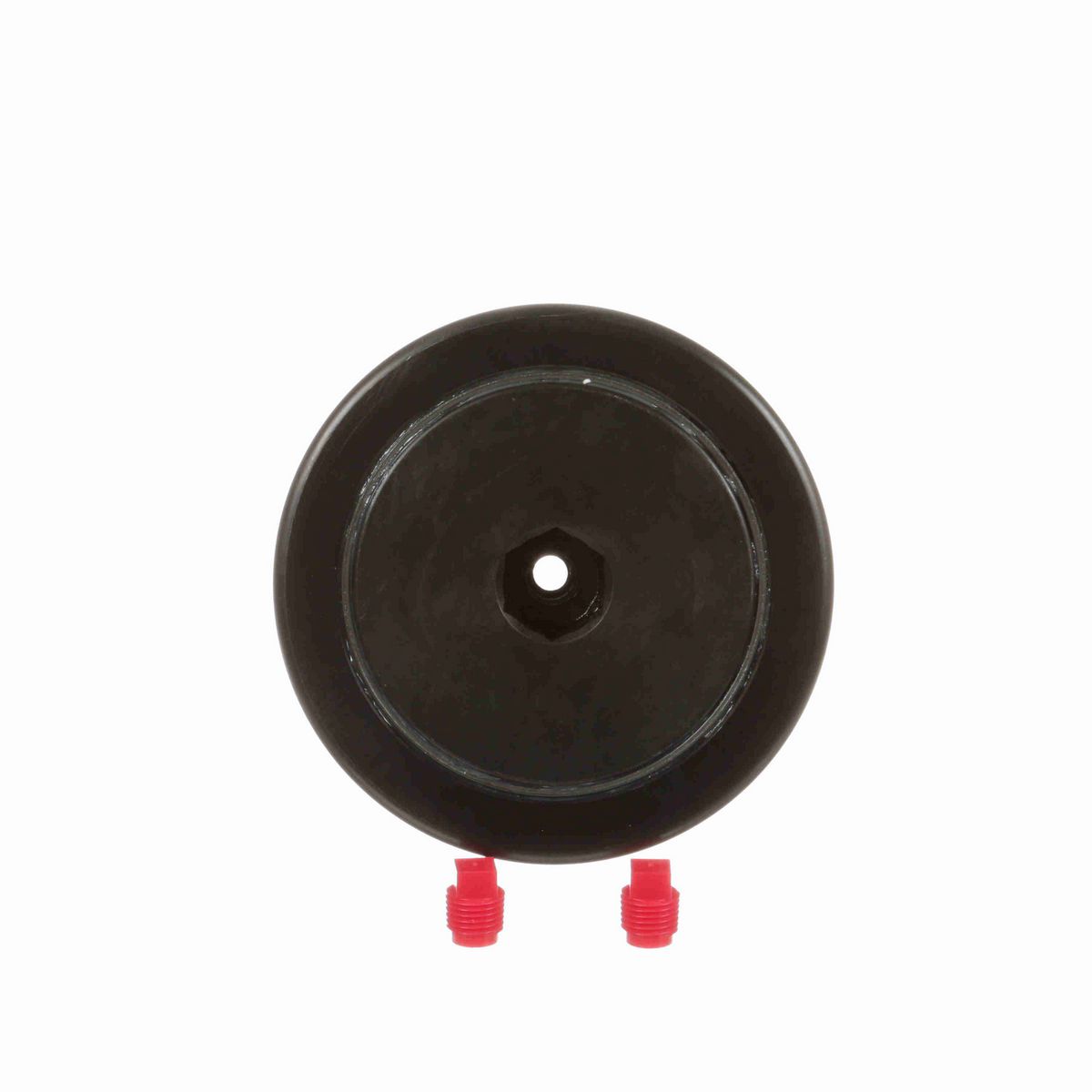

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	2 1/2-12
Roller Diameter (in)	5 in
Lubrication Fitting Size (mm)	1/4 N.P.T. mm
Lubrication Fitting Size (in)	1/4 N.P.T. in
Minimum Thread Length (in)	2.56 in
Roller Width (in)	2.75 in
Oil Hole Diameter (in)	0.188 in
Oil Hole Center (in)	0.875 in
Stud Length (in)	5.0625 in
Stud Diameter (in)	2.5 in
Weight (kg)	9.97 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Adjustment	None
O.D. Configuration	Crowned
Sealing	Sealed
Hex/Slot	Hex Hole
Limiting Speed	575
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Crowned
Static Load Rating	99,700
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	46,575 lb
Platform	CAMROL®
Stud Type	Heavy Stud
Clamping Torque (in-lbf)	5,000 lbs
Ability to Relubricate	No

General Specifications

UPC	726166042127
Weight	21.99 LB
Packaged Length	5.12 IN
Packaged Width	9.25 IN
Packaged Height	5.25 IN
HTC	8482.50.0000
Country of Origin	Mexico
