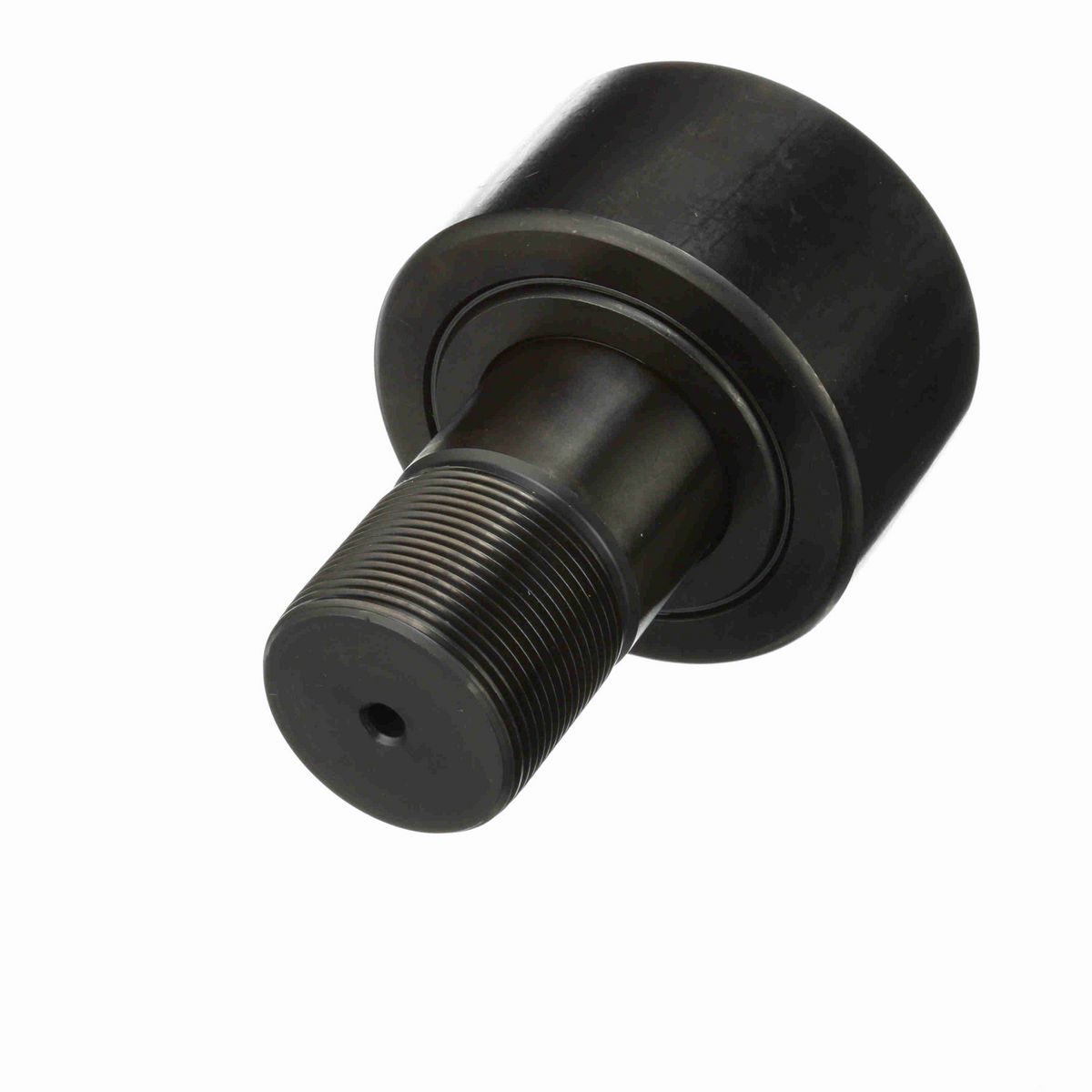

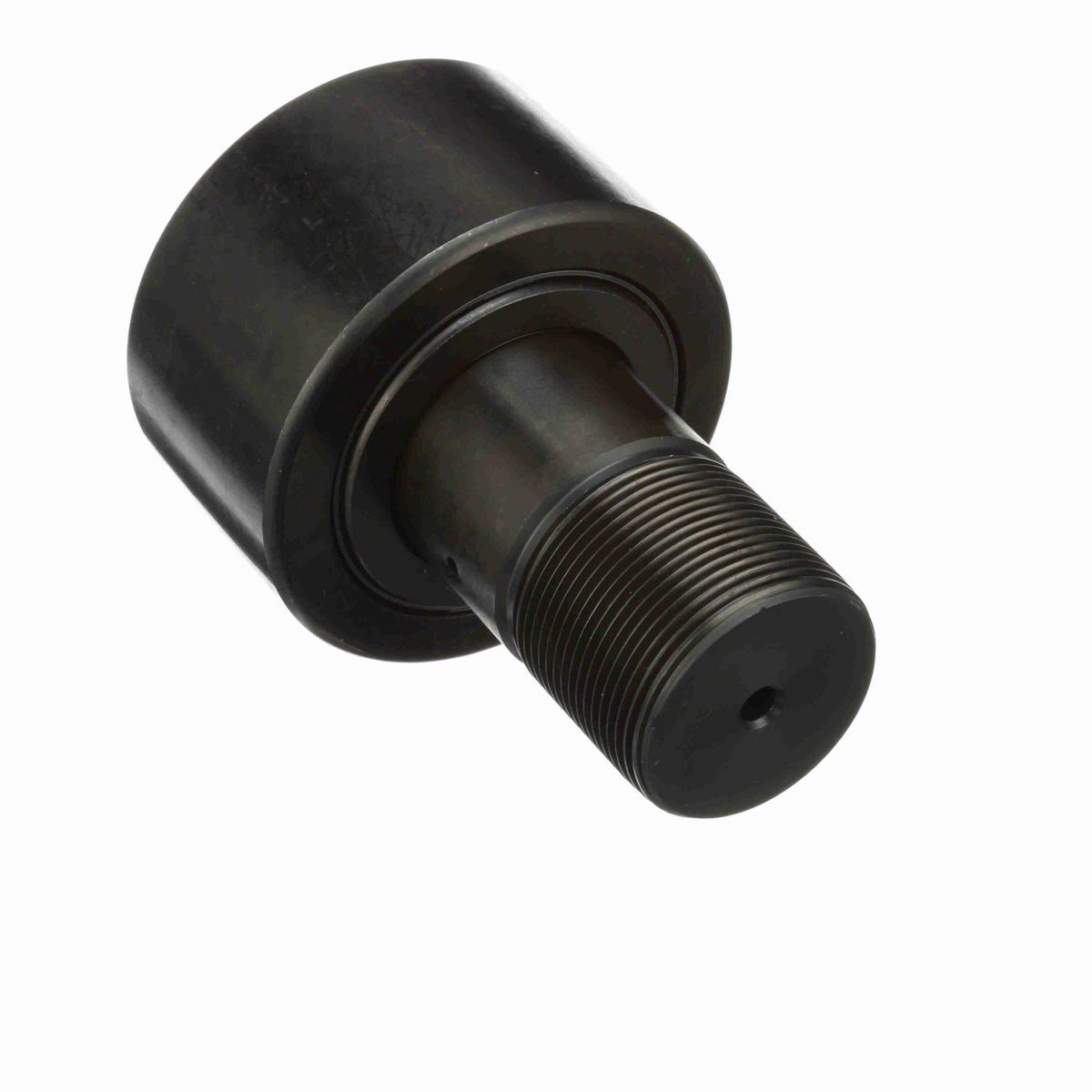

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements

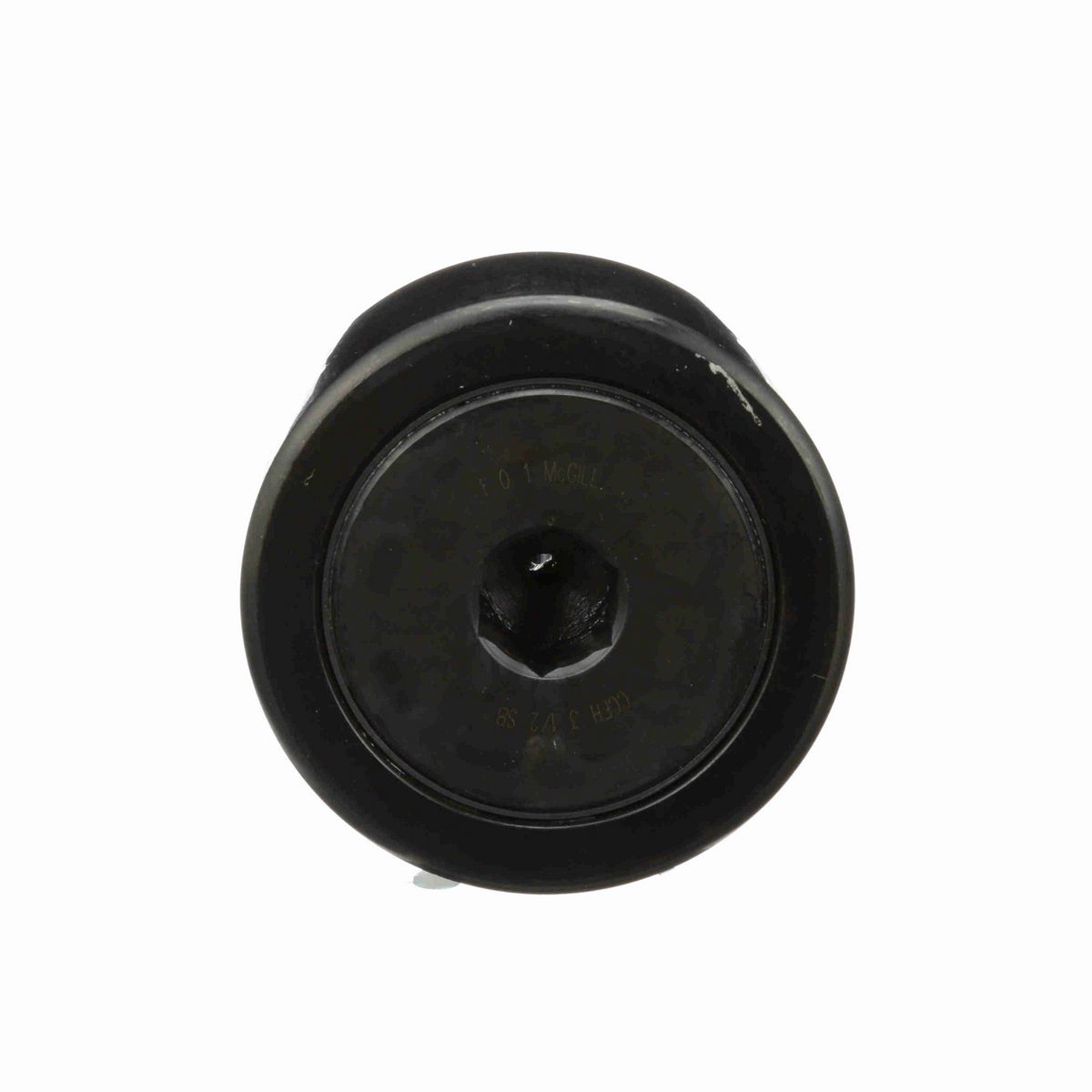

• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1 3/4-12
Roller Diameter (in)	3.5 in
Lubrication Fitting Size (in)	1/4 in
Lubrication Fitting Size (mm)	1/4 mm
Stud Diameter (in)	2.75 in
Oil Hole Diameter (in)	0.125 in
Roller Width (in)	2 in
Minimum Thread Length (in)	1.38 in
Oil Hole Center (in)	0.688 in
Stud Length (in)	2.75 in
Weight (kg)	3.03 kg

Technical Specifications

Sealing	Sealed
Hex/Slot	Hex Hole
O.D. Configuration	Crowned
Adjustment	None
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Limiting Speed	820
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	22,800 lb
Stud Type	Heavy Stud
Static Load Rating	45,700
Roller Shape	Crowned
Ability to Relubricate	No
Clamping Torque (in-lbf)	5,000 lbs

General Specifications

UPC	726166040079
Weight	6.69 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
