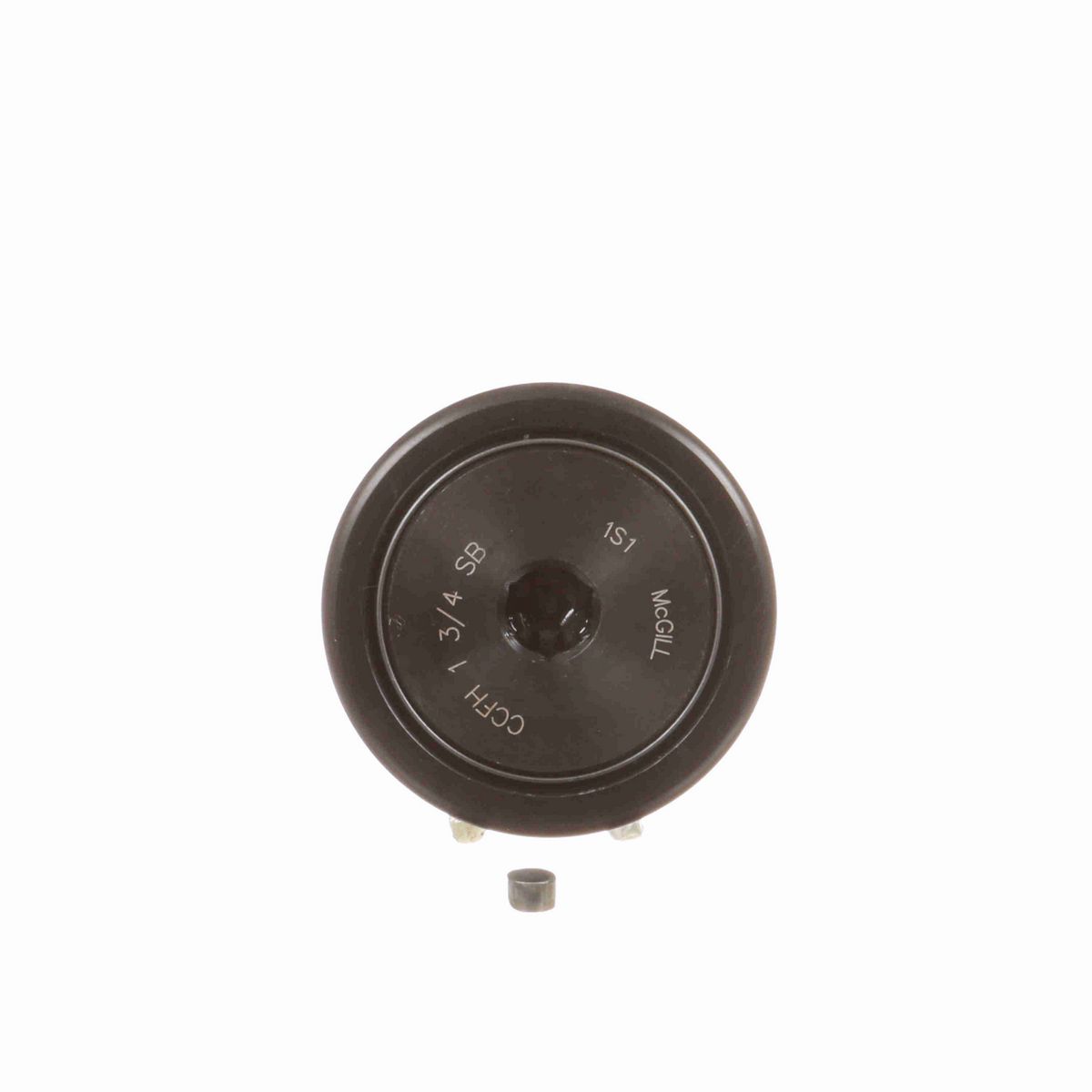

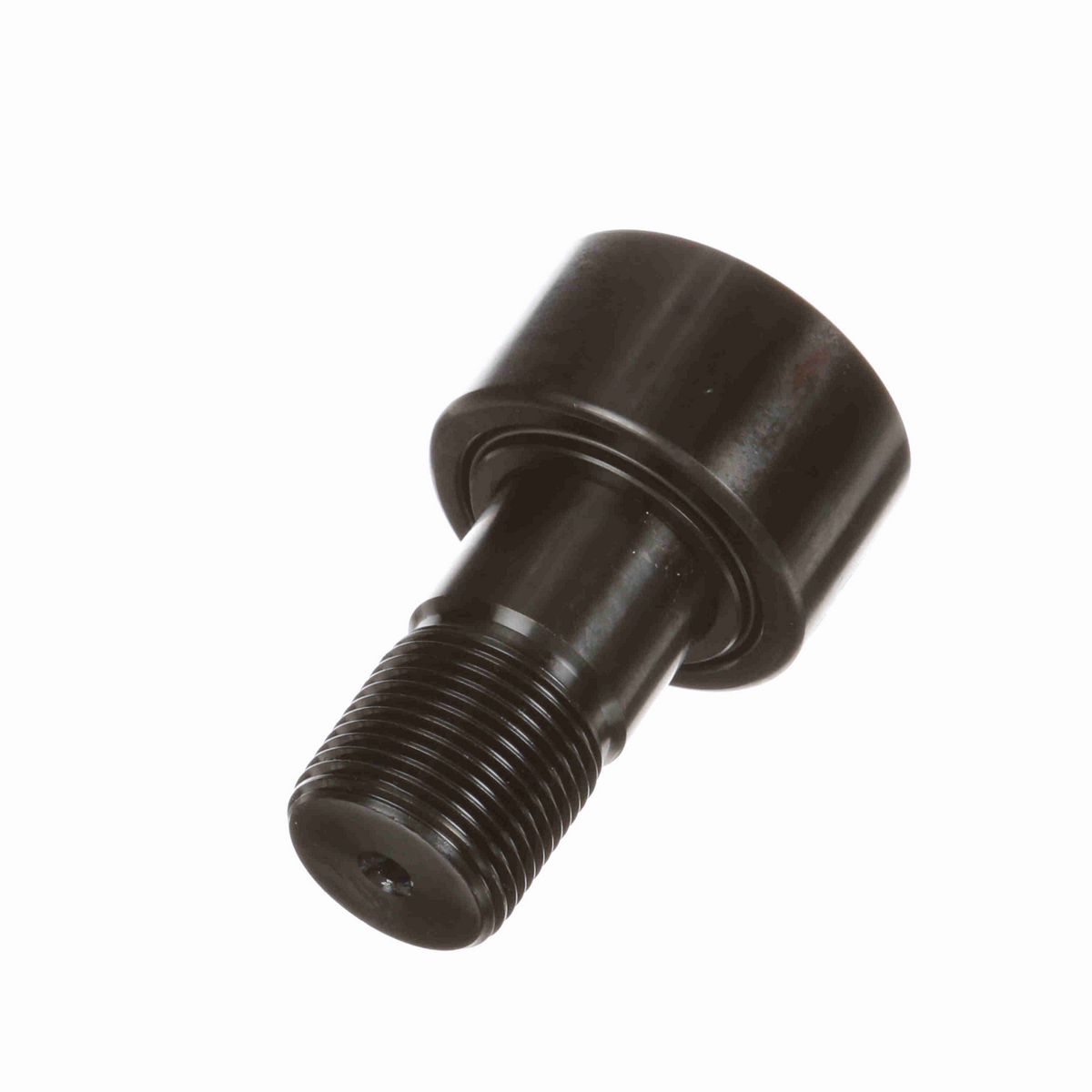

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1-14
Roller Diameter (in)	1.75 in
Lubrication Fitting Size (in)	3/16 in
Stud Diameter (in)	1 in
Lubrication Fitting Size (mm)	3/16 mm
Oil Hole Center (in)	0.438 in
Roller Width (in)	1 in
Oil Hole Diameter (in)	0.094 in
Minimum Thread Length (in)	0.88 in
Stud Length (in)	1.75 in
Weight (kg)	0.44 kg

Technical Specifications

Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,200
Adjustment	None
Hex/Slot	Hex Hole
Series	Inch CAMROL®
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	6,385 lb
Roller Shape	Crowned
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Static Load Rating	14,800
Stud Type	Heavy Stud
Clamping Torque (in-lbf)	2,250 lbs
Ability to Relubricate	No

General Specifications

UPC	726166036782
Weight	0.96 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
