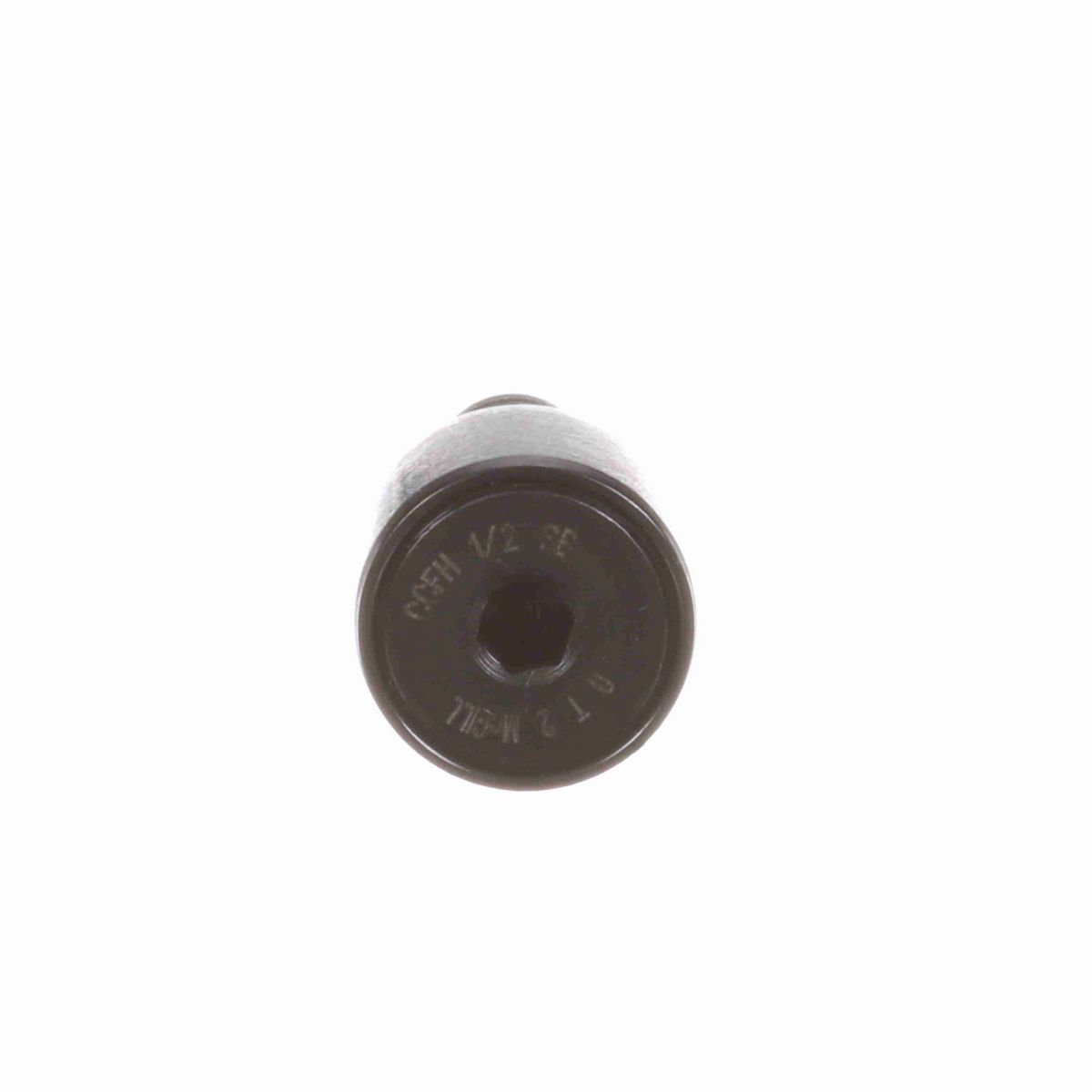

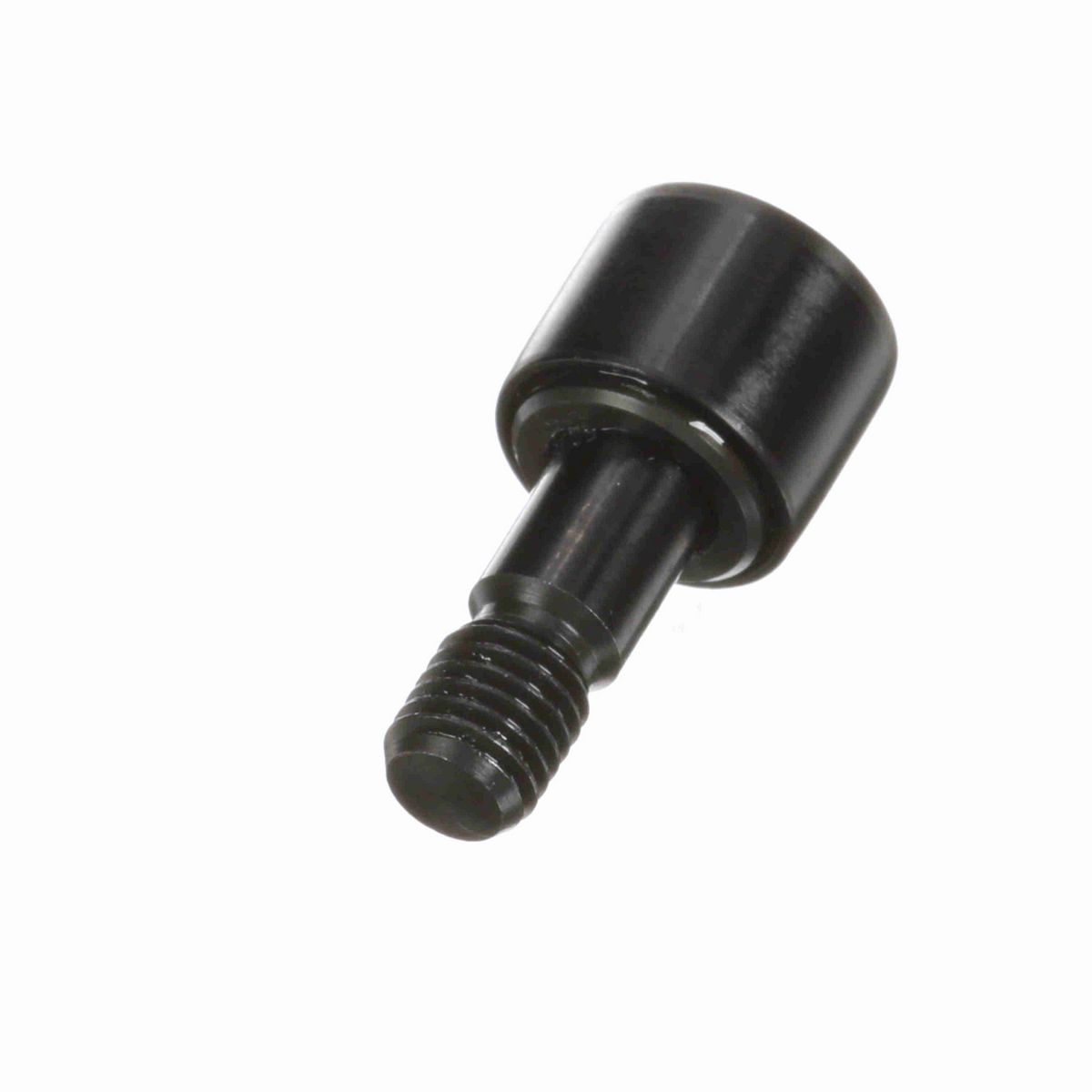

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1/4-28
Roller Diameter (in)	0.5 in
Roller Width (in)	0.375 in
Minimum Thread Length (in)	0.25 in
Stud Length (in)	0.625 in
Stud Diameter (in)	0.25 in
Weight (kg)	0.02 kg

Technical Specifications

Adjustment	None
Sealing	Sealed
Series	Inch CAMROL®
Limiting Speed	11,500
O.D. Configuration	Crowned
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Roller Shape	Crowned
Static Load Rating	1,580
Stud Type	Heavy Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	680 lb
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	35 lbs
Ability to Relubricate	No

General Specifications

UPC	726166030339
Weight	0.04 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
