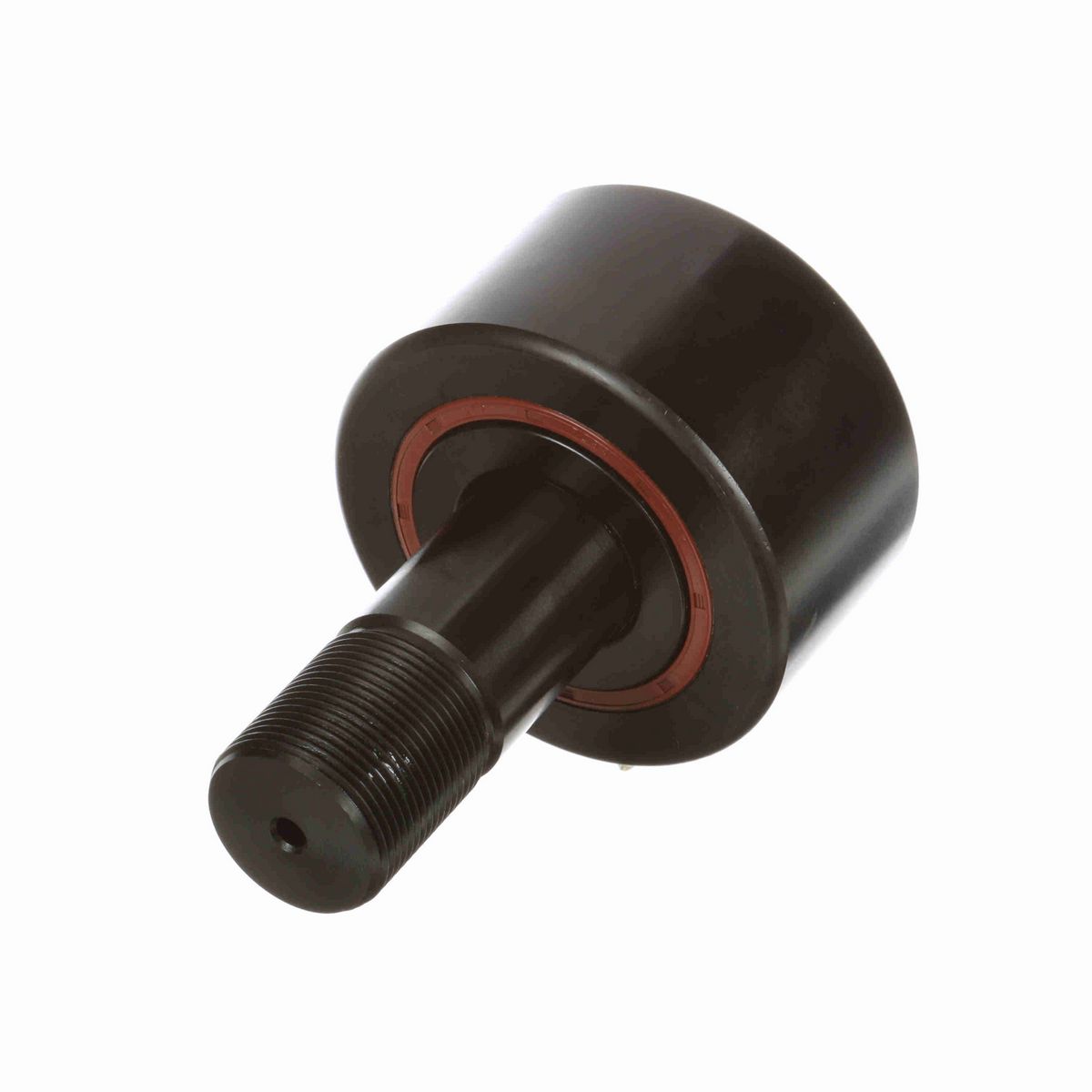

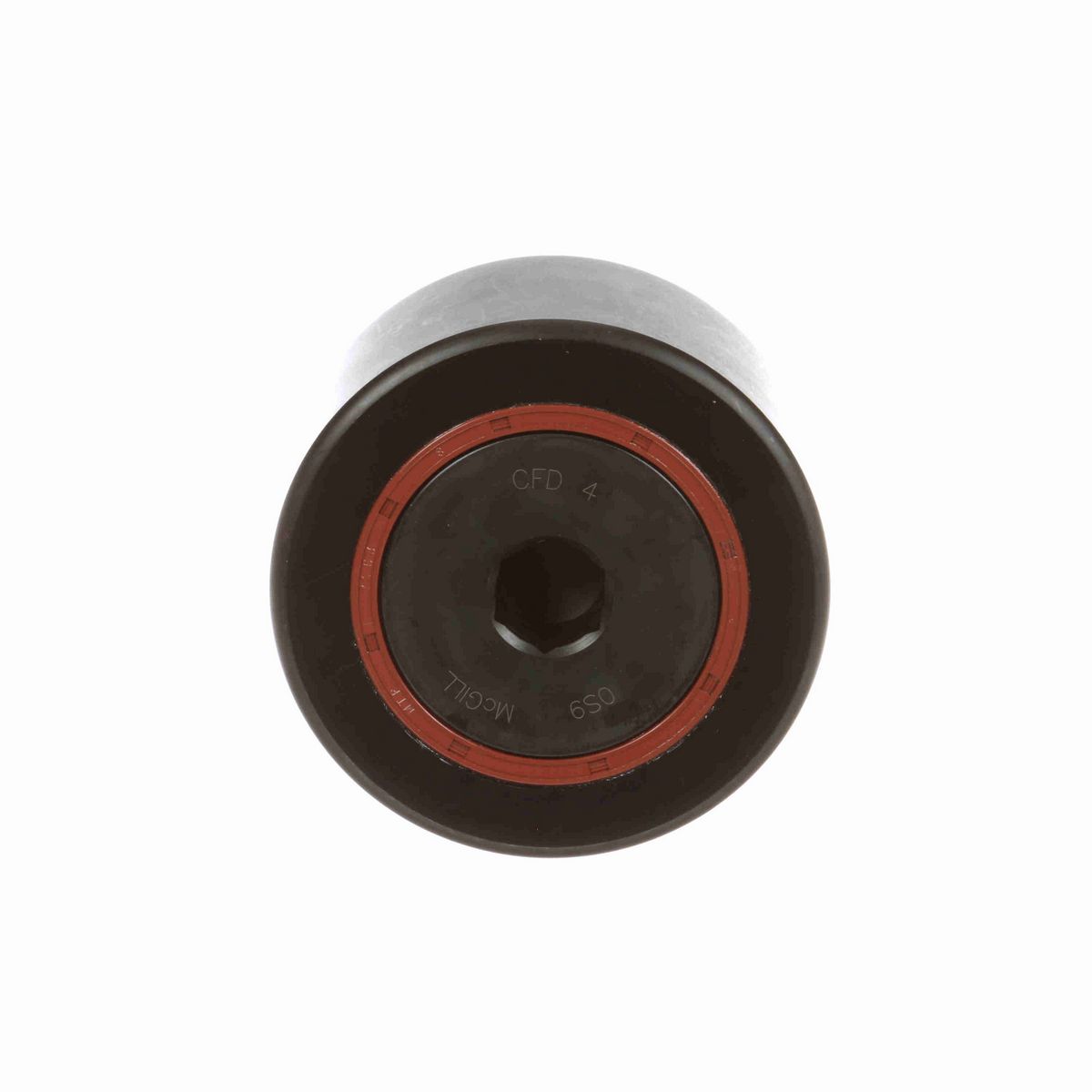

• Heavy duty stud type cam follower
• Cylindrical outside diameter
• Full complement cylindrical rolling elements
• Hex hole

Dimensions

Threads	1 1/2-12
Roller Diameter (in)	4 in
Stud Length (in)	3.5 in
Hex Socket (in)	0.75 in
Stud Diameter (in)	1.5 in
Roller Width (in)	2.25 in
Minimum Thread Length (in)	1.5 in
Weight (kg)	4.07 kg

Technical Specifications

Dynamic Radial Rating	32,500
Limiting Speed	700
Series	Heavy Duty Inch CAMROL®
Adjustment	None
Sealing	Sealed
Rolling Element	Cylindrical Roller
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	22,800
Platform	HEAVY-DUTY CAMROL®
Stud Type	Standard Stud
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	32,500 lb
Tolerance Class	P0 Equivalent
Lubrication Hole Location	Stud side
Ability to Relubricate	No
Clamping Torque (in-lbf)	5,000 lbs

General Specifications

UPC	726166119287
Weight	8.97 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.50.0000
Country of Origin	Mexico
