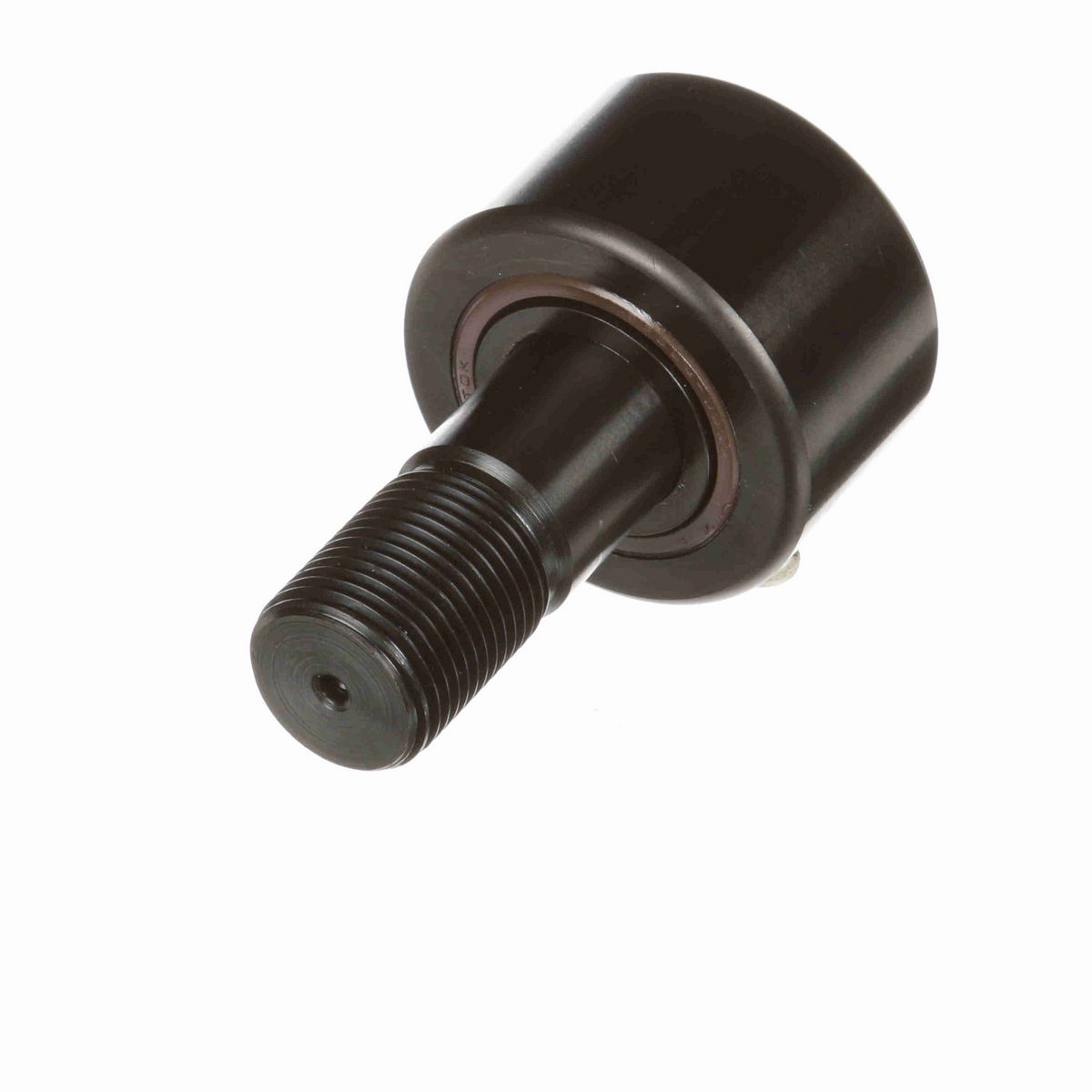

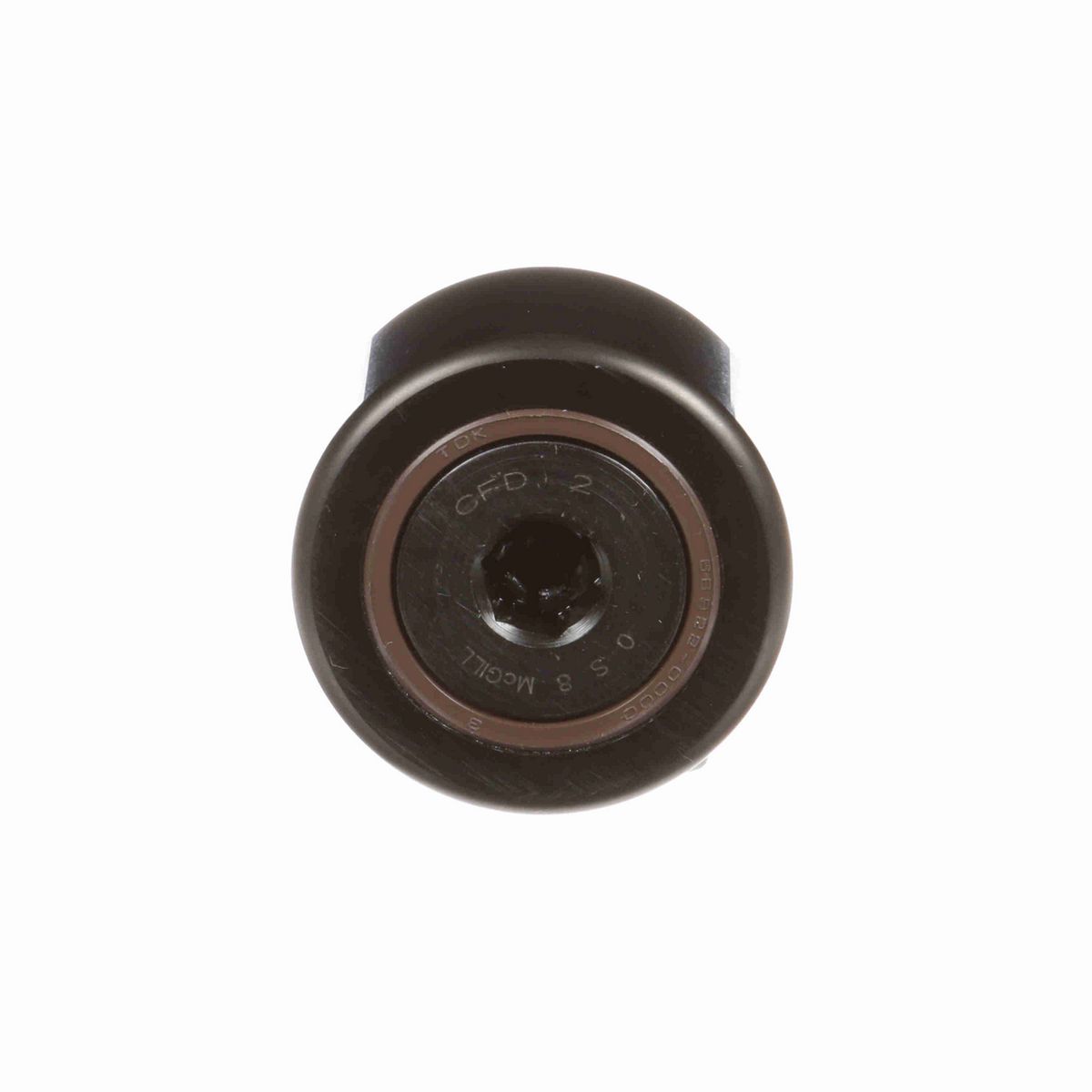

• Heavy duty stud type cam follower
• Cylindrical outside diameter
• Full complement cylindrical rolling elements
• Hex hole

Dimensions

Threads	7/8-14
Roller Diameter (in)	2 in
Roller Width (in)	1.25 in
Stud Diameter (in)	0.875 in
Minimum Thread Length (in)	1 in
Stud Length (in)	2 in
Hex Socket (in)	0.4375 in
Weight (kg)	0.59 kg

Technical Specifications

O.D. Configuration	Cylindrical
Hex/Slot	Hex Hole
Sealing	Sealed
Rolling Element	Cylindrical Roller
Dynamic Radial Rating	9,500
Limiting Speed	1,400
Adjustment	None
Series	Heavy Duty Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	9,500 lb
Stud Type	Standard Stud
Static Load Rating	7,790
Roller Shape	Cylindrical
Platform	HEAVY-DUTY CAMROL®
Tolerance Class	P0 Equivalent
Ability to Relubricate	No
Clamping Torque (in-lbf)	1,500 lbs

General Specifications

UPC	726166119225
Weight	1.29 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.50.0000
Country of Origin	Mexico
