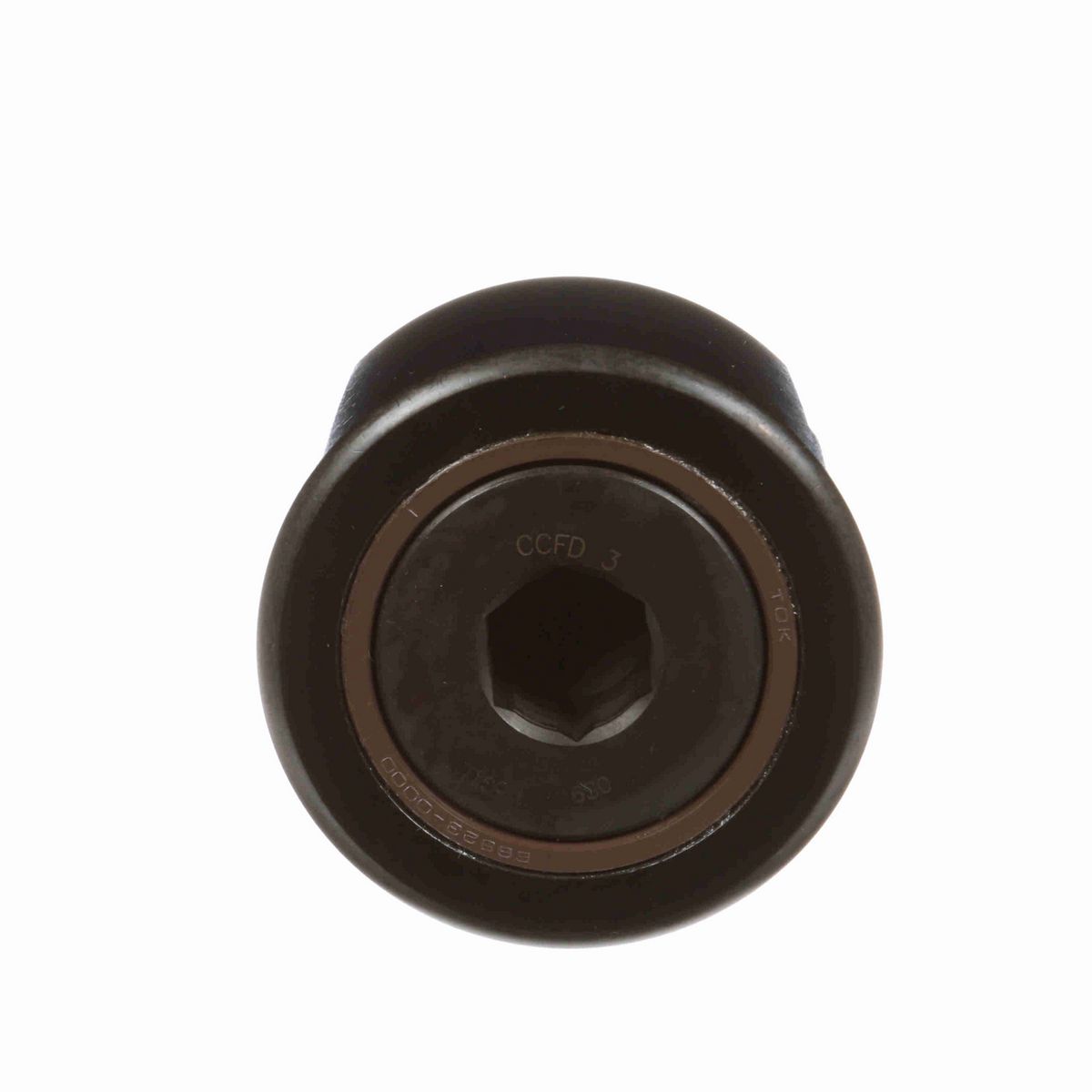

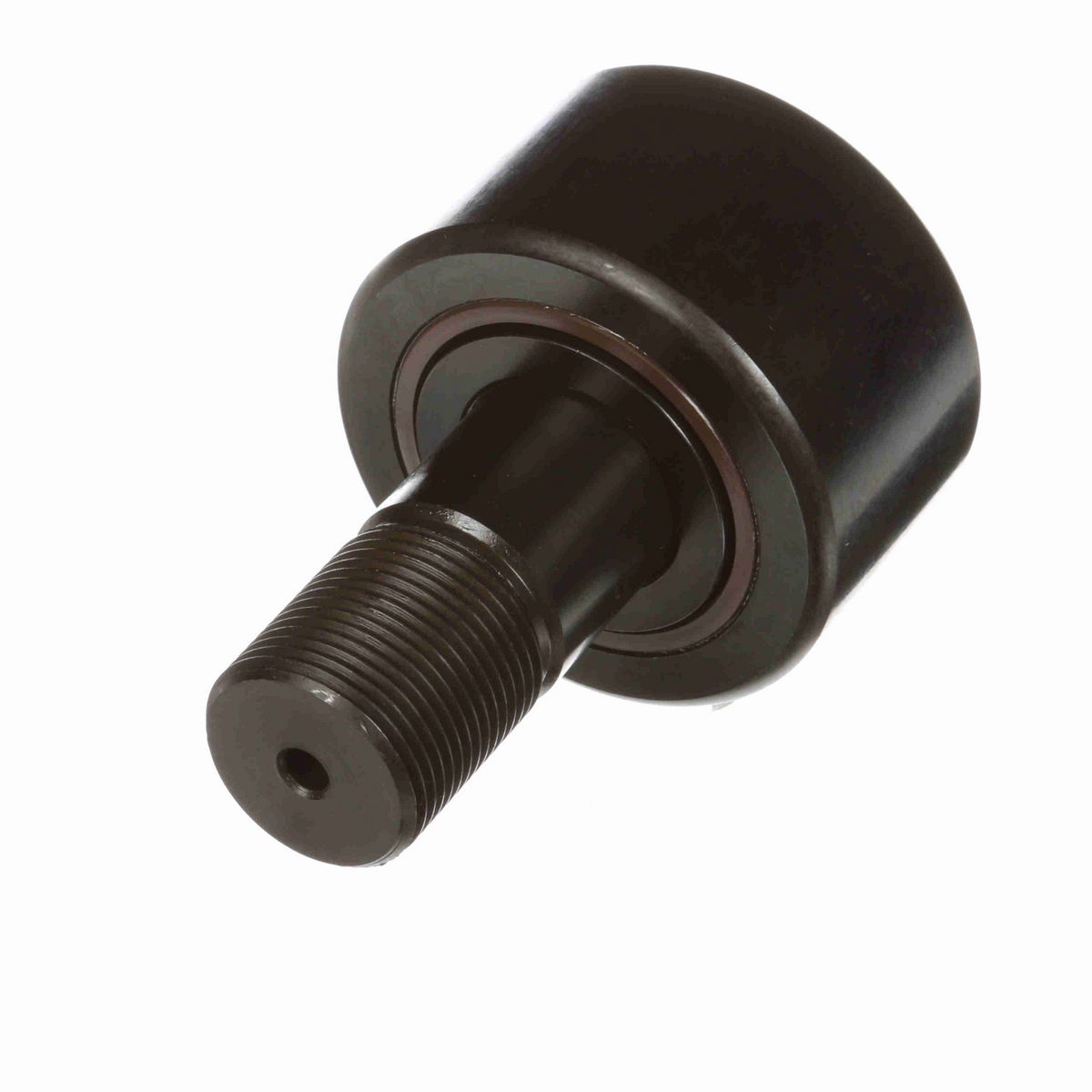

• Heavy duty stud type cam follower
• Crowned outside diameter
• Full complement cylindrical rolling elements
• Hex hole

Dimensions

Crown Radius	30
Threads	1 1/4-12
Roller Diameter (in)	3 in
Stud Diameter (in)	1.25 in
Roller Width (in)	1.75 in
Hex Socket (in)	0.75 in
Minimum Thread Length (in)	1.25 in
Stud Length (in)	2.5 in
Weight (kg)	1.9 kg

Technical Specifications

Sealing	Sealed
Hex/Slot	Hex Hole
Adjustment	None
Rolling Element	Cylindrical Roller
O.D. Configuration	Crowned
Dynamic Radial Rating	18,300
Series	Heavy Duty Inch CAMROL®
Limiting Speed	950
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Crowned
Dynamic Load Rating (lb)	18,300 lb
Platform	HEAVY-DUTY CAMROL®
Static Load Rating	18,100
Lubrication Hole Location	None
Ability to Relubricate	No
Clamping Torque (in-lbf)	3,450 lbs

General Specifications

UPC	726166119805
Weight	4.18 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.50.0000
Country of Origin	Mexico
