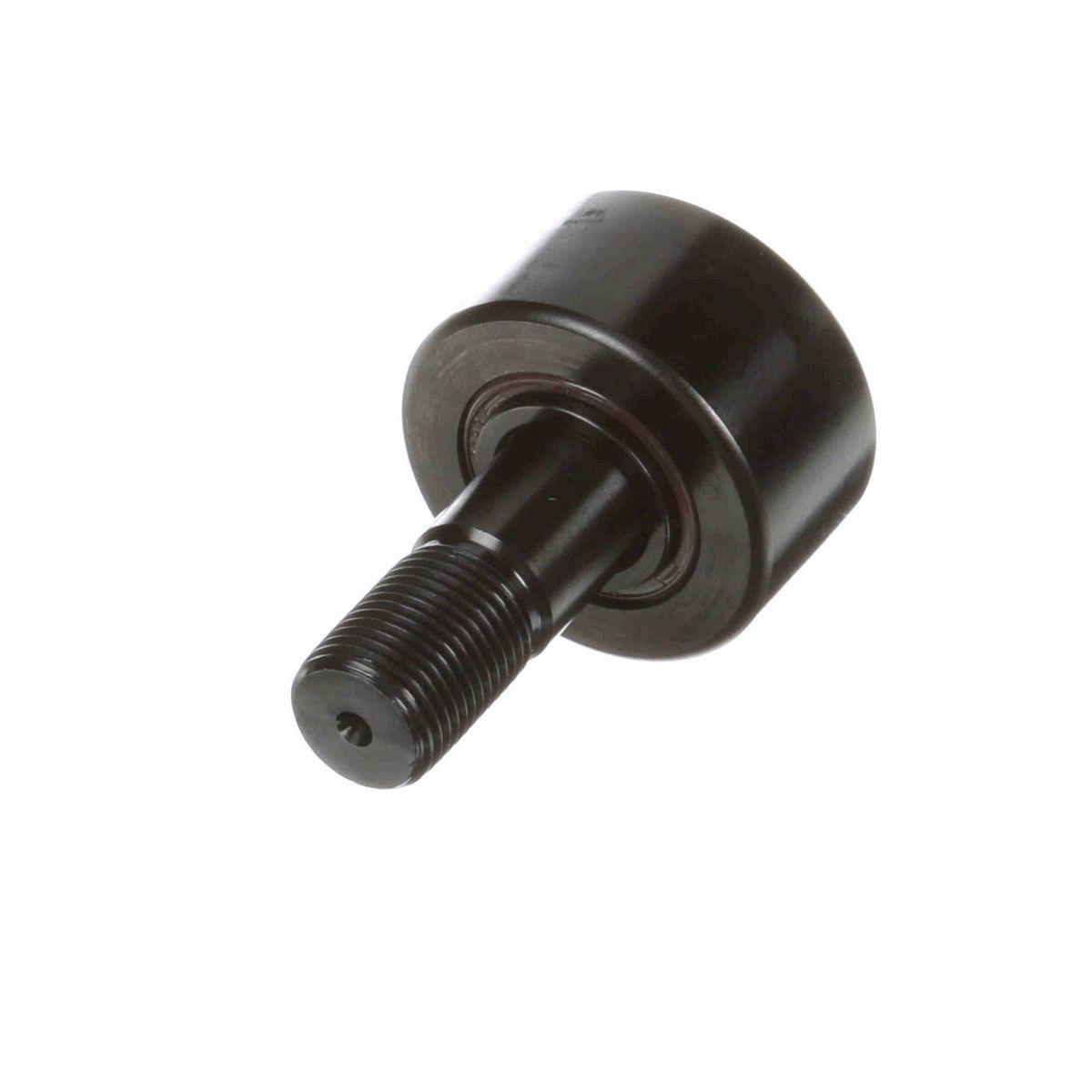

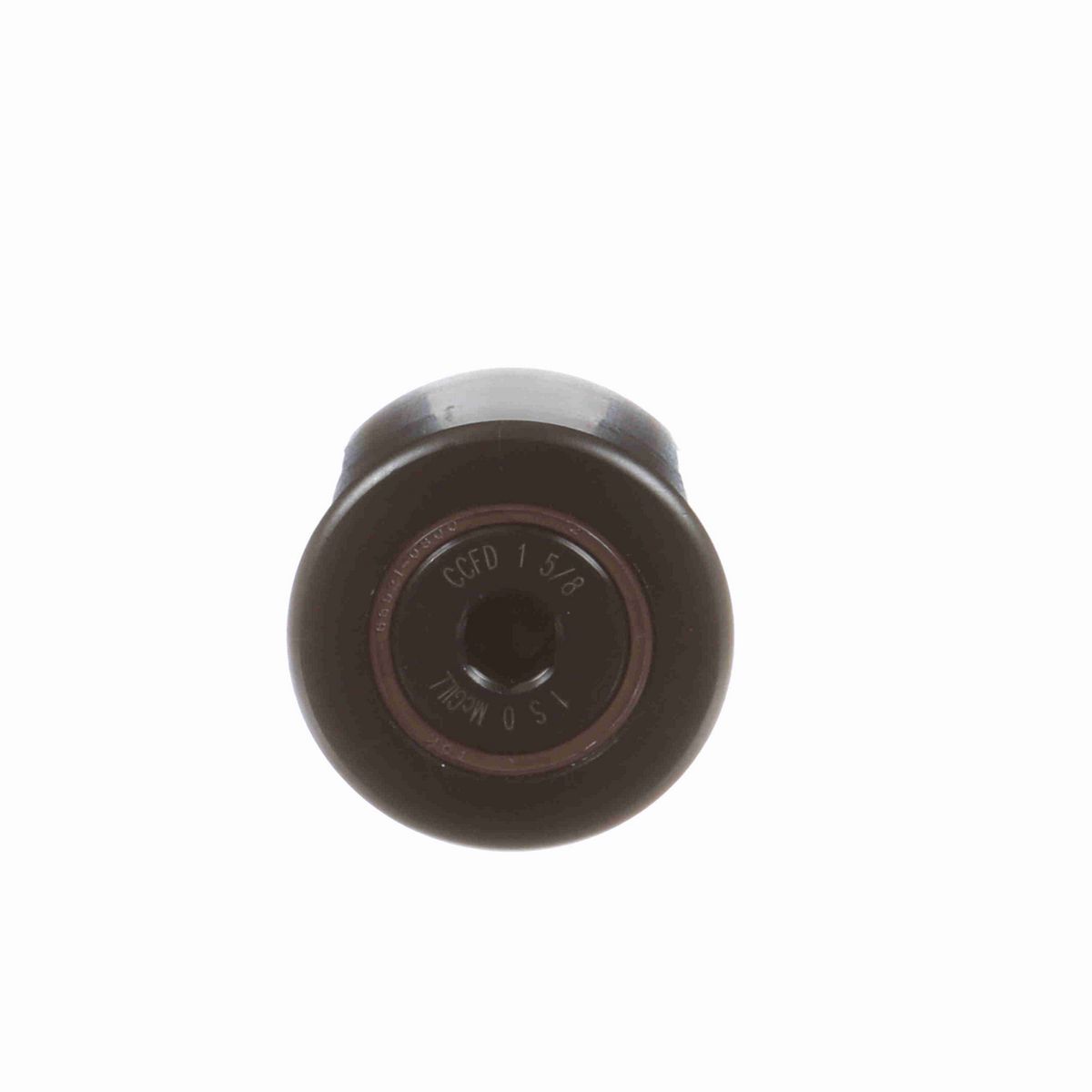

• Heavy duty stud type cam follower
• Crowned outside diameter
• Full complement cylindrical rolling elements
• Hex hole

Dimensions

Crown Radius	20
Threads	5/8-18
Roller Diameter (in)	1.625 in
Roller Width (in)	0.875 in
Minimum Thread Length (in)	0.75 in
Hex Socket (in)	0.3125 in
Stud Length (in)	1.5 in
Stud Diameter (in)	0.625 in
Weight (kg)	0.26 kg

Technical Specifications

Dynamic Radial Rating	5,400
Limiting Speed	2,350
Rolling Element	Cylindrical Roller
Sealing	Sealed
Series	Heavy Duty Inch CAMROL®
Adjustment	None
O.D. Configuration	Crowned
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	5,400 lb
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Static Load Rating	3,800
Stud Type	Standard Stud
Platform	HEAVY-DUTY CAMROL®
Ability to Relubricate	No
Clamping Torque (in-lbf)	650 lbs

General Specifications

UPC	726166119331
Weight	0.58 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.50.0000
Country of Origin	Mexico
