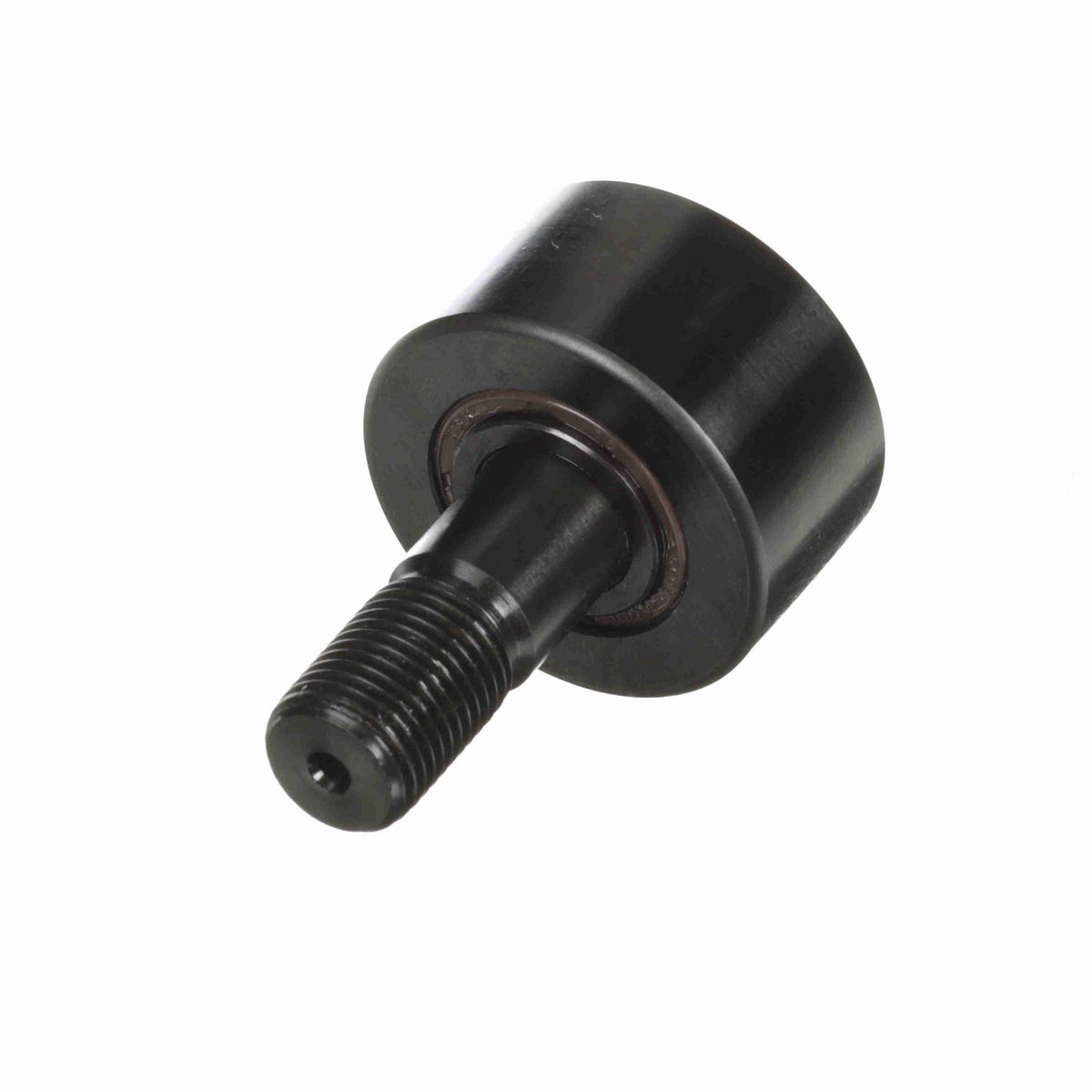

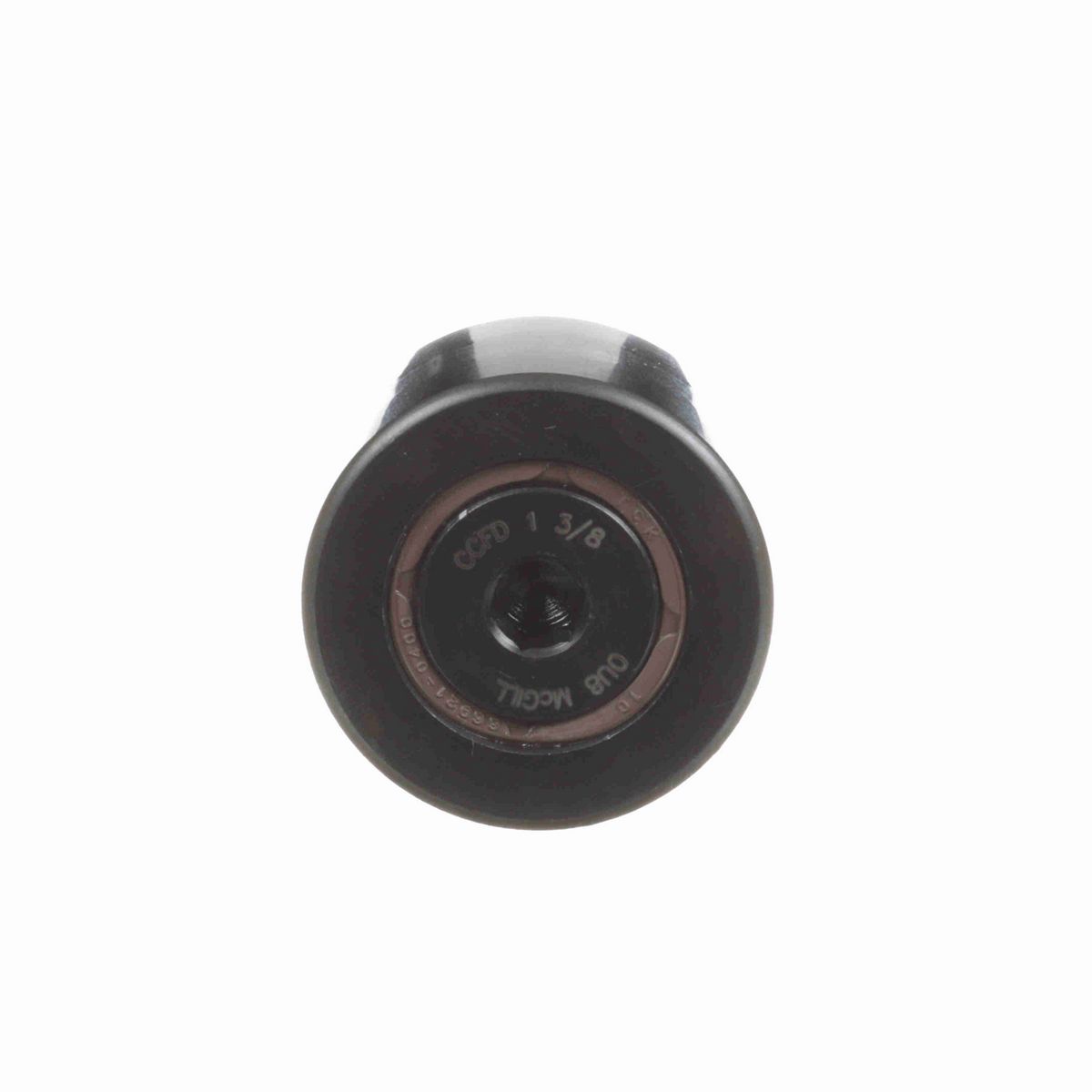

• Heavy duty stud type cam follower
• Crowned outside diameter
• Full complement cylindrical rolling elements
• Hex hole

Dimensions

Crown Radius	14
Threads	1/2-20
Roller Diameter (in)	1.375 in
Stud Diameter (in)	0.5 in
Minimum Thread Length (in)	0.63 in
Hex Socket (in)	0.25 in
Roller Width (in)	0.75 in
Stud Length (in)	1.25 in
Weight (kg)	0.15 kg

Technical Specifications

Hex/Slot	Hex Hole
Adjustment	None
O.D. Configuration	Crowned
Series	Heavy Duty Inch CAMROL®
Limiting Speed	2,800
Rolling Element	Cylindrical Roller
Sealing	Sealed
Dynamic Radial Rating	3,600
Material	Bearing Steel, Black Oxide Finish
Platform	HEAVY-DUTY CAMROL®
Tolerance Class	P0 Equivalent
Static Load Rating	2,190
Stud Type	Standard Stud
Roller Shape	Crowned
Dynamic Load Rating (lb)	3,600 lb
Clamping Torque (in-lbf)	350 lbs
Ability to Relubricate	No

General Specifications

UPC	726166119324
Weight	0.34 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.50.0000
Country of Origin	Mexico
