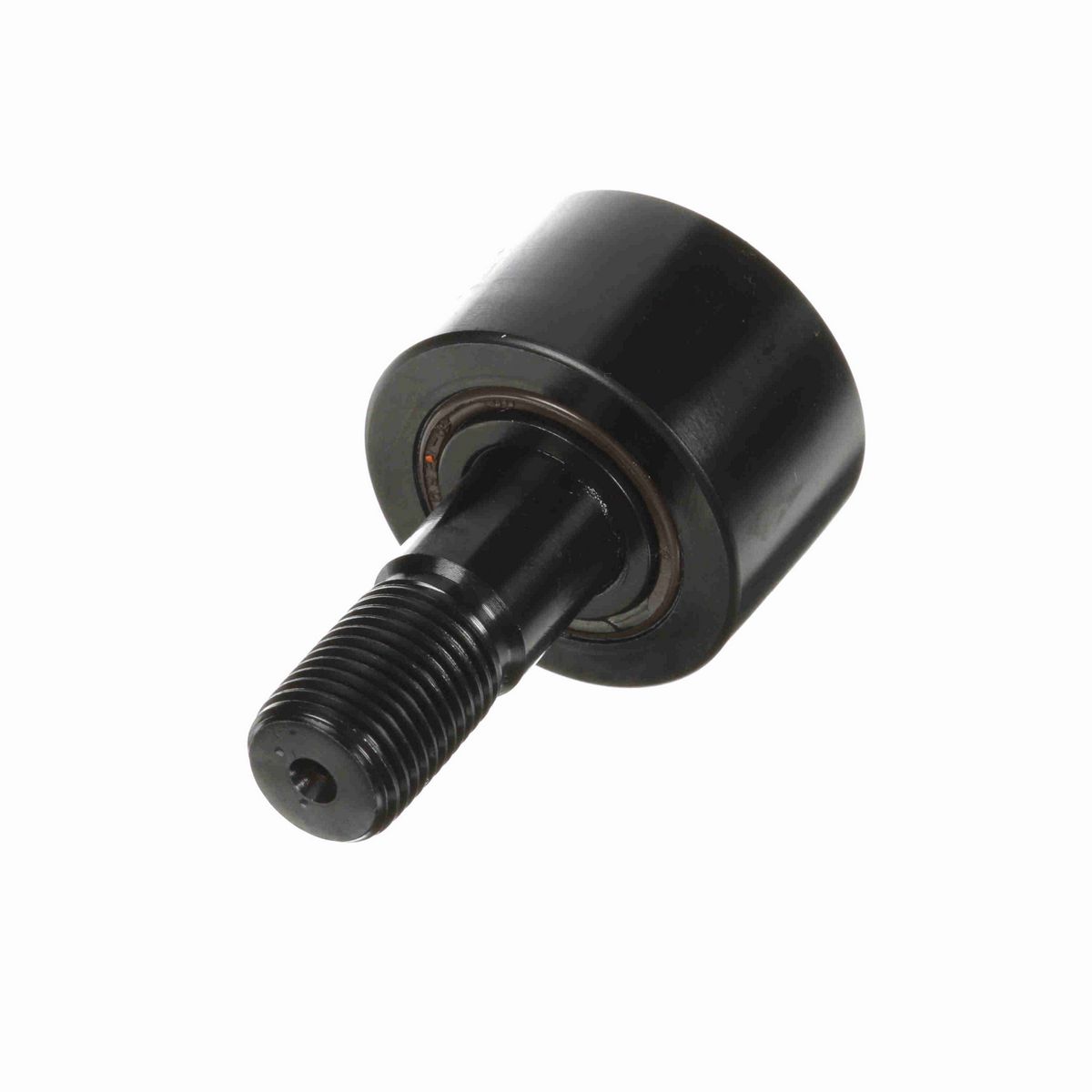

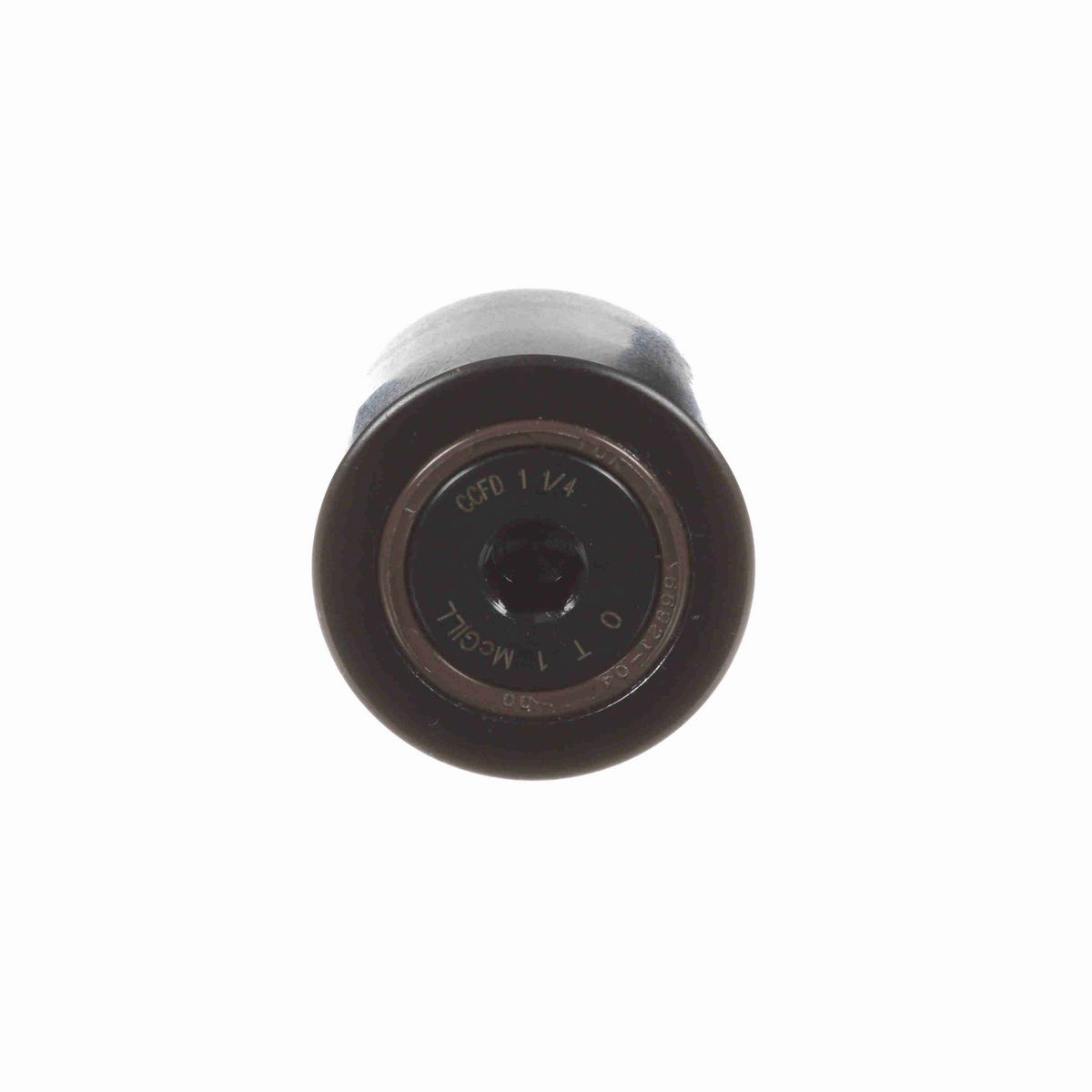

• Heavy duty stud type cam follower
• Crowned outside diameter
• Full complement cylindrical rolling elements
• Hex hole

Dimensions

Crown Radius	14
Threads	1/2-20
Roller Diameter (in)	1.25 in
Hex Socket (in)	0.25 in
Minimum Thread Length (in)	0.63 in
Stud Diameter (in)	0.5 in
Stud Length (in)	1.25 in
Roller Width (in)	0.75 in
Weight (kg)	0.13 kg

Technical Specifications

Hex/Slot	Hex Hole
Rolling Element	Cylindrical Roller
Limiting Speed	3,100
O.D. Configuration	Crowned
Adjustment	None
Sealing	Sealed
Dynamic Radial Rating	3,300
Series	Heavy Duty Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Dynamic Load Rating (lb)	3,300 lb
Platform	HEAVY-DUTY CAMROL®
Stud Type	Standard Stud
Static Load Rating	2,190
Clamping Torque (in-lbf)	350 lbs
Ability to Relubricate	No

General Specifications

UPC	726166119607
Weight	0.29 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.50.0000
Country of Origin	Mexico
