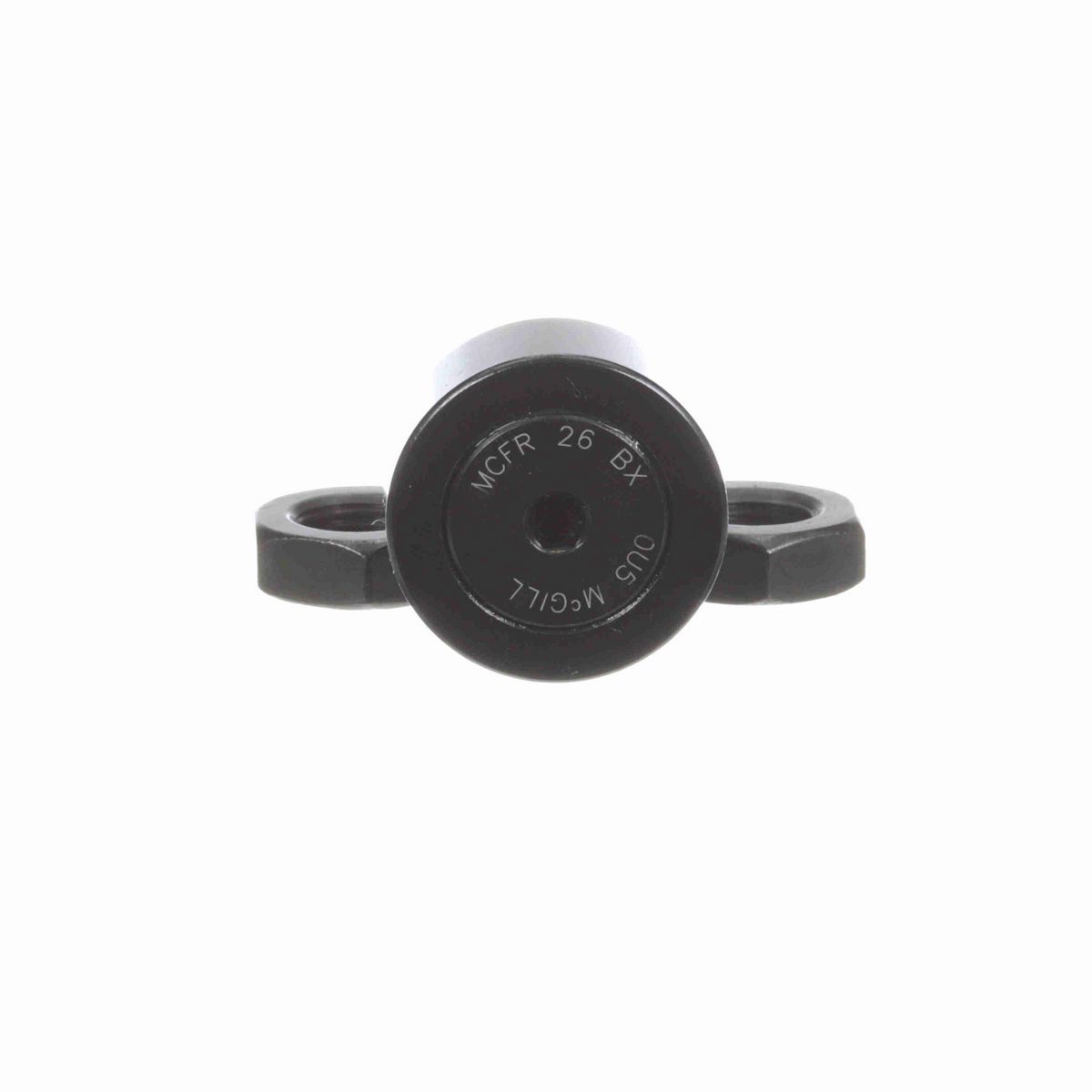

• Metric stud type cam follower
• Cylindrical outside diameter
• Retained (caged) needle rolling elements
• Hex hole

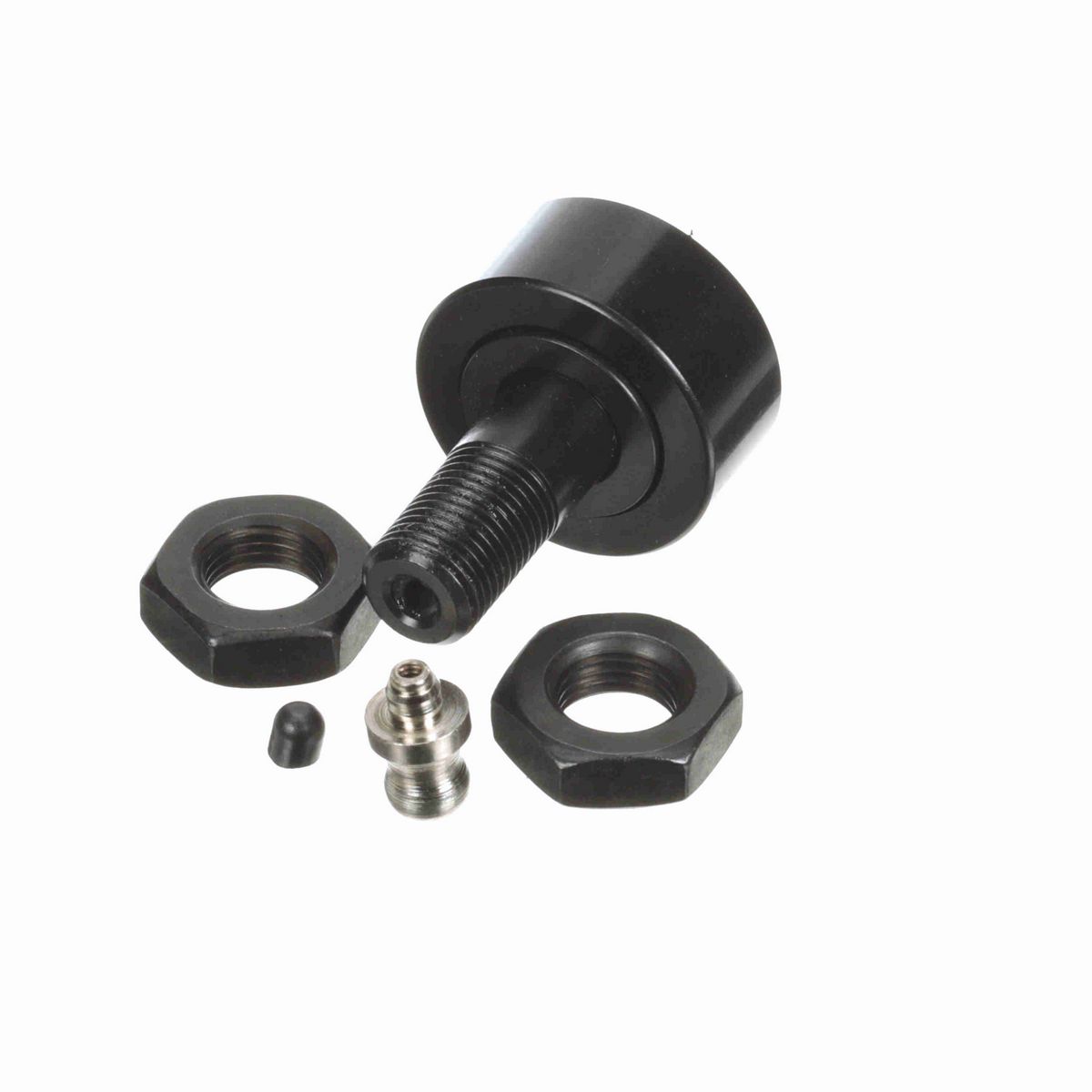

• Jam nuts and lube fitting included

Dimensions

Threads	M10x1
Roller Diameter (mm)	26 mm
Hex Socket (mm)	4 mm
Stud Diameter (mm)	10 mm
Lubrication Fitting Size (mm)	4 mm
Stud Length (mm)	23 mm
Minimum Thread Length (in)	12 in
Reamed Hole (mm)	4 mm
Overall Length (mm)	36 mm
Roller Width (mm)	12 mm
Weight (kg)	0.09 kg

Technical Specifications

Rolling Element	Needle Roller - Caged
Sealing	Unsealed
O.D. Configuration	Cylindrical
Series	Metric CAMROL®
Dynamic Track Roller Load Rating (N)	5,200 N
Adjustment	None
Dynamic Radial Rating	1,169
Limiting Speed	13,500
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Static Track Roller Load Rating	6,050
Static Load Rating	6,050
Roller Shape	Cylindrical
Stud Type	Standard Stud
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Industry Standard	DIN
Dynamic Load Rating (N)	6,280 N
Ability to Relubricate	Yes
Clamping Torque (Nm)	15 N·m

General Specifications

UPC	726166018245
Weight	0.19 LB
Packaged Length	1.40 IN
Packaged Width	1.30 IN
Packaged Height	1.60 IN
Country of Origin	China
