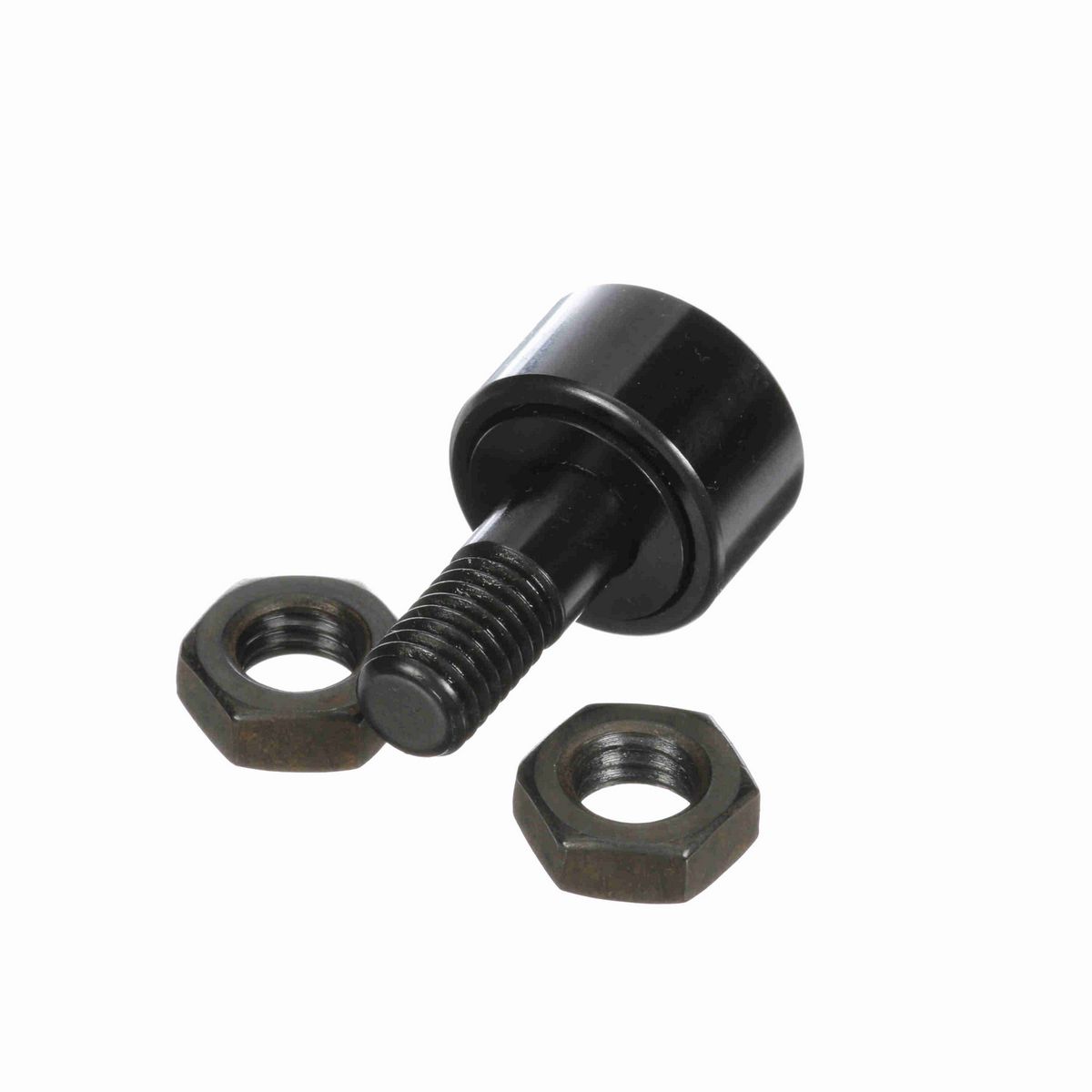

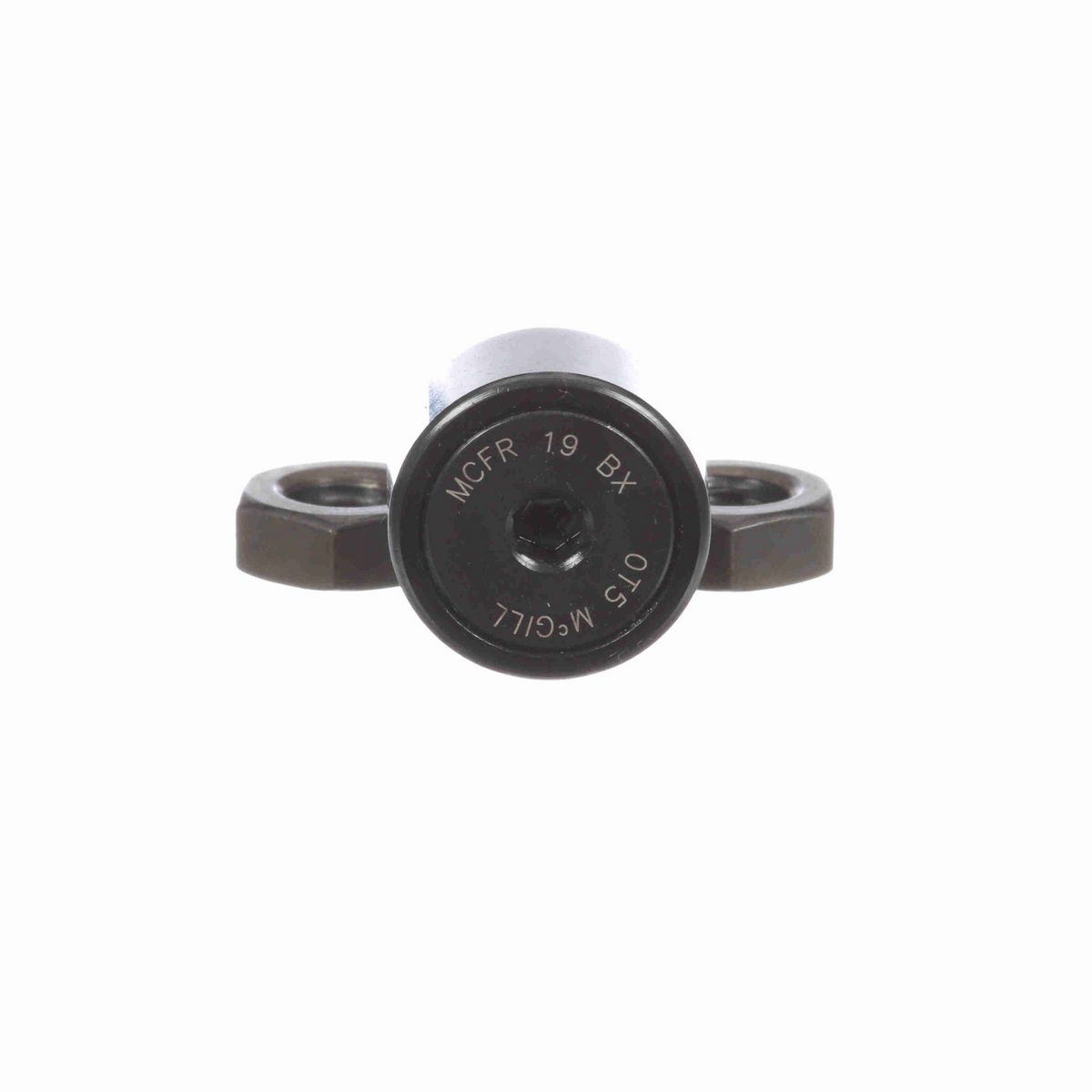

• Metric stud type cam follower
• Cylindrical outside diameter
• Retained (caged) needle rolling elements
• Hex hole
• Jam nuts and lube fitting included

Dimensions

Threads	M8x1.25
Roller Diameter (mm)	19 mm
Lubrication Fitting Size (mm)	4 mm
Roller Width (mm)	11 mm
Reamed Hole (mm)	4 mm
Hex Socket (mm)	4 mm
Stud Length (mm)	20 mm
Stud Diameter (mm)	8 mm
Overall Length (mm)	32 mm
Minimum Thread Length (in)	11 in
Weight (kg)	0.04 kg

Technical Specifications

Adjustment	None
Series	Metric CAMROL®
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Caged
Dynamic Radial Rating	839
Limiting Speed	15,500
Dynamic Track Roller Load Rating (N)	3,730 N
Sealing	Unsealed
Material	Bearing Steel, Black Oxide Finish
Industry Standard	DIN / JIS
Static Load Rating	4,140
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	1,550 lb
Stud Type	Standard Stud
Platform	CAMROL®
Static Track Roller Load Rating	4,140
Roller Shape	Cylindrical
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Dynamic Load Rating (N)	4,510 N
Clamping Torque (Nm)	8 N·m

General Specifications

UPC	726166015688
Weight	0.08 LB
Packaged Length	1.65 IN
Packaged Width	1.38 IN
Packaged Height	1.38 IN
Country of Origin	China
