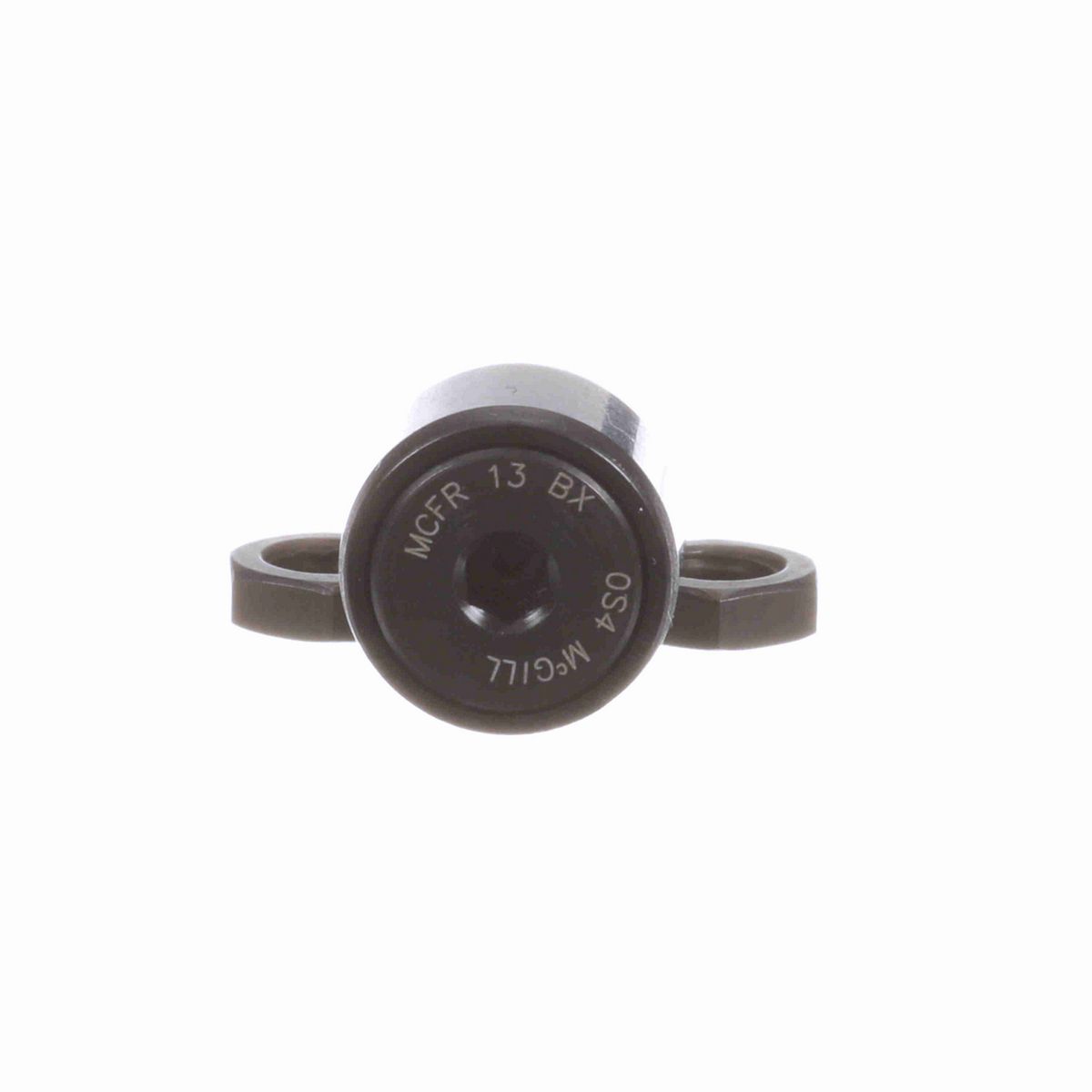

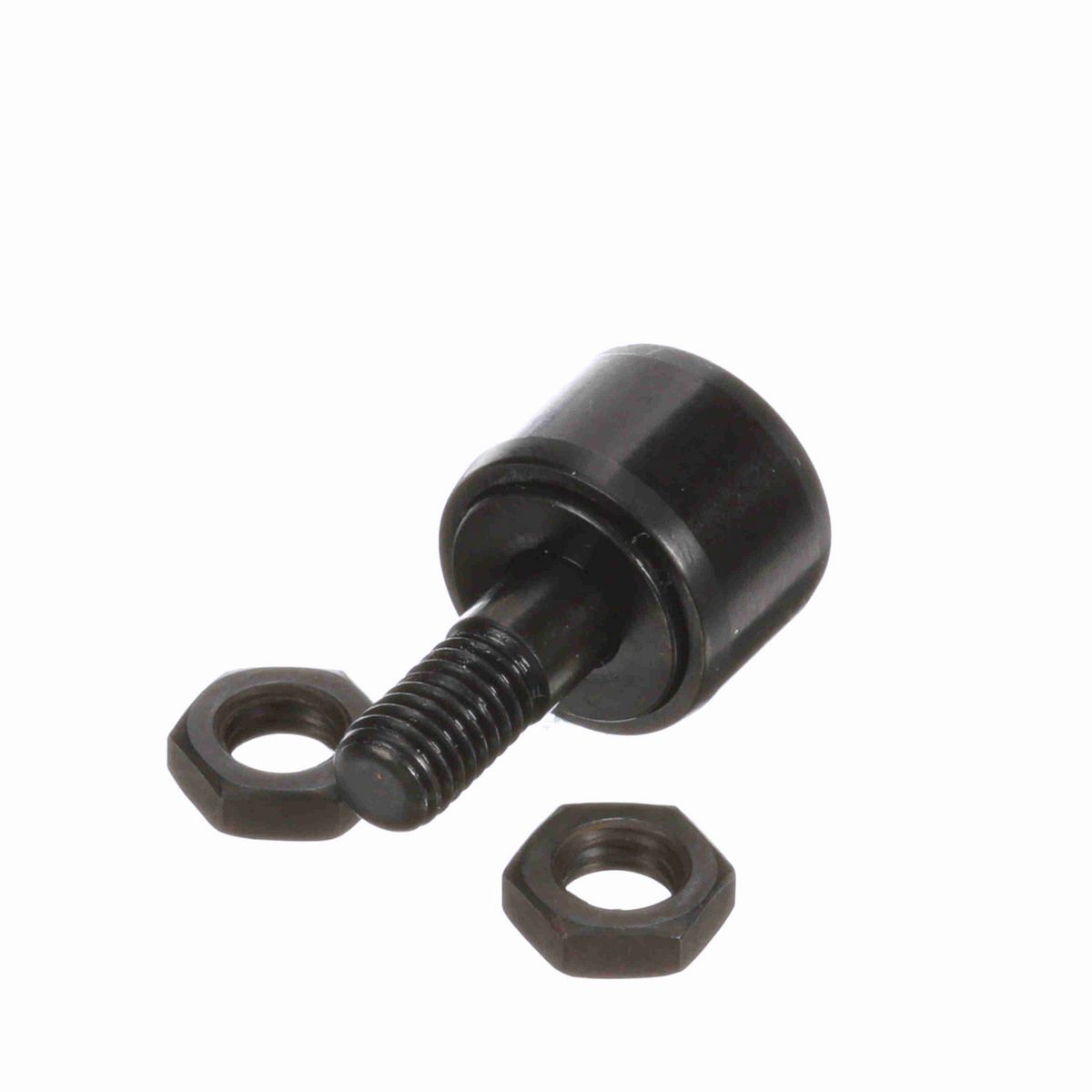

• Metric stud type cam follower
• Cylindrical outside diameter
• Retained (caged) needle rolling elements
• Hex hole
• Jam nuts and lube fitting included

Dimensions

Threads	M5x0.8
Roller Diameter (mm)	13 mm
Stud Diameter (mm)	5 mm
Roller Width (mm)	9 mm
Overall Length (mm)	23 mm
Hex Socket (mm)	3 mm
Stud Length (mm)	13 mm
Reamed Hole (mm)	3.1 mm
Lubrication Fitting Size (mm)	3.1 mm
Minimum Thread Length (in)	7.5 in
Weight (kg)	0.01 kg

Technical Specifications

O.D. Configuration	Cylindrical
Series	Metric CAMROL®
Sealing	Unsealed
Dynamic Track Roller Load Rating (N)	2,060 N
Dynamic Radial Rating	463
Adjustment	None
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Caged
Limiting Speed	20,000
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Industry Standard	DIN / JIS
Static Track Roller Load Rating	1,650
Stud Type	Standard Stud
Static Load Rating	1,650
Platform	CAMROL®
Clamping Torque (Nm)	2.2 N·m
Dynamic Load Rating (N)	2,450 N
Ability to Relubricate	Yes

General Specifications

UPC	726166014032
Weight	0.03 LB
Packaged Length	1.65 IN
Packaged Width	1.38 IN
Packaged Height	1.38 IN
Country of Origin	China
